Operator’s Manual

Automower™

Please read this Operator’s Manual

carefully before using the machine.

The concept behind the

Automower™ comes

straight out of nature -

the principle of the

grazing animal. Which

means basically that the

grass is cut a little and

often. This is not only

more efficient, it’s better

for the grass too.

electrolux

automower

Symbols

_______________________________________________

Symbols on Automower™

______________________________

Symbols in the Operator’s Manual

______________________

Safety Instructions

____________________________________

Use

____________________________________________________

Transport

_______________________________________________

Maintenance

___________________________________________

Presentation

__________________________________________

Function of Automower™

_____________________________

Capacity

______________________________________________

Installation

___________________________________________

A. Preparations

_______________________________________

B. Planning the installation

____________________________

C. Placing the charging station

________________________

D. Charging the battery

________________________________

E. Laying out the boundary wire

_______________________

F. Connecting the boundary wire

______________________

G. Checking the installation

___________________________

H. Linking the Automower™ to the charging station

___

More than one Automower™ in a garden

______________

Control panel

_________________________________________

Shortcuts

______________________________________________

Programs

_____________________________________________

Select

_________________________________________________

Numbers

______________________________________________

Main switch

___________________________________________

Menu functions

______________________________________

Main menu

____________________________________________

1. Commands

_________________________________________

2. Timer

_______________________________________________

3. Garden

_____________________________________________

4. Settings

____________________________________________

Use

___________________________________________________

Charging a discharged battery

________________________

Starting the Automower™

_____________________________

Using the timer

________________________________________

Stopping the Automower™

____________________________

Restart

________________________________________________

Switching off the Automower™

________________________

Adjusting the cutting height

____________________________

Maintenance

_________________________________________

Battery

________________________________________________

Winter Storage

________________________________________

Cleaning

______________________________________________

Replacing the blades

__________________________________

Trouble shooting

_____________________________________

Technical Data

_______________________________________

EU declaration of Conformity

_______________________

4 electrolux

automower

electrolux

automower

Symbols

Symbols on Automower™

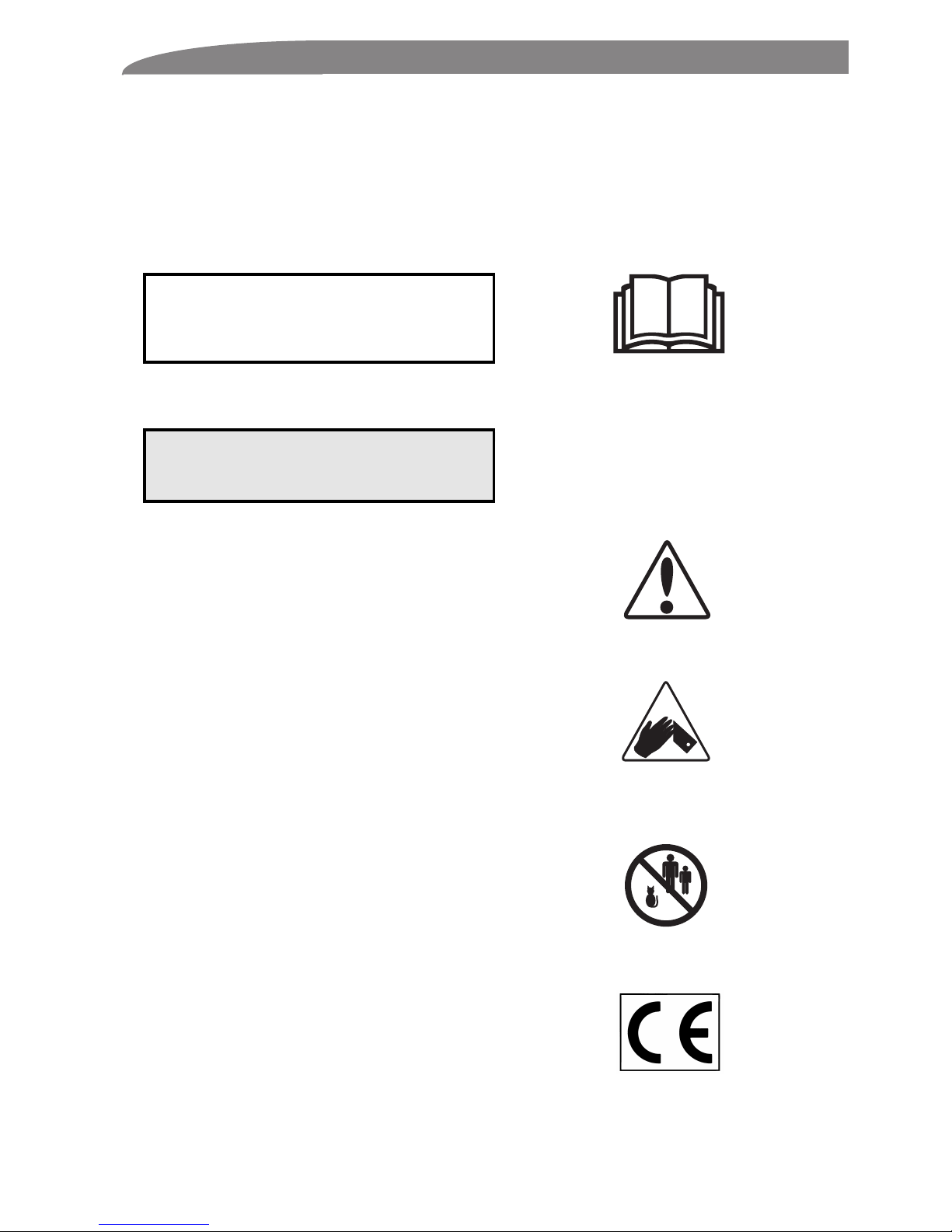

These are the symbols on the lawn mower. Study them

carefully so you understand their signiﬁcance.

• The warnings and safety instructions in this

Operator’s Manual must be carefully followed if the

mower is to be used safely and efﬁciently.

• Keep your hands and feet away from the rotating

blades. Never place your hands or feet close to or

under the body when Automower™ is in operation.

• Never use Automower™ if persons, especially

children, or pets, are in the immediate vicinity.

• This product conforms to the applicable

EU Directives.

IMPORTANT INFORMATION

Read through the Operator’s Manual carefully

and understand the content before using your

Automower™.

1001-003

WARNING

Automower™ can be dangerous if

incorrectly used.

1001-002

3012-274

3012-273

6001-024

6 electrolux

automower

Symbols

Symbols in the Operator’s Manual

These symbols can be found in the Operator’s Manual.

Study them carefully so you understand their

signiﬁcance.

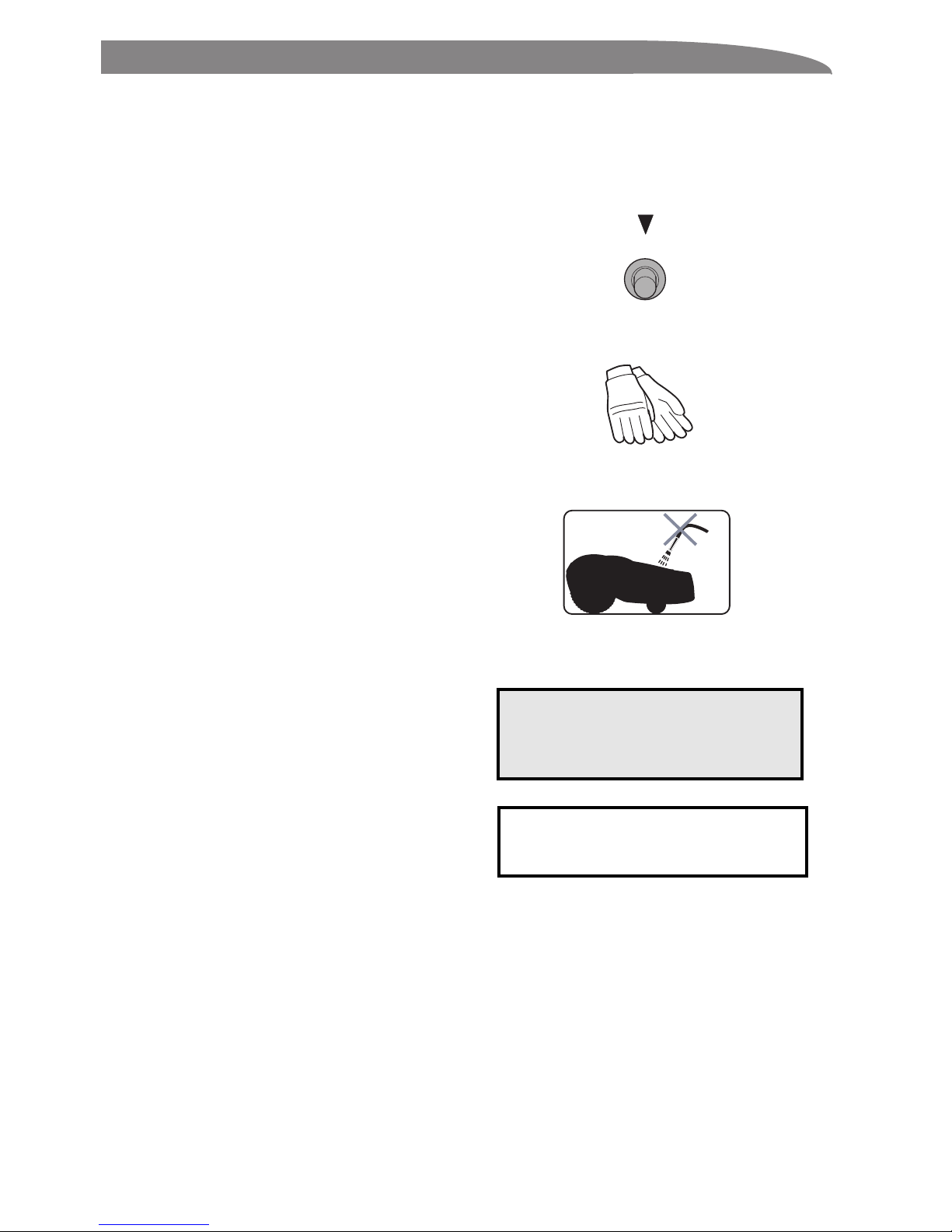

• Inspection and/or maintenance must be carried out

with the main switch set to ”OFF”.

• Always wear protective gloves when working with

the mower’s underframe.

• Never use a high-pressure washer or even running

water to clean the Automower™.

• The warning box warns of the risk of

personal

injury

, especially if the instructions are not followed.

• The information box indicates the risk of

material

damage

, especially if the instructions are not

followed. The box is also used where there is a risk

of user error.

3012-288

OFF

3012-272

3012-271

WARNING

Xxxx xxxxx xxxx xxxx xxx xxx.

Xxxx xxxxx xxxx xxx xxx xxxx.

IMPORTANT INFORMATION

Xxxxxx xxx xxxx xxxxxxx xxx

xxxx xxxx xxxxx xxx.

electrolux

automower

Safety Instructions

Use

• Please read the Operator's Manual carefully and

make sure you understand the instructions before

using Automower™.

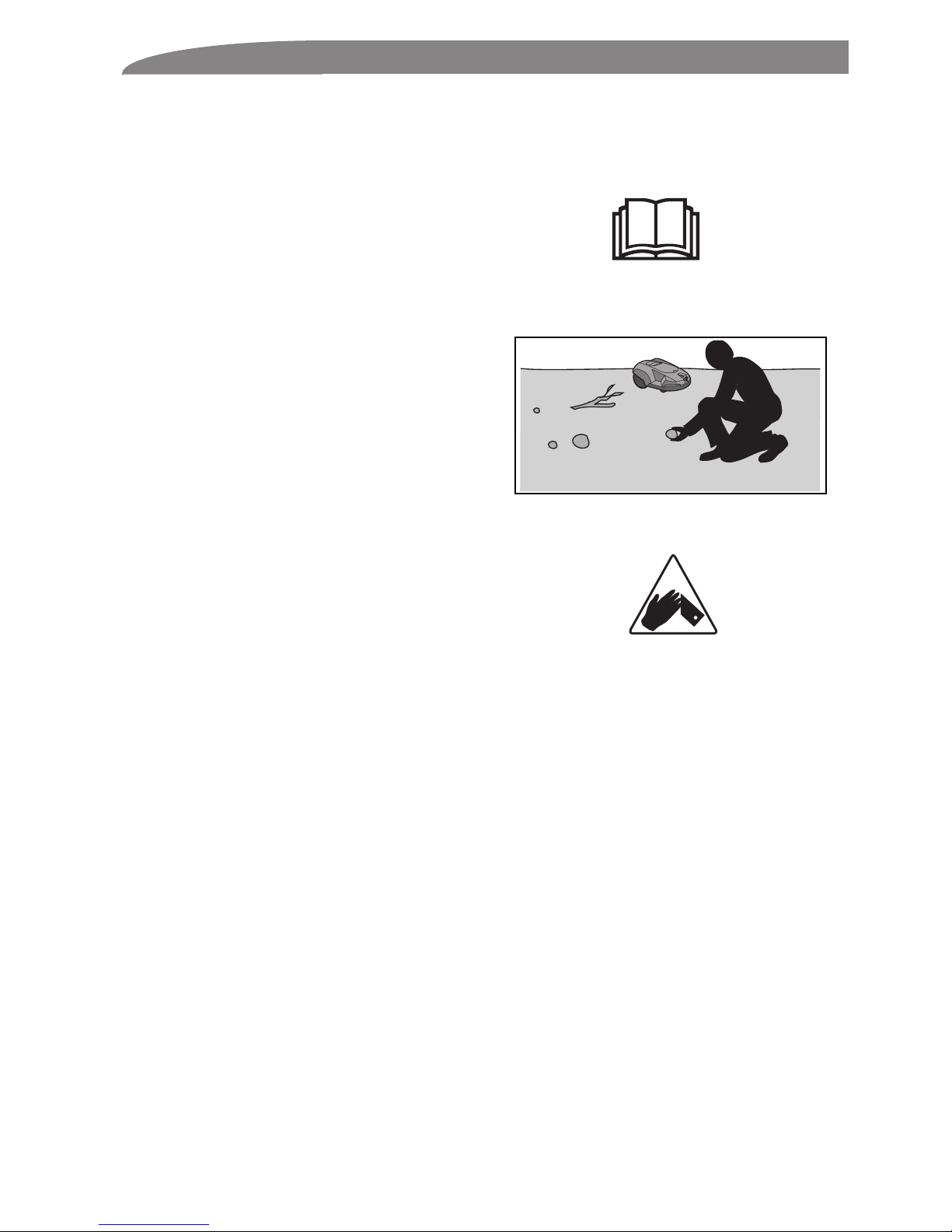

• Check that there are no stones, branches, tools,

toys or other objects on the lawn that can damage

the blades and cause the mower to stop.

• Start the Automower™ according to the

instructions.

When the main switch is in the ”ON” position; make

sure you keep your hands and feet away from the

rotating blades. Never put your hands and feet

under the mower.

• Never lift up the Automower™ or carry it around

when it is running.

• Do not let persons who do not know how the

Automower™ works and behaves use the mower.

• Do not put anything on top of the Automower™ or

its charging station.

• Do not allow the Automower™ to be used with a

defective blade disc or body. Neither should it be

used with defective blades, screws, nuts or cables.

• Do not use the Automower™ if the main switch

does not work.

• Always switch off the Automower™ using the main

switch when you do not intend to use the mower.

• The Automower™ must never be used at the same

time as a sprinkler. In this case use the timer

function, see ”2. Timer” on page 29, so the mower

and sprinkler never run simultaneously.

1001-003

3012-396

3012-274

8 electrolux

automower

Safety Instructions

Transport

The original packaging should be used when

transporting the Automower™ over long distances.

To safely move from or within the working area:

1. Press the STOP button to stop the mower.

If the stop protection, (see page 39) used to

prevent theft, has been activated enter the ﬁrst

number of the PIN code.

You select the four digit PIN code when you start

the mower for the ﬁrst time, see page 24.

2. Switch off the main switch if the mower is to be

moved outside of the working area.

3. Carry the mower by the handle at the rear under

the mower. Carry the mower with the top against

your body.

Maintenance

• Inspect the Automower™ each week and replace

any damaged or worn parts.

Check especially that the blades and blade disc are

not damaged. Replace all blades and screws at the

same time if necessary so that the rotating parts are

balanced, see ”Maintenance” on page 46.

3012-388

3012-395

3012-409

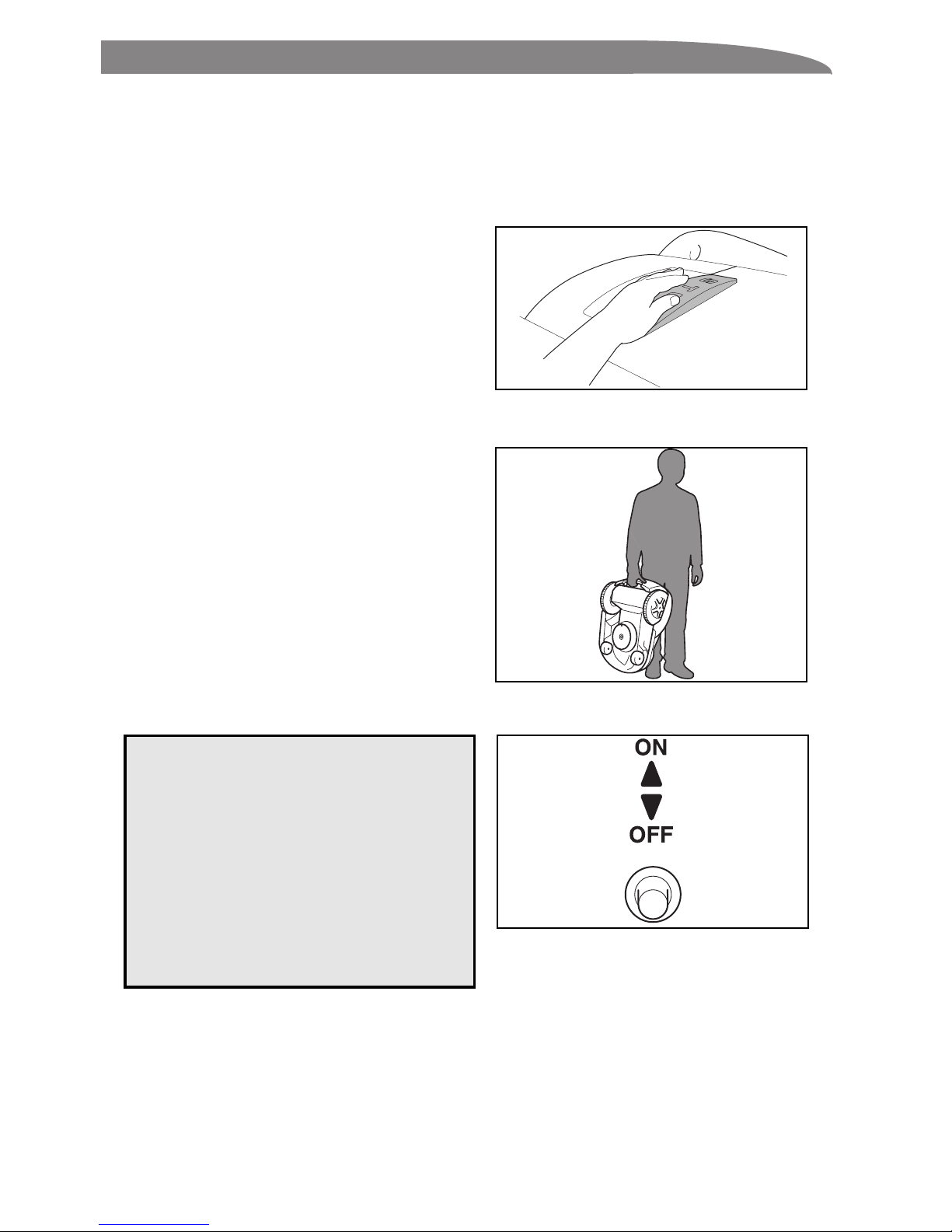

WARNING

When the mower is turned upside down

the main switch must always be set to

the OFF position.

The main switch should be set to the

OFF position during all work on the

mower’s underframe, such as cleaning

or replacing the blades.

The beeps (5 beeps in 5 seconds) warn

that the blade disc is about to start, if the

beeps are not audible the Automower™

is set to sound off.

electrolux

automower

Presentation

Congratulations on your choice of an exceptionally

high quality product.

To get the best results from your Automower™

requires knowledge of its function. This chapter

contains information you should be aware of when

planning the installation.

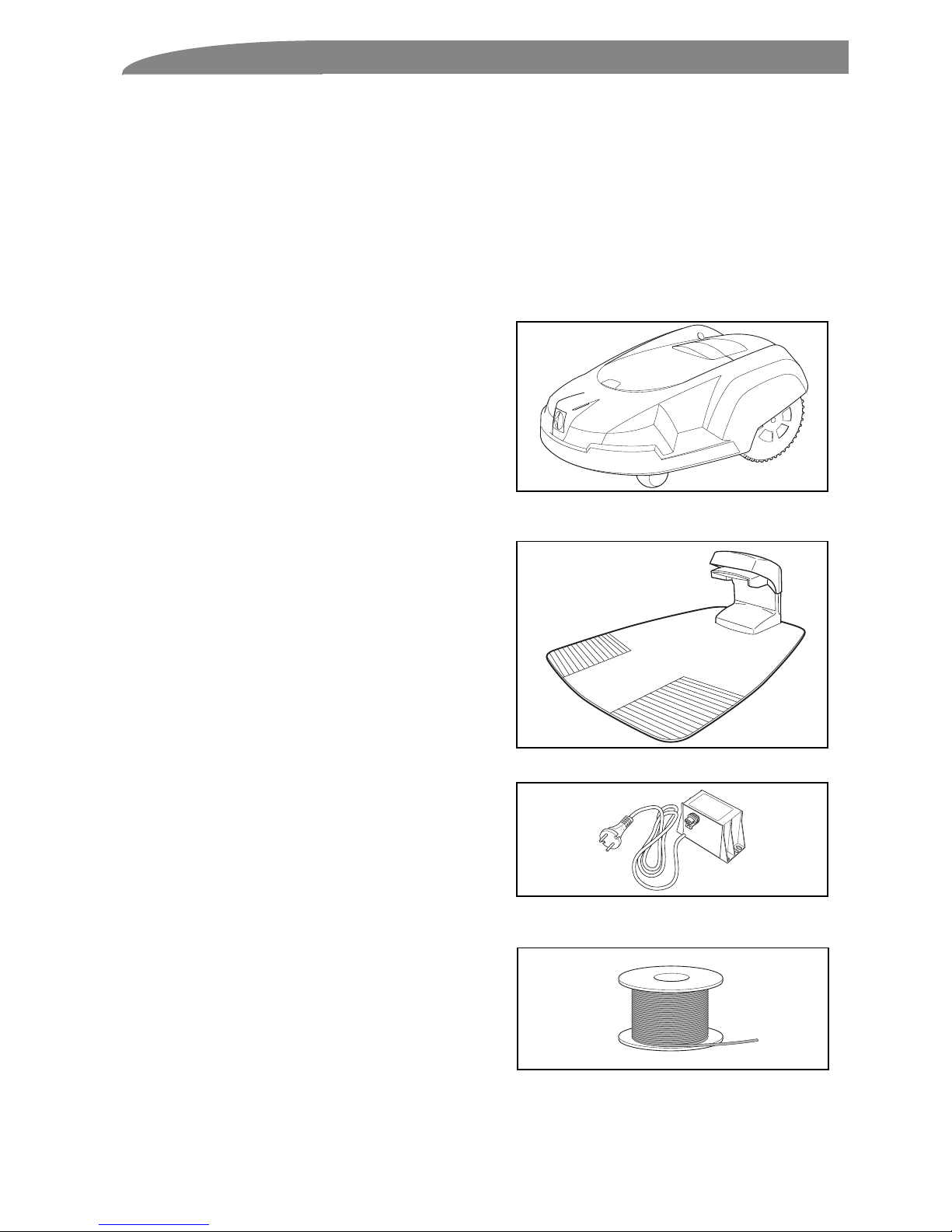

Installation of the Electrolux Automower™ includes

four main components:

Automower™

, an automatic lawn mower that mows

the lawn by moving in essentially an irregular pattern.

The mower is powered by a maintenance-free battery.

Charging station

, where your Automower™ returns

when the charge level in the battery becomes too low.

The charging station has three functions:

• To send control signals along the boundary wire.

• To send out signals so the Automower™ ﬁnds the

charging station.

• To charge the Automower™ battery.

Transformer

, which is connected between the

charging station and a 230V wall socket. The

transformer is connected to the wall socket via an

integrated power cord and to the charging station via

a 20 m long low voltage cable. The length of the low

voltage cable must not be changed.

Boundary wire

, laid in a loop around the Automower’s

working area. The wire is laid around the edges of the

lawn and around objects and plants that the mower

must not run into.

The length of boundary wire needed in an installation

is the circumference of the working area plus a few

extra metres to lay around ”islands”, objects and

plants. A few extra metres are also required for any

subsequent adjustments. The boundary wire supplied

for the installation is 250 m long. If this is not sufﬁcient

more wire can be purchased, with a connector, and

spliced onto the existing wire.

3012-411

3012-216

3012-220

3012-221

10 electrolux

automower

Presentation

Function of Automower™

Working method

The Automower™ automatically mows the lawn.

It continuously combines mowing and charging.

The charging station sends out a signal that the

Automower™ can sense at a distance of 6 - 8 metres.

The mower starts to seek out the charging station

when the capacity of the battery becomes too low. The

Automower™ does not mow when it is searching for

the charging station.

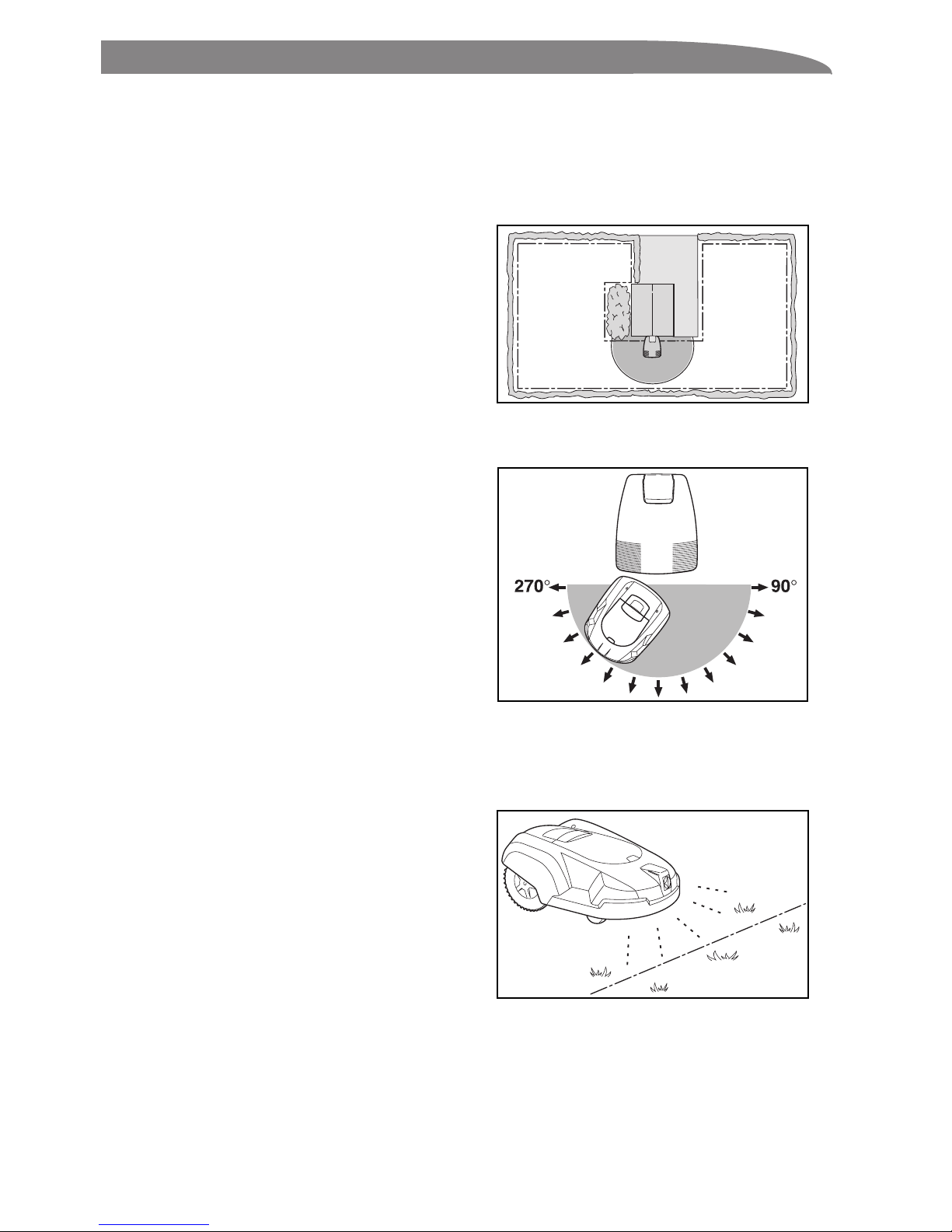

When the battery is charged the mower reverses, turns

around and leaves the charging station in a randomly

selected direction within the exit sector 90°-270°.

To make it easier for the Automower™ to reach all

parts of the garden you can manually set how the

mower will leave the charging station, see ”3. Garden”

on page 31.

When the Automower™ body hits an obstacle, the

mower reverses and selects a new direction.

Two sensors, at the front and back on the

Automower™, sense when the mower approaches the

boundary wire. The Automower™ overruns the wire by

up to 27 centimetres before it turns. The overrun length

can be set, see ”Drive past wire (3-2)” on page 34.

3012-233

3012-379

3012-380

Otros manuales para Automower G2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Electrolux

Electrolux

Electrolux Flymo Roller Compact 400 Manual de usuario

Electrolux

Electrolux 11, 5CV T 92 M EJA Manual de usuario

Electrolux

Electrolux Flymo RE400 Manual de funcionamiento

Electrolux

Electrolux Lawn Mower Manual de usuario

Electrolux

Electrolux Supreme 300L Manual de usuario

Electrolux

Electrolux LM2154CMD Manual de usuario

Electrolux

Electrolux FLYMO RE320 Manual de funcionamiento

Electrolux

Electrolux LC400 Manual de usuario

Electrolux

Electrolux Flymo Micro Compact 300 Plus Manual de funcionamiento

Electrolux

Electrolux FLYMO RE320 Manual de funcionamiento

Electrolux

Electrolux Flymo Contour Manual de usuario

Electrolux

Electrolux M1033 E Manual de usuario

Electrolux

Electrolux 180H122 Manual de usuario

Electrolux

Electrolux 4546P BIO Manual de usuario

Electrolux

Electrolux QUICKSILVER 46S Manual de usuario

Electrolux

Electrolux flymo micro lite Manual de usuario

Electrolux

Electrolux MBO016 Manual de usuario

Electrolux

Electrolux RC400 Manual de usuario

Electrolux

Electrolux 6053SD Manual de usuario

Electrolux

Electrolux RE460 Manual de usuario

Electrolux

Electrolux 6053SD Guía de configuración

Electrolux

Electrolux Bestgreen BM135H107 Manual de usuario

Electrolux

Electrolux Power Trim ET500 Manual de usuario

Electrolux

Electrolux BM11TM92 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
