Electrolux 5553SD Guía de configuración

181795 Rev. 1 1.12.02 BY/rad

ILLUSTRATED PARTS BREAKDOWN

ELECTROLUX

5.5 HORSEPOWER

21" MULTI-CUT LAWN MOWER

MODEL NO. 5553SD (PM5553HW3A)

964 77 04-00

ROTARY LAWN MOWER - - MODEL NUMBER 5553SD (PM5553HW3A) PRODUCT NUMBER 964 77 04-00

KEY PART

NO. NO. DESCRIPTION

1 532 17 80-67 Upper Handle

2 532 15 36-05 Lower Handle

3 532 17 02-87 Control Bar

4 532 13 08-61 Engine Zone Control Cable

5 532 13 19-59 Handle Bolt

6 532 17 01-46 Handle Knob

7 532 05 17-93 HairpinCotter

8 532 06 64-26 Wire Tie

9 532 18 04-79 Rear Door Kit (Incl. Key #16 & 17)

10 532 12 84-15 Pop Rivet

11 532 18 25-38 Support Bracket LH

12 532 18 25-39 Support Bracket RH

13 817 06 04-10 Screw 14-20 x 5/8

14 532 12 25-43 Handle Bracket Assembly (Left)

15 532 18 25-44 Handle Bracket Assembly (Right)

16 532 18 00-71 Spring LH

17 532 18 00-72 SpringRH

18 532 13 20-04 Keps Locknut 1/4-20

19 532 17 95-85 Rope Guide

20 532 17 92-05 Foot Guard, C.E.

21 532 05 45-83 Screw, Tapping 1/4-20 x 1/2

22 532 08 45-96 Engine Pulley

23 532 08 76-77 Hi-Pro Key #505

24 - - - Engine, Honda, Model No. GCV160

(order parts from engine manufacturer)

25 532 15 04-06 Hex Head Thread Rolling Srew 3/8-16 x 1-1/8

26 532 08 39-23 Hex Flange Nut

27 532 18 17-85 Wheel

28 532 16 08-28 Shoulder Bolt 5/16-18 x .33

29 532 05 71-43 Wave Washer

KEY PART

NO. NO. DESCRIPTION

30 532 18 25-41 Axle Arm Assembly RR

31 532 17 54-78 Selector Knob

32 532 18 25-37 Selector Spring

33 532 06 31-24 Nut 5/16-18

34 532 18 25-42 Axle Arm Assembly LR

35 532 18 06-24 Hubcap

36 532 16 59-12 Bolt

37 532 15 00-78 Thread Cutting Screw w/Sems 5/16-18 x 3/4

38819 11 22-06 Washer

43 532 17 50-83 Bottom Belt Cover

44 532 18 17-97 Lawn Mower Housing (Incl. Key #10, 11, 12& 45)

532 14 54-94

Danger Deal

46 532 18 00-69 Blade Adapter

47 532 17 50-52 Blade 21"

48 532 85 10-74 Hardened Washer

49 532 85 02-63 Helical Washer 3/8-24 x 1-3/8 Gr. 8

50 532 85 10-84 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8

83 532 17 50-66 Mulch Door

84 532 17 57-35 Hinge Bracket Assembly

85 532 17 52-85 Spring

86 532 17 56-50 Rod, Hinge

87 532 06 36-01 Nut

88 532 17 50-71 ClippingDeflector

89 532 18 21-59 Throttle Control

90 532 14 49-29 Screw

- -532 16 10-57 Decal, Self-Propelled, Internal (not shown)

- - 532 18 17-92 Operator’s Manual, Euro

- - 532 18 17-93 Operator’s Manual, Scan

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER 5553SD (PM5553HW3A) PRODUCT NUMBER 964 77 04-00

KEY PART

NO. NO. DESCRIPTION

1 532 17 43-18 Control Cable Assembly

3 532 75 11-52 Locknut #10-24

4 532 15 87-55 Hex Washer Head Screw 1/4-20 x 2.12

5 532 17 54-36 V-Belt

6 532 15 04-95 SpringRetainer

8 532 16 43-78 Hubcap

9 532 14 52-12 Locknut

11 532 18 07-67 Wheel & Tire Assembly

12 812 00 00-58 E-Ring

13 532 13 70-54 Pinion

14 532 18 05-04 Dust Cover

16 532 06 77-25 Washer 1/2 x 1-1/2 x .134

18 532 17 01-43 Selector Knob

26 532 17 52-62 Pan Head Tapping Screw #10-24 x 2-3/4

KEY PART

NO. NO. DESCRIPTION

28 532 18 03-29 Drive Cover

31 532 13 20-10 Hex Flange Nut

32 532 13 70-52 Drive Pulley

35 532 15 15-21 Wheel Adjuster Assembly (Left)

36 532 17 52-58 Gear Case Assembly

37 532 13 70-90 Spring

38 532 06 36-01 Locknut 1/4-20

40 532 07 51-92 Spring

41 532 1515-20 Wheel Adjuster Assembly (Right)

54 532 18 17-94 Grassbag Assembly

55 532 17 57-39 Driveshaft Cover

57 532 17 50-58 Frame

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER PM5553HW3A (5553SD)

PRODUCT NUMBER 964 77 04-00

GEARCASE ASSEMBLY- PART NUMBER 532 17 52-58

KEY PART

NO. NO. DESCRIPTION

1 817 49 04-16 Tapping Screw 1/4-20 x 1-1/4

2 532 18 25-40 Engagement Bracket

3 532 13 70-53 Shifter

4 532 05 70-72 Seal

6 532 04 83-73 Gear Case Halves Kit

(Includes Key Numbers 4 and 7)

7 532 07 78-81 Bearing

8 532 13 70-51 Worm Shaft

9 532 17 52-57 Drive Shaft

10 532 05 70-79 Hardened Washer

11 532 13 14-84 Clutch Yoke

12 532 70 03-43 Bushing

13 532 08 64-47 Plug

14 532 13 70-50 Helical Gear

15 532 75 04-36 Clutch Jaw

16 532 75 03-69 Grease

17 812 00 00-03 E-Ring

18 532 85 08-48 Hi-Pro Key

19 532 12 54-41 Spring Bracket

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

Otros manuales para 5553SD

Este manual sirve para los siguientes modelos

Otros manuales de Cortacésped de Electrolux

Electrolux

Electrolux 4045PDE Manual de usuario

Electrolux

Electrolux FL460 EL 1600 W Manual de usuario

Electrolux

Electrolux LT19A Manual de usuario

Electrolux

Electrolux FLYMO RE320 Manual de funcionamiento

Electrolux

Electrolux Bestgreen BM135H107 Manual de usuario

Electrolux

Electrolux LM2154CMD Manual de usuario

Electrolux

Electrolux M4040 S Manual de usuario

Electrolux

Electrolux P1033 Manual de funcionamiento

Electrolux

Electrolux 40 cm cordless Manual de usuario

Electrolux

Electrolux Flymo Roller Compact 400 Manual de usuario

Electrolux

Electrolux 145PH107 Manual de usuario

Electrolux

Electrolux M1033 E Manual de usuario

Electrolux

Electrolux Flymo Mow n Vac Manual de funcionamiento

Electrolux

Electrolux P145107PH Manual de usuario

Electrolux

Electrolux P 4050SD BIO Manual de usuario

Electrolux

Electrolux BM11TM92 Manual de usuario

Electrolux

Electrolux Automower G2 Manual de usuario

Electrolux

Electrolux PP5553CM Manual de usuario

Electrolux

Electrolux SP185H42LT Manual de usuario

Electrolux

Electrolux Lawn Mower Manual de usuario

Electrolux

Electrolux 12-107 Manual de usuario

Electrolux

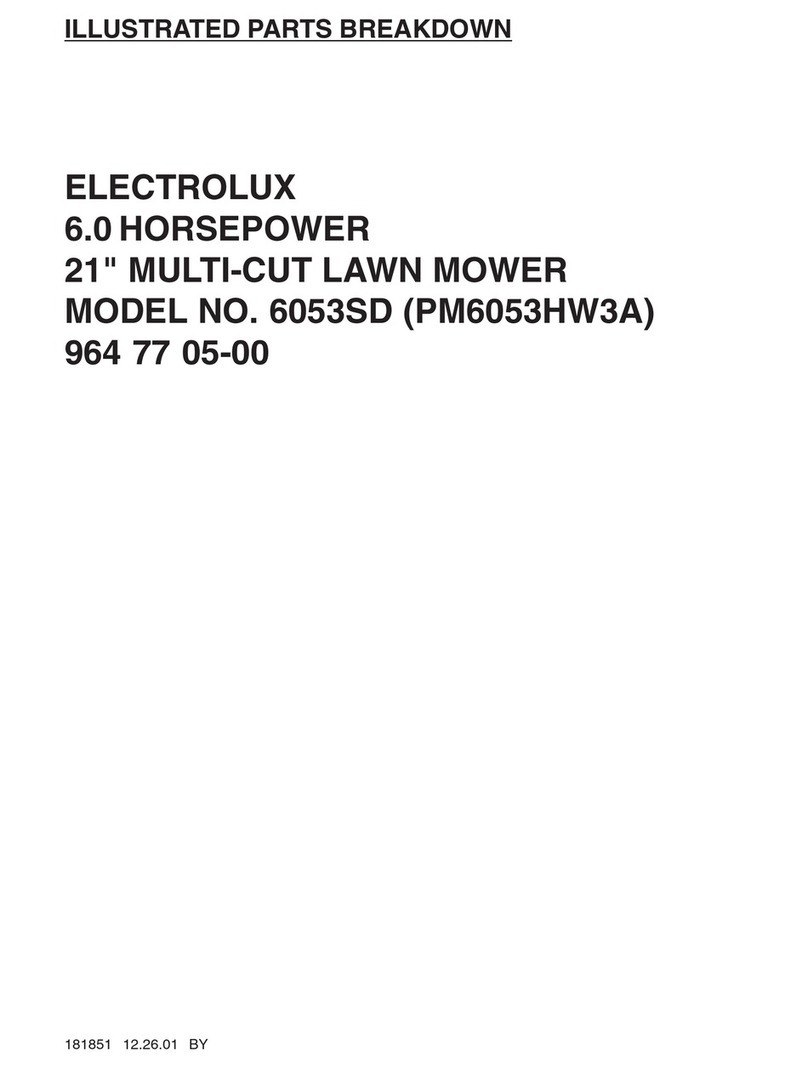

Electrolux 6053SD Guía de configuración
