Electrolux Handling System

Pre-rinse tunnel

Some Electrolux dishwasher models can perform their full potential, if properly combined with the Electrolux

Handling System range. The modular system allows to design ergonomic and reliable solutions to handle,

transport and sort kitchenware, obtaining the most effective flow in the dishwashing room. The wide range

contains cord and slat conveyors for trays, manual and motorised sorting tables and a variety of roller and slide

conveyors for baskets. The pre-rinse tunnel on this sheet is intended for automatic pre-rinsing of dishwashing

racks with crockery and glasses.

865121

EASY TO INSTALL

• The pre-rinse tunnel is designed

to be placed on a rack conveyor

with deep basin or conveyor which

is provided with strainer box.

• If placed immediately before a

rack type dishwasher, there is the

possibility to load automatically

the racks, thanks to an extra

feeding bar, dishwashing driven.

EASY TO USE

• The pre-rinse tunnel will replace

the manual process of pre-rinse

spraying before the dishwasher.

• This system is using about 15

Lit/min of temperated water

(20-40°C) from the network,

sprayed out through an arm.

• For further specifications and

accessories, please see overleaf.

• Hood interlocked with safety

switch.

• The sensor automatically starts

pre-rinsing when the baskets enter

the tunnel.

EASY TO CLEAN

• A hygienic design provides for

easy cleaning where the front and

roof sections are simply lifted off.

• Removable hood for easy

cleaning.

EASY TO MAINTAIN

• The pre-rinse tunnel is

manufactured from stainless steel

AISI 304.

EASY ON THE ENVIRONMENT

• Developed and produced in ISO

9001 and ISO 14001 certified

factory.

• CFC free packaging.

Electrolux Handling SystemPre-rinse tunnel

Internet: http://www.electrolux.com/foodservice

IIAN0102013-10-02Subject to change without notice

height 527 527

depth 660 660

width 500 500

External dimensions - mm

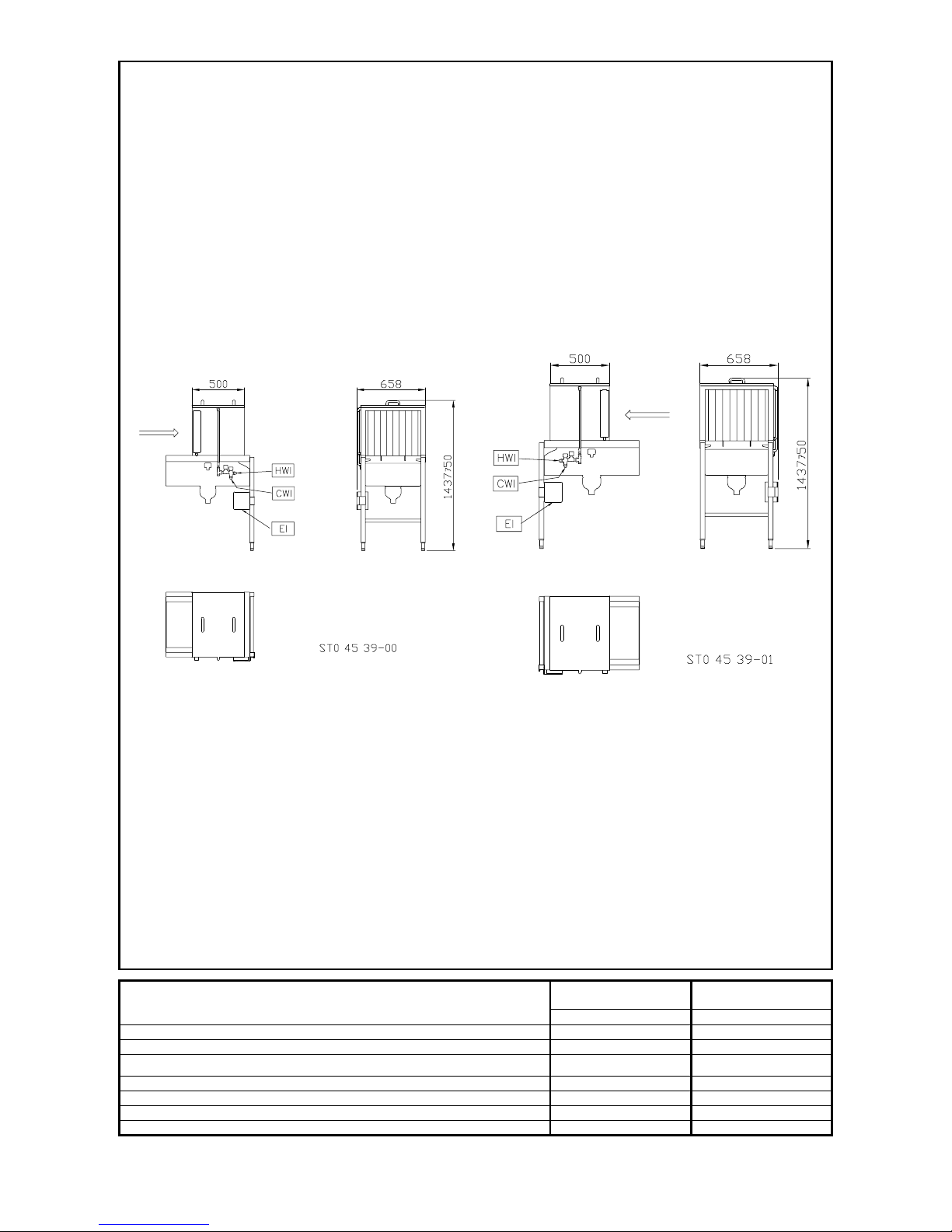

TECHNICAL DATA

EI - Electrical connection 230 V, 1N, 50/60 230 V, 1N, 50/60

CWI - Cold water inlet 1/2" 1/2"

LEGEND

HSPWTLR

865120

HSPWTRL

865121

865120 865121
