Electrolux E15IM60EBS0 Manual de usuario

Use Care Guide

Gu_a de Uso y Cuidado

Guide d'utilJsation et d'entretien

Thank you for choosing EJectrolux, the new premium brand in home appliances.

This Use & Care Guide is part of our commitment to customer satisfaction and

product quality throughout the service life of your new ice maker.

We view your purchase as the beginning of a relationship. To ensure our ability to

continue serving you, please use this page to record key product information.

Once you have your unit installed, we suggest you keep this manual in a safe

place for future reference. Should any problems occur, refer to the

Troubleshooting section of this manual. This information will help you quickly

identify a problem and get it remedied. In the event you require assistance, please

contact the dealer where you purchased your unit.

MAKEA RECORDFOR@UCKREFERENCE

[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []

Whenever you call to request information or service, you will need to know your

model number and serial number. You can find this information on the serial plate

located on the inside wall of your unit and on the product registration card.

@2004 EJectrolux Home Products, Inc.

Post Office Box 212378, Augusta, Georgia 30917, USA

information

IPBODU BEG S ATION6£

[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []

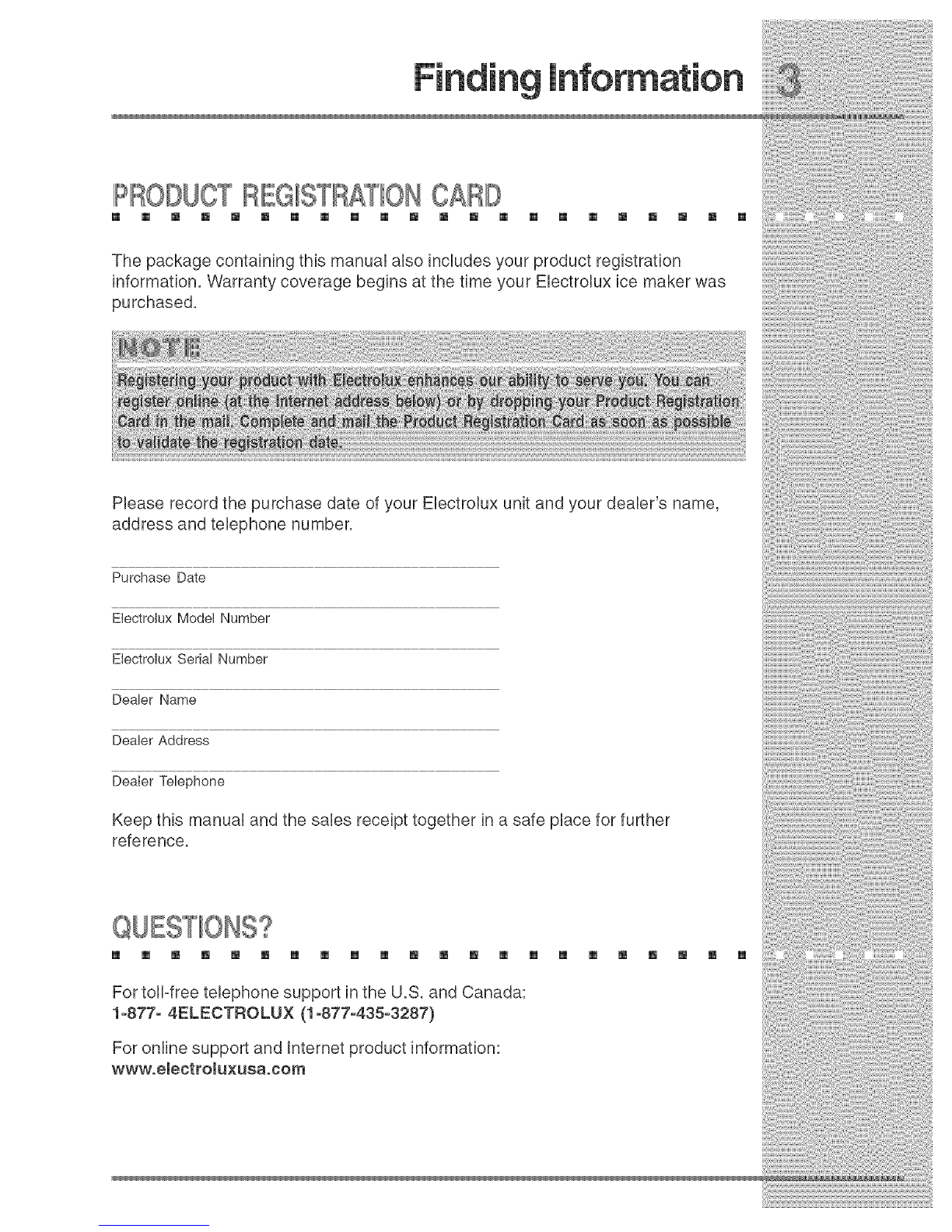

The package containing this manual also includes your product registration

information. Warranty coverage begins at the time your Ebctrolux ice maker was

purchased.

Phase record the purchase date of your Electrolux unit and your dealer's name,

address and tebphone number.

Purchase Date

Eiectrolux Model Number

Electrolux Serial Number

Dealer Name

Dealer Address

Dealer Telephone

Keep this manual and the sales receipt together in a safe place for further

refe re nce.

[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []

For tolPfree telephone support in the U.S. and Canada:

1-877- 4ELECTROLUX (1-877-435-3287)

For online support and lnternet product information:

www.eleetroluxusa.eorn

TABLEOIF'CONN

[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []

Finding Information ...........................................2

PleaseReadAndSaveThisGuide...................2

MakeARecordForQuickReference................2

WarrantyRegistrationCard...............................3

Questions?........................................................3

TableOfContents..............................................4

Safety ...................................................................5

ImportantSafetyInstructions..............................5

Installation ..........................................................7

InstallationDimensions.......................................7

Draininstallation................................................8

Drain PumpConnection...................................10

Site Preparation.................................................11

Water Supply Connection ...............................13

Leveling .............................................................15

Door Reversal....................................................16

DoorAdjustment ...............................................18

Built-in Installation ..........................................20

Start-up ..............................................................21

NormalOperation..............................................22

iceCubeThickness.........................................22

iceDispsenserOperationandCare ................23

Maintenance......................................................25

SpecialConsiderations....................................25

MaintainingandCleaning................................25

ExteriorCleaning............................................25

StainlessSteelModels.....................................25

InteriorCleaning..............................................26

CondenserCleaning.......................................27

SelfCleaning...................................................28

InletScreenCleaning......................................29

Storage, Vacation and Moving ........................30

Troubleshooting ...............................................31

ifServiceIsRequired......................................32

Warranty Information .......................................33

IIM £NT S£F Y IINS U _ONS

[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []

Safety Precautions

Do not attempt to install or operate your unit until you have read the safety

precautions in this manual. Safety items throughout this manual are labeled with a

Danger, Warning or Caution based on the risk type.

Definitions

A This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety messages that follow this symbol to avoid possible injury

or death.

GeneramPrecautions

IINSTAII,,,,,,,,,,_,,,,,,,,,,AT_OND_MENS_ONS

[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []

34 =!/8"

(86.7)

FULL

RETRACT

HEIGHT

WATER

OUTLET

WATER

DRAIN

Figure 1

(81)

WATER

VALVE "_o

21 =3/4"

(55.2) v

THE£1N

[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []

Model E151M60E can be installed using a gravity drain or can use a factory installed

or equivalent drain pump.

Follow these guidelines when installing drain lines to prevent water from flowing

back into the ice maker storage bin and/or potentially flowing onto the floor causing

water damage:

GravityDrain

• Drain lines must have a 5/8 inch inside diameter.

• Drain lines must have a 1 inch drop per 48 inches of run (1/4 inch per foot) and

must not create traps.

• The floor drain must be large enough to accommodate drainage from all

drains.

• Insulate the bin drain line to prevent condensation.

raceMakersWith Factory mnstaHedDrain Pump

1 Make certain the unit is not plugged into an electrical

outlet.

2 Carefully push the power cord grommet through the hole

in the back panel. See Figure 2.

3 Remove 12 screws and back panel.

4 Check that the clamps and hose connections are tight at

the following areas illustrated in Figure 3:

Discharge tube (A)

,, Drain tube (B)

,, Vent tube (C)

5 Place a suitable container beneath the pump's discharge

tube. (Container must be able to hold a

minimum of one gallon of water.)

BACK VIEW

Figure 3

GROMMET

Figure 2

SDE ViEW

UL184_2

BACK

PANEL

DRAIN

FiTTiNG

POWER

CORD

UL184=1

Plug the ice maker power cord into a properly grounded, polarized electrical

outlet.

Verify pump operation by pouring one gallon of water into the ice storage bin

of the ice maker. The pump should energize and pump the water into the

container.

8 At this time, verify that all tube and clamp connections are tight and leak free.

9 Unplug unit power cord from electrical outlet.

10 Reinstall back panel.

11 Continue to the next step in the installation process, Site Preparation.

CONNE £ DR£11NPUMP

[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []

If a gravity drain connection is not availabb, and you have not purchased the

E15JM60E with factory installed pump, we strongly recommend the use of the

Eiectrolux EJMP60 drain pump. The Eiectrolux EIMP60 drain pump is available

through your Dealer, or direct from Ebctrolux with compbte installation instructions.

If a pump other than the Ebctrolux EIMP60 drain pump is to be used, it must meet

the following specifications:

• It must be UL listed and have a UL listed, 120 VAC, 3-wire grounded power

cord.

• It must have overall maximum outside dimensions of 8-3/4" wide x 5-3/4"

deep x 7-3/4" high.

• It must have a minimum flow rate of 15 gallons per hour at 10 feet of lift.

• It must have a sealed sump which does not allow water leakage in the case

of a power outage, restricted drain or pump failure.

• It must have a check valve in the discharge line to prevent waste water return

to the pump.

• It must have an overflow protection control which will shut off power to the ice

maker in the event of a pump failure.

° It must have an operating temperature range of 50°F to 110°F (10°C to 43°C).
