Electrolux EQBL100AS Manual de usuario

electrolux integrated barbecue contents i

Electrolux Home Products

Australia

telephone: 1300 363 640

fax: 1800 350 067

email: customercare@electrolux.com.au

web: www.electrolux.com.au

New Zealand

telephone: 09 573 2230

fax: 0800 36 36 00

email: customercare@electrolux.co.nz

web: www.electrolux.co.nz

P/No. 0616001937 - Rev A

ABN 51 004 762 341

Print code: EINTBBQUM_Aug 10

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say “Oh! How did you know?

That’s exactly what I wanted!” That’s the kind of feeling that the designers at Electrolux seek to

evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a

great deal of thought to anticipating and creating the kind of appliances that our customers really

need and want.

This kind of thoughtful care means innovating with insight. Not design for design’s sake, but design

for the user’s sake. For us, thoughtful design means making appliances easier to use and tasks more

enjoyable to perform, freeing our customers to experience that ultimate 21st century luxury, ease

of mind. Our aim is to make this ease of mind more available to more people in more parts of their

everyday lives, all over the world. So when we say we’re thinking of you, you know we mean just that.

The “Thinking of you” promise from Electrolux goes beyond meeting the needs of today’s consumers.

It also means we’re committed to making appliances safe for the environment—now and for future

generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com.au or www.electrolux.co.nz

environmental tip

Information on disposal for users

• Most of the packing materials are recyclable. Please

dispose of those materials through your local recycling

depot or by placing them in appropriate collection

containers.

• If you wish to discard this product, please contact your

local authorities and ask for the correct method of disposal.

user manual

integrated barbecue

(EQBL100AS and EQBH100AS)

user manual

integrated barbecue

(EQBL100AS and EQBH100AS)

Congratulations

Congratulations and thank you for choosing our integrated

barbecue. We are sure you will ﬁnd your new barbecue

a pleasure to use. Before you use the barbecue, we

recommend that you read through the entire user manual,

which provides the description of the barbecue and its

functions.

To avoid the risks that are always present when you use

a gas appliance, it is important that it is installed correctly

and that you read the safety instructions carefully to avoid

misuse and hazards.

We recommend that you keep this instruction booklet for

future reference and pass it on to any future owners.

After unpacking the barbecue please check it is not

damaged. If in doubt, do not use the appliance but contact

your local Electrolux Customer Care Centre.

Contents

• Product description ii

• Parts iii

• Important safety instructions 1

• Assembling the barbecue 2

• Gas specications 3

• Gas connection detail 3

• Natural Gas installation 3

• Universal LPG installation 4

• Gas bottle safety information 5

• Leak test procedure 5

• Installation warnings 6

• Installation instructions 6

• Dimensions 7

• Gas requirements 8

• Setting up the barbecue 8

• Fitting the slimline lid or roasting hood 8

• Options for conguration of hotplates and grills 9

• Operating instructions 9

• Lid safety lid – slimline lid only 10

• Cleaning and care 10

• Maintenance 11

• Troubleshooting 11

• Warranty 12

ii product description electrolux integrated barbecue electrolux integrated barbecue parts iii

PartsIntegrated barbecue with slimline lid

Integrated barbecue with roasting hood

1 Pivotting leg

2 Slimline lid

3Battery cover

4 Gas connection point

5Burner controls

6Grill assemblies x 2 sets

7 Hotplate

8 Removable oil reservoir

located at front of cooking

surface (not illustrated)

9 Flame tamers x 2 located

under grills (not illustrated)

10 Roasting hood

11 Warming racks

12 Battery cover

13 Gas connection point

14 Burner controls

15 Grill assembly

16 Hotplate

17 Removable oil reservoir

located at front of cooking

surface (not illustrated)

18 Flame tamers x 2 located

under grills (not illustrated)

description qty

Burner box &

trim surround 1

Rear heat

shield 1

Flame tamers 2

Oil reservoirs

(1 x left hand

and 1 x right

hand)

1 LH

1 RH

Solid hot plate 1

Grill

assemblies 2

description qty

Natural gas

regulator and

braided hose

Universal LPG

regulator and

braided hose

1 plastic bag containing this instruction book,

labels, 4 ULPG injectors, allen key, ULPG adaptor,

2 ﬁbre washers, natural gas installation pipe,

match holder and chain

EITHER

Roasting

hood

assembly

Slimline lid

assembly 1

Tools you will need for assembly:

• philips head screw driver

Contents of your barbecue pack:

left

right

electrolux integrated barbecue contents i

Electrolux Home Products

Australia

telephone: 1300 363 640

fax: 1800 350 067

email: customercare@electrolux.com.au

web: www.electrolux.com.au

New Zealand

telephone: 09 573 2230

fax: 0800 36 36 00

email: customercare@electrolux.co.nz

web: www.electrolux.co.nz

P/No. 0616001937 - Rev A

ABN 51 004 762 341

Print code: EINTBBQUM_Aug 10

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say “Oh! How did you know?

That’s exactly what I wanted!” That’s the kind of feeling that the designers at Electrolux seek to

evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a

great deal of thought to anticipating and creating the kind of appliances that our customers really

need and want.

This kind of thoughtful care means innovating with insight. Not design for design’s sake, but design

for the user’s sake. For us, thoughtful design means making appliances easier to use and tasks more

enjoyable to perform, freeing our customers to experience that ultimate 21st century luxury, ease

of mind. Our aim is to make this ease of mind more available to more people in more parts of their

everyday lives, all over the world. So when we say we’re thinking of you, you know we mean just that.

The “Thinking of you” promise from Electrolux goes beyond meeting the needs of today’s consumers.

It also means we’re committed to making appliances safe for the environment—now and for future

generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com.au or www.electrolux.co.nz

environmental tip

Information on disposal for users

• Most of the packing materials are recyclable. Please

dispose of those materials through your local recycling

depot or by placing them in appropriate collection

containers.

• If you wish to discard this product, please contact your

local authorities and ask for the correct method of disposal.

user manual

integrated barbecue

(EQBL100AS and EQBH100AS)

Congratulations

Congratulations and thank you for choosing our integrated

barbecue. We are sure you will ﬁnd your new barbecue

a pleasure to use. Before you use the barbecue, we

recommend that you read through the entire user manual,

which provides the description of the barbecue and its

functions.

To avoid the risks that are always present when you use

a gas appliance, it is important that it is installed correctly

and that you read the safety instructions carefully to avoid

misuse and hazards.

We recommend that you keep this instruction booklet for

future reference and pass it on to any future owners.

After unpacking the barbecue please check it is not

damaged. If in doubt, do not use the appliance but contact

your local Electrolux Customer Care Centre.

Contents

• Product description ii

• Parts iii

• Important safety instructions 1

• Assembling the barbecue 2

• Gas specications 3

• Gas connection detail 3

• Natural Gas installation 3

• Universal LPG installation 4

• Gas bottle safety information 5

• Leak test procedure 5

• Installation warnings 6

• Installation instructions 6

• Dimensions 7

• Gas requirements 8

• Setting up the barbecue 8

• Fitting the slimline lid or roasting hood 8

• Options for conguration of hotplates and grills 9

• Operating instructions 9

• Lid safety lid – slimline lid only 10

• Cleaning and care 10

• Maintenance 11

• Troubleshooting 11

• Warranty 12

ii product description electrolux integrated barbecue electrolux integrated barbecue parts iii

PartsIntegrated barbecue with slimline lid

Integrated barbecue with roasting hood

1 Pivotting leg

2 Slimline lid

3Battery cover

4 Gas connection point

5Burner controls

6Grill assemblies x 2 sets

7 Hotplate

8 Removable oil reservoir

located at front of cooking

surface (not illustrated)

9 Flame tamers x 2 located

under grills (not illustrated)

10 Roasting hood

11 Warming racks

12 Battery cover

13 Gas connection point

14 Burner controls

15 Grill assembly

16 Hotplate

17 Removable oil reservoir

located at front of cooking

surface (not illustrated)

18 Flame tamers x 2 located

under grills (not illustrated)

description qty

Burner box &

trim surround 1

Rear heat

shield 1

Flame tamers 2

Oil reservoirs

(1 x left hand

and 1 x right

hand)

1 LH

1 RH

Solid hot plate 1

Grill

assemblies 2

description qty

Natural gas

regulator and

braided hose

Universal LPG

regulator and

braided hose

1 plastic bag containing this instruction book,

labels, 4 ULPG injectors, allen key, ULPG adaptor,

2 ﬁbre washers, natural gas installation pipe,

match holder and chain

EITHER

Roasting

hood

assembly

Slimline lid

assembly 1

Tools you will need for assembly:

• philips head screw driver

Contents of your barbecue pack:

left

right

ii product description electrolux integrated barbecue electrolux integrated barbecue parts iii

PartsIntegrated barbecue with slimline lid

Integrated barbecue with roasting hood

1 Pivotting leg

2 Slimline lid

3Battery cover

4 Gas connection point

5Burner controls

6Grill assemblies x 2 sets

7 Hotplate

8 Removable oil reservoir

located at front of cooking

surface (not illustrated)

9 Flame tamers x 2 located

under grills (not illustrated)

10 Roasting hood

11 Warming racks

12 Battery cover

13 Gas connection point

14 Burner controls

15 Grill assembly

16 Hotplate

17 Removable oil reservoir

located at front of cooking

surface (not illustrated)

18 Flame tamers x 2 located

under grills (not illustrated)

description qty

Burner box &

trim surround 1

Rear heat

shield 1

Flame tamers 2

Oil reservoirs

(1 x left hand

and 1 x right

hand)

1 LH

1 RH

Solid hot plate 1

Grill

assemblies 2

description qty

Natural gas

regulator and

braided hose

Universal LPG

regulator and

braided hose

1 plastic bag containing this instruction book,

labels, 4 ULPG injectors, allen key, ULPG adaptor,

2 ﬁbre washers, natural gas installation pipe,

match holder and chain

EITHER

Roasting

hood

assembly

Slimline lid

assembly 1

Tools you will need for assembly:

• philips head screw driver

Contents of your barbecue pack:

left

right

electrolux integrated barbecue important safety instructions 1

Please read the user manual carefully and store in a handy

place for later reference.

Meanings of the symbols used in this manual are shown below:

warning

This symbol indicates information concerning your

personal safety

caution

This symbol indicates information on how to avoid

damaging the appliance

tips and information

This symbol indicates tips and information about use

of the appliance

environmental tip

This symbol indicates tips and information about

economical and ecological use of the appliance

This symbol indicates never to do this

Important safety instructions

For your safety please read this book before operating

your barbecue.

warning

This appliance MUST be installed and serviced only

by a qualiﬁed licensed person.

Improper installation, adjustment alteration or

maintenance can cause injury or property damage.

Please contact your nearest Electrolux Service

Department for additional information or assistance

for an approved installer.

NOTE TO THE INSTALLER

THIS MANUAL MUST REMAIN WITH THE OWNER FOR

FUTURE REFERENCE

warning

IF YOU SMELL GAS, do not attempt to light the

barbecue. Locate the leak and re-tighten the leaking

joint. Carry out the Leak Test procedure as described in

this manual. If the leak persists, turn off the gas supply

and call Electrolux Service or a Licensed Gas Fitter.

warning

Do not lean over barbecue when lighting.

Do not leave the barbecue unattended when alight.

Do not delay lighting once the gas has been turned

on.

Do not store or use aerosol cans in the vicinity of the

barbecue.

Do not store ﬂammable liquids in the vicinity of the

barbecue.

Do not use caustic or abrasive based cleaners on the

barbecue.

Do not operate the barbecue with the cover on.

Do not attempt to dismantle or adjust the control

valves.

Do not attempt to dismantle or adjust the regulator.

Do not test for leaks with a naked ﬂame.

Do not modify the construction of this appliance or

modify the injector oriﬁce size.

Do not obstruct any ventilation of the barbecue.

Do not allow children to operate or play near the

barbecue.

caution

This barbecue is supplied set up for Natural Gas and

is labelled accordingly. A Universal LPG conversion

kit is included if required. Conversion of this unit

to Universal LPG must be carried out by a qualiﬁed

licensed person and a Certiﬁcate of Compliance

must be issued to the owner on completion of the

installation and conversion.

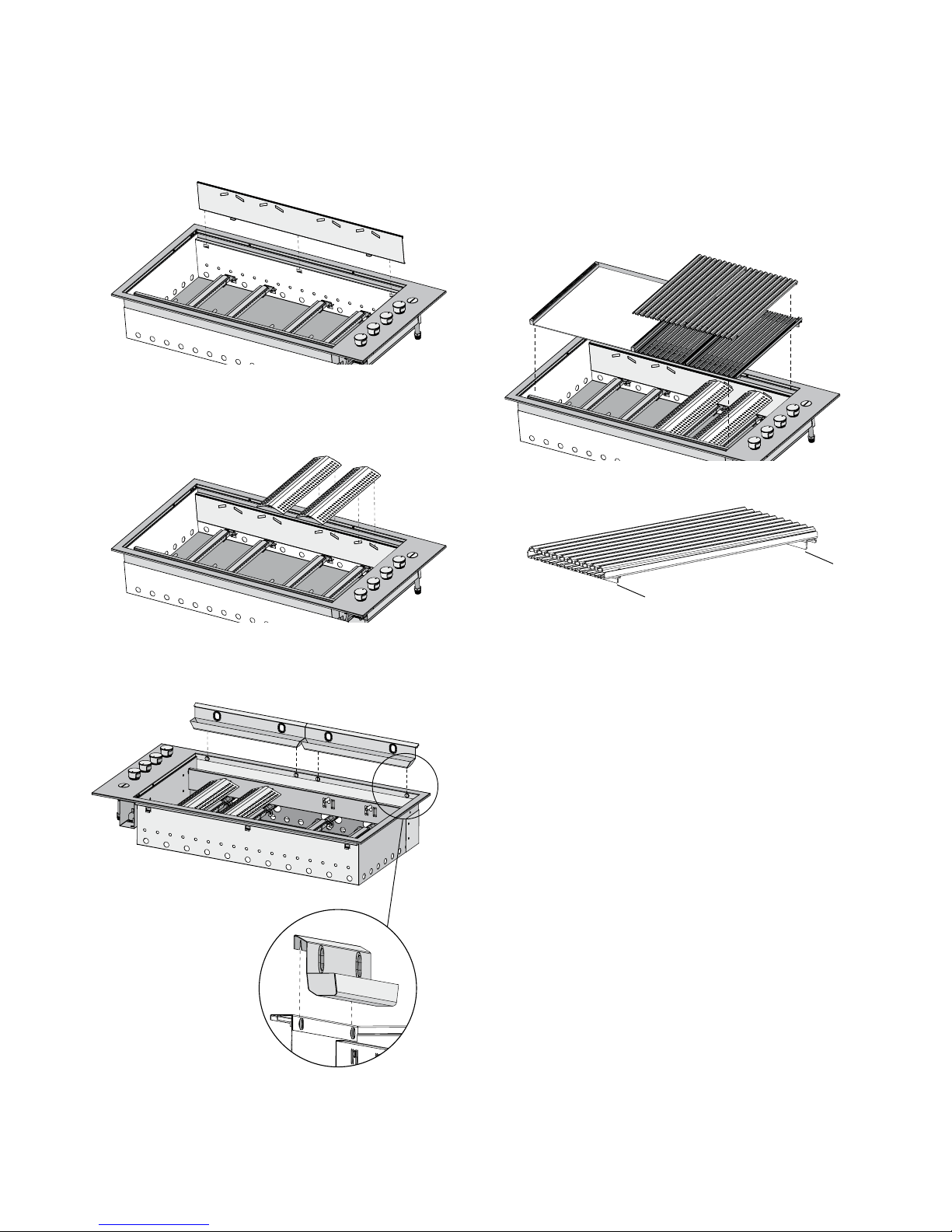

2 assembling electrolux integrated barbecue

1. Remove all components from box.

2. Attach heat shield to rear of unit by inserting the three

top tabs into the rear holes and sliding the shield down.

3. Position ﬂame tamers into desired locations (under

where grill sections will be ﬁtted) and ﬁx back edge of

the ﬂame tamer into rear of barbecue body.

4. Fit left and right hand oil reservoirs at front of barbecue.

Assembling the barbecue

5. Place hotplate and grill sections into desired positions

ensuring that the ﬂame tamers are under grill sections

NOTE ensure that grill assemblies are orientated

correctly so that the surface of the grill is sloping

forward to allow oil to drain into oil reservoirs.

6. After installation in bench, attach slimline lid or roasting

hood as described in “Fitting the slimline lid or roasting

hood” section of this manual.

back

front

assembled grill

Preparing the unit for Natural Gas installation

This barbecue is supplied set up for Natural Gas and is

labelled accordingly. A Universal LPG conversion kit is

included if required. Conversion of this unit to Universal LPG

must be carried out by a qualiﬁed licensed person.

A Certiﬁcate of Compliance must be issued to the owner on

completion of the installation and conversion.

Fit Natural Gas installation pipe to the barbecue gas inlet to

enable access to the regulator in the installed position.

When tightening the regulator or any other connection do

not over-tighten.

1. Fitting the Natural Gas installation pipe

 •Fitthepipeensuringthebluesealingwasherisin

place. Do not over-tighten.

2. Fitting the regulator

 • Fittheregulatorensuringthebluesealingwasher

is in place and the arrow indicating gas ﬂow is

correct. Do not over-tighten.

3. Fit the hose

 • Applythreadtapeorsealanttothemalethreadon

the hose and screw into the regulator. Do not over-

tighten.

4. Fit to mains

 • Connectthebayonetendtomains

Preparing the unit for Natural Gas connection to

mains

For Natural Gas connection a bayonet connection point

should be installed by a licensed gas ﬁtter prior to installing

the barbecue unit.

gas type natural gas universal LPG

Maximum gas consumption 50 MJ/hr 50 MJ/hr

Injector oriﬁce diameter 1.75mm 0.95mm

Number of injectors 4 4

Regulator pressure 1.00 kPa 2.75 kPa

NOTES

• This appliance MUST be installed and serviced only by

a qualiﬁed licensed person.

• This product is intended for outdoor use only.

• This product must be installed as per the instructions

which requires the installation of venting to enable

the barbecue to operate correctly. Failure to provide

adequate ventilation for supply of air to the appliance

may result in poor burner performance or excessive

heat build-up within the mounting enclosure.

• Ventilation holes in the unit must not be obscured by

the installation.

Gas connection detail

electrolux integrated barbecue gas speciﬁcations/natural gas installation 3

Natural Gas installationGas speciﬁcations

408mm

137mm

regulator – ensure

arrow is pointing in

the right direction

hose with tapered

thread – thread tape

required

sealing washer

46mm

Natural Gas

installation pipe

barbecue gas inlet

sealing washer

2. Adjust the turndown setting on the valve

 • Iftted,removetheknobsfromthevalves.

 • Removerubbergrommetsfromcontrolpanelholes.

 • Adjusttheturndownscrewfullyclockwiseoneach

of the 4 valves using a small ﬂat blade screwdriver.

ThevalveisnowsetcorrectlyforLPGoperation(see

diagram).

3. Connect the test point adaptor to the barbecue gas inlet

 • Fitthetestpointadaptorensuringthebluesealing

washer is in place and the arrow is pointing in the

direction of gas ﬂow. Do not over-tighten.

4. Connect the hose to the test point adaptor

 • Applythreadtapeorsealanttothemalethreadon

the hose and screw into the test point adaptor.

5. Replace the ‘gas type’ sticker

 • Locatethe‘NaturalGas’stickerlocatedonthe

barbecue gas inlet and remove it. Put the Universal

LPG sticker in its place.

4 universal LPG installation electrolux integrated barbecue

Preparing the unit for Universal LPG installation.

This barbecue is supplied set up for Natural Gas and is

labelled accordingly. A Universal LPG conversion Kit is

included to enable conversion to Universal LPG.

NOTE

Conversion of this unit to Universal LPG must be carried

out by a qualiﬁed licensed person and a Certiﬁcate of

Compliance must be issued to the owner on completion of

the installation and conversion.

The required components for conversion have been

supplied. The components are:

• Hoseandregulatorassembly

• Smallplasticbagcontaining4brassinjectors

• 1UniversalLPGsticker

• 1testpointadaptor

• 1sealingwasher

1. Change the injectors

 • Removethefrontcover.

 • Releasetheburnerretainerclipasshown.

 • Unscrewandreplacethe4injectornippleslocated

in the end of each tube feeding the burners. The

Universal LPG injectors have a 0.95mm diameter

oriﬁce in them. They appear substantially smaller

than the Natural Gas injectors.

 • Re-fastenthecliptoretainthetubeintheburner.

Do not over tighten or distort supply tube.

 • Fitthefrontcoverbackonandfastenscrews.

Universal LPG installation

LPG injector

turndown screw

test point adaptor –

ensure arrow is pointing

in the right direction

hose with tapered thread

– thread tape required

sealing washer

barbecue gas inlet

remove spring clip

by rotating over

burner tube end

front cover

electrolux integrated barbecue electronic display controls – electronic models 5

• ThisapplianceonceconvertedtouseUniversalLPGis

designed to use a 9kg (20 lbs) gas cylinder.

• Thegascylindermustbemadeandmarkedin

accordance with speciﬁcations for LPG cylinders

• Theisolationvalvemustbeturnedoffwhenthe

appliance is not in use.

• Gascylindersmustbestoredinanapprovedhousing

out of reach of children.

• Whendisconnectingthegasbottleensurethatallthe

control valves are in the ‘OFF’ position.

• Removethebottlefromanyhousinginwhichitmaybe

stored before disconnection.

• Whenreconnectingthehosetothebottle,ensurethat

all connections are tight before replacing in the storage

compartment.

• Carryoutaleakagecheckasdetailedbelowaftereach

reconnection.

• Ensureallgasvalvesareinthe‘OFF’position.

• Inasmallcontainer,mixasolutionofwaterand

detergent or soap.

• Afterconnectionofthehose,turnonthevalveatthe

gas bottle or mains as appropriate.

• Usingabrushapplythesolutiontothegasconnection

points and look for bubbles forming.

• Bubblingwillindicatealeak.

• Turnoffthevalveandre-tightenthejoint.Repeatthe

leak test.

• Iftheleakpersists,turnofthegasattheisolationvalves

and contact a licensed gas ﬁtter to correct.

Gas bottle safety information Leak test procedure

Leak test

points

Check hose

for signs of

abrasions,

cracks or leaks
