E|ectro|ux iNSTRUCTION SHEET

U19 All Refrigerator and All Freezer Trim Kit Installation

Product Line: U19 All Refrigerator and A! Freezer Models

Models: EI32AR65JS E32AR75JPS FPRH19D7LF

EI32AF65JS E32AF75JPS FPUH19D7LF

Serial Number Range: All Serial number ranges

Single Trim Kit Components

Parts Included in Kit TRIMKITEZ1 (Part# 297333500):

Kit for Models: FPRH19D7LF and FPUH19D7LF

Single Trim Kit 297333500

ITEM PART NUMBER

1 297349000

2 297349001

3 297332701

4 297332801

5 297333301

6 297337700

7 297343201

8 297276900

DESCRIPTION

Trim Side RH U19

Trim Side LH U19

Trim Top Short U19 Single

Trim Top Tall U19 Single

Kick Plate U19 Single

Carton, Packaging

Hardware Pack Single U19

Lever Assembly Support System

QTY

Parts included in Kit TRIMKITSSI (Part# 297333510):

Kit for Models: EI32AR65JS and EI32AF65JS

E32AR75JPS and E32AF75JPS

Single Trim Kit 297333510

ITEM PART NUMBER

1 297349010

2 297349011

3 297332711

4 297332811

5 297333311

6 297337700

7 297343201

8 297276900

DESCRIPTION QTY

Trim Side RH U19 1

Trim Side LH U19 1

Trim Top Short U19 Single 1

Trim Top Tall U19 Single 1

Kick Plate U19 Sngle 1

Carton, Packaging 1

Hardware Pack Single U19 1

LeverAssembly Support System 2

[

Single Trim Kit Front View _ _8

.4--1

.4--2

NOTE: All Hardware Pack components mentioned

throughout this instruction sheet will have an "H"

after the item number.

Hardware Pack 297343201

ITEM PART NUMBER

1H 297333900

3H 297236250

5H 050149

6H 297142600

7H 297299700

DESCRIPTION QTY

Tie-Bar Hinge 1

Screw 1/4-20 x .63 8

Screw TH #8-18 x .75 AB 6

Screw FH #8-32 x .63 2

Installation Instructions 1

5H 6H

0 0 O O

1.25"Ref 000 000

6.25" Ref

Hardware Pack 297343201

@2011Etectrolux Home Products,Inc. Instruction Sheet 297299700 Rev. B 02.09.11

E|ectro|ux iNSTRUCTION SHEET

Dual Trim Kit Components

Parts Included in Kit TRIMKITEZ2 (Part# 297333600):

Kit for Models: FPRH19D7LF and FPUH19D7LF

Double Trim Kit 297333600

ITEM PART NUMBER

1 297336900

2 297349000

3 297349001

4 297332700

5 297332800

6 297333300

7 297337700

8 297343200

9 297276900

DESCRIPTION QTY

Center Trim U19 1

Trim Side RH U19 1

Trim Side LH U19 1

Trim Top Short U19 Dual 1

Trim Top Tall U19 Dual 1

Kick Plate U19 Dual 1

Carton, Packaging 1

Hardware Pack Dual U19 1

Lever Assembly Support System

Parts Included in Kit TRIMKITSS2 (Part# 297333610):

Kit for Models: EI32AR65JS and EI32AF65JS

E32AR75JPS and E32AF75JPS

Double Trim Kit 297333610

ITEM PART NUMBER

1 297336900

2 297349010

3 297349011

4 297332710

5 297332810

6 297333310

7 297337700

8 297343200

9 297276900

DESCRIPTION QTY

Center Trim U19 1

Trim Side RH U19 1

Trim Side LH U19 1

Trim Top Short U19 Dual 1

Trim Top Tall U19 Dual 1

Kick Plate U19 Dual 1

Carton, Packaging 1

Hardware Pack Dual U19 1

LeverAssembly Support System 4

Front View

Double Trim Kit

-tml

I-_4

NOTE: All Hardware Pack components mentioned

throughout this instruction sheet will have an "H"

after the item number.

Hardware Pack 297343200

ITEM PART NUMBER

1H 297333900

2H 297333901

3H 297236250

4H 297337000

5H 050149

6H 297142600

7H 297299700

DESCRIPTION

Tie-Bar Hinge

Tie-Bar Back

Screw 1/4-20 x .63

Screw FH 1/4-20 x .63

Screw TH #8-18 x .75 AB

Screw FH #8-32 x .63

Installation Instructions

Ref |

Hardware Pack 297343200

6H 3H

000 o

6.25" Ref

1.25"

Ref

QTY

0 0 ! 2H

2.62" Ref

@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11

E|ectro|ux iNSTRUCTION SHEET

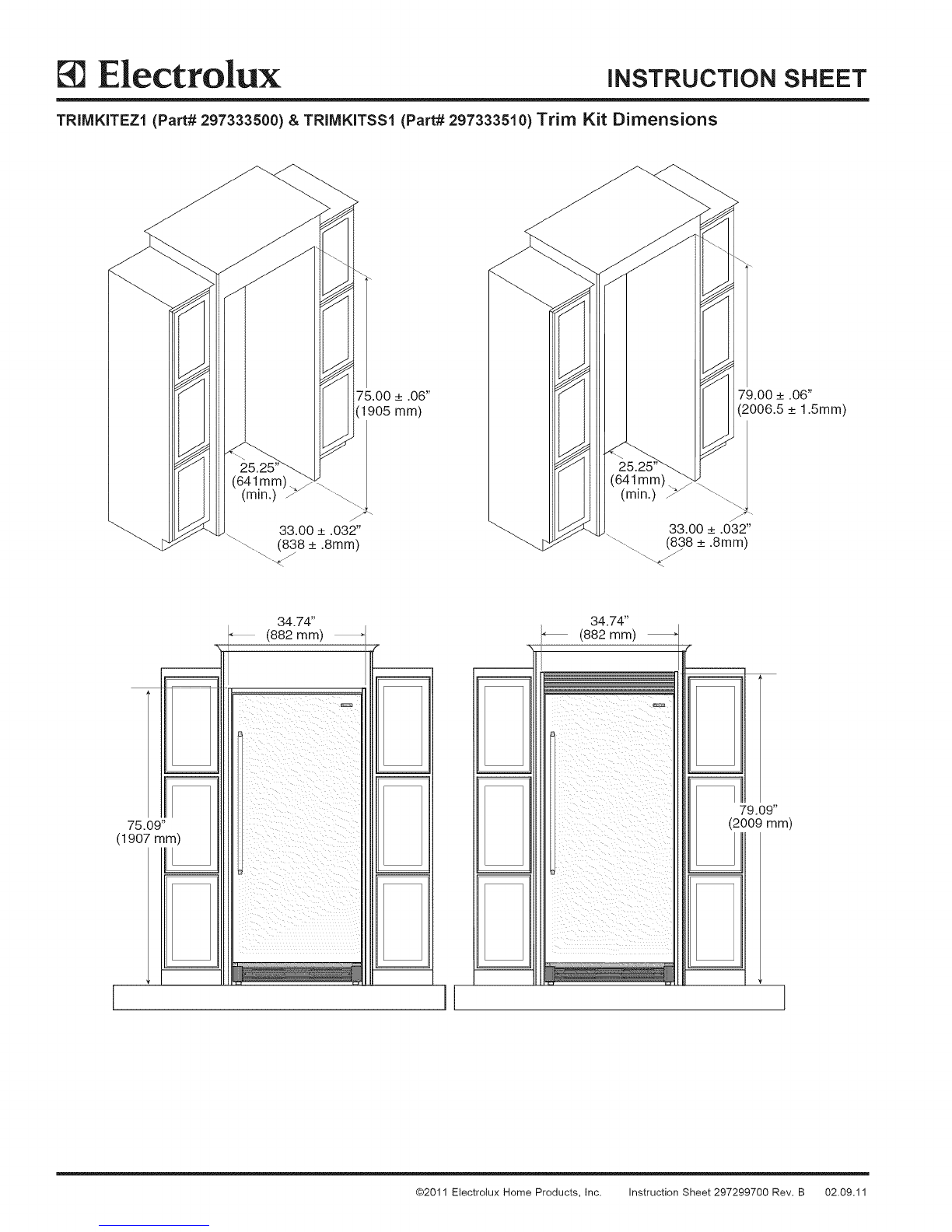

TRIMKITEZ1 (Part# 297333500) &TRIMKITSSI (Part# 297333510) Trim Kit Dimensions

75.00 _+.06"

(1905 ram) 79.00 + .06"

2006.5 + 1.5mm)

(641mm) .j

(rain.) ._ _-.\\

33.00 + .032"

...._. (838 + .8mm)

75.09"

(1907 ram)

34.74"

(882 ram) _-_

34.74"

__ (882 mm) _

79 09"

(2009 ram)

@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11

E|ectro|ux iNSTRUCTION SHEET

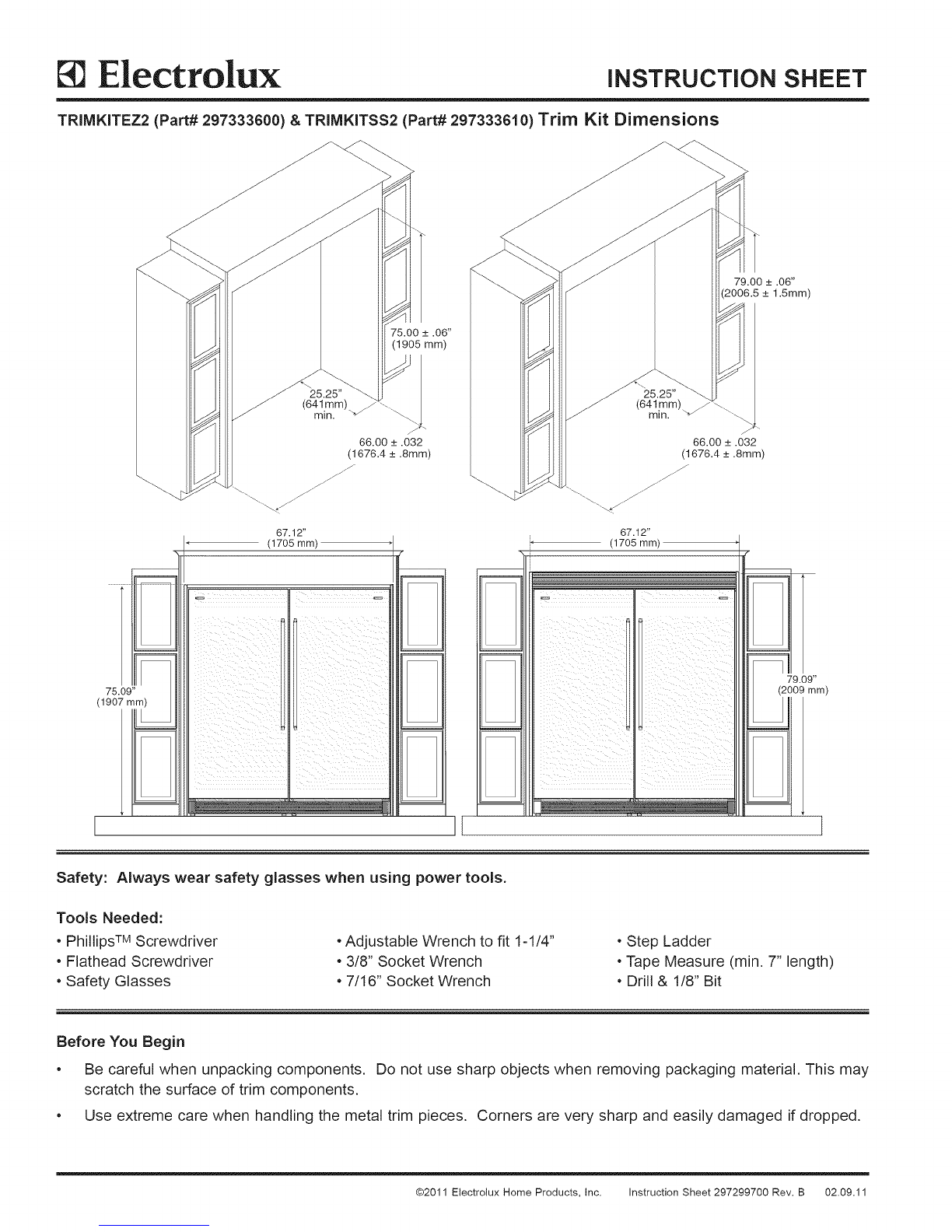

TRIMKITEZ2 (Part# 297333600) & TRIMKITSS2 (Part# 297333610)Trim Kit Dimensions

79.00 _4-.06"

_+1.5mm)

75.00 _+.06"

(1905 mm)

67.12"

(1705 mm)

(17! 0 _

67.12"

(1705 mm)

79.09"

(2009 ram)

Safety:

Tools Needed:

• Phillips TMScrewdriver

• Flathead Screwdriver

• Safety Glasses

Always wear safety glasses when using power tools.

•Adjustable Wrench to fit 1-1/4"

• 3/8" Socket Wrench

• 7/16" Socket Wrench

• Step Ladder

• Tape Measure (min. 7" length)

• Drill & 1/8" Bit

Before You Begin

• Be careful when unpacking components. Do not use sharp objects when removing packaging material. This may

scratch the surface of trim components.

• Use extreme care when handling the metal trim pieces, Corners are very sharp and easily damaged if dropped,

@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11

E|ectro|ux iNSTRUCTION SHEET

Setting Up The Trim And Grill Assembly

(Single and Dual installations)

,Lay the parts out on a cleared area face down. Be

sure to place a drop cloth over the floor to prevent

scratching trim kit and/or floor. (See Figure 1).

! !_F !

li !i

::Ji J ! i

' i i

Drop

Cloth

Figure 1.

2. Cut 4" (101.6mm) off the left and right Side Trim

using the slot as a guide to make the proper size for

a 75" (1905mm) cut-out. (See Figure 2).

NOTE: DO NOTcut the side trim if installing in a 79"

(2006mm) opening.

Side

Le_ and

Right Sides /

(101.6mm)

Leveling System Install

(Single and Dual Installations)

3. a. Lie unit on its back on packaging material or a

drop cloth to prevent damage.

b. Remove (3) screws from each side and discard.

(See Figure 3)

c. Remove and save both plastic leg levelers to use

in the next step.

Figure 3.

a. Attach the current leg leveler to leveling system.

The leg leveler is a common part that will work

on both bottom sides of the unit. (See Figure 4).

b. Attach leg leveler with three (3) screws per side

using a 3/8 socket.

c. Re=install the leg levelers.

d. In order to provide clearance to access the rear

screw hole, adjust the rear roller up out of he

way. When finished, lower the rear roller back to

its initial position.

Figure 4.

@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11

E|ectro|ux iNSTRUCTION SHEET

Trim Kit installation

installing Trim Kit Tie Bar

(Dual installation Only)

NOTE: Leveling may be required to line up the holes

in steps "a" and "d".

5. a. Tie units together by securing the mounting

bracket at the back of the units with a

3/8" socket. (See Figure 5).

b. Install center strip to insure the proper 3/8" gap

is maintained between units. (See Figure 6).

c. Tie units together with the common mounting

bracket at the front top with two screws in

the inner two screw holes by using a 3/8" socket,

(See Figure 7)

d. Tie units together with common mounting

bracket at the bottom front using #3 Phillips

driver. (See Figure 8)

3/8" Gap

Figure 5.

3/8" Gap Between Units

3/8" Center Strip

Item 1 Dual kit

Figure 6.

Item 1H

Figure 8.

Trim Kit installation (Single Unit installation)

6. Remove outer screw from top hinge using a 3/8"

socket driver or wrench and save for later. Install

mounting bracket with one screw mounted to inside

hole using a 3/8" socket, (See Figure 9).

Screw

Figure 9.

Side Trim installation

(Single and Dual Installations)

7. a. Position Left Hand Side Trim on cabinet trim with

bottom resting on the floor.

b. Drill the 1/8" (3mm) pilot hole.

c. Run screw in all the way and then back out.

Remove side trim for later install.

(See Figure 10).

NOTE: Some cabinet substrates may require pre-drilling

holes using a 1/8" (3mm) diameter drill bit.

Figure 7.

@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11

E|ectro|ux iNSTRUCTION SHEET

=a. Position Right Hand Side Trim on cabinet trim

with bottom resting on the floor.

b. Drill the 1/8" (3mm) pilot hole.

c. Run screw in all the way and then back out.

Remove side trim for later install,

(See Figure 10).

Left Side Right Side

Figure 10.

Top Trim install

(Single and Dual Installations)

NOTE: Step ladder required for installing top trim

components.

9. a. Remove outer hinge screw common on both

sides for a dual installation, (for a single

installation this screw is removed in Step 6.

Align the top trim and attach with a 3/8" socket.

Repeat for opposite side. (See Figure 11).

b. (Dual installation only) Install outer screws on

common mounting bracket, align top trim and

attach with 3/8" socket. (See Figure 12).

Figure 11.

Figure 12.

10. 75" (1905mm) High Opening With Top Trim

(Single and Dual Installations)

a. Slide units into place. Adjust height so top trim

height reaches 75.09" (1907mm). Center units

in opening and level. (See Step 12 for leveling

instructions)(See Figures 13 and 14)

b. Drill 1/8" (3mm) pilot holes and fasten screws

with a Phillips driver to kitchen cabinets,

Cabinet

Figure 13.

Figure 14.

11. 79" (2006mm) High Opening With Louvered Top

Trim (Single and Dual Installations)

a. Slide units into place. Adjust height so top trim

height reaches 79.09" (2009ram). Center units

in opening and level. (See Figure 15)

b. Drill 1/8" pilot holes and fasten two (2) screws

per side with a Phillips driver to kitchen cabinets,

' L 5H

Item 4 Single Kit

Item 5 Dual Kit

Figure 15.

@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11

E|ectro|ux iNSTRUCTION SHEET

12. Trim Kit Leveling (See Figure 16)

(Single and Dual Installations)

a. To raise front of unit, turn leg leveler to left with

adjustable wrench to fit 1-1/4" hex.

b. To raise back of unit, adjust bolt clockwise with

3/8" socket or flat head screwdriver

14. Side Trim Attachment to Kitchen Cabinets

(Single and Dual Installations)

a. Fasten bottom of side trim with screw.

(See Figure 17)

b. Fasten screws to top trim. (See Figure 18)

i_{11

To raise or lower door, [

adjust7/16" bolt. _ ,__}1

To raise back of _

unit, adjust bolt

clockwise.

3/8" Bolts

Phillips Head

Screws

Leg Leveler

Figure 16.

13. Hinge Adjustment (See Figure 16)

(Single and Dual Installations)

a. The bottom hinge is designed to make final

minor adjustments for door to door and door to

cabinet alignment.

b. Hinge will move side to side 3/32" and raise up

1/8".

Use a 7/16" socket or open end wrench to raise or

lower the door.

Use a 3/8" socket and a Phillips screwdriver to

loosen bottom hinge. Shift door left or right, then

retighten screws and bolts.

Figure 17.

Figure 18.

15. Kick Plate Attachment

(Single Unit)

(Dual Unit)

Attach the kick plate to the cabinet with

two (2) screws. (See Figure 19)

Attach the kick plate to the cabinet with

four (4) screws. (See Figure 20)

Figure 19.

Screws Screws

Figure 20.

@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Congelador de Electrolux

Electrolux

Electrolux ENT6TE18SX Manual de usuario

Electrolux

Electrolux U04447 TF471 Manual de instrucciones

Electrolux

Electrolux EC4231AOW Manual de usuario

Electrolux

Electrolux LYB1AE8W0 Manual de usuario

Electrolux

Electrolux EUF2948IOX Manual de usuario

Electrolux

Electrolux EUF29202W Manual de usuario

Electrolux

Electrolux CB 150GL Manual de usuario

Electrolux

Electrolux Concept Counters 728304 Manual de usuario

Electrolux

Electrolux LCB3LF26W0 Manual de usuario

Electrolux

Electrolux 253.60722012 Manual

Electrolux

Electrolux SMART 726599 Manual de usuario

Electrolux

Electrolux EU 1321 T Manual de usuario

Electrolux

Electrolux EFUP193YSK W Manual de usuario

Electrolux

Electrolux EU 0562 C Guía rápida

Electrolux

Electrolux EUC 29291 W Manual de usuario

Electrolux

Electrolux SG22410 Manual de usuario

Electrolux

Electrolux EU 1341 T Manual de usuario

Electrolux

Electrolux IK2550BNL Manual de usuario

Electrolux

Electrolux TF964D Manual de instrucciones

Electrolux

Electrolux ECS 1647 Manual de usuario

Electrolux

Electrolux EUT 12003 W Manual de usuario

Electrolux

Electrolux IK2915BL Manual de usuario

Electrolux

Electrolux EJ2302AOW2 Manual de usuario

Electrolux

Electrolux U32359 ECN 26104 W Manual de usuario

Manuales populares de Congelador de otras marcas

Siemens

Siemens GU..D SERIES Manual de usuario

Omcan

Omcan FR-CN-0155 Manual de usuario

Beko

Beko FNE290E24W Manual de usuario

Dometic

Dometic CoolFreeze CFX95DZ Manual de usuario

Polar Electro

Polar Electro CT330 Manual de usuario

MPM

MPM MPM-145-SK Series Manual de usuario

SAF

SAF PRESTOTIG 200AC/DC Guía rápida

Zanussi

Zanussi ZFT11407WA Manual de usuario

AEG

AEG A63190GT Manual de usuario

AEG

AEG A81000TNW0 Manual de usuario

Matsui

Matsui MUC50S15E Manual de usuario

NEFF

NEFF G4344X8 Manual de usuario

Frigidaire

Frigidaire FV 1246 H Manual de usuario

Frigidaire

Frigidaire FFC13K1AW Manual de usuario

Beko

Beko RFNE350L24W Manual de usuario

IKEA

IKEA TYNNERAS Manual de usuario

Zanussi

Zanussi ZYAE82FR Manual de usuario

Beko

Beko RFSA300S Manual de instrucciones
