Dear customer,

Before placing your new chest freezer into operation please read these

operating instructions carefully. They contain important information for

safe use, for installation and for care of the appliance.

Please keep these operating instructions for future reference. Pass them on

to possible new owners of the appliance.

These operating instructions are for use with several technically comparable

models with varying accessories. Please observe the notes which apply to

your model.

Notes which are important for your safety or for the proper functioning of

the appliance are stressed with a warning triangle and/ or with signal words

(Warning!, Caution!, Attention!). Please observe the following carefully.

This symbol guides you step by step in the operation of the appliance.

Supplementary information regarding operation and practical applications

of the appliance appear after this symbol.

Tips and notes concerning economical and environmentally sound use of

the appliance are marked with the cloverleaf.

The operating instructions contain instructions for the correction of

possible malfunctions by the user in the section "What to do if ...".If these

instructions should not be sufficient, our customer service department is

always available to you.

Printed on paper manufactured with environmentally sound processes  he

who thinks ecologically acts accordingly ...

♣♣

All manuals and user guides at all-guides.com

Contents

Safety 4

Disposal 6

Appliance Packaging Information 6

Disposal of old Appliances 6

Installation 7

Installation Location 7

The freezer needs air 8

Electrical Connection 9

Appliance Description 10

Control Panel 9

Starting up 9

Temperature adjustment 11

Opening/closing the lid 11

The role of the Pressure

Equilisation Valve 11

Low Frost System 12

Lock 12

Storage baskets 13

Switching the Appliance Off 14

Maximum capacity /

Stacking limit 14

Freezing 14

Frozen Storage 16

Defrosting 16

Cleaning and care 17

Energy Saving Tips 18

What to do if 18

Correcting Malfunctions 18

Replace light bulb 20

Service & Spare Parts 21

Customer Care 21

Regulations,

Standards, Guidelines 22

All manuals and user guides at all-guides.com

Safety

The safety of our freezers is in accordance with recognised technological

standards and appliance safety legislation. We nevertheless feel that it is

important to acquaint you with the following safety guidelines:

Use for Intended Purpose

The freezer is intended for household use. It is suitable for freezing and

storage of frozen food. The manufacturer assumes no liability for

damages occurring through improper operation or use of the appliance

for unintended purposes.

Alterations or changes to the freezer are not permitted for reasons of

safety.

If you use the freezer in a commercial application or for purposes other

than the freezing or frozen storage of foods, please observe all valid legal

regulations for your application.

Prior to initial start-up

check the refrigerator/freezer for transport damage. Do not under any

circumstances connect a damaged appliance! Please contact your

supplier in the event of damage.

Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit

of the appliance, a natural gas with a high level of environmental

compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that

none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

avoid open flames and sources of ignition;

thoroughly ventilate the room in which the appliance is situated.

Safety for Children

Packaging materials (e.g. films, styrofoam) can be dangerous for children.

Danger of suffocation! Keep packaging materials away from children!

For appliances with lockable lids: Children playing could get locked in.

Danger of suffocation! Keep the key out of the reach of children and do

not leave it near the appliance.

All manuals and user guides at all-guides.com

Before disposing of old appliances make them inoperable. Remove plug

from mains, sever the power cable, remove or destroy any snap or latch

closures. This eliminates the danger that playing children lock themselves

into the appliance (danger of suffocation!) or place themselves into other

life-endangering situations.

Children often do not recognise the dangers involved with household

appliances. Please provide for the necessary supervision and do not allow

children to play with the appliance!

Daily Operation

Containers with flammable gases or fluids can develop leaks through

contact with the cold. Danger of explosion! Do not store containers with

flammable substances, such as aerosol cans, refill cartridges for cigarette

lighters etc. in the refrigerator/freezer.

Bottles and cans may not be placed in the freezer compartment. They can

burst when the contents freeze - or even explode if the contents contain

carbonic acid! Never place sodas, juices, beer, wine, champagne etc. into

the freezer compartment. Exception: Spirits with high alcohol content

may be stored in the freezer compartment.

Do not place ice cream or ice cubes directly from the freezer

compartment into the mouth. Very cold ice can freeze to the lips or

tongue and cause injury.

Never touch frozen goods with wet hands. Hands can freeze to the goods.

Do not operate any electrical appliances in the refrigerator/freezer (e.g.

electric ice cream makers, mixers etc.).

Before cleaning the appliance always pull the mains plug out or switch

off/disengage the household fuse.

When unplugging always pull the plug from the mains socket, do not pull

on the cable.

In case of malfunction

If a malfunction occurs on the appliance, please look first in the "What

to do if ..." section of these instructions. If the information given there

does not help, please do not perform any further repairs yourself.

This product should be serviced by an authorised engineer and only

genuine spare parts should be used.

Under no circumstances should you attempt to repair the appliance

yourself. Repairs carried out by inexperienced persons may cause injury or

serious malfunctioning. Contact your local AEG Service Force Centre.

All manuals and user guides at all-guides.com

Disposal

Appliance Packaging Information

All materials are environmentally friendly. They can be safely disposed of at

a recycling centre.

About the materials: The plastics can be recycled and are identified as

follows:

>PE< for polyethylene, e.g. the outer covering and the bags in the interior.

>PS< for polystyrene foam, e.g. the pads, which are all free of

chlorofluorocarbon.

The carton parts are made from recycled paper and should be disposed of at

a waste-paper recycling collection location.

Disposal of old Appliances

For environmental reasons, refrigeration appliances must be disposed of

properly. This applies to your old appliance, and - at the end of its service

life - for your new appliance as well.

Warning! Before disposing of old appliances make them inoperable. Remove

plug from mains, sever the power cable, remove or destroy any snap or latch

closures. This eliminates the danger of playing children locking themselves

into the appliance (danger of suffocation!) or place themselves into other

life-endangering situations.

Disposal:

The appliance may not be disposed of with domestic waste or bulky

refuse.

The refrigerating circuit must not be damaged.

Information concerning collection schedules or locations can be

obtained from your local Council or Environmental Health Office.

All manuals and user guides at all-guides.com

all-guides.com

Installation

Installation Location

The appliance should be set up in a well ventilated, dry room on a firm and

level surface.

Warning! The appliance may not be exposed to spray or water splashes.

There is a danger of electrical shock!

Energy use is affected by the ambient temperature.

The appliance should therefore

not be exposed to direct sunlight;

not be installed next to radiators, cookers or other sources of heat;

only be installed at a location whose ambient temperature corresponds

to the climate classification, for which the appliance is designed.

The climate classification is stipulated on the serial plate which can be

found on the inner side of the lid. The following table shows which ambient

temperature is correct for each climate classification:

Climate classification for an ambient temperature of

SN +10 to +32 °C

N +16 to +32 °C

ST +18 to +38 °C

T +18 to +43 °C

Model ARCTIS 189 GT ARCTIS 261 GT

Volume (gross) litres

Volume (net) litres

Height without/with roller cm

Width cm

Depth cm

Weight kg

Energy consumpt./24h kWh

Freezing capacity kg/24h

Hold-over time hours

Rated power W

189

184

87,6/88,3

93,5

66,5

0,53

261

255

87,6/88,3

11 9

66,5

0,64

100

Technical Specifications

All manuals and user guides at all-guides.com

The freezer needs air.

The side walls become warm whilst the appliance is on. The heat is

generated by the special refrigerating system (shell condenser) and helps

prevent condensation. In order for the heat to be able to be dissipated, air

must be able to circulate around all the side walls.

Attention! To function correctly the appliance requires good ventilation.

Make sure that the side walls and the base of the appliance are not covered

or obstructed.

All manuals and user guides at all-guides.com

Electrical Connection

Any electrical work required to install this appliance should be carried out

by a qualified electrician or competent person.

WARNING - THIS APPLIANCE MUST BE EARTHED

The manufacturer declines any liability should these safety mea-sures

not be observed.

Before switching on, make sure the electricity supply voltage is the same as

that indicated on the appliance rating plate. The rating plate is inside, on

the left.

The appliance is supplied with a 13 amp plug fitted. In the event of having

to change the fuse in the plug supplied, a 13 amp ASTA approved

(BS 1362) fuse must be used.

Important

The wires in the mains lead are coloured in

accordance with the following code:

Green and Yellow Earth

Blue Neutral

Brown Live

As the colours of the wires in the mains lead of

this appliance may not correspond with the

coloured markings identifying the terminals in

your plug, proceed as follows:

1.The wire coloured green and yellow must be connected to the termi-nal

marked with the letter E or by the earth symbol or coloured green

and yellow.

2.The wire coloured blue must be connected to the terminal marked N or

coloured black.

3.The wire coloured brown must be connected to the terminal marked L

or coloured red.

4.Upon completion there must be no cut, or stray strands of wire present

and the cord clamp must be secure over the outer sheath.

Warning! A cut-off plug inserted into a 13 amp socket is a serious safety

(shock) hazard. Ensure that the cut-off plug is disposed of safety.

All manuals and user guides at all-guides.com

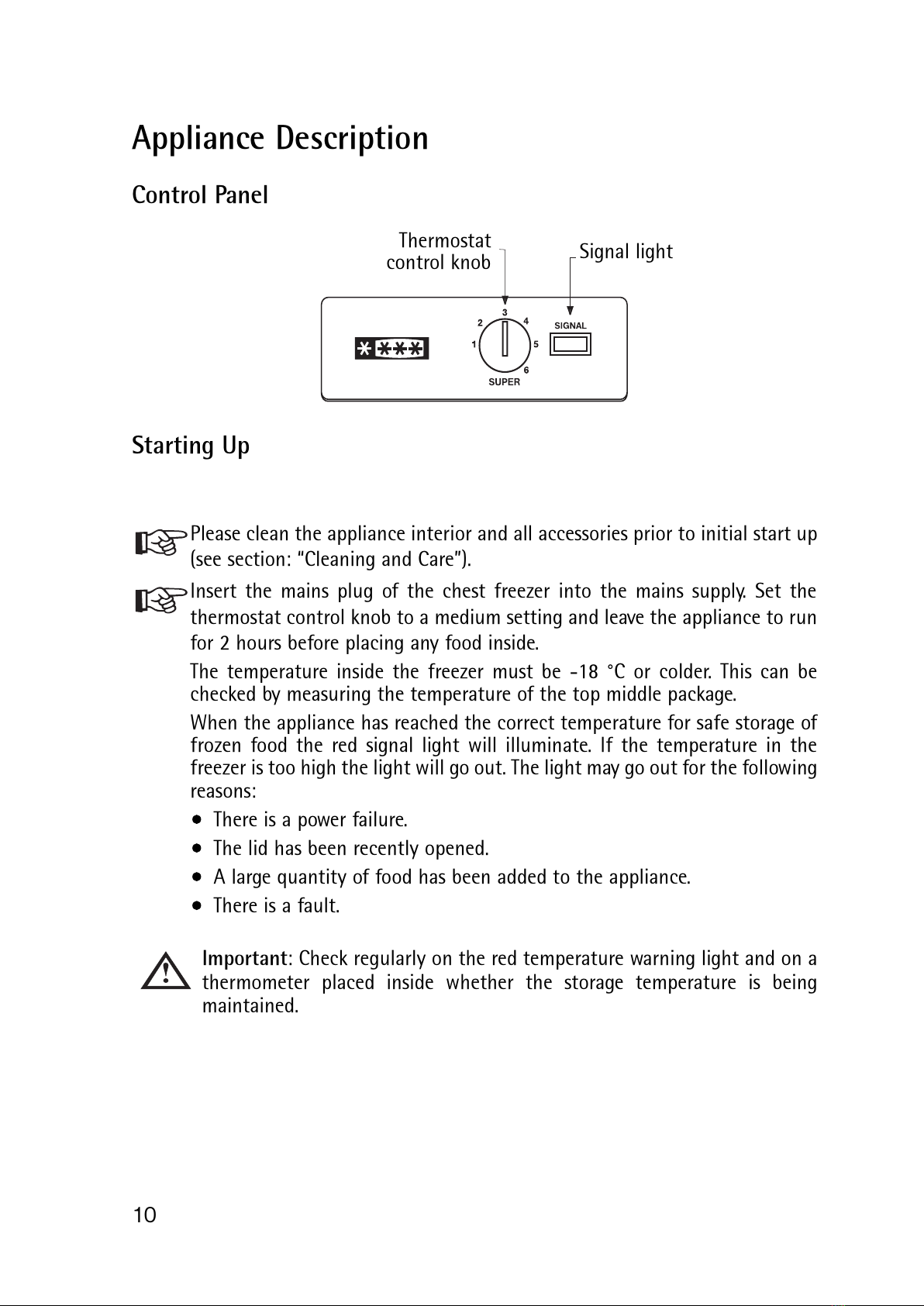

Thermostat

control knob Signal light

Appliance Description

Control Panel

Starting Up

Please clean the appliance interior and all accessories prior to initial start up

(see section: Cleaning and Care).

Insert the mains plug of the chest freezer into the mains supply. Set the

thermostat control knob to a medium setting and leave the appliance to run

for 2 hours before placing any food inside.

The temperature inside the freezer must be -18 °C or colder. This can be

checked by measuring the temperature of the top middle package.

When the appliance has reached the correct temperature for safe storage of

frozen food the red signal light will illuminate. If the temperature in the

freezer is too high the light will go out. The light may go out for the following

reasons:

There is a power failure.

The lid has been recently opened.

A large quantity of food has been added to the appliance.

There is a fault.

Important: Check regularly on the red temperature warning light and on a

thermometer placed inside whether the storage temperature is being

maintained.

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Congelador de Electrolux

Electrolux

Electrolux EUC 29391 W Manual de usuario

Electrolux

Electrolux SG245N11 Manual de usuario

Electrolux

Electrolux LCB3LE38W0 Manual de usuario

Electrolux

Electrolux GT292 Manual de usuario

Electrolux

Electrolux LNT3FF18S Manual de usuario

Electrolux

Electrolux EC2830AOW2 Manual de usuario

Electrolux

Electrolux EN3881AOX Manual de usuario

Electrolux

Electrolux EAT6HE59U0 Manual de usuario

Electrolux

Electrolux 727009 Manual de usuario

Electrolux

Electrolux U30394 EUC 25291 S Manual de usuario

Electrolux

Electrolux ECN 4157 Hoja de especificaciones

Electrolux

Electrolux EUT1040AOW Manual de usuario

Electrolux

Electrolux EUT1106AOW Manual de usuario

Electrolux

Electrolux EU 0940T Manual de usuario

Electrolux

Electrolux MD530NOCN Manual de usuario

Electrolux

Electrolux EU 1630 C Guía rápida

Electrolux

Electrolux SB309 Manual de usuario

Electrolux

Electrolux EUN2244AOW Manual de usuario

Electrolux

Electrolux EUX2245AOX Manual de usuario

Electrolux

Electrolux RS06FX1F4 726457 Manual de instrucciones

Electrolux

Electrolux COMMERCIAL CHEST FREEZER ICE CREAM Manual de usuario

Electrolux

Electrolux Chest freezers Manual de usuario

Electrolux

Electrolux EU 2246C Guía rápida

Electrolux

Electrolux Air-O-Chill 726998 (AOFP202RCU4) Manual de usuario

Manuales populares de Congelador de otras marcas

Siemens

Siemens GU..D SERIES Manual de usuario

Omcan

Omcan FR-CN-0155 Manual de usuario

Beko

Beko FNE290E24W Manual de usuario

Dometic

Dometic CoolFreeze CFX95DZ Manual de usuario

Polar Electro

Polar Electro CT330 Manual de usuario

MPM

MPM MPM-145-SK Series Manual de usuario

SAF

SAF PRESTOTIG 200AC/DC Guía rápida

Zanussi

Zanussi ZFT11407WA Manual de usuario

AEG

AEG A63190GT Manual de usuario

AEG

AEG A81000TNW0 Manual de usuario

Matsui

Matsui MUC50S15E Manual de usuario

NEFF

NEFF G4344X8 Manual de usuario

Frigidaire

Frigidaire FV 1246 H Manual de usuario

Frigidaire

Frigidaire FFC13K1AW Manual de usuario

Beko

Beko RFNE350L24W Manual de usuario

IKEA

IKEA TYNNERAS Manual de usuario

Zanussi

Zanussi ZYAE82FR Manual de usuario

Beko

Beko RFSA300S Manual de instrucciones
