Electrolux 253.28092802 Manual

P08F0137.eps P08D0618.eps P08C1202.eps P08S0485.eps

REPAIR

PARTS

LIST

253.28092802

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

UPRIGHT FREEZER

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the left side of

the access panel.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Publication number 5995546719

253.28092802

07/09 2

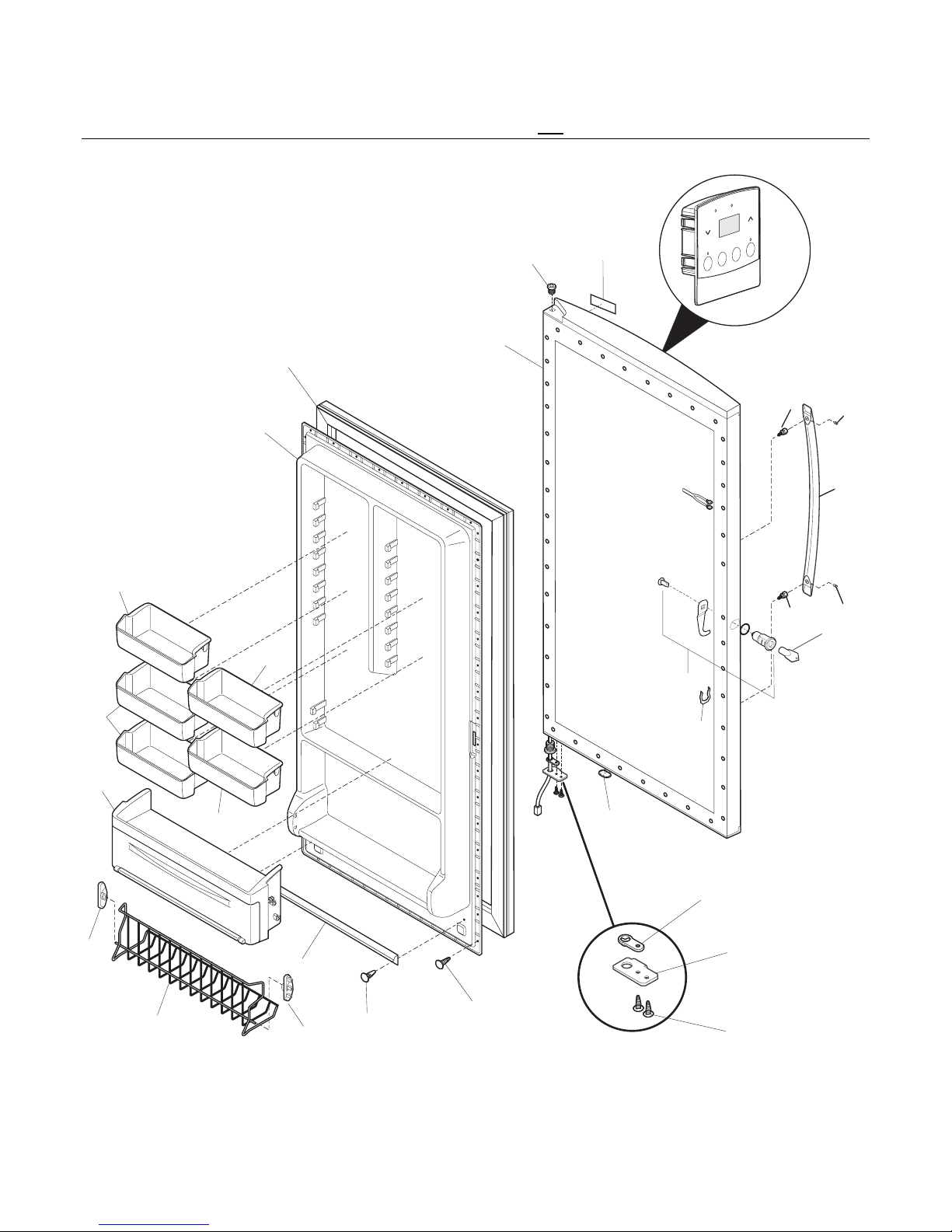

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

21A

151

48C

P08D0618

253.28092802

# Functional Parts 3 07/09

* Non-Illustrated Parts

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 216522312 Gasket-door, white

2 # 297090000 Lock Assy

2A 297090900 Clip, spring

5 297147700 Key, lock

9 297185900 Panel-inner door, frzr

11 297317302 Panel-outer door, white

12 297086400 Nameplate

18 297218000 Handle-door, white

* 240537301 Nut-anchor, door hdl screw

21A 216850900 Screw, hex washer hd, 1/4 x 7/8, door stop/hng

22 216970800 Bearing, hinge w/o'ring, top

26 216524201 Gasket, secondary

27 5304472186 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

48C 297186400 Bin-door, w/lid

49 297187200 Bin-door, 2-liter

59 216974500 Bearing, door closer

64 216403700 Plug-button, hole filler, door base

72 297186700 Shelf, tilt out, wire

73 216513900 End Cap, shelf, LH, tilt-out

74 216514000 End Cap, shelf, RH, tilt-out

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

151# 297242003 Control-electronic, assy, white, 115V

253.28092802

07/09 4

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

163

34 15

71A

156

59A

59B

71A 71A

42C

156A

170

47A

P08C1202

152

41 28

93A

169

139

138

42A

137C

137B

253.28092802

# Functional Parts 5 07/09

* Non-Illustrated Parts

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200900 Breaker Kit w/corners

7 297201100 Breaker Kit w/corners, lock catch

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 # 297250000 Motor, fan, 115 V

14 216998000 Switch, light/lamp, ramp

15 297114000 Light Bulb, short, blue tint, 40W

16 297139500 Socket, light/lamp

19 216204902 Gasket-evap cover

25 297099251 Cover-evaporator

28 297179300 Hinge, bottom/RH

29 216313501 Hose-drain

32 5308005500 Drain

34 297184400 Shield-light

37 297273900 Trim-cabinet corner, white, (2)

38 297154600 Hinge-upper

40 297154701 Cover-upper hinge, white

41 297236200 Screw, tamper proof, 1/4-20 x 5/8

42 297166802 Glass-shelf, (2)

42A 297166800 Glass-shelf

* 216502400 Grommet-shelf mtg

42C 297183801 Divider, blue, glass shelf

47 297192901 Baffle, air

47A 297205801 Diffuser, air, blue, (2)

59 297308900 Basket

59A 216486500 Stop-basket, (2)

59B 297308300 Basket

60 297013500 Slide, basket

63 216396900 Screw, leveling foot, plastic, adjustable

68 08009560 Glide-basket

69 5305878546 Bumper-basket

71A 297146800 Screw, 8-18AB x 0.470

72 297198900 Grille/Kickplate, 32", white

79 3017666 Nut-insert

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 297174300 Screw, #8, 18x.63, self pierce

* 216327800 Clip, wire

137B 297166902 Frame

137C 297166900 Frame

138 297203601 Trim-shelf, front

139 297218201 Trim-shelf, rear

152 216974600 Bearing, hinge closer

156 297202401 Divider, basket, btm

156A 297183601 Divider, basket, (2)

163 297185301 Shelf, pizza

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

170 297280400 Valve, breather

* 297001704 Insulation, 24", drain tube

* 297089303 Energy Guide

* 297246001 Service Data Sheet

* 297251900 Use & Care Guide

* 297257300 Label, start guide

* 297258300 Instructions, elect guide, Precision

* 5995546719 Repair Parts List

253.28092802

07/09 6

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

FRONT

BACK

130

15A

P08S0485

31A

43B

253.28092802

# Functional Parts 7 07/09

* Non-Illustrated Parts

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216987500 Drier-filter

5 # 297237602 Harness-main

14 297216101 Heater-defrost

15 # 216997300 Evaporator

15A 297217900 Heat Exchanger, suct/cap tube

18 297078701 Insulator-evap, styrofoam, RH

19 297078801 Insulator-evap, styrofoam, LH

20 297216600 Thermostat, defrost

27 5308002681 Grommet, compressor

29 # 297223500 Compressor, w/o electricals

30 216954218 Controller

31A 297217000 Pan-drain

32 216954300 Clip, controller

35 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

43B 297048400 Clip

55 216985001 Capacitor-run, 15 MF

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

130 297244700 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 240555002 Screw-#8-32 X 3/8

* 297014500 Plug-suction line

* 297018400 Thermistor

* 297174300 Screw, #8, 18x.63, self pierce

*# 297169904 Cord-power
