EDH3896GDW

EN Tumble Dryer User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................2

2. CONDITIONS OF USE.......................................................................................5

3. SAFETY INSTRUCTIONS..................................................................................5

4. PRODUCT DESCRIPTION................................................................................ 7

5. CONTROL PANEL............................................................................................. 8

6. PROGRAMME TABLE....................................................................................... 9

7. OPTIONS..........................................................................................................10

8. SETTINGS........................................................................................................11

9. BEFORE FIRST USE....................................................................................... 12

10. DAILY USE..................................................................................................... 12

11. HINTS AND TIPS........................................................................................... 13

12. CARE AND CLEANING..................................................................................14

13. TROUBLESHOOTING....................................................................................16

14. TECHNICAL DATA.........................................................................................17

15. WARRANTY .................................................................................................. 18

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

www.electrolux.com2

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

- Read the supplied instructions.

- Warning; Risk of fire / Flammable materials

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent

disability.

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Children aged 3 years and under must be kept away

from this appliance when it is in operation at all times.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•If the appliance has a child safety device, this should

be activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine,

use the stacking kit. The stacking kit, available from

your authorized vendor, can be used only with the

appliance specified in the instructions, supplied with

ENGLISH 3

the accessory. Read it carefully before installation

(Refer to the Installation leaflet).

•The appliance can be installed as freestanding or

below the kitchen counter with correct space (Refer to

the Installation leaflet).

•Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

side, that would prevent the appliance door from being

fully opened.

•The ventilation opening in the base (if applicable) must

not be covered by a carpet, mat, or any floor covering.

•WARNING: The appliance must not be supplied

through an external switching device, such as timer, or

connected to a circuit that is regularly switched on and

off by a utility.

•Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation.

•Ensure good air ventilation in the located room to

avoid the backflow of unwanted gases into the room

from appliances burning gas or other fuels, including

open fires.

•Exhaust air must not be discharged into a flue which is

used for exhausting fumes from any appliances

burning gas or other fuels.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Do not exceed the maximum load of 9 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled

with industrial chemicals.

•Wipe away lint or packaging debris that has

accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint

filter before or after each use.

www.electrolux.com4

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot

removers, turpentine, waxes and wax removers

should be washed in hot water with an extra amount of

detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes

or pillows fitted with foam rubber pads should not be

dried in the tumble dryer.

•Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s

instructions.

•Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

•Never stop a tumble dryer before the end of the drying

cycle unless all items are quickly removed and spread

out so that the heat is dissipated.

•The final part of a tumble dryer cycle occurs without

heat (cool down cycle) to ensure that the items are left

at a temperature that ensures that the items will not be

damaged.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

2. CONDITIONS OF USE

This appliance is intended to be used in

household and similar applications such

as:

• Farm houses

• By clients in serviced apartments,

holiday apartments and other

residential type environments.

3. SAFETY INSTRUCTIONS

3.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instruction

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be less

than 5°C or higher than 35°C.

ENGLISH 5

• The floor area where the appliance is

to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when being moved.

• The rear surface of the appliance

must be put against the wall.

• When the appliance is in its

permanent position, check that it is

fully level with the aid of a spirit level.

If it is not, adjust the feet accordingly.

3.2 Electrical connection

WARNING!

Risk of fire and electrical

shock.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• The appliance must be earthed.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the

E.E.C. Directives.

3.3 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• Do not dry the damaged items which

contain padding or fillings.

• Only dry fabrics which are applicable

to dry in the tumble dryer. Follow the

instructions on the fabric label.

• If you have washed your laundry with

a stain remover start an extra rinse

cycle before you start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can

cause health problems to people and

pets.

• Do not sit or stand on the open door.

• Do not dry dripping wet clothes in the

tumble dryer.

• Oil-affected items can ignite

spontaneously, especially when

exposed to heat sources such as in a

tumble dryer. The items become

warm, causing an oxidation reaction

in the oil. Oxidation creates heat. If

the heat cannot escape, the items can

become hot enough to catch fire.

Piling, stacking or storing oil-affected

items can prevent heat from escaping

and create a fire hazard.

• If it is unavoidable that fabrics that

contain vegetable or cooking oil or

have been contaminated by hair care

products be placed in a tumble dryer

they should first be washed in hot

water with extra detergent -this will

reduce, but not eliminate, the hazard.

3.4 Internal light

WARNING!

Risk of injury.

• Visible LED radiation, do not look

directly into the beam.

• The LED lamp is dedicated to drum

lighting. This lamp cannot be reused

for other lighting purposes.

• To replace the internal light, contact

the Authorised Service Centre.

3.5 Care and cleaning

WARNING!

Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use any abrasive products,

abrasive cleaning pads, solvents or

metal objects.

www.electrolux.com6

• To prevent damage to the cooling

system be careful when you clean the

appliance.

3.6 Compressor

WARNING!

Risk of damage to the

appliance.

• The compressor and its system in the

tumble dryer is filled with the special

agent which is free from fluoro-chloro-

hydrocarbons. This system must stay

tight. The damage of the system can

cause a leakage.

3.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

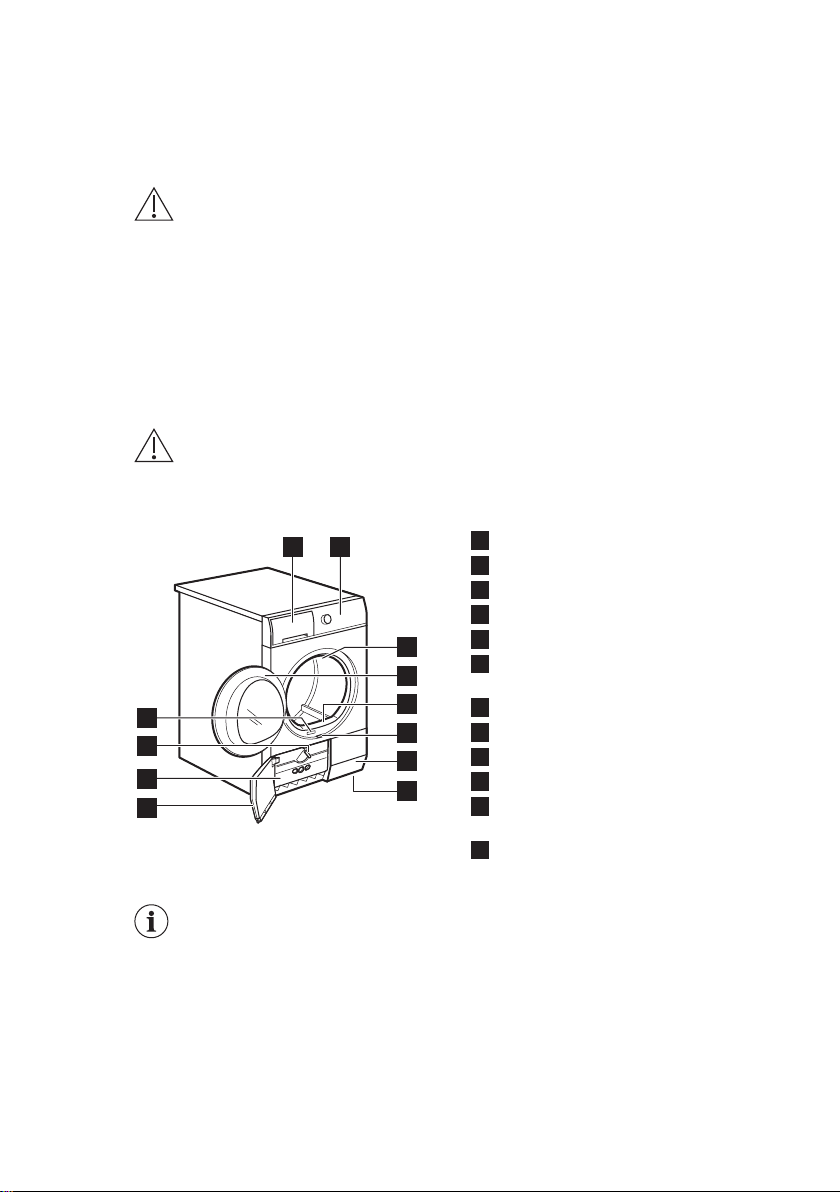

4. PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Internal light

4Appliance door

5Primary Filter

6The button to open the heat

exchanger door

7Airflow slots

8Adjustable feet

9Heat exchanger door

10 Heat exchanger cover

11 The knob to lock the heat exchanger

cover

12 Rating plate

For ease of loading laundry

or ease of installation the

door is reversible. (see

separate leaflet).

ENGLISH 7

5. CONTROL PANEL

1 2

1Programme knob

2Display

3 Time touchpad

4 Delay touchpad

5 Buzzer touchpad

6 Wool Load touchpad

7 Start/Pause touchpad

8On/Off button

Touch the touchpads with

your finger in the area with

the symbol or name of the

option. Do not wear gloves

when you operate with the

control panel. Make sure

that the control panel is

always clean and dry.

5.1 Indicators

Indicators Description

Drying phase

Cooling phase

Crease guard phase

Condenser

Water container

Filter

Delay start

Child lock

Acoustic signals

www.electrolux.com8

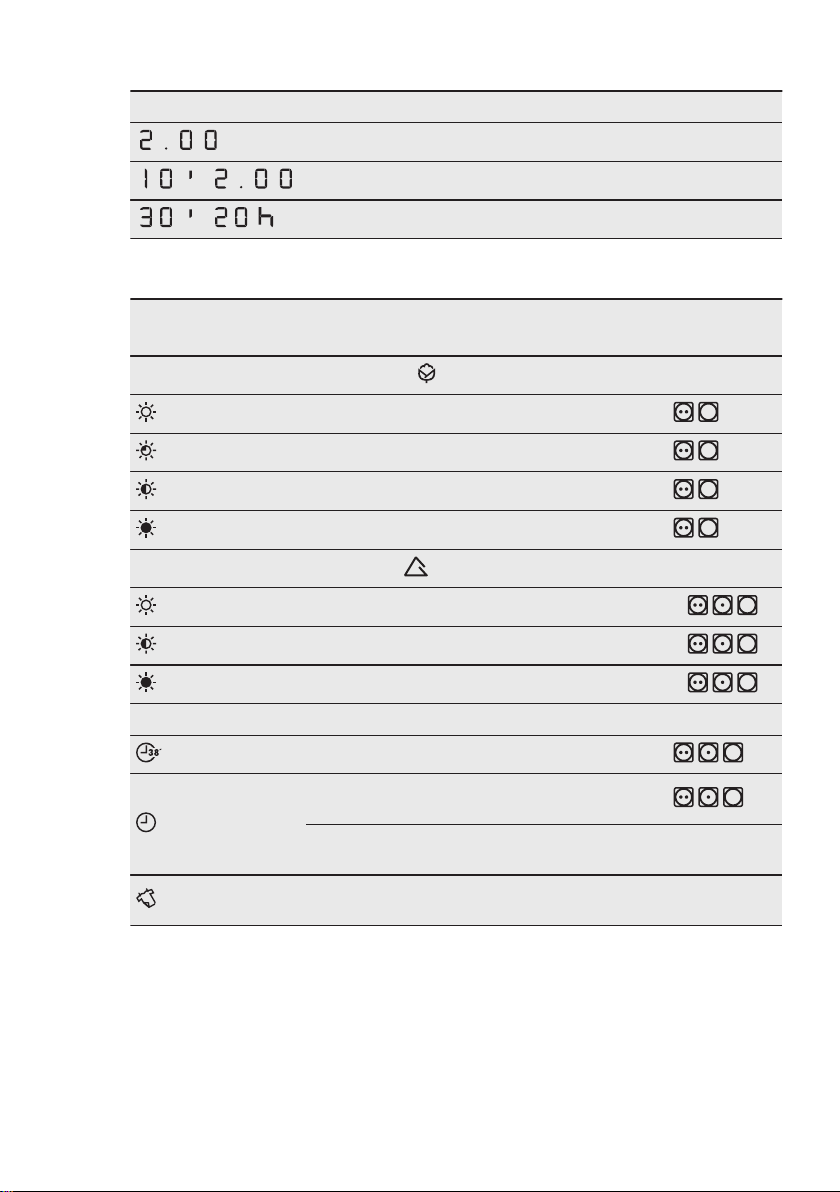

Indicators Description

Programme duration

- Time Drying duration

- Delay start duration

6. PROGRAMME TABLE

Programmes Type of load Load (max.)1) /

Fabric mark

Cotton

Extra Dry2) Drying level: extra dry. 9kg/

Strong Dry Drying level: strong dry. 9kg/

Cupboard Dry Drying level: cupboard dry. 9kg/

Iron Dry Drying level: suitable for ironing. 9kg/

Synthetic

Extra Dry Drying level: extra dry. 3,5kg/

Cupboard Dry Drying level: cupboard dry. 3,5kg/

Iron Dry Drying level: suitable for ironing. 3,5kg/

Rapid To dry cotton and synthetic fabrics. 2kg/

Time Drying

With this program you can use the Time

option and set the programme duration. 5kg/

For drying sports shoes only with Drying

Rack.

1 pair of sport

shoes

Refresh Refreshing a textiles that were in stor‐

age. 1kg

ENGLISH 9

Programmes Type of load Load (max.)1) /

Fabric mark

Wool 3)

Wool fabrics. Gentle drying washable

woollens. Remove immediately the items

when the programme is completed.

1kg

Silk Hand-washable silk gently. 1kg/

Duvet Single or double duvets and pillows (with

feather, down or synthetic fillings). 3kg/

Easy Iron

Easy care fabrics for which a minimum of

ironing is necessary. The drying results

can be different from one type of fabric to

another. Shake the items before putting

them in the appliance. When the pro‐

gramme has ended, immediately remove

the items and put them on a hanger.

1kg (or 5 shirts)/

1) The maximum weight refers to dry items.

2) For test institutes only: Standard program for tests are specified in the AS/NZS2442.2

document.

3) The wool drying cycle of this machine has been approved by The Woolmark Company for

the drying of wool garments labelled as "hand wash" provided that the garments are dried

according to the instructions issued by the manufacturer of this machine. Follow the gar‐

ment care label for other laundry instructions. M1639 In UK, Eire, Hong Kong and India the

Woolmark trade mark is a Certification trade mark.

7. OPTIONS

7.1 Time

This option is applicable only to the Time

Drying programme. You can set the

programme duration, from a minimum of

10 minutes to a maximum of 2 hours.

The setting of the duration is related to

the quantity of laundry in the appliance.

We recommend that you set

a short duration for small

quantities of laundry or for

only one item.

7.2 Wool Load

This option is applicable only to the Wool

programme. To get laundry more dried

press the Wool Load touchpad again

and again to increase the programme

duration (estimated drying time will

appear on the display).

7.3 Buzzer

you can hear the buzzer at the:

• cycle end

www.electrolux.com10

Tabla de contenidos

Otros manuales de Secadora de Electrolux

Electrolux

Electrolux EDH3284PDW Manual de usuario

Electrolux

Electrolux EIMED60JRR0 Manual de usuario

Electrolux

Electrolux EDC 5368 Manual de usuario

Electrolux

Electrolux EDC78550W Manual de usuario

Electrolux

Electrolux EWMED70J SS Manual de usuario

Electrolux

Electrolux TW SL EP Manual de usuario

Electrolux

Electrolux EDC 5330 Manual de usuario

Electrolux

Electrolux Zanussi TCE 7245 Manual de usuario

Electrolux

Electrolux 134066300 Manual de usuario

Electrolux

Electrolux EWMGD65H Manual de usuario

Electrolux

Electrolux EIED50LIW Instrucciones de instalación

Electrolux

Electrolux EDC2086PDW Manual de usuario

Electrolux

Electrolux EDH3887GDE Manual de usuario

Electrolux

Electrolux EDH 97981W Manual de usuario

Electrolux

Electrolux EDC 5340 Manual de usuario

Electrolux

Electrolux EDH903BEWA Manual de usuario

Electrolux

Electrolux SAHARA Manual de usuario

Electrolux

Electrolux IQ-Touch EIMGD60LSS0 Manual de usuario

Electrolux

Electrolux EDH903R9WB Manual de usuario

Electrolux

Electrolux EDH803Q7WB Manual de usuario

Electrolux

Electrolux TWSL5E300 Manual de usuario

Electrolux

Electrolux EIMED60J RR Manual de usuario

Electrolux

Electrolux EDH3686GDE Manual de usuario

Electrolux

Electrolux EDC78550W Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
