1. SAFETY INFORMATION

Before beginning the installation and use of this

appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or

damages that are the result of incorrect installation or

usage. Always keep the instructions in a safe and

accessible location for future reference.

- Read the supplied instructions.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent

disability.

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Children of less than 3 years should be kept away

unless continuously supervised.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•If the appliance has a child safety device, this should

be activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

ENGLISH 3

•The appliance can be installed as freestanding or

below a kitchen counter with correct space (refer to

the Installation leaflet).

•Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

side, that would prevent the appliance door from being

fully opened.

•The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

•WARNING: The appliance must not be supplied

through an external switching device, such as timer, or

connected to a circuit that is regularly switched on and

off by a utility.

•Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Do not exceed the maximum load of 8 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled

with industrial chemicals.

•Wipe away lint or packaging debris that has

accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint

filter before or after each use.

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot

removers, turpentine, waxes and wax removers

should be washed in hot water with an extra amount of

detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes

www.electrolux.com4

or pillows fitted with foam rubber pads should not be

dried in the tumble dryer.

•Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s

instructions.

•Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end

of the drying cycle unless all items are quickly

removed and spread out so that the heat is dissipated.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be less

than 5°C or higher than 35°C.

• The floor area on which the appliance

is to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when being moved.

• The rear surface of the appliance

must be put against the wall.

• When the appliance is in its

permanent position, check that it is

fully level with the aid of a spirit level.

If it is not, adjust the feet accordingly.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the

E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, electric shock,

fire, burns or damage to the

appliance.

• This appliance is for household use

only.

• Do not dry damaged (torn, frayed)

items that contain padding or fillings.

ENGLISH 5

• Only dry fabrics which are applicable

to dry in the tumble dryer. Follow the

instructions on the fabric label.

• If you have washed your laundry with

a stain remover start an extra rinse

cycle before you start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can

cause health problems to people and

pets.

• Do not sit or stand on the open door.

• Do not dry dripping wet clothes in the

tumble dryer.

2.4 Internal light

WARNING!

Risk of injury.

• Visible LED radiation, do not look

directly into the beam.

• The LED lamp is dedicated to drum

lighting. This lamp cannot be reused

for other lighting purposes.

• To replace the internal lighting,

contact the Authorised Service

Centre.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use any abrasive products,

abrasive cleaning pads, solvents or

metal objects.

• To prevent damage to the cooling

system be careful when you clean the

appliance.

2.6 Compressor

WARNING!

Risk of damage to the

appliance.

• The compressor and its system in the

tumble dryer is filled with the special

agent which is free from fluoro-chloro-

hydrocarbons. This system must stay

tight. The damage of the system can

cause a leakage.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

www.electrolux.com6

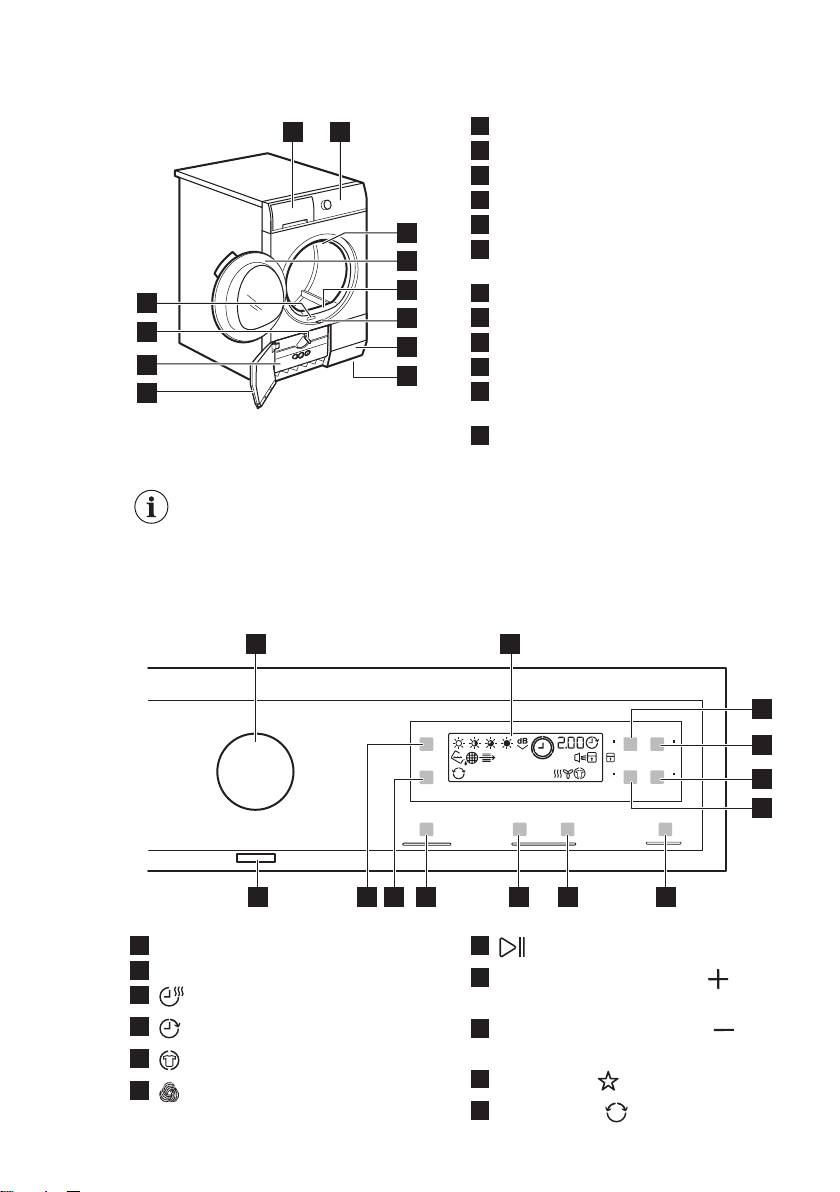

3. PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Internal light

4Appliance door

5Primary Filter

6The button to open the heat

exchanger door

7Airflow slots

8Adjustable feet

9Heat exchanger door

10 Heat exchanger cover

11 The knob to lock the heat exchanger

cover

12 Rating plate

For ease of loading laundry

or ease of installation the

door is reversible. (see

separate leaflet).

4. CONTROL PANEL

1 2

10 89111213

1Programme knob

2Display

3 Time touchpad

4 Delay touchpad

5 Anti-crease touchpad

6 Wool Load touchpad

7 Start/Pause touchpad

8Drying Rack Time increase

touchpad

9Drying Rack Time decrease

touchpad

10 MyFavourite touchpad

11 Reverse Plus touchpad

ENGLISH 7

12 Dryness touchpad

13 On/Off button

Press the touch buttons with

your finger in the area with

the symbol or name of the

option. Do not wear gloves

when you operate the

control panel. Make sure

that the control panel is

always clean and dry.

4.1 Indicators

Indicators Description

Drying phase

Cooling phase

Crease guard phase

Condenser

Water container

Filter

Delay start

Child lock

Acoustic signals

Reverse plus

Drying level

Programme duration

- Time Drying duration

- Delay start duration

5. PROGRAMME TABLE

Programmes Type of load Load (max.)1) /

Fabric mark

Cotton

Drying level: Extra Dry, Cupboard

Dry+, Cupboard Dry2)3), Iron

Dry3)

8kg/

www.electrolux.com8

Programmes Type of load Load (max.)1) /

Fabric mark

Mixed

Cotton and synthetic fabrics. Low tem‐

perature programme. Delicate pro‐

gramme with warm air. 3kg/

Synthetic Drying level: Extra Dry, Cupboard

Dry3), Iron Dry 3,5kg/

Easy Iron

Easy care fabrics for which a minimum of

ironing is necessary. The drying results

can be different from one type of fabric to

another. Shake the items before putting

them in the appliance. When the pro‐

gramme has ended, immediately remove

the items and put them on a hanger.

1kg (or 5 shirts)/

Rapid To dry cotton and synthetic fabrics. 2kg/

Time Drying

With this programme you can use the

Time option and set the programme du‐

ration. 5kg/

Refresh Refreshing textiles that were in storage. 1kg

Drying Rack4)

For drying sport shoes only with Drying

Rack (see separate user manual provi‐

ded with Drying Rack).

1kg (or 1 pair of

sport shoes)

ENGLISH 9

Programmes Type of load Load (max.)1) /

Fabric mark

Wool

Woollen fabrics. Gentle drying for hand-

washable woollens. Remove items im‐

mediately when the programme is com‐

pleted.

The wool drying cycle of this machine

has been approved by The Woolmark

Company for the drying of wool garments

labelled as "hand wash" provided that the

garments are dried according to the in‐

structions issued by the manufacturer of

this machine. Follow the garment care la‐

bel for other laundry instructions. M1525

In UK, Eire, Hong Kong and India the

Woolmark trade mark is a Certification

trade mark.

1kg

Silk Gentle drying of hand-washable silks. 1kg/

Shirts

Easy care fabrics for which a minimum of

ironing is necessary. The drying results

can be different from one type of fabric to

the other. Shake the items before you

put them in the appliance. When the pro‐

gramme is completed, Immediately re‐

move the items and put them on a hang‐

er.

1,5kg (or 7

shirts)/

Duvets Single or double duvets and pillows (with

feather, down or synthetic fillings). 3kg/

Jeans

Leisure clothing such as jeans, sweat-

shirts of different material thicknesses

(e.g. at the neck, cuffs and seams). 8kg/

www.electrolux.com10

Tabla de contenidos

Otros manuales de Secadora de Electrolux

Electrolux

Electrolux EDH3498RDE Manual de usuario

Electrolux

Electrolux EDE 77550W Manual de usuario

Electrolux

Electrolux IQ-Touch EIMGD55IIW Instrucciones de instalación

Electrolux

Electrolux TE1120P Manual de usuario

Electrolux

Electrolux EDC804BEWA Manual de usuario

Electrolux

Electrolux EDH 97941 W Manual de usuario

Electrolux

Electrolux TWGL5IE300 Manual de usuario

Electrolux

Electrolux EWED65H SS Manual de usuario

Electrolux

Electrolux EW9H3866MB Manual de usuario

Electrolux

Electrolux EDC804P5WB Manual de usuario

Electrolux

Electrolux EDE 425 M Guía rápida

Electrolux

Electrolux W455H Manual de usuario

Electrolux

Electrolux T4900CR Manual de usuario

Electrolux

Electrolux EDC2075GDW Manual de usuario

Electrolux

Electrolux EWMED70J MB Manual de usuario

Electrolux

Electrolux EDC 504M Manual de usuario

Electrolux

Electrolux Wave-Touch 137018100 A Manual de usuario

Electrolux

Electrolux 300 Series Manual de usuario

Electrolux

Electrolux EDV500 Manual de usuario

Electrolux

Electrolux EDC 5470 Manual de operación

Electrolux

Electrolux EWMED65H Manual de usuario

Electrolux

Electrolux EDV705G Manual de usuario

Electrolux

Electrolux EDH803Q7WB Manual de usuario

Electrolux

Electrolux EDC 504M Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
