SERVICE MANUAL
© AEG Hausgeräte GmbH
Muggenhofer Straße 135
D-904 9 Nürnberg
Germany
Fax +49 (0)911 3 3 14 0
TSE - N
Publ.-Nr.:
599 50 78 52
685
05.00
EN
Edition:
Dishwasher
GS 24 CH
DISHWASHER
- 2 -
TSE-N 05.00 A. B. 599 50 78 5 EN
Contents
1. Survey of electronics used in this series ...........................................................3
Comfort level L3 / Li.3........................................................................................3
Comfort level GL.3 / Gli.3 .................................................................................. 3
Comfort level SL.3 / Sli.3 ...................................................................................4
2. Mechanical Construction ...................................................................................4
3. Comparison with front sides of W 23 generation............................................5
Comfort levels L.1 / Li.1 / GSA.2 / GSIA.2 .........................................................5
Comfort levels GL.1 / Gli.1 / GSB.2 / GSIB.2.....................................................5
Comfort levels SL.1 / Sli.1 / GSG.2 / GSIG.2.....................................................5
4. Construction (technical) and new functions ......................................................6
2- and 5-key electronic ......................................................................................6
Function of touch-sensitive field? ......................................................................6
8-sensor electronic ...........................................................................................6
5. Error codes .......................................................................................................7
Comfort level L.3 / Li.3.......................................................................................7
Comfort level GL.3 / Gli.3 .................................................................................. 7
Comfort level SL.3 / Sli.3 ...................................................................................7 - 8
6. Test routine carousel......................................................................................... 9
Sequence test routine carousel......................................................................... 9
7. Test routine computer .....................................................................................10 - 17
- 3 -
TSE-N 05.00 A. B. 599 50 78 5 EN
normal
intensive
short
rinse
ECO
normal
intensive
short
rinse
ECO

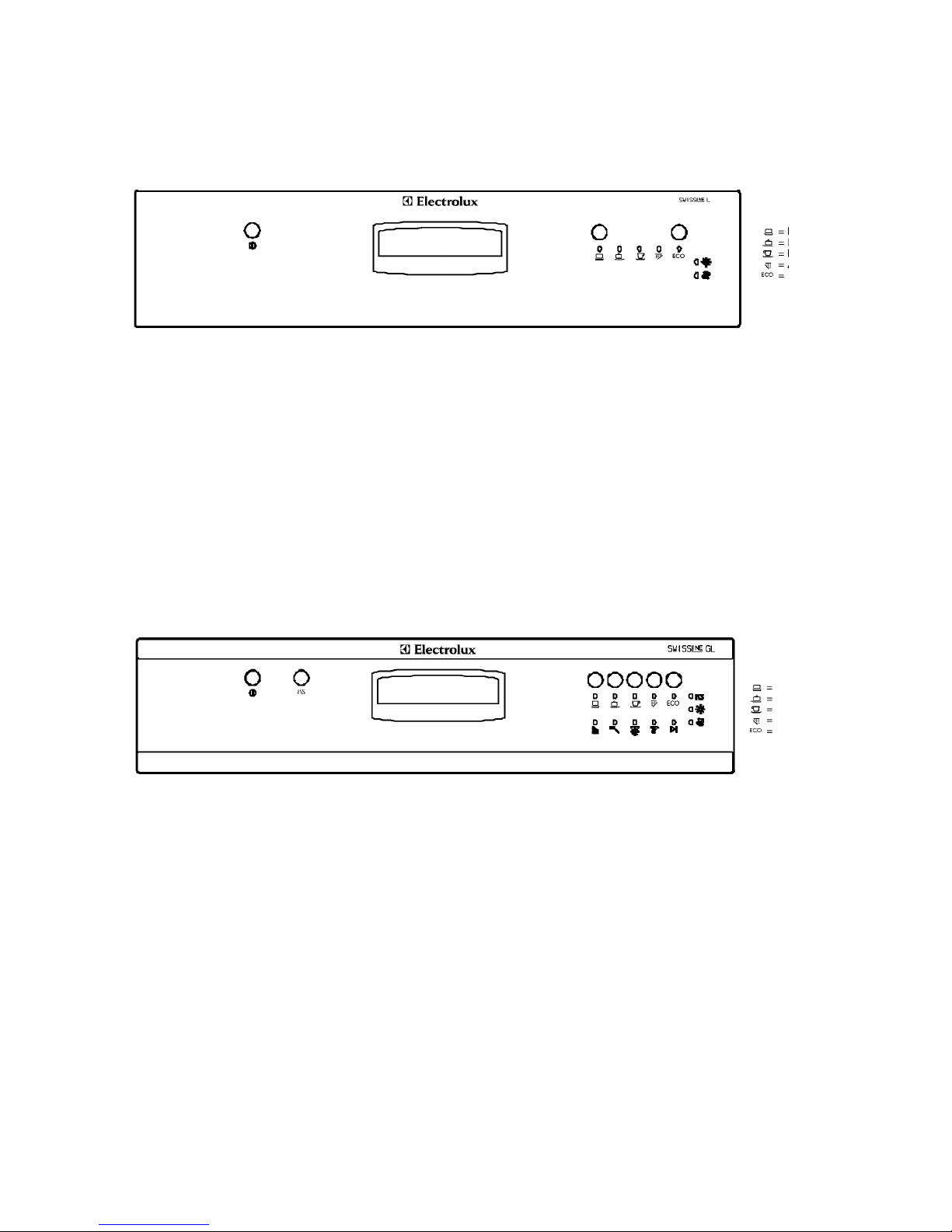

1. Survey of Electronics Used in this Series
Comfort level L.3 / Li.3
2-keys electronic / no. 153 0259-08/2
Internal name: TES 502 / 153 0964 00
2 red LE s (salt and rinse-aid)
5 green LE s for all cycles and ECO
no indication of program status
4 programs: NORMAL / INTENSIVE / SHORT / PRE-WASH
1 additional function: ECO
2 integrated test routines
Comfort level L.3 / li.3
5-keys electronic / no. 153 0259-05/8
Internal name: TES 401 / 153 0842 00
2 red LE s (salt and rinse-aid)
6 green LE s for all cycles, ECO and HALF LOA
5 yellow LE s as indication of program status
4 programs: NORMAL / INTENSIVE / SHORTt / PRE-WASH
2 additional functions: ECO / half load
2 integrated test routines
- 4 -
TSE-N 05.00 A. B. 599 50 78 5 EN
start delay
glass
normal
intensive
short
rinse
ECO
half load

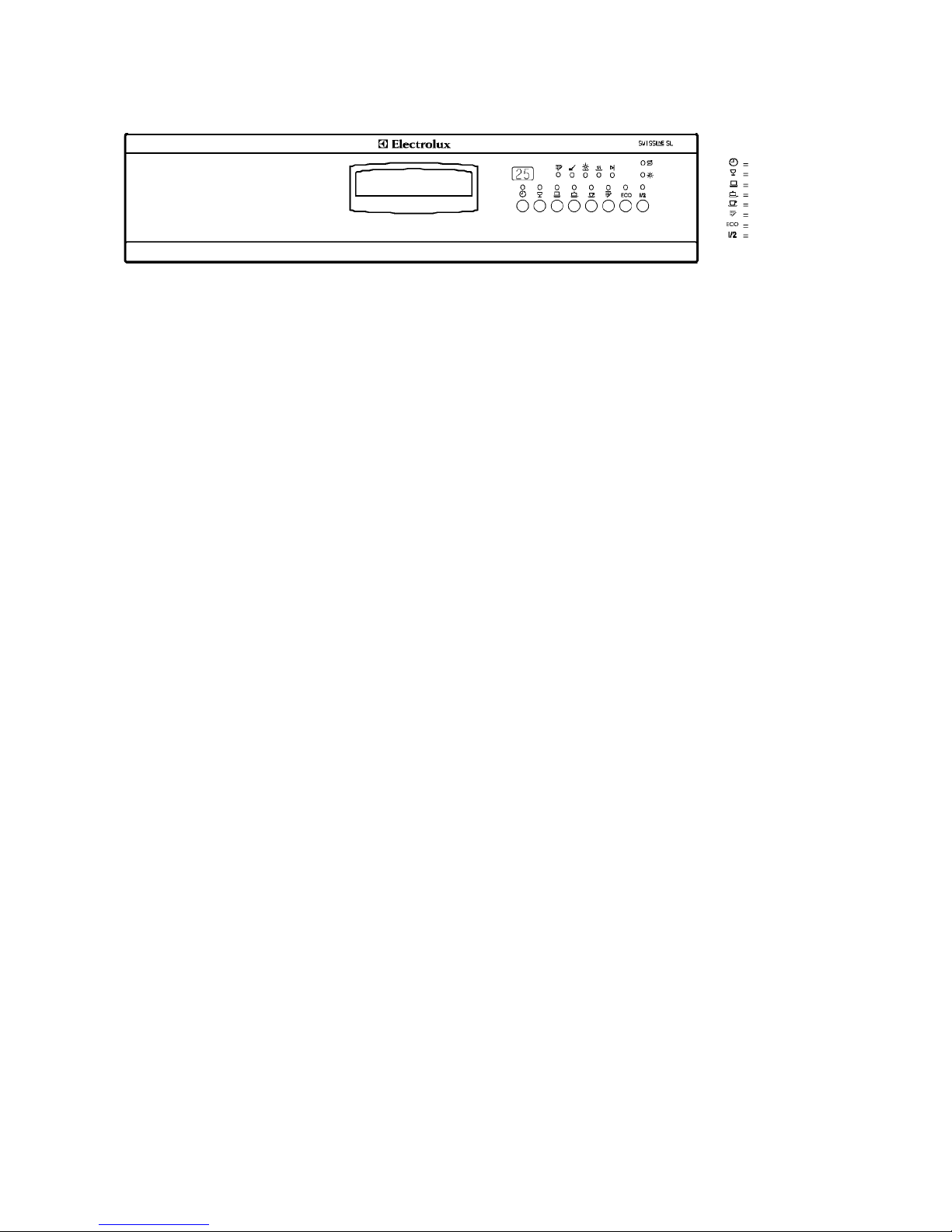

Comfort level SL.3 / Sli.3
8-sensors electronic / no. 153 0259-09/0
Internal name: TES 505 / 153 0894 00
2 red LE s (salt and rinse-aid)
8 green LE s for all cycles, ECO, stop and timer
5 yellow LE s as indication of program status
2 7-segment displays for start delay and remaining wash time
5 programs: GLASS / NORMAL / INTENSIVE / SHORT / PRE-WASH
3 additional functions: ECO / half load / start delay
2 integrated test routines
Important note
All electronics supplied under W 24 have already been equipped with the latest software version F. This
was introduced to avoid that the same wash cycles under series W 23 and W 24 show different
indices.
2. Mechanical Construction
Lowest comfort level:
Support panel made of plastic, design panel of steel, lacquered or stainless steel.
The design panel is interlocked with the support panel.
Medium comfort level:
Support panel made of plastic, design panel of glass, ornamental stripes of steel, lacquered or
stainless steel, ornamental rings surrounding all keys.
All components are glued with each other, the ornamental rings are snapped into the glass.
Highest comfort level:
Support panel made of plastic, design panel with sensor electronic on the back side made of glass,
ornamental stripes of steel, lacquered or stainless steel.
All components are glued with each other.
- 5 -
TSE-N 05.00 A. B. 599 50 78 5 EN
1 = normal
2 = intensive
3 = short
4 = rinse
1 = normal
2 = intensive
3 = short
4 = rinse
5 = ECO
1 = glass
2 = normal
3 = intensive
4 = short
5 = rinse
6 = ECO

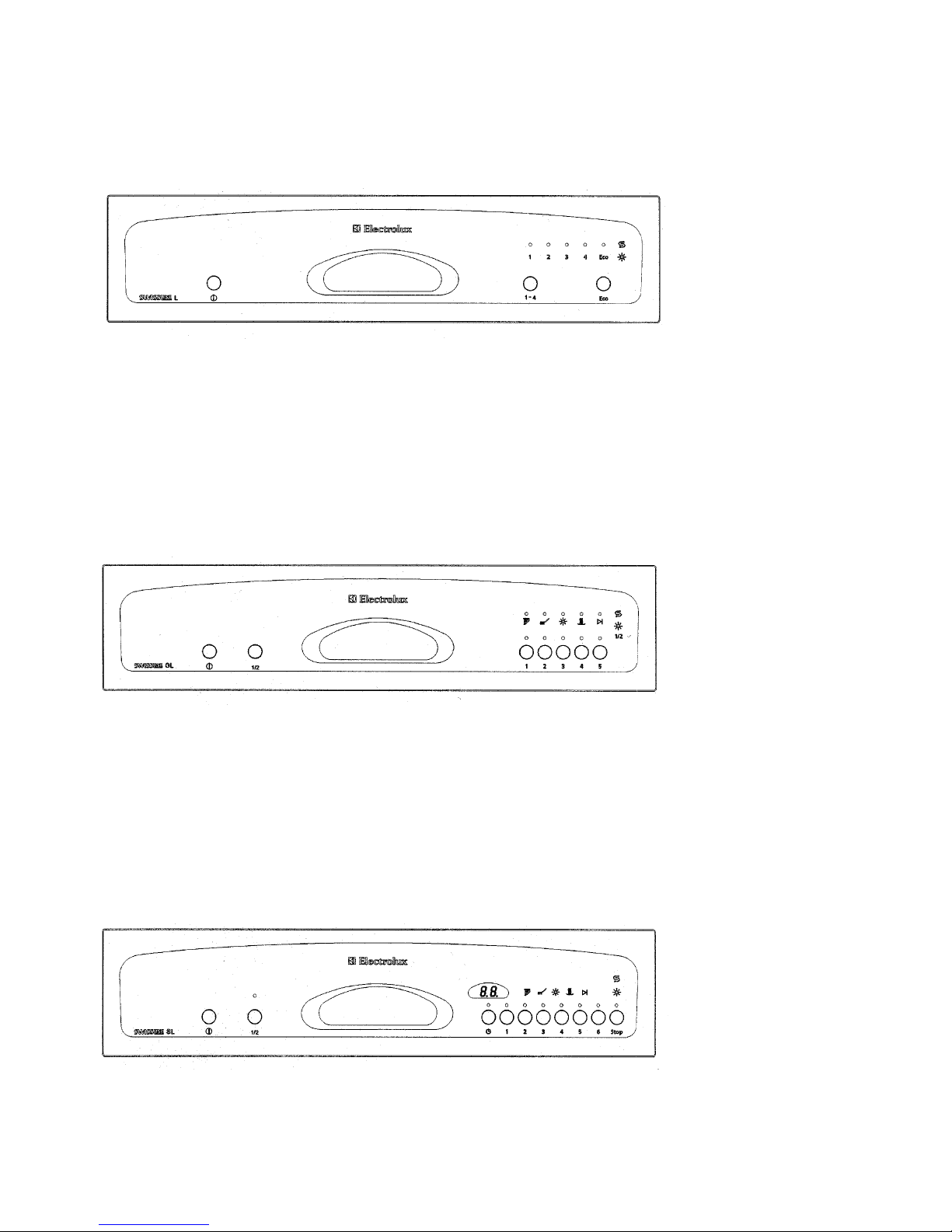

3. Comparison with Front Sides of D 23 Generation
Comfort levels L.1 / Li.1 / SA.2 / SIA.2
2-keys electronic / no. 153 0259-04/1
Comfort levels Sl.1 / Sli.1 / S .2 / SI .2
8-keys electronic / no. 153 0259-06/6
Comfort levels L.1 / li.1 / SB.2 / SIB.2
5-keys electronic / no. 153 0259-05/8
- 6 -
TSE-N 05.00 A. B. 599 50 78 5 EN
2- and 5-keys electronic
- Electronic derived from the W 23 series
- All keys / switches can be operated from the
front
- Snapped-in housing
- One-board solution in SM technology
- Light guides between LE display and
housing upper side, snapped in the housing
from the front
- Mechanical rams, integrated in the housing
lid, to submit the input orders
- Key caps pushed on new standard rubber
keyboard
- High-impedance signal inputs
- Electrical network inputs secured by V R
- All loads selected by TRIAC
- Pump capacity limited to 120VA by fixed
phase angle (half load and AAA)
- Temperature range 0 to 60 °C
- Moisture range 35 to 85 rel%
8-sensors electronic
- erived from the 8- and 7-keys electronic of
the W 23 series
- Main switch can be operated from the top in
the panel
- Snapped-in housing
- Two-board solution in conventional
technology (wired elements)
- LE directly through the housing surface
- Touch-sensitive fields with ground-in finger
guidance in the glass
- High-impedance signal inputs
- Electrical network inputs secured by V R
- All loads selected by TRIAC
- Pump capacity limited to 120VA by fixed
phase angle (half load and AAA)
- Temperature range 0 to 60 °C
- Moisture range 35 to 85 rel%
4. Construction (Technical) and New Functions
Function of Touch-Sensitive Field
With the 8-sensors electronic, a second electronic which is glued on the reverse side of the glass takes
on the function of the mechanical keys. Any touch-sensitive field produces a fine, very close-restricted
and constant electrical field. By approaching with a finger (or with a corresponding object) the field is
reduced. This reduction is recognized by the sensor electronic and interpreted correspondingly.The
connection between the sensor and the existing electronic is mady by a 10-poles low-voltage cable within
the panel.
The sensor electronic is set up very simply and insensitive to faults from the outside, but in case of a fault
it can be exchanged only together with the panel because it is glued
For the survey we talk in the following only about keys, even though the sensors are meant with the
highest comfort level.
The functions half load and normal + ECO (AAA) have been taken over without any changes from the
existing W 23 series as well as the existing test routines.
- 7 -
TSE-N 05.00 A. B. 599 50 78 5 EN
5. Error Codes
The electronic is able to detect and represent possible errors independently. Corresponding error
displays will flash at least twice as fast as with the normal entry.
Comfort level L.3 / Li.3
2-keys electronic / no. 153 0259-08/2
One of the green program LE s flashes fast according to the list. A total of 5 errors is displayed.
Comfort level L.3 / li.3
5-keys electronic / no. 153 0259-05/8
The yellow LE END flashes together with one of the green program LE s according to the list. A
total of 5 errors is displayed.
Comfort level SL.3 / Sli.3
8-keys electronic / no. 153 0259-09/0
A letter appears in the display and the yellow LE END flashes together with one of the green pro-
gram LE s according to the list. A total of 6 errors is displayed.
Code A and/or LE END and/or NORMAL is/are flashing:
- Maximum filling time of 105 sec exceeded, before the working level has been reached.
Possible errors: tap closed
inlet valve without function or clogged
level switch faulty (interruption)
Code C and/or LE END and/or INTENSIVE is/are flashing:
- Maximum drain time of 120 sec (20 sec in level 2) exceeded, without that the reset level has
been reached.
Possible errors: drain pump faulty / jammed
drain hose or sieve clogged
level switch faulty (short circuit)
- 8 -
TSE-N 05.00 A. B. 599 50 78 5 EN
Code E and/or LE END and/or SHORT is/are flashing:
- Maximum refilling time of 45 sec or maximum allowed number of 3 refillings exceeded.
Possible errors: inlet hose allows too less water,
sieve clogged
water pressure too low, water tap or
regenerating dosage (inlet bow) calcified
appliance is losing water
Code H and/or LE END and/or RINSE is/are flashing:
- Maximum heating time of 45 min exceeded without reaching the working temperature.
Possible errors: heating defective
heating relais without function
80°C thermostat switches too early or
irregularly
Code L and/or LE END and/or ECO is/are flashing:
- Short circuit or interruption with the NTC temperature sensor.
Possible errors: NTC temperature sensor faulty
connection dropped off
Code E2 (appears only on the 8-keys electronic for 2 sec after actuating the main switch):
- Appliance will lose saved values in case of a power failure or when pressing the mains
switch.
Error: E2PROM in electronic is faulty.
This error has no influence on the function of the dishwasher.
Note:
Both old error messages P and U are no longer considered in these controls. P (short circuit level
switch) was newly integrated in message C.
U (pump/cond interruption or short circuit) is dropped as a power monitoring is not possible because of
the phase-angle control.
- 9 -
TSE-N 05.00 A. B. 599 50 78 5 EN
6. Test Routine Carousel
Application: This test routine was developed for the test carousel in the factory. Only the
components inlet valve, recirculation pump, heating and drain pump are selected.
Start: switch off the main switch
close the door
For the following controls, these key combinations are valid:
press and keep pressed
2 keys / no. 153 0259-08/2: ECO (LE ECO and RINSE)
5 keys / no. 153 0259-05/8: ECO and RINSE together
8 keys / no. 153 0259-09/0: HALF LOAD and ECO together
switch on the main switch
keep the key(s) pressed for at least 5 sec (corresponding LE s flashing during
this time)
The display shows the lower circle of digit 8 and/or the corresponding LE s will
flash permanently
the program starts
Stop (main switch): If the program is stopped by the main switch it is possible to select a wash pro-
gram immediately after switching on again.
If the test routine is started anew after this stop as described under start the
program goes directly into step 5 and first pumps the water from the tub
(corresponding LEDs flashing at the end).
Now the test routine can be started anew as described under start.
Sequence: See enclosed flowchart.
6.1 Sequence Test Routine Carousel
67(3
'XUDWLRQ
$OO/('VRQ
),//,1*
'5$,1
&,5&8/$7,21
+($7,1*OHYHO
'HWHUJHQW ULQVHDLG
5(*(1(5$7,21
$FWLRQ
13sec Check whether all LEDs
are functioning
2 75 sec Fixed filling time of 75 sec
3 Open If level 1 switches on,
heating until water
temperature has reached
60°C,
otherwise circulation only
for 120 sec (without
heating)
4 20 sec Pause, LEDs are flashing
5 45 sec Fixed drain time, DW is
drained
- 10 -
TSE-N 05.00 A. B. 599 50 78 5 EN
7. Test Routine Computer
Application: This test routine was developed for the test stand in the factory and can
also be used in the field (advantageously together with a transparent
door). All electrical components in the appliance are selected.
Start: switch off the main switch
close the door
For the following controls, these key combinations are valid:
press and keep pressed
2 keys / no. 153 0259-08/2: program selection (LE s ECO and INTENSIVE)
5 keys / no. 153 0259-05/8: ECO and INTENSIVE
8 keys / no. 153 0259-09/0: HALF LOAD and SHORT together
switch on the main switch
keep the key(s) pressed for at least 5 sec (corresponding LE s flashing during
this time)
The display shows the lower circle of digit 8 and/or the corresponding LE s will
flash permanently
Stop (main switch): If the program is stopped by the main switch it is possible to select a wash pro-
gram immediately after switching on again.
If the test routine is started anew after this stop as described under start the
cycle goes directly into step and first pumps the water from the tub
(corresponding LED flashing at the end).
Now the test routine can be started anew as described under start.
Sequence: See enclosed flowchart.
Otros manuales para GS 24 CH
1
Tabla de contenidos
Otros manuales de Lavavajillas de Electrolux
Electrolux
Electrolux ESL 6163 Manual de usuario
Electrolux
Electrolux GA45GLVCN Manual de usuario
Electrolux
Electrolux ESF 4120 Manual de usuario
Electrolux
Electrolux NERT20ER533374 Guía de instalación y uso
Electrolux
Electrolux U04306 ANC 822 Manual de usuario
Electrolux
Electrolux ESL 6391RA Manual de usuario
Electrolux
Electrolux ESF63030 Manual de usuario
Electrolux
Electrolux FAVORIT 86080 i Manual de usuario
Electrolux
Electrolux FAVORIT 89021 VI Manual de usuario
Electrolux
Electrolux ESL 6620RA Manual de usuario
Electrolux
Electrolux GA60KV Manual de usuario
Electrolux
Electrolux ESL64010 Manual de usuario
Electrolux
Electrolux ESL 6810RO Manual de usuario
Electrolux
Electrolux ESF5511LOX Manual de usuario
Electrolux
Electrolux ESI 604 Manual de usuario
Electrolux
Electrolux KEZA9310L Manual de usuario
Electrolux
Electrolux ESLP7845RA Manual de usuario
Electrolux
Electrolux ESL6210LO Manual de usuario
Electrolux
Electrolux ESF6200LOW Manual de usuario
Electrolux
Electrolux KECA7300L Manual de usuario
