Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and
other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum)
must be between 0.5 (0.05) / 8 (0.8) bar (MPa)
•Obey the maximum number of 12 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
ENGLISH 3
•Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal position.
•Do not keep the appliance door open without
supervision to prevent to fall on it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam to
clean the appliance.
•The ventilation openings in the base (if applicable) must
not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use fuse: 13 amp ASTA
(BS 1362).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
www.electrolux.com4
• Without electrical power, the water
protection system is not active. In this
case there is a risk of flooding.
• The water inlet hose has a safety valve
and a sheath with an inner mains
cable.

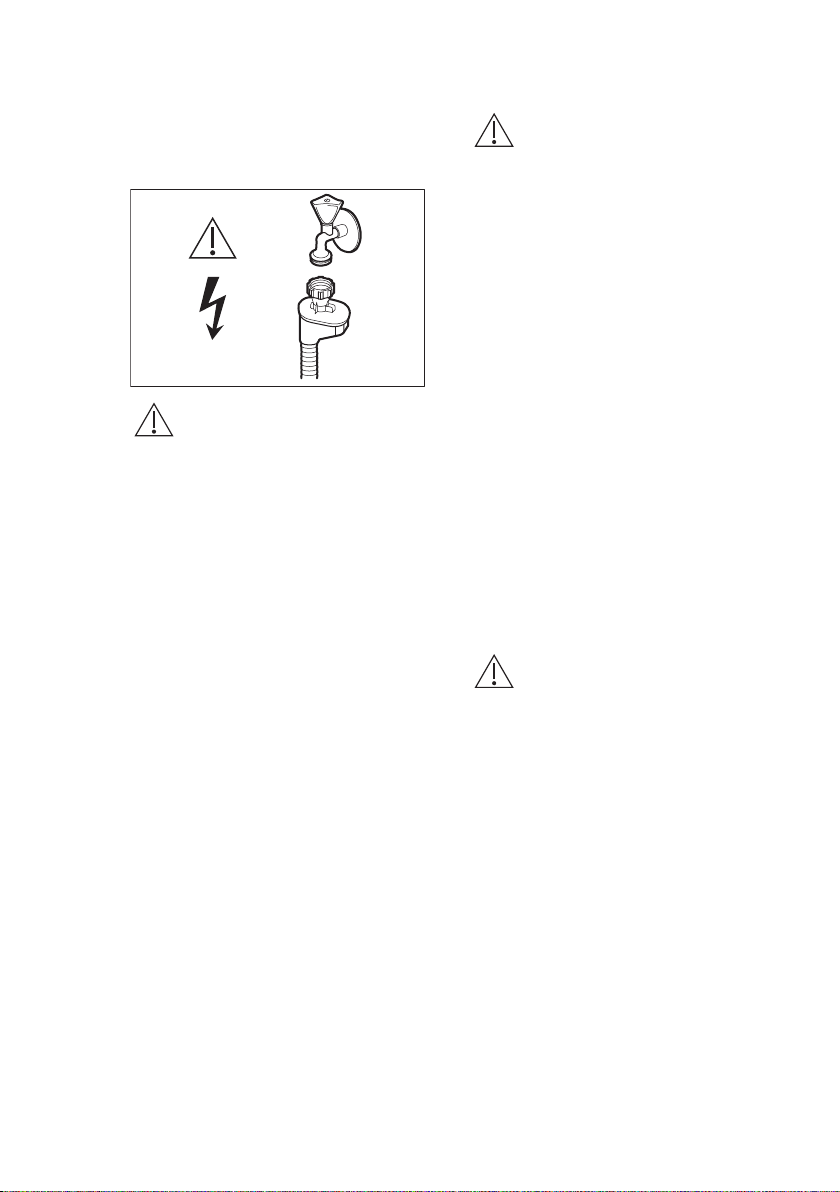

WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Internal light
WARNING!
Risk of injury.
• This appliance has an internal lamp
that comes on when you open the
door and goes off when the door is
closed.
• The lamp in this appliance is not
suitable for household room
illumination.
• To replace the lamp, contact the
Service.
2.6 Service
• Contact the Authorised Service Centre
to repair the appliance. We
recommend only the use of original
spare parts.
• When you contact the Authorised
Service Centre, ensure that you have
the following information that is
available on the rating plate.
Model :
PNC :
Serial Number :
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH 5
3. PRODUCT DESCRIPTION

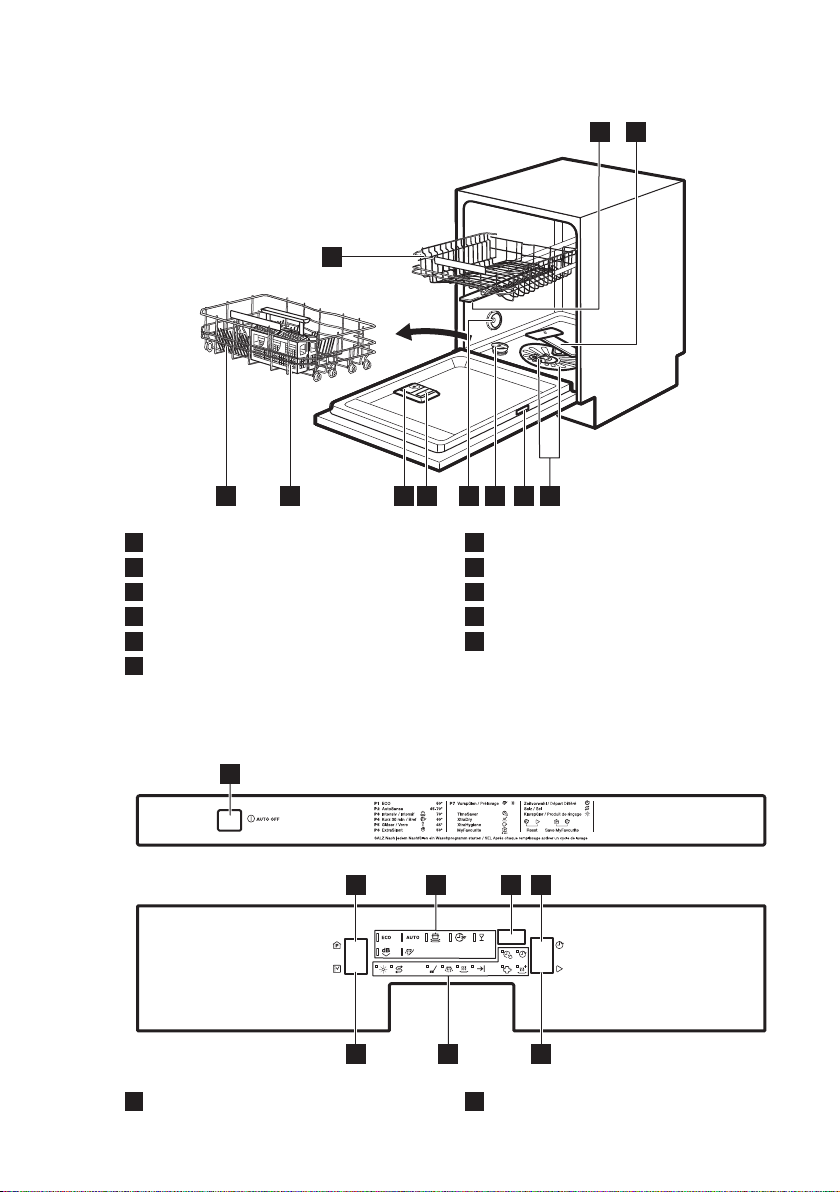

43
56
87
11
12
10 9
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Air vent
7Rinse aid dispenser
8Detergent dispenser
9Cutlery basket
10 Lower basket
11 Upper basket
4. CONTROL PANEL
1
2 4
68
3
7
5
1On/off button 2Program button
www.electrolux.com6
3Programme indicators
4Display
5Delay button
6Start button
7Indicators
8Option button
4.1 Indicators

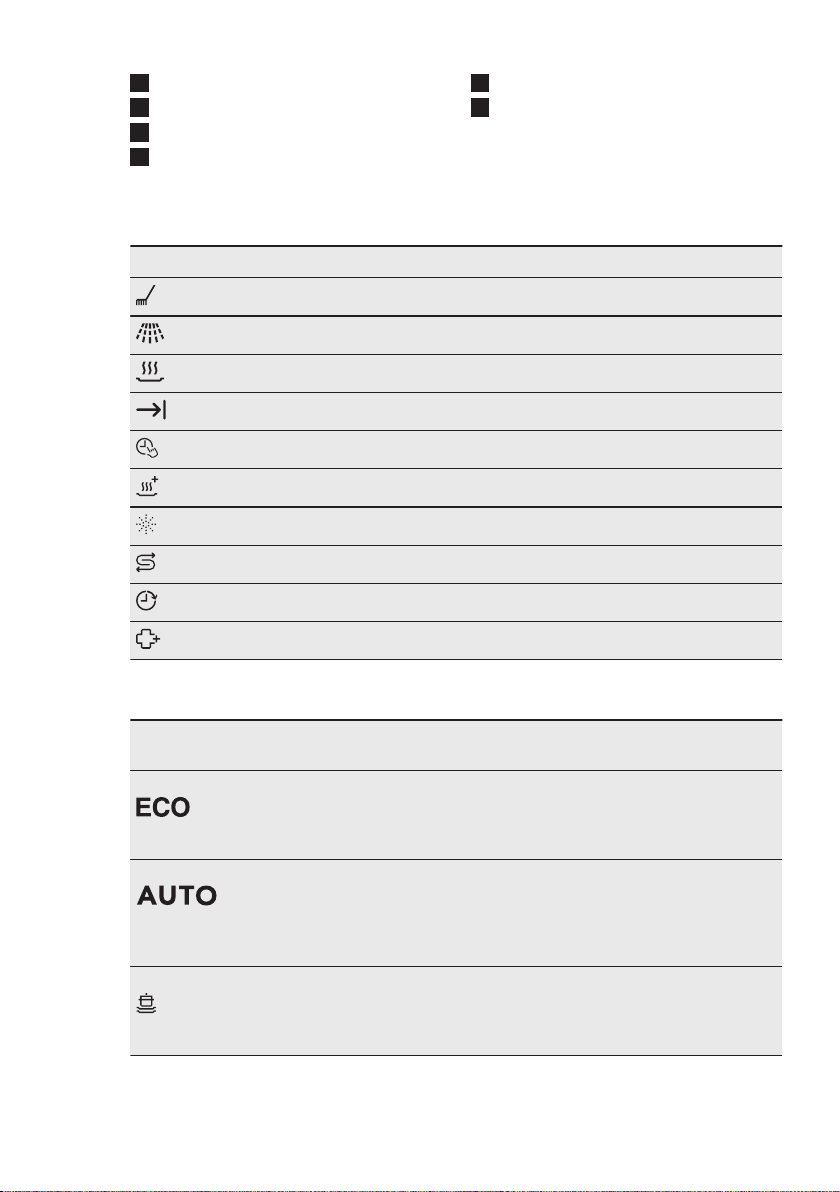

Indicator Description
Washing phase. It comes on when the washing phase operates.
Rinsing phase. It comes on when the rinsing phase operates.
Drying phase. It comes on when the drying phase operates.
End indicator.
TimeSaver indicator.
XtraDry indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
Delay indicator.
XtraHygiene indicator.
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme phases Options
P1
1)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinse
• Dry
• XtraHygiene
• TimeSaver
• XtraDry
P2
2)
• All
• Crockery, cut-
lery, pots and
pans
• Prewash
• Wash from 45 °C
to 70 °C
• Rinse
• Dry
• XtraHygiene
• XtraDry
P3 • Heavy soil
• Crockery, cut-
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinse
• Dry
• XtraHygiene
• XtraDry
• TimeSaver
ENGLISH 7
Programme Degree of soil
Type of load
Programme phases Options
P5 • Normal or light
soil
• Delicate crock-
ery and glass-
ware
• Wash 45 °C
• Rinse
• Dry
• XtraDry
P4
3)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C
• Rinse
• XtraHygiene
• XtraDry
P7
4)
• All • Prewash
P6
5)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinse
• Dry
• XtraDry
1) With this programme you have the most efficient use of water and energy consumption for
crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto-
matically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.
3) With this programme you can wash a load with fresh soil. It gives good washing results in a
short time.
4) With this programme you can quickly rinse dishes to prevent remains of food to bond on
dishes and odours to form in the appliance. Do not use detergent with this programme.
5) This is the most silent programme. The pump works at a very low speed to decrease the
level of noise. Because of the low speed, the programme duration is long.
5.1 Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P1 9.9 0.832 225
P2 7 - 12 0.6 - 1.4 50 - 160
P3 12.5 - 14.5 1.4 - 1.7 175 - 190
P5 10 - 12 0.9 - 1.0 70 - 80
P4 10 0.7 30
www.electrolux.com8
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P7 4 0.1 14
P6 8 - 10 1.1 - 1.2 225 - 235
1) The pressure and the temperature of the water, the variations of the mains supply, the op-
tions and the quantity of dishes can change the values.
5.2 Information for test institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener
according to the water hardness.
• The activation or deactivation of the
rinse aid empty notification.
• The level of rinse aid according to the
required dosage.
• The activation or the deactivation of the
option AirDry.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when the programme indicator
is on and the display shows the
programme duration.
When you activate the appliance, usually it
is in programme selection mode.
However, if this does not happen, you can
set the programme selection mode in the
following way:
Press and hold simultaneously Delay and
Start until the appliance is in programme
selection mode.
6.2 The water softener
The water softener removes minerals from
the water supply, which would have a
detrimental effect on the washing results
and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.
ENGLISH 9
Water hardness
German de-
grees (°dH)
French de-
grees (°fH)
mmol/l Clarke de-
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to soften
hard water.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously Delay and Start
until the indicators ,
, and start to flash
and the display is blank.
2. Press Program.
• The indicators , and
go off.
• The indicator continues to
flash.
• The display shows the current
setting: e.g. = level 5.
3. Press Program again and again to
change the setting.
4. Press the on/off button to confirm the
setting.
6.3 The rinse aid dispenser
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
You can set the released quantity of rinse
aid between level 1 (minimum quantity)
and level 6 (maximum quantity). Level 0
will deactivate the rinse aid dispenser and
no rinse aid will be released.
Factory setting: level 4.
How to set the rinse aid level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously Delay and Start
until the indicators ,
, and start to flash
and the display is blank.
2. Press Delay.
www.electrolux.com10
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Lavavajillas de Electrolux
Electrolux
Electrolux GA55SLI302 Manual de usuario
Electrolux
Electrolux ESM48210SX Manual de usuario
Electrolux
Electrolux ESF 620 Manual de usuario
Electrolux
Electrolux ESL 7220RO Manual de usuario
Electrolux
Electrolux BW295 Manual de instrucciones
Electrolux
Electrolux ESF 64075 Manual de usuario
Electrolux
Electrolux GA55SLICN Manual de usuario
Electrolux
Electrolux GA55SLV Manual de usuario
Electrolux
Electrolux EEG67415L Manual de usuario
Electrolux
Electrolux EI24ID50QS Guía del usuario
Electrolux
Electrolux TRICITY BENDIX DH 200 Manual de usuario
Electrolux
Electrolux Green&Clean EUCAI60 Manual de usuario
Electrolux
Electrolux ESF 4510ROW Manual de usuario
Electrolux
Electrolux ESL79200RO Manual de usuario
Electrolux
Electrolux EES68510L Manual de usuario
Electrolux
Electrolux GA55LI102 Manual de usuario
Electrolux
Electrolux ESF 640 Guía
Electrolux
Electrolux ESL 9160 Manual de usuario
Electrolux
Electrolux Green&Clean 504228 Manual de usuario
Electrolux
Electrolux GA55LSIWE Manual de usuario
