EN Dishwasher User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................2

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 6

5. PROGRAMMES................................................................................................. 7

6. DAILY USE......................................................................................................... 9

7. HINTS AND TIPS............................................................................................. 12

8. CARE AND CLEANING....................................................................................13

9. TROUBLESHOOTING......................................................................................14

10. INSTALLATION.............................................................................................. 16

11. TECHNICAL DATA.........................................................................................17

12. ENVIRONMENTAL CONCERNS................................................................... 18

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damage that are the result

www.electrolux.com2

of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

•Children should be supervised to ensure that they do

not play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

•The operating water pressure (minimum and

maximum) must be between 0.3 (0.03) / 10 (1) bar

(MPa)

•Follow the maximum number of 6 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•WARNING: Knives and other utensils with sharp

points must be loaded in the basket with their points

down or placed in a horizontal position.

ENGLISH 3

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature is less than

0 °C.

• Install the appliance in a safe and

suitable place that meets installation

requirements.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• Warning: this appliance is designed to

be installed / connected to a

grounding connection in the building.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance is fitted with a 13 A

mains plug. If it is necessary to

change the mains plug fuse, use only

a 13 A ASTA (BS 1362) fuse (UK and

Ireland only).

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

www.electrolux.com4

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Dishwasher detergents are

dangerous. Follow the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• Do not store items or apply pressure

on the open door of the appliance.

• The appliance can release hot steam

if you open the door while a

programme operates.

2.5 Service

• To repair the appliance contact the

Authorised Service Centre. Use

original spare parts only.

• Please note that self-repair or non-

professional repair can have safety

consequences and might void the

guarantee.

• Concerning the lamp(s) inside this

product and spare part lamps sold

separately: These lamps are intended

to withstand extreme physical

conditions in household appliances,

such as temperature, vibration,

humidity, or are intended to signal

information about the operational

status of the appliance. They are not

intended to be used in other

applications and are not suitable for

household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

3. PRODUCT DESCRIPTION

3.1 General overview

1 2 5 63

1Salt container

2Detergent dispenser

3Rinse aid dispenser

4Spray arm

5Filters

6Rating plate

7Drain hose

8Inlet hose connection

9Mains cable

10 Basket

11 Cutlery basket

12 Inlet hose

13 Funnel

4. CONTROL PANEL

4.1 Control Panel

1 2 2 543 6 7

1On / Off

2Programme indicators

3Indicators

4Display

5Delay start

6Programme

www.electrolux.com6

7Start / Pause

4.2 Indicators

Indicator Description

It is on when the rinse aid dispenser needs refilling. It is always off

while the programme operates.

It is on when the salt container needs refilling. It is always off while

the programme operates.

5. PROGRAMMES

5.1 Programme overview

Programme Degree of soil

Type of load

Programme pha‐

ses

Detergent pre-

wash / main wash

(g)

Rinse

aid

Heavy, dried-on

soiling, pans, pots,

casserole dishes

• Pre-wash

50 °C

• Dishwash

70 °C

• Rinse 70 °C

• Drying

3 / 15

Normal soiling,

pots, plates,

glasses, pans

• Pre-wash

• Dishwash

60 °C

• Rinse 70 °C

• Drying

3 / 15

Normal soiling,

crockery, cutlery

• Pre-wash

• Dishwash

45 °C

• Rinse 65 °C

• Drying

- / 14

Normal or light

soiling, glasses,

crystal, fine china

• Dishwash

45 °C

• Rinse 60 °C

• Drying

- / 18

Fresh soiling, cof‐

fee cup, glasses

• Dishwash

45 °C - / 15

Light soiling, all

types of dish load

• Dishwash

40 °C

• Rinse 40 °C

- / 15

1) This programme offers the most efficient use of water and energy consumption for crock‐

ery and cutlery with normal soil. This is the standard programme for test institutes.

ENGLISH 7

5.2 Consumption values

Programme 1) 2) Duration (min) Energy (kWh) Water (l)

140 1.20 9.6

120 1.05 7.7

230 0.609 6.5

75 0.65 5.8

20 0.39 7.0

30 0.50 5.8

1) The pressure and the temperature of the water, the variations of the mains supply, the

options, the quantity of dishes and the degree of soil can change the values.

2) The values for programmes other than ECO are indicative only.

5.3 Information for test

institutes

To receive the necessary information for

conducting performance tests (e.g.

according to: EN60436 ), send an email

to:

[email protected]

In your request, include the product

number code (PNC) from the rating plate.

For any other questions regarding your

dishwasher, refer to the service book

provided with your appliance.

5.4 Before starting a

programme

Before you start the selected

programme, make sure that:

• The filters are clean and correctly

installed.

• The cap of the salt container is tight.

• The spray arms are not clogged.

• There is enough salt and rinse aid

(unless you use multi-tablets).

• The arrangement of the items in the

baskets is correct.

• The programme is suitable to the type

of load and the degree of soil.

• The correct quantity of detergent is

used.

5.5 Using a programme

1. Close the appliance door.

2. Open the water tap.

3. Press the On / Off button to activate

the appliance.

4. Press Programme button until the

indicator of the selected programme

comes on.

5. Press Start / Pause button to start

the programme.

When a programme is completed, an

intermittent acoustic signal sounds for a

few seconds.

6. Press On / Off button to deactivate

the appliance.

The appliance turns off automatically

in 15 minutes after the programme

ends.

7. Close the water tap.

Wait until the dishes are cold before you

remove them from the appliance.

There can be water on the

sides and the door of the

appliance.

5.6 Cancelling a programme

1. Press the Start / Pause button.

2. Press and hold Programme button

for 3 seconds.

The appliance comes back to its initial

settings.

www.electrolux.com8

Make sure that there is

detergent in the detergent

dispenser before you start a

new programme.

5.7 Interrupting a programme

1. Open the appliance door.

The appliance stops.

2. Close the appliance door.

The programme continues from the point

of interruption.

5.8 Starting a programme with

Delay start

1. Close the appliance door.

2. Open the water tap.

3. Press the On / Off button to activate

the appliance.

4. Set a programme.

5. Press Delay start button to delay

start of a programme by up to 24

hours.

6. Press Start / Pause button to start

the countdown.

":" symbol flashes.

When the countdown is completed, the

programme starts automatically.

5.9 Cancelling Delay start

1. Press Start / Pause button.

2. Press Delay start button until 0

comes on.

3. Press Start / Pause button.

The programme starts automatically.

6. DAILY USE

6.1 Use of the appliance

1. Fill the salt container with salt for

dishwashers.

2. Fill the rinse aid dispenser with rinse

aid.

3. Load the basket.

4. Open the water tap.

5. Set the correct programme for the

type of load and the degree of soil.

6. Add the detergent.

7. Start the programme.

6.2 Filling the salt container

CAUTION!

Use only salt designed for

dishwashers.

1. Turn the cap of the salt container

counterclockwise and remove it.

2. Put 1 litre of water in the salt

container (Only for the first time).

3. Use the funnel to fill the salt

container with dishwasher salt.

4. Remove the salt around the opening

of the salt container.

5. Turn the cap of the salt container

clockwise to close the salt container.

Water and salt can come out

from the salt container when

you fill it, which causes

corrosion. To prevent it, start

a programme immediately

after filling the salt container.

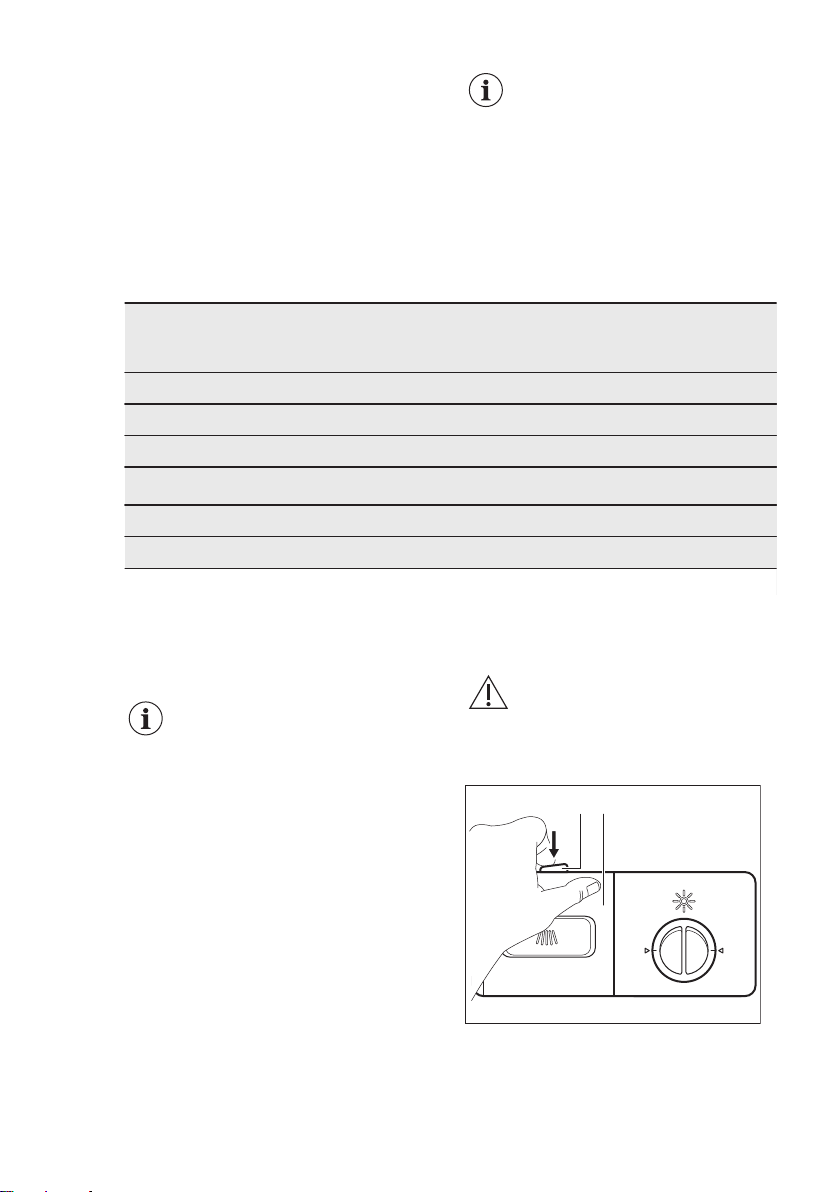

6.3 The water softener

The water softener removes minerals

from the water supply, which would have

a detrimental effect on the washing

results and on the appliance.

ENGLISH 9

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. Set the right level of the

water softener to assure good washing

results.

Softening hard water

increases the consumption

of water and energy as well

as the programme duration.

The higher the level of water

softener, the higher the

consumption and the longer

the duration.

Water hardness

German

degrees

(°dH)

French de‐

grees (°fH)

mmol/l Clarke de‐

grees

Setting on

the water

softener

Setting indi‐

cation

0 - 5 0 - 9 0.0 - 0.9 0 - 7 1 H1

6 - 11 10 - 19 1.0 - 2.0 8 - 14 2 H2

12 - 17 20 - 30 2.1 - 3.0 15 - 21 3 H3

18 - 22 31 - 39 3.1 - 4.0 22 - 27 4 1) H4

23 - 34 40 - 60 4.1 - 6.1 28 - 42 5 H5

35 - 45 61 - 80 6.2 - 8.0 43 - 56 6 H6

1) Factory setting.

Regardless of the type of detergent

used, set the proper water hardness

level to keep the salt refill indicator

active.

Multi-tabs containing salt are

not effective enough to

soften hard water.

6.4 Changing water softening

setting

1. Close the appliance door.

2. Press On / Off button.

3. Press and hold Programme button

immediately for 6 seconds.

The display shows the current water

softener level.

4. Press Programme button to select

the water softening level.

The level is set after 6 seconds.

6.5 Filling the detergent

dispenser

CAUTION!

Use only detergents for

dishwashers.

1. Press the release button to open the

lid of the detergent dispenser.

A B

2. Put the detergent (approximately 15

g) in the compartment (C). Put

detergent tablets in part (E) of the

compartment.

www.electrolux.com10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Electrolux

Electrolux

Electrolux ESL 6185 Manual de usuario

Electrolux

Electrolux Zanussi Professional NUC1WS Manual de usuario

Electrolux

Electrolux WT30E Manual de usuario

Electrolux

Electrolux Favorit 99000 Manual de usuario

Electrolux

Electrolux GA55LIWE Manual de usuario

Electrolux

Electrolux WT38TDE Manual de usuario

Electrolux

Electrolux ESF9516LOX Manual de usuario

Electrolux

Electrolux esl 830ro Manual de usuario

Electrolux

Electrolux EIDW6105GS - Fully Integrated Dishwasher Guía del usuario

Electrolux

Electrolux GA55SLI220 Manual de usuario

Electrolux

Electrolux ESF2210DW Manual de usuario

Electrolux

Electrolux EDW 503 Manual de usuario

Electrolux

Electrolux EWDW6505G S Manual de instrucciones

Electrolux

Electrolux FDB1050RE 2005 Manual de usuario

Electrolux

Electrolux ESF 6800ROW Manual de usuario

Electrolux

Electrolux ESL 67030 Manual de usuario

Electrolux

Electrolux ESF 64010 Manual de usuario

Electrolux

Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manual de usuario

Electrolux

Electrolux EIDW6105 Manual de usuario

Electrolux

Electrolux ESLP 8815RA Manual de usuario

Electrolux

Electrolux ESL4500LO Manual de usuario

Electrolux

Electrolux ESL7325RO Manual de usuario

Electrolux

Electrolux ESF611 Guía rápida

Electrolux

Electrolux GA60LI220 Manual de usuario

Manuales populares de Lavavajillas de otras marcas

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
