Safety information 5

Product description 7

Control panel 8

First use 11

Daily use 15

ashing programmes 25

Care and cleaning 27

Something not working 29

Technical data 32

Hints for test institutes 34

Installation 35

Environment concerns 40

Guarantee/Customer Service 41

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

General information and tips

Environmental information

4electrolux contents

117998 98/0en_pdf 4-09-2006 11:20 Pagina 4

safety information electrolux 5

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mista es and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and

safety features. Save these

instructions and ma e sure that

they remain with the appliance if it

is moved or sold, so that everyone

using it through its life will be

properly informed on appliance use

and safety.

Correct use

●This dishwasher is only intended

for washing household utensils

suitable for machine washing.

●Do not put any solvents in the

dishwasher. This could cause an

explosion.

●Knives and other items with sharp

points must be loaded in the

cutlery basket with their points

down or placed in a horizontal

position in the upper basket.

●Only use products (detergent, salt

and rinse aid) suitable for

dishwashers.

●Avoid opening the door whilst the

appliance is in operation, hot

steam may escape.

●Do not take any dishes out of the

dishwasher before the end of the

dishwashing cycle.

Safety information

●After use, isolate the appliance

from the power supply and turn off

the water supply.

●This product should be serviced

only by an authorised service

engineer, and only genuine spare

parts should be used.

General safety

●Dishwasher detergents can cause

chemical burns to eyes, mouth and

throat. Could endanger life!

Comply with the safety instructions

of the dishwasher detergent

manufacturer.

●The water in your dishwasher is

not for drinking. Detergent

residues may still be present in

your machine.

●Ensure that the door of the

dishwasher is always closed when

it is not being loaded or unloaded.

In this way you will avoid anybody

tripping over the open door and

hurting themselves.

●Do not sit or stand on the open

door.

Child safety

●This appliance is designed to be

operated by adults. Don’t allow

children to use the dishwasher

unsupervised.

●Keep all packaging well away from

children. There is risk of

suffocation.

●Keep all detergents in a safe place

out of children’s reach.

●Keep children well away from the

dishwasher when the door is open.

117998 98/0en_pdf 4-09-2006 11:20 Pagina 5

6electrolux safety information

Installation

●Check your dishwasher for any

transport damage. Never connect

a damaged machine. If your

dishwasher is damaged contact

your supplier.

●All packaging must be removed

before use.

●Any electrical and plumbing work

required to install this appliance

must be carried out by a qualified

and competent person.

●For safety reasons it is dangerous

to alter the specifications or

attempt to modify this product in

any way.

●Never use the dishwasher if the

electrical supply cable and water

hoses are damaged; or if the

control panel, work top or plinth

area are damaged such that the

inside of the appliance is freely

accessible. Contact your local

Service Force centre, in order to

avoid hazard.

●All sides of the dishwasher must

never be drilled to prevent damage

to hydraulic and electric

components.

For electrical and water connection

carefully follow the instructions

given in specific paragraphs.

117998 98/0en_pdf 4-09-2006 11:20 Pagina 6

product description electrolux 7

Product description

Upper basket

ater hardness dial

Salt container

Detergent dispenser

Rinse aid dispenser

Rating plate

Filters

Lower spray arm

Upper spray arm

orktop

117998 98/0en_pdf 4-09-2006 11:20 Pagina 7

8electrolux control panel

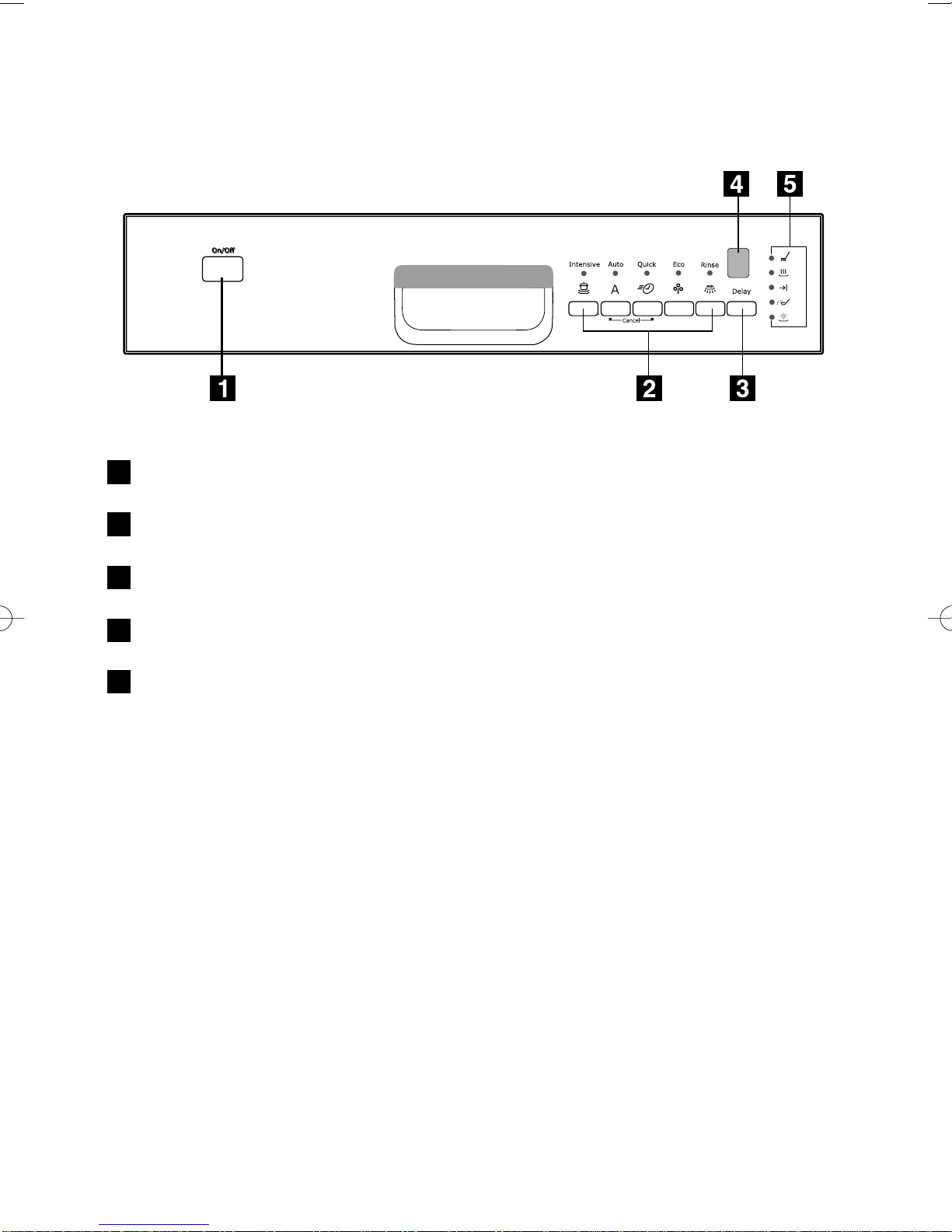

Control panel

On/Off button

Programme selection buttons

Delay start button

Digital display

Indicator lights

117998 98/0en_pdf 4-09-2006 11:20 Pagina 8

control panel electrolux 9

The salt and rinse aid indicator

lights are never illuminated while a

washing programme is running

even if filling with salt and/or rinse

aid is necessary.

As soon as you select a washing

programme, the phase indicator

lights for that programme will start

flashing.

As the programme starts, the

phase indicator lights turn off

except for the indicator light of the

phase in progress which will

remain lit with a static light. The salt indicator light on the

control panel can remain

illuminated for 2-6 hours after the

salt has been replenished,

assuming the dishwasher remains

switched on. If you are using salts

that ta e longer to dissolve then

this can ta e longer. The function

of the machine is not affected.

Wash

Indicator lights

End of programme

Illuminates when the washing and rinsing

phases are running.

Illuminates when a washing programme has

ended. It also has added functions of visual

signalling as:

- the setting of the water softener,

- intervention of an alarm due to the

malfunction of the machine.

Dry Illuminates when the drying phase is running.

Salt Illuminates when the special salt has run out.

Rinse aid Illuminates when the rinse aid has run out.

117998 98/0en_pdf 4-09-2006 11:20 Pagina 9

10 electrolux control panel

Setting mode

Always remember that when:

- setting the water softener,

- activating/deactivating the rinse aid

dispenser,

the appliance MUST be in setting

mode:

●Press On/Off button, ALL

programme button lights are

illuminated and in the digital

display 3 vertical lines are visible =

appliance in setting mode.

●Press On/Off button, ONLY a

programme button light is

illuminated and in the digital

display 1 vertical line is visible =

last performed or selected

programme still set.

In this case, to return to setting

mode, the programme has to be

cancelled.

To cancel a set programme or a

programme in progress

Press simultaneously and keep

pressed the two programme buttons

positioned over the writing Cancel,

until all the programme button lights

will illuminate and in the digital display

3 vertical lines appear. The

programme has been cancelled and

the machine is now in setting mode.

117998 98/0en_pdf 4-09-2006 11:20 Pagina 10
