EN Dishwasher User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMME SELECTION.............................................................................. 8
6. BASIC SETTINGS ........................................................................................... 10
7. BEFORE FIRST USE....................................................................................... 13
8. DAILY USE....................................................................................................... 14
9. HINTS AND TIPS............................................................................................. 17
10. CARE AND CLEANING..................................................................................18
11. TROUBLESHOOTING....................................................................................22
12. PRODUCT INFORMATION SHEET ..............................................................25
13. ADDITIONAL TECHNICAL INFORMATION...................................................26
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
ENGLISH 3
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Follow the maximum number of 15 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Put the cutlery in the cutlery basket with the sharp
ends pointing down or put them in the cutlery drawer
in a horizontal position with the sharp edges down.
•Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
www.electrolux.com4
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance is fitted with a 13 A
mains plug. If it is necessary to
change the mains plug fuse, use only
a 13 A ASTA (BS 1362) fuse (UK and
Ireland only).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Dishwasher detergents are
dangerous. Follow the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• Do not sit or stand on the open door
of the appliance.
• The appliance can release hot steam
if you open the door while a
programme operates.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH 5
3. PRODUCT DESCRIPTION
54
10 9 67
11
12
23
1
8
1Ceiling spray arm
2Upper spray arm
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Lower basket
11 Upper basket
12 Cutlery drawer
3.1 Beam-on-Floor
The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.
• A red light comes on when a
programme starts. It remains on for
the duration of the programme.
• A green light comes on when the
programme is complete.
• The red light flashes when the
appliance has a malfunction.
The Beam-on-Floor is off
when the appliance is
deactivated.
www.electrolux.com6
4. CONTROL PANEL

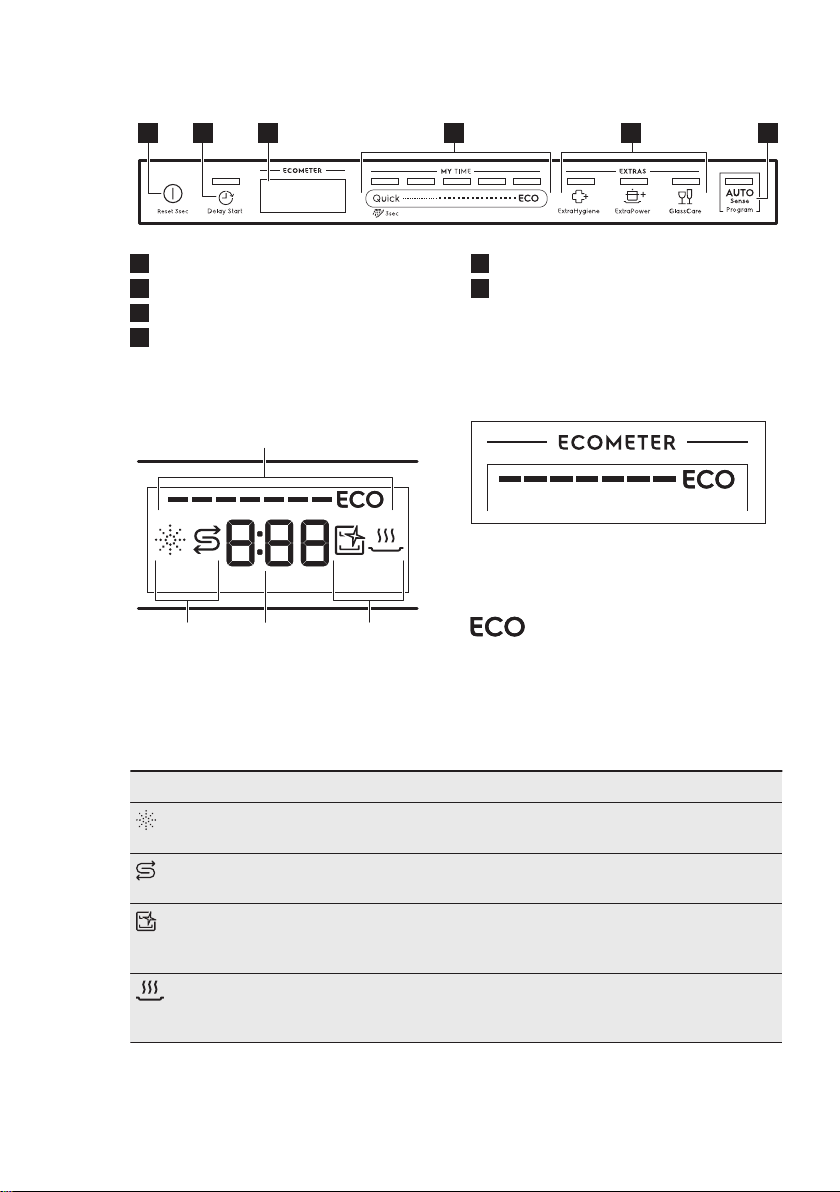

1 2 3 4 5 6
1On/Off button
2Delay Start button
3Display
4MY TIME selection bar
5EXTRAS buttons
6AUTO Sense button
4.1 Display
A
CB B
A. ECOMETER
B. Indicators
C. Time indicator
4.2 ECOMETER
The ECOMETER indicates how the
programme selection impacts energy
and water consumption. The more bars
are on, the lower the consumption is.
indicates the most
environmentally friendly programme
selection for a normally soiled load.
4.3 Indicators
Indicator Description
Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐
ing. Refer to "Before first use".
Salt indicator. It is on when the salt container needs refilling. Refer to
"Before first use".
Machine Care indicator. It is on when the appliance needs internal
cleaning with the Machine Care programme. Refer to "Care and
cleaning".
Drying phase indicator. It is on when a programme with the drying
phase is selected. It flashes when the drying phase operates. Refer to
"Programme selection".
ENGLISH 7
5. PROGRAMME SELECTION
5.1 MY TIME
Using MY TIME selection bar, you can
select a suitable wash cycle based on
programme duration, ranging from 30
minutes to four hours.
CA B D E
A. •Quick is the shortest programme
(30min) suitable for washing a
load with fresh and light soil.
• Pre-rinse (15min) is a
programme for rinsing off food
remains from the dishes. It
prevents odours forming in the
appliance. Do not use detergent
with this programme.
B. 1h is a programme suitable for
washing a load with fresh and lightly
dried-on soil.
C. 1h 30min is a programme suitable
for washing and drying normally
soiled items.
D. 2h 40min is a programme suitable
for washing and drying heavily soiled
items.
E. ECO is the longest programme (4h)
offering the most efficient use of
energy and water consumption for
crockery and cutlery with normal soil.
This is the standard programme for
test institutes.
5.2 EXTRAS
You can adjust the programme selection
to your needs by activating EXTRAS.
ExtraHygiene
ExtraHygiene provides better
hygiene results by keeping the
temperature between 65 and 70 °C for at
least 10 minutes during the last rinsing
phase.
ExtraPower
ExtraPower improves the washing
results of the selected programme. The
option increases the wash temperature
and duration.
GlassCare
GlassCare provides special care for a
delicate load. The option prevents rapid
changes in the wash temperature of the
selected programme and reduces it to 45
°C. This protects glassware in particular
from damaging.
5.3 AUTO Sense
The AUTO Sense program automatically
adjusts the wash cycle to the type of
load.
The appliance senses the degree of soil
and the amount of dishes in the baskets.
It adjusts the temperature and quantity of
water as well as the wash duration.
5.4 Programmes overview
Pro‐
gramme
Type of load Degree of
soil
Programme phases EXTRAS
Quick • Crockery
• Cutlery
• Fresh • Wash 50 °C
• Intermediate rinse
• Final rinse 45 °C
• AirDry
• ExtraPower
• GlassCare
• ExtraHygiene
www.electrolux.com8
Pro‐
gramme
Type of load Degree of
soil
Programme phases EXTRAS
Pre-rinse
• All types
of loads
• All de‐
grees of
soil
• Prewash EXTRAS are not
applicable to this
programme.
1h • Crockery
• Cutlery
• Fresh
• Lightly
dried-on
• Wash 60 °C
• Intermediate rinse
• Final rinse 50 °C
• AirDry
• ExtraPower
• GlassCare
• ExtraHygiene
1h 30min • Crockery
• Cutlery
• Pots
• Pans
• Normal
• Lightly
dried-on
• Wash 60 °C
• Intermediate rinse
• Final rinse 55 °C
• Drying
• AirDry
• ExtraPower
• GlassCare
• ExtraHygiene
2h 40min • Crockery
• Cutlery
• Pots
• Pans
• Normal to
heavy
• Dried-on
• Prewash
• Wash 60 °C
• Intermediate rinse
• Final rinse 60 °C
• Drying
• AirDry
• ExtraPower
• GlassCare
• ExtraHygiene
ECO • Crockery
• Cutlery
• Pots
• Pans
• Normal
• Lightly
dried-on
• Prewash
• Wash 50 °C
• Intermediate rinse
• Final rinse 55 °C
• Drying
• AirDry
• ExtraPower
• GlassCare
• ExtraHygiene
AUTO
Sense
• Crockery
• Cutlery
• Pots
• Pans
The pro‐
gramme ad‐
justs to all de‐
grees of soil.
• Prewash
• Wash 50 - 60 °C
• Intermediate rinse
• Final rinse 60 °C
• Drying
• AirDry
EXTRAS are not
applicable to this
programme.
Machine
Care
• No load The pro‐
gramme
cleans the
appliance in‐
terior.
• Wash 70 °C
• Intermediate rinse
• Final rinse
• AirDry
EXTRAS are not
applicable to this
programme.
Consumption values
Programme 1) Water (l) Energy (kWh) Duration (min)
Quick 9.5 - 11.6 0.52 - 0.64 30
Pre-rinse 4.3 - 5.3 0.01 - 0.04 15
1h 10.5 - 12.9 0.92 - 1.06 60
ENGLISH 9
Programme 1) Water (l) Energy (kWh) Duration (min)
1h 30min 11.6 - 14.2 1.00 - 1.15 90
2h 40min 11 - 13.5 1.12 - 1.26 160
ECO 11 0.846 240
AUTO Sense 10.4 - 13.3 0.76 - 1.22 120 - 170
Machine Care 9.7 - 11.8 0.60 - 0.73 60
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
Information for test institutes
To receive the necessary information for
conducting performance tests (e.g.
according to EN60436), send an email
to:
In your request please include the
product number code (PNC) found on
the rating plate.
For any other questions regarding your
dishwasher please refer to the service
book provided with your appliance.
6. BASIC SETTINGS
You can configure the appliance by
changing basic settings according to
your needs.
Number Setting Values Description1)
1Water hard‐
ness
From level 1L
to level 10L
(default: 5L)
Adjust the level of the water softener ac‐
cording to the water hardness in your
area.
2Rinse aid level From level 0A
to level 6A (de‐
fault: 4A)
Adjust the level of the rinse aid accord‐
ing to the necessary dosage.
3End sound On
Off (default)
Activate or deactivate the acoustic signal
for the end of a programme.
4Auto door open On (default)
Off
Activate or deactivate the AirDry.
5Key tones On (default)
Off
Activate or deactivate the sound of the
buttons when pressed.
6Latest pro‐
gramme selec‐
tion
On
Off (default)
Enable or disable the automatic selec‐
tion of the most recently used pro‐
gramme and options.
1) For more details, refer to the information provided in this chapter.
You can change the basic settings in
setting mode.
www.electrolux.com10
Tabla de contenidos
Otros manuales de Lavavajillas de Electrolux
Electrolux
Electrolux 534058 Manual de usuario
Electrolux
Electrolux ESF 66010 Manual de usuario
Electrolux
Electrolux EIDW6305GS - 24-in Built in Dishwasher Manual de usuario
Electrolux
Electrolux EEG69300L Manual de usuario
Electrolux
Electrolux FAVORIT 89021 VI Manual de usuario
Electrolux
Electrolux KECA7300L Manual de usuario
Electrolux
Electrolux EIDW6305GS - 24-in Built in Dishwasher Manual de usuario
Electrolux
Electrolux ESI4501LOX Manual de usuario
Electrolux
Electrolux ESF 6248 Manual de operación
Electrolux
Electrolux EI24ID30QW0A Manual de usuario
Electrolux
Electrolux ESI6510LOW Manual de usuario
Electrolux
Electrolux ESL 6226 Manual de operación
Electrolux
Electrolux GA55GLV402 Manual de usuario
Electrolux
Electrolux esl 830ro Manual de usuario
Electrolux
Electrolux FRIGIDAIRE FDB125RH 2 Series Manual de usuario
Electrolux
Electrolux FAVORIT 55090I Manual de usuario
Electrolux
Electrolux ESI5530LOW Manual de usuario
Electrolux
Electrolux ESA47310SX Manual de usuario
Electrolux
Electrolux COMPACT MIDI + EDW 500 Manual de usuario
Electrolux
Electrolux EEM69410L Manual de usuario
