Electrolux 587.15242702 Manual

P30L0072.eps P30C0153.eps P30B0045.eps P30U0024.eps P30M0041.eps P30F0022.eps

P30R0092.eps

REPAIR

PARTS

LIST

587.15242702

587.15248702

587.15249702

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

24-INCH BUILT-IN DISHWASHER

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the right hand

side of the front tub flange, directly behind the door of the dishwasher.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Publication number 5995520789

587.1524

08/08 2

CONTROL PANEL

CAUTION: Use the Kenmore part number to order part, not the illustration number.

587.1524

# Functional Parts 3 08/08

* Non-Illustrated Parts

CONTROL PANEL

CAUTION: Use the Kenmore part number to order part, not the illustration number.

Model Index: A587.1524 (587.15242702)

B587.1524 (587.15248702)

C587.1524 (587.15249702)

POS. NO PART NO. DESCRIPTION

1 154644401 A - - Panel, control, white

1 154644403 - B C Panel, control, black

2 154571201 A - - Insert, control panel, white, 4 button

2 154571203 - B C Insert, control panel, black, 4 button

3 # 154668901 A B C Control Module, 4 button, w/selector

13 154551901 A - - Knob, timer, white

13 154551903 - B C Knob, timer, black

20 154433001 A B C Vent assy, static dry

20* 154436201 A B C Screw, dry duct, (3)

* # 154646301 A B C Harness, wiring, main

* 154227501 A B C Thermistor

* 5995520789 A B C Repair Parts List

* 154643101 A B C Owners Manual, eng/spn

* 154643102 A B C Owners Manual, French

* 154643001 A B C Service Data Sheet

* 154524101 A B C Instructions, installation

* 154678515 A B C Energy guide label

* 154409401 A B C Screw, #8-18 x .375

587.1524

08/08 4

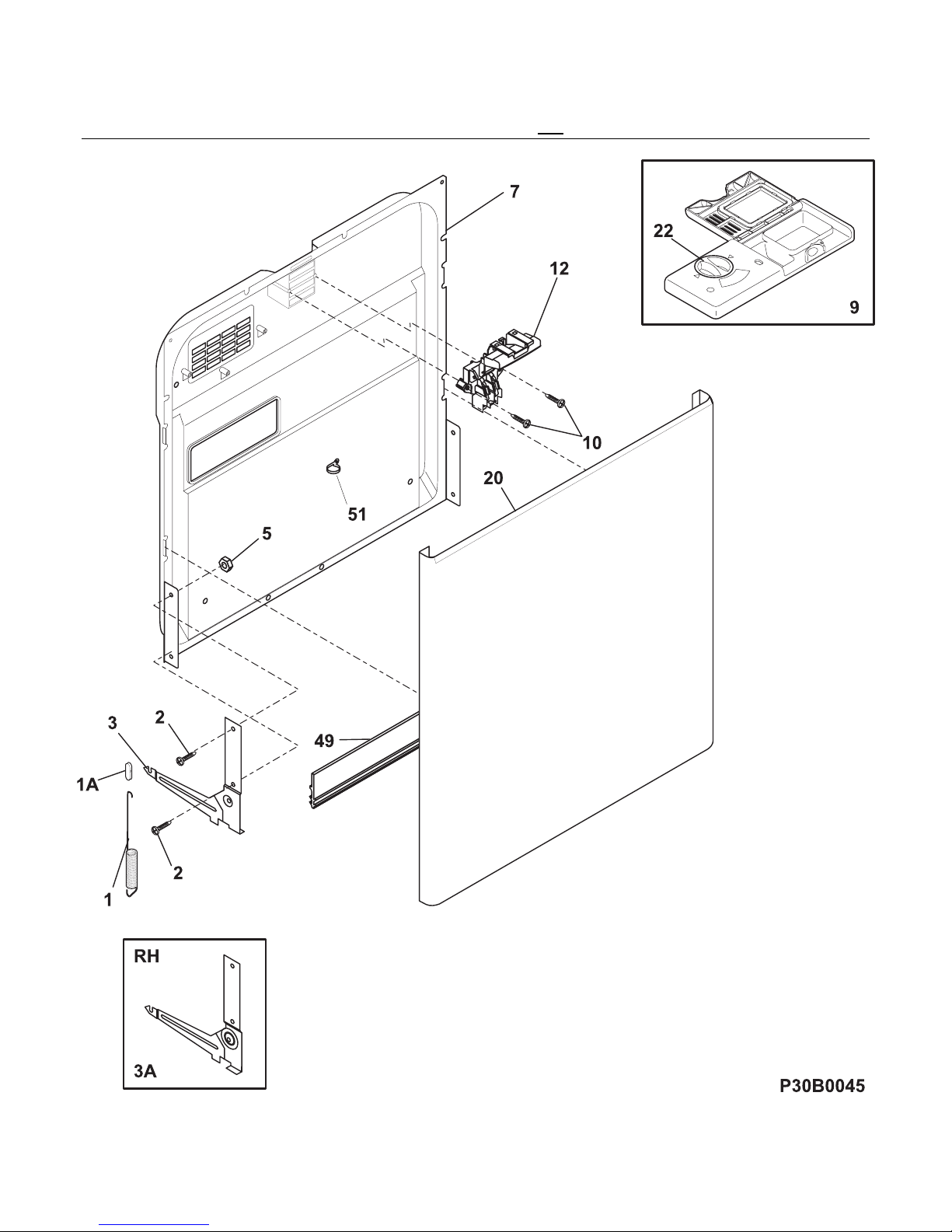

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

587.1524

# Functional Parts 5 08/08

* Non-Illustrated Parts

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

Model Index: A587.1524 (587.15242702)

B587.1524 (587.15248702)

C587.1524 (587.15249702)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C Spring, door, (2)

1A 154325201 A B C Linkage, door spring, (2)

2 154093301 A B C Screw, arm assy, (4)

3 154691201 A B C Arm Assy, LH

3A 154691101 A B C Arm Assy, RH

* 154647101 A B C Hinge Pin, arm assy

* 154686401 A B C Bearing, hinge pin

5 154079601 A B C Nut, arm assy, and handle mtg.

7 154494601 A B C Liner, door assy.

9 154574401 A B C Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C Screw, latch mtg, (2)

12 # 154556701 A - - Latch assy, white

12 # 154556703 - B C Latch assy, black

20 154538301 A - - Door, white

20 154538306 - B - Door, silver mist

20 154538303 - - C Door, black

20* 5304428306 A B C Screw, door mtg., (2)

22 154388801 A B C Cap, Rinse aid

49 154588201 A B C Gasket, door wiper

51 154320301 A B C Clamp, drip loop, wire

* 154409401 A B C Screw, #8-18 x .375

587.1524

08/08 6

TUB

CAUTION: Use the Kenmore part number to order part, not the illustration number.

587.1524

# Functional Parts 7 08/08

* Non-Illustrated Parts

TUB

CAUTION: Use the Kenmore part number to order part, not the illustration number.

Model Index: A587.1524 (587.15242702)

B587.1524 (587.15248702)

C587.1524 (587.15249702)

POS. NO PART NO. DESCRIPTION

1 # 154729301 A B C Tub assy, w/frame parts, white, PW

2 154662601 A B C Strike, door

3 # 154561001 A B C Gasket, tub

4 154200602 A B C Screw, 10-16 x 3/8, hex

5 154333902 A B C Roller, tub

6 5303943103 A B C Screw, w/washer, (8)

22 154577401 A B C Tubing, water inlet

23 5303318539 A B C Clamp, tubing, (2)

24 # 154606701 A B C Hose, drain

25 # 154209701 A B C Float

28 154408701 A B C SwitchAssy, float

29 # 154290204 A B C Thermostat, re-settable

30 154241101 A B C Retainer, thermostat

30* 154297701 A B C Screw, retainer-thermo

* 154641601 A B C Insulation,blanket

* 154685101 A B C Gasket, tub, corner, (2)

* 5300807270 A B C Screw, (2), countertop mtg.

* 154041001 A B C Screw, plask #1, 10-10 x 9/16

* 154200601 A B C Screw, #10-16 x 3/8

587.1524

08/08 8

MOTOR & PUMP

CAUTION: Use the Kenmore part number to order part, not the illustration number.

587.1524

# Functional Parts 9 08/08

* Non-Illustrated Parts

MOTOR & PUMP

CAUTION: Use the Kenmore part number to order part, not the illustration number.

Model Index: A587.1524 (587.15242702)

B587.1524 (587.15248702)

C587.1524 (587.15249702)

POS. NO PART NO. DESCRIPTION

1 # 154247601 A B C Heater

1* 154106202 A B C Nut, heater, (2)

1* 154289801 A B C Shield, heater terminal

2 154479601 A B C Bracket, heater, (2)

10 154245501 A B C Cover, volute

13 154246801 A B C Gasket, sump

14 154365902 A B C Housing, sump

16 154246502 A B C Retainer, sump

24 154568001 A B C Spray arm, white, lower, w/heat shield

24A 154313601 A B C Spray arm, center

24A* 154252001 A B C Nut, spray arm, center

32 154406601 A B C Tube, delivery

32A 154406401 A B C Gasket, delivery tube

40 154348401 A B C Clamp, hose, red, push spring, (3)

40 154348502 A B C Clamp, red, hose

40* 154106801 A B C Clamp, hose, 1.29" open, worm gear, (2)

40* 154380601 A B C Clamp, hose, 1.5" open, worm gear, (5)

54 154234401 A B C Hose, connector

55 154595901 A B C Bracket, motor

55* 5303316032 A B C Screw, truss ss, 8 .625, (7)

58 154246402 A B C Check ball

59 154246901 A B C O-ring, rear

59A 154247001 A B C O-ring, front

60 # 154640201 A B C Drain Pump Assy

60* 154426201 A B C Bracket, motor, drain

61 154606801 A B C Nozzle, 3rd level, spray arm

62 154294101 A B C Support, spray arm, lower

63 154252201 A B C Base, soil director

64 154252301 A B C Filter, soil director, white

65 154252401 A B C Filter, polypro

66 154252701 A B C Trap, glass

70 # 154700101 A B C Motor & Pump Assy, johnson, 2900

* 154200601 A B C Screw, #10-16 x 3/8

587.1524

08/08 10

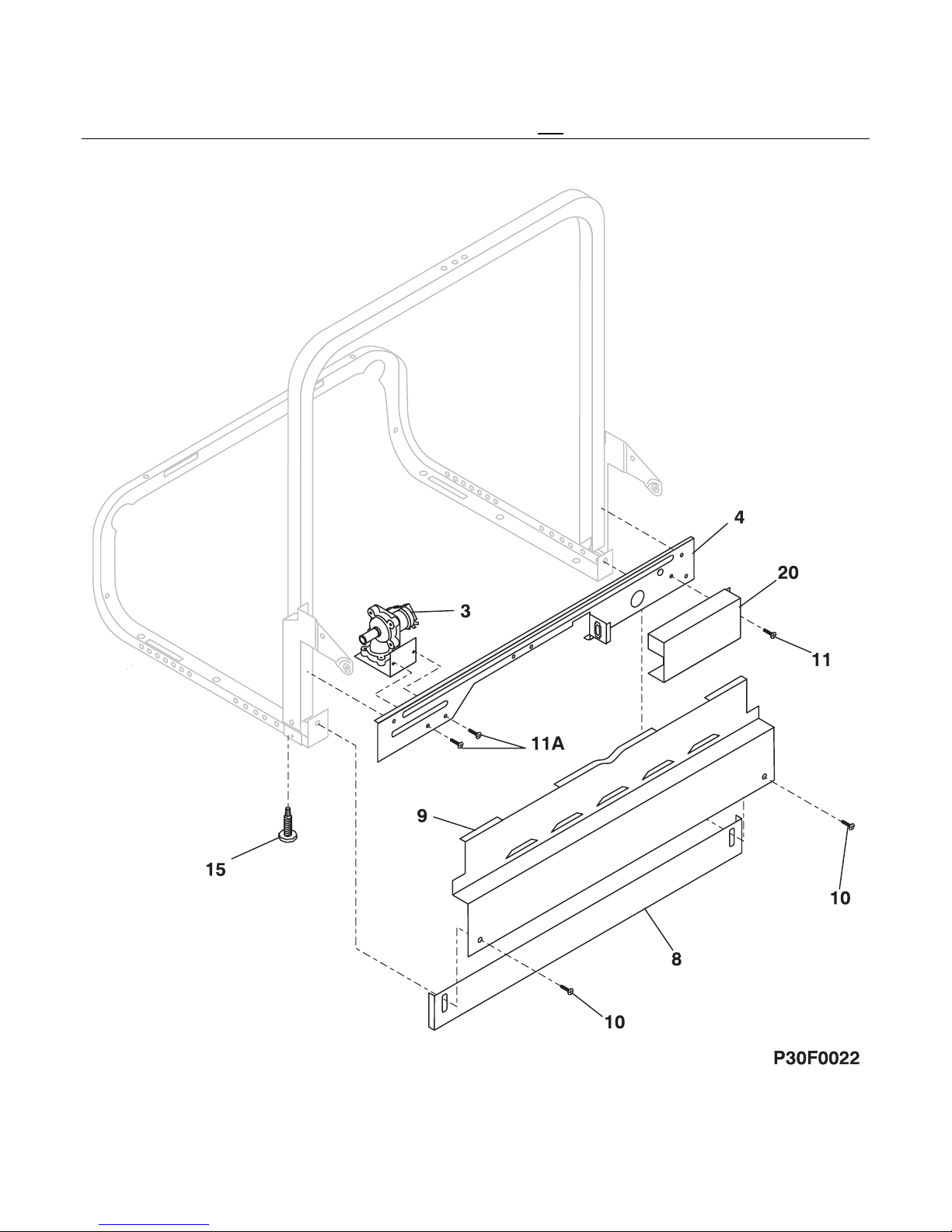

FRAME

CAUTION: Use the Kenmore part number to order part, not the illustration number.
