Electrolux Dishwashing
Rack Type NERT - electric (L->R)
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. The rack type dishwasher range is designed to be easily connected with the equipment
included in the Electrolux Handling System range, to create a functional and ergonomic dishwashing area.The
NERT has a capacity up to 100 racks per hour. The machines are available with or without Condensing Unit
(CU) and with or without Hot Air Blower (HAB). The models on this sheet are from left to right versions.
533331
EASY TO INSTALL
• Only one cable for electrical
connection.
• Electrical and water connections
centralised in one area.
• Large inspection door to access
both washing and rinsing areas.
• Service from the front and from
the side.
FUNCTIONAL ZONES
• Power wash zone where all the
soil is removed.
• Final rinse to sanitise the items
using 3.3 litre/rack of hot fresh
water heated up inside the built-in
boiler.
• Available with Hot Air Blower for
fast and efficient drying.
• Available with Condensing unit,
to decrease temperature and
humidity of the outlet hot steam.
• Side loaders and curves 90° and
180° can be driven from the
feeding system of the machine
without extra motor.
EASY TO CLEAN AND MAINTAIN
• Machine has smooth surfaces.
• The wash tank is made of 316
AISI acid proof stainless steel with
rounded corners and sloping base
to facilitate cleaning.
• Wash arms and double tank filter
(flat and deep box) easy to remove.
• Main internal components made
in 304 AISI stainless steel as well
as the external panels.
• Height adjustable stainless steel
feet.
EASY TO USE
• Automatic start/stop function.
• Large counter balanced and
double skinned door with safety
switch and easy to grip handle .
• Automatic controlled
dishwashing.
• Built-in rinse water heater to
increase the temperature of the
final rinse water.
• Simple control panel.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
• Low noise level <70dBA.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
Electrolux Dishwashing
Rack Type NERT - electric (L->R)
Internet: http://www.electrolux.com/foodservice
IEAA0102010-07-30Subject to change without notice
SIDE PRE-WASH AND WASH ARMS 864053 864053 864053 864053
RINSE BOOSTER PUMP-ELECTR.MECH.RACK TYPE 864052 864052 864052 864052
KIT 9 BASKETS FOR 1-TANK RACK TYPE DW 867051 867051 867051 867051
KIT 6 BASKETS FOR 1-TANK RACK TYPE DW 867050 867050 867050 867050
EL. HOT AIR BLOWER-L>R-600MM-ENTRY RT 864153 864153
EL. HOT AIR BLOWER-CORNER-L>R-ENTRY RT 864142 864142
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016 867016 867016
BASKET FOR 5 HALF INSULATED TRAYS-RED 867005 867005 867005 867005
ACCESSORIES
CONNECTION PLATE-HANDLING TO WT90/RT10 2 2 2 2
INCLUDED ACCESSORIES
Supply voltage 400 V, 3N, 50 400 V, 3N, 50 400 V, 3N, 50 400 V, 3N, 50
Net weight - kg. 200 270 270 340
Total installed power - kW 27.5 36 32.1 40.6
boiler power - kW 16.5 16.5 21 21
boiler capacity - lt. 16 16 16 16
temperature - °C 80-90 80-90 80-90 80-90
Rinsing
pump power - kW 1.5 1.5 1.5 1.5
tank capacity - lt. 114 114 114 114
temperature - °C 55-65 55-65 55-65 55-65
1st wash
height/with open door 1454, 2050 1744, 2050 1924, 2050 1924, 2050
depth 824 824 824 824
width 1550 2150 1550 2150
External dimensions - mm
tank filling - °C 50 50 50 50
operation - °C 50 50 10-15 10-15
Water supply
Air emission - m³/h 500 500 500 500
Automatic start/stop ● ● ● ●
Capacity baskets/h 1st/2nd speed 100 100 100 100
Capacity dishes/h 1st/2nd speed 1800 1800 1800 1800
N° of speeds 1 1 1 1
Feeding direction from LH to RH from LH to RH from LH to RH from LH to RH
Power supply Electric Electric Electric Electric
Hot air blower ● ●
Condensing Unit ● ●
Model Basic -
Electromechanical
Basic -
Electromechanical
ECO -
Electromechanical
ECO -
Electromechanical
TECHNICAL DATA
NERT10EL
533301
NERT10ELB
533315
NERT10ELC
533331
NERT10ELCB
533345
Electrolux Dishwashing
Rack Type NERT - electric (L->R)
Internet: http://www.electrolux.com/foodservice
IEAA0102010-07-30Subject to change without notice
V - Condensation outlet ● ● ● ●
HWI - Hot water inlet G 3/4" G 3/4" G 3/4" G 3/4"
EI - Electrical connection 400 V, 3N,
50
400 V, 3N,
50
400 V, 3N,
50
400 V, 3N, 50
D - Water drain 50mm 50mm 50mm 50mm
CWI - Cold water inlet G 3/4" G 3/4" G 3/4" G 3/4"

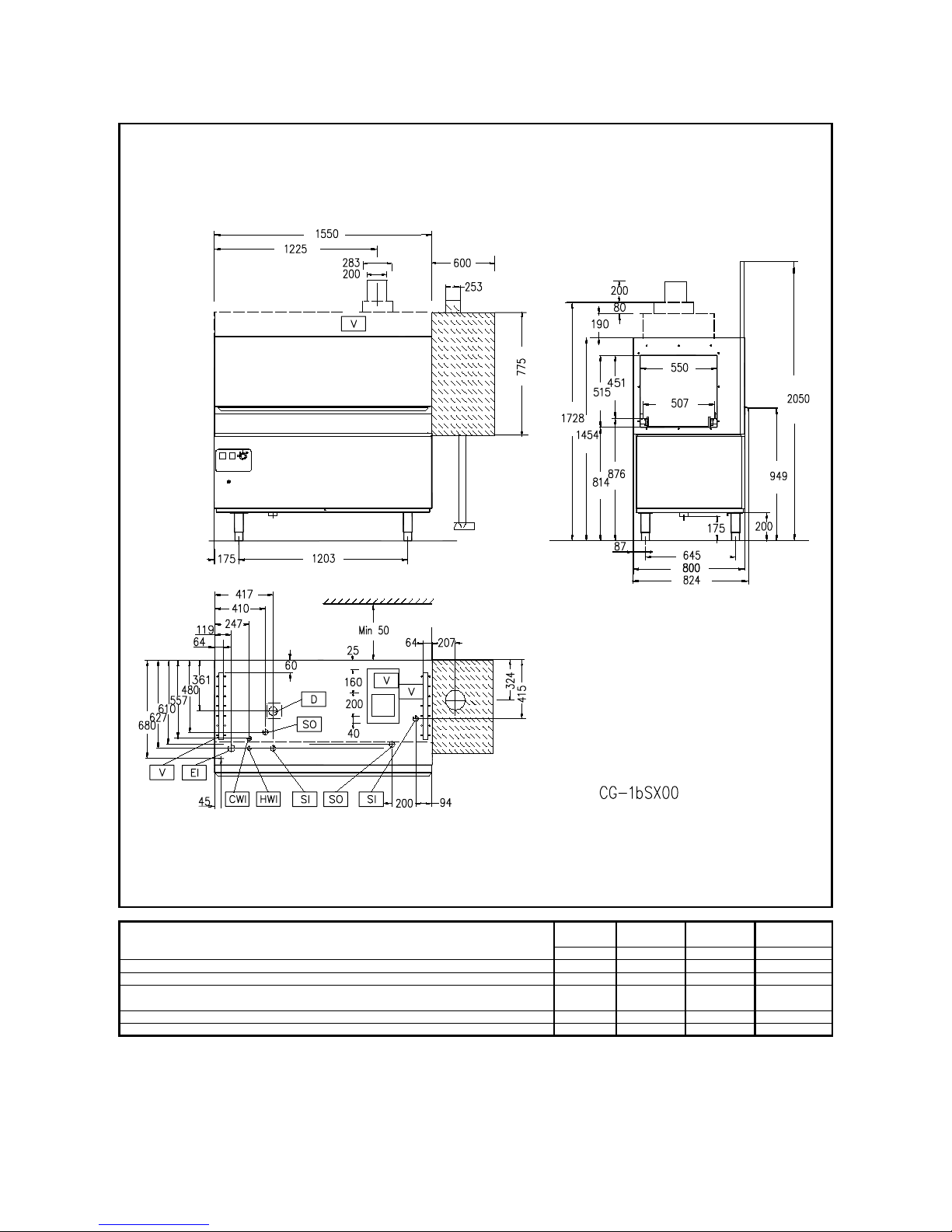

LEGEND
NERT10EL
533301
NERT10ELB
533315
NERT10ELC
533331
NERT10ELCB
533345
533301, 533345, 533331, 533315
