Electrolux EW30CC55GB Manual de usuario

10" and 6" Induction Elements

Boil water in 90 seconds with the 10"

induction element, which offers 3,200

watts of power.

Power Assist™Function

Generates rapid heat for a quick boil.

More Responsive

Induction is more responsive than a gas

cooktop – you can instantly adjust the

heat to a delicate simmer or bring to a

quick boil.

Cookware Compatibility

Electrolux induction hybrid cooktops

include a combination of electric elements

that are compatible with all cookware,

and induction elements that are compatible

with most cookware — if a magnet sticks

to the bottom of the pot or pan, it will work.

Induction Hybrid Cooktops

EW30CC55G S, EW30CC55G W, EW30CC55G B

30" INDUCTION HYBRID DROP-IN COOKTOPS

Sabbath Mode (Star-K®Certified)

Features

Perfect Set™Electronic Touch Controls

Ceramic Smoothtop Glass Surface

6" to 9" Dual Expandable Element – 1600W/3000W

6" Electric Element – 1200W

10" Induction Cooking Element – 2400W/3200W

6" Induction Cooking Element – 1200W/1500W

Hot-Surface Indicator Lights

Sealed Spill Control Cooktop

Accessories

Cleaning Sponge

Specifications

Overall Exterior Dimensions –

Height (Extreme Bottom to Underside of Cooktop)

(Extreme Bottom to Topside of Cooktop)

Width

Depth (to Front Corner)

(to Center of Arc)

Power Supply Connection Location

Connected Load (kW Rating) @ 240/208 Volts

Amps@240/208 Volts

Minimum Circuit Required (Amps)

Electrical – Single phase 4-wire cable,

120/ 240 Volts or 120/208 Volts, 60 Hz,

fused on both sides of line with ground.

Armored Electrical Cable

Approved for Single Oven Combination Installation*

Product Weight

Shipping Weight

NOTE: Always consult local and/or national electric codes. Refer to Product Installation Guide

for detailed installation instructions on the web at www.electroluxappliances.com.

Specifications subject to change.

Yes

Included

5-1/4"

30-3/4"

21-1/2"

21-3/4"

Right Center Rear

8.1/7.1

33.8/ 34.1

Required

Included

Yes

54 Lbs.

62 Lbs.

*Approved to be used over any Electrolux Single Wall Oven.

electroluxappliances.com

Wall OvensWarmer DrawersCooktopsBuilt-In Ranges

Freestanding

Ranges

MicrowavesVent HoodsDishwashersRefrigerators

FreezersUnder Counter

Induction Hybrid Cooktops

EW30CC55G S, EW30CC55G W, EW30CC55G B

High standards of quality at Electrolux Major Appliances mean we are

constantly working to improve our products. We reserve the right to change

specifications or discontinue models without notice.

USA

•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •

electroluxappliances.com

CANADA

•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •

electroluxappliances.ca

30"

13"

max.

cabinet

depth

6" min.

25"min.

71/2" min. to nearest

combustible wall

(either side of unit)

10"

12"

2" min. recommended

distance between rear

edge of cutout and

nearest combustible

surface above countertop

203/8" min.

201/2" max.

Approximate location

of junction box

293/4" min.

30" max.

4"x 8" opening to

route armoured cable

24"

21/2" min. from

edge of cutout to front

edge of countertop

18"

min.

30" min.

for

unprotected

cabinet

24" min.

for

protected

surface

303/4"211/2"

281/2"

191/16"Overall depth

at center of

arc – 213/4"

51/4"

3/4"

25/8"

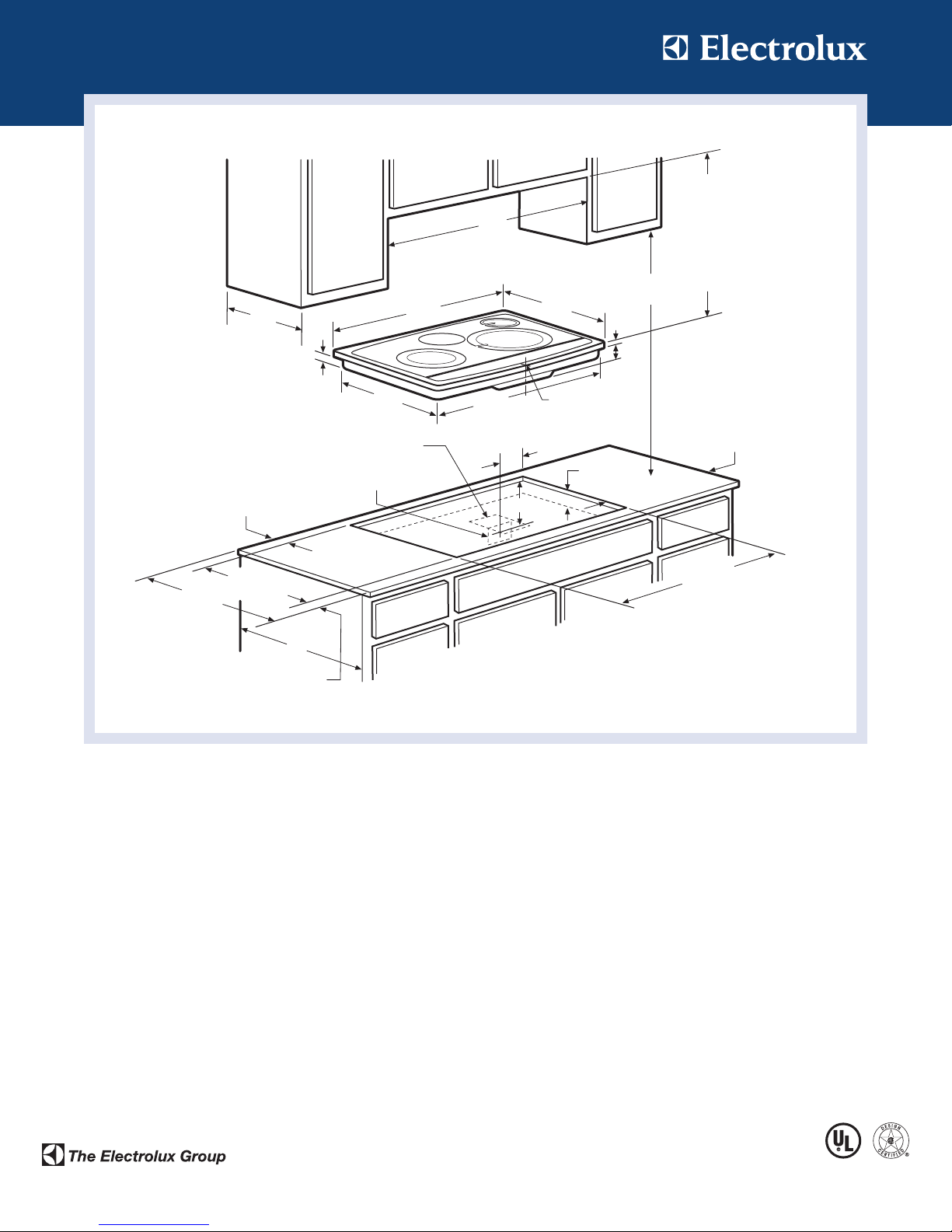

30" Induction Hybrid Drop-In Cooktop Specifications

•

Product Weight – 54 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz,

fused on both sides of line with ground.

•

Connected Load (kW Rating) @ 240/208 Volts = 8.1/7.1kW

•

Amps @ 240/208 Volts = 33.8/34.1 Amps

•

Recommended Circuit Breaker – 40 Amps

•

Always consult local and/or national electric codes.

•

Allow 2"space below armoured cable opening to clear electrical cable

and allow space for installation of junction box on wall at back of cooktop.

•

Overhead cabinetry should not exceed a 13" maximum depth.

•

Allow 30" minimum clearance between top of cooktop and bottom of

unprotected wood or metal overhead cabinetry.

•

Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum width

of appliance.

•

Allow 24" minimum clearance when bottom of wood or metal overhead

cabinet is protected by not less than 1/8" flame-retardant millboard

covered with not less than No. 28 MGS sheet steel, 0.015" stainless

steel, 0.024" aluminum or 0.020" copper.

•

Allow 2" minimum clearance between rear edge of cutout and nearest

combustible surface above countertop.

•

Allow 7-1/2" minimum clearance from edge of cooktop to nearest

combustible wall on either side of unit.

•

It is recommended that drawers not be used beneath cooktop.

•

To reduce risk of fire when using overhead cabinetry, install range hood

that projects horizontally a recommended minimum of 5" beyond bottom

of cabinets.

•

Induction Hybrid Drop-In Cooktop model EW30CC55G is approved to be

used over any Electrolux Single Wall Oven.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.
