User Manual

EHG735SP

EN Gas Cooktop

Contents 2

Safety instructions ................................................................ 3

Parts identification ................................................................ 4

Installation instructions.......................................................... 6

Installation procedure ...............................................................6

Gas connection ........................................................................7

Operation ............................................................................. 8

Ignition burners.........................................................................8

Using the hob correctly.............................................................8

Maintenance and care .......................................................... 9

Glass top ..................................................................................9

Burner - caps & crowns ............................................................9

What to do if........................................................................ 9

Technical specifications .................................................... 10

Warranty conditions ............................................................ 10

Thank you for choosing and using Electrolux home appliances.

Electrolux Group of Sweden is one of the world largest home appliances companies. With more than 65 million Electrolux products

being used by millions of households worldwide each year, it is also the world largest manufacturer of kitchen electrical appliances.

The group has sold more than 55 million kitchen products, which is equivalent to the combined heights of 5 Mount Everest. Besides

that, more than 2/3 of the world star hotels use Electrolux professional kitchen equipment.

Clearly，the excellent achievement of Electrolux over the last 100 years has been widely recognized by 450 million families all over

the world. Now, we are pleased to make some of the best products from this renowned brand available to consumers in Southeast

Asia. To us, not only is Electrolux one of the most reliable brands in dealing with home appliances, it is also a brand that promises to

bring innovative lifestyles to all families through its cutting edge technologies and excellent designs. For not only do they add a touch

of elegance to your kitchen, but Electrolux products also make cooking easier, more enjoyable and something to share with. Enjoy

happy cooking now with Electrolux kitchen appliances!

Once again, we would like to extend our heartiest thanks to you for your trust in choosing Electrolux products!

Before installing or using this appliance, please read this instruction book carefully and pay particular attention to the safety warnings

in the following page.

Should you have further enquiries regarding this appliance, kindly contact our Customer Care for advice.

Please keep this instruction book for future reference and pass it on to any future owners of this appliance.

3 Safety instructions

Safety instructions

Do not use gas other than that which is specified on the

label attached.

Do not place anything, e.g. flame tamer, asbestos mat,

between pan and pan support as serious damage to the

appliance may result. (Fig 1)

WARNING:-

•In the event of the burner flames being accidentally

extinguished, turn off the burner control knob and do not

attempt to re-ignite the burner for at least 1 minute.

Do not remove the pan support and enclose the burner with a

wok stand not supplied by Electrolux as this will concentrate

the flame and deflect the heat onto the top plate. (Fig 2)

Do not use large pots or heavy weights which can bend the pan

support or deflect the flame onto the top plate.

(Fig 3)

Locate pan centrally over burner so that it is stable and does

not overheat the appliance. (Fig 4)

The unit to be used for cooking only. Do not dry towels, clothes,

etc., over it. If this is done, there is danger of fire.

If a gas leak is found, close stopcock, open up all windows and

call your dealer. Do refrain from turning an electric switch on or

off, lighting a match, smoking or using a lighter.

Use the appliance in a well-ventilated room.

Do not use vinyl gas hose. It is liable to be softened by heat.

Use only a rubber hose.

Be sure to turn off the ignition knob and regulator of the

cylinder after use.

Avoid touching the burner, pan stand etc., immediately after

use, you will get burnt.

Ensure that the rubber hose does not touch any part of the unit

or lies underneath it.

Connect the rubber hose to the gas inlet and fasten it with a

hose clamp.

The pan stand leg nearest to the flame will have discoloration

after use. Such phenomenon is normal.

•For burner fitted with a flame supervision device, if after 15

seconds of ignition operation the burner has not lit, stop

operating the device and open the compartment door and

wait at least 1 minute before attempting a further ignition of

the burner.

•If nozzle holes are blocked, use a thin wire or pin to pierce

and clean the nozzle holes.

•

Parts identification 4

5 parts identification

The Class of the appliance: Class 3

These instructions are only valid if the country symbol appears on the appliance.

If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the

necessary instructions concerning modification of the appliance to the conditions of use of the country.

Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment

of the appliance are compatible

The adjustment conditions for this appliance are stated on the label (or data plate).

This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in

accordance with current installation regulations.

Particular attention shall be given to the relevant requirements regarding ventilation.

Avoid using cooking vessels on the hotplate that overlap its edges.

The use of inappropriate hob guards can cause accidents.

Hob guards cannot be used.

The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in

which it is installed.

Ensure that the kitchen is well ventilated, especially when the appliance is in use: keep natural ventilation holes open or

install a mechanical ventilation device (mechanical extractor hood).

Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window or

increasing the level of mechanical ventilation.

CAUTION:

“In case of hotplate glass breakage:

_ shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply.

_ do not touch the appliance surface,

_ do not use the appliance.”

installation instructions 6

Installation instructions

•Have the installer show you the location of the gas shut off

valve and how to shut it off in emergency.

•Be certain all packing materials are removed from the hob

before operating to prevent fire or smoke damage that could

be caused by the presence of these materials.

•Observe all instructions for minimum clearance to any

combustible surfaces. These should be in accordance with

information on the rating plate and with national fire laws.

•If the hob is installed near windows, proper precautions

should be taken to prevent curtains from blowing over

burners creating FIRE HAZARD.

•When choosing a location for this hob consider availability

and position of gas and electric supply paths.

•Any openings around gas and electric service outlets shall

be closed at the time of installation.

•Do not install another hob next to this unit.

•The underside of the hob must be checked to ensure that

there are no projections which might affect the hob. Make

sure that the countertop is solidly supported and can

withstand the weight of the hob.

•Check that the cabinet is leveled from side to side and from

front to back in its installed position.

•Cabinet ventilation can be improved by the provision of air

holes to the cabinet. Care should be taken to ensure that

ventilation holes are not obstructed.

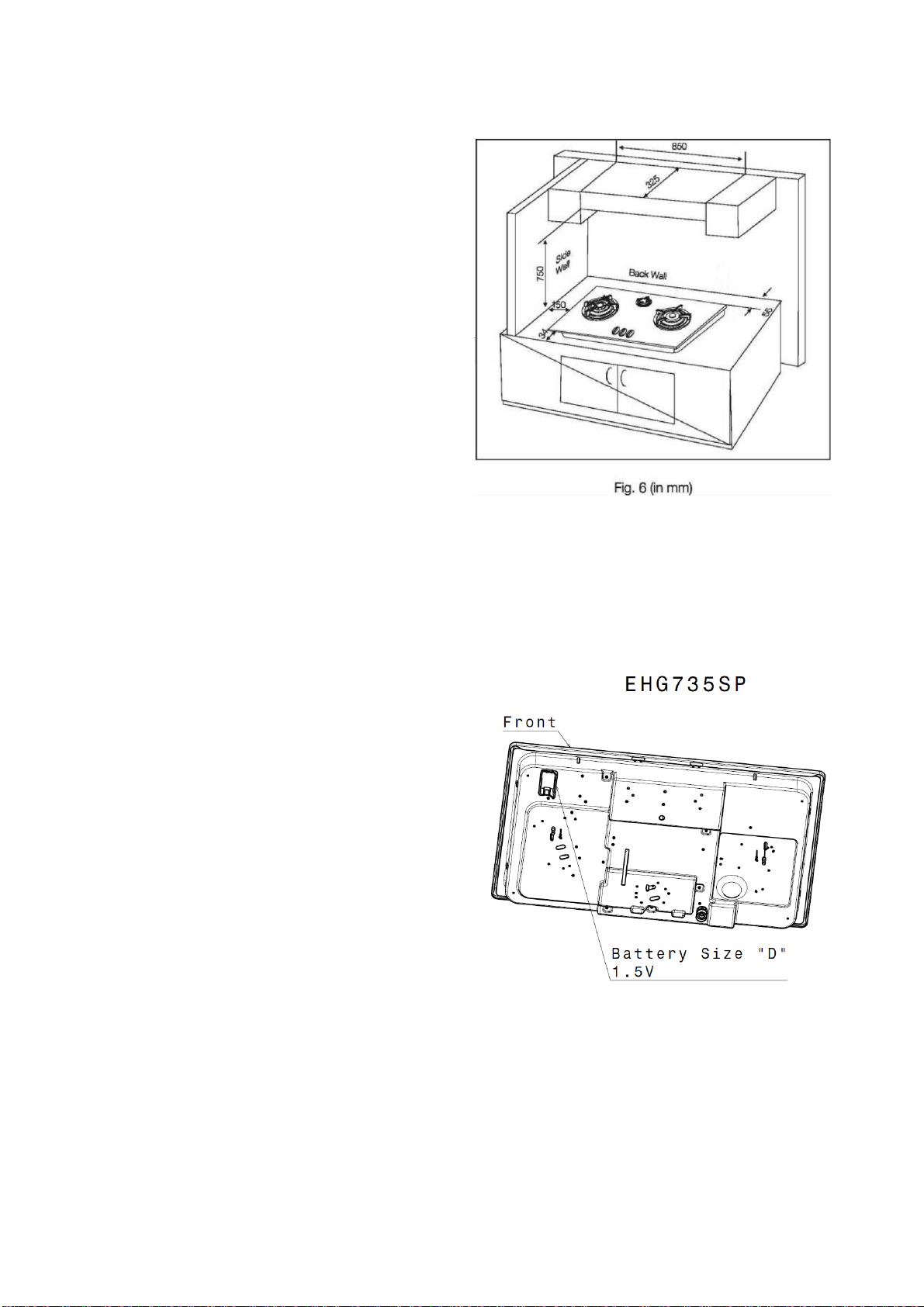

•When fitting a vent hood above the hob, refer to the

manufacturer own installations relating to that product.

However as a general rule, a minimum clear vertical

distance of 750mm (30”) should be maintained between

the cooktop and the underside of any cupboard, wall unit or

vent. (Fig 6)

•Any cabinet installed above the cooktop must not be greater

than 325mm (13”)deep. (Fig 6)

•The edge of the hob must have a minimum distance from the

real wall of 55mm. (Fig 6)

Ifclearancebetween side/backwallsandperipheryofthe burneris

lessthan200mm,thewallsmustbeprotectedwitha

non-combustiblematerial.Theprotectionmust extendaminimum

distanceof450mmabovetheburner. Horizontal surfaceslessthan

750mmverticallyabovethecooktopmustalsobeprotected.

BATTERY COMPARTMENT

1. When the battery is exhausted or the spark become

weakness, a new battery should be replaced.

2. The battery compartment is located as shown in the

diagram. Please place the battery in correct polarity

as shown.

Warning: Please take out the battery if not using the hob

for a long time.

7installation instructions

Installation procedure

•Before installing the appliance, check that the location

provides the required clearances from combustible

materials and check if necessary to provide protection to

adjacent surfaces as required by the regulation. Make

provision for the gas supply to be connected to the

location.

•Cut the opening in the bench top by the cardboard -

template given in the hob packing or to the dimensions

shown in Fig 7.

•Remove the hob from the carton.

•Install the hob in the cut-out (Fig 7)

•Connect gas supply to inlet of hob. Turn the gas on

and check for leaks using soap solution and brush

around all the joints and connection.

•Test the appliance; depress the control knob and turn to

full flame setting to activate the electric igniter. The burner

will ignite. Adjust control knob to the desired setting. On

initial usage you may have to repeat this ignition function

several times (to allow air to be purged from the gas

supply system). No adjustment should be necessary. If

any problem occur, refer to the servicing instructions or

the fault finding chart.

•Ensure the manual is left with the user. If any of the above

procedures do not produce satisfactory results, the agent

service department should be consulted for more

specialized assistance.

•This gas hob has been tested for operating on town gas

pressure up to 31 mbar

Benchcut-outsizeviewedfromfrontofbench,i.e.controlpanelatfront.

Ifclearancebetweenside/backwallsandperipheryoftheburner

islessthan 200mm,thewallsmustbeprotectedwith

non-combustiblematerial. Theprotectionmust extenda

minimumdistanceof

450mmabovetheburner.Horizontal

surfaceslessthan 750mmverticallyabovethe hobmust alsobe

protected.

•Gas connection

•The supply hose must be visible for its entire length (max.

one meter) and must be secured with a hose clamp X (Fig

8). The sealing washer must be fitted.

IMPORTANT SAFETY INSTRUCTION:

Upon completion of gas installation connections, it is

compulsory to check for gas leakage at the joint. (Soap test)

Soap test procedure

•Turn the burner controls off and turn on the gas supply.

•Apply soapy solution to each joint. (Figure 8)

•Formation of bubbles indicates leakage and must be tightened.

•Repeat soap test

Fig.7 (in mm)

MODEL:EHG735SP

operation 8

Ignition burners

1. Check to make sure that the gas supply is accessible and set

up with the necessary and appropriate fittings/connectors.

2. Turn all control knobs to off position.

3. This device is fitted with a safety tap to control the gas flow.

When the dot on the knob lines up with the following symbols

on the panel, these conditions prevail:

Todose,rotatetheknobtotherightuntilyou feel the tap’s distinct

click.

4. To ignite, hold the knob and press down for several seconds,

rotate it to maximum gas flow position. For models with

thermocouple, keep the knob pressed down about 5~8

seconds, otherwise the flame will extinguish.

5. If the burner does not light the first time, repeat Step 4.

6. If the flame extinguishes suddenly, repeat Step 4.

7. When using the unit again immediately after having once

turned it off, wait for about ten seconds before re-igniting.

8. Each burner has its own independent ignitor.

9. When the burner is lit, turn the knob to adjust the flame size

according to your needs. You do not have to press down the

knob to adjust the flame.

Choice of burner

•A semi-rapid burner is for special low heat, simmering and

slow cooking.

NOTE:

Remember that a wide-bottomed pan allows a faster cooking

than a narrow one.

Always use pots which properly fit what you have to cook.

Make sure that the pans are not too small for liquids, since these

could easily overflow.

The pans should not be too large for a faster cooking.

You should use pans with the right diameter to fit the burner,

thus reducing gas consumption as in Fig 12.

It is also advisable to cover any boiling casserole and as soon as

the liquid starts to boil, lower the flame enough to keep the

boiling point

Forburnerfittedwithaflamesupervisiondevice,if after15

secondsof ignitiontheburner hasnotlit, stopoperatingthe

deviceandwait atleast 1minutebefore attempting afurther

ignitionofthe burner.

Using the hob correctly

•A wok burner is for very fast heating using a wok or large pan.

•To ensure maximum burner efficiency, it is strongly

recommended that you use only pots and pans with a bottom fitting

the size of the burner used, so that the flame will not spread beyond

the bottom of the vessel (Table 1).

•It is also advisable, as soon as the liquid starts boiling, to turn

down the flame so that it will keep the liquid simmering

Burner

Minimum

Diameter

Maximum Diameter

Wokburner

120mm

280mm

Semi-rapid

120mm

260mm

9 maintenance and care

Stainless steel top

•All grades of stainless steel may stain, discolor or attain

an adhering layer of grime in normal operation. To archive

maximum surface appearance, stainless steel must be kept

clean by regularly using the following cleaning procedures,

thus ensuring good performance and long service life.

Wash with warm soapy water and rinse with clean water.

Where the stainless steel has become extremely dirt with

signs of surface discoloration,(due to periods of neglect or

misuse )use a stainless steel cleaner.

•Do not use the stainless steel top as a work table.

Burner caps & crowns

•These can all be lifted off and removed for separate

cleaning.

•Ensure burner caps and crowns are thoroughly dried

after cleaning or spillage.

•When cleaning the burner, ensure that all the flame ports,

injector hole and other holes are free of any blockage.

(Fig 13,14)

•If necessary, use a matchstick or brush to clean ports.

•After cleaning, ensure the burner caps are

reassembled properly into position.

•After cleaning, when assembling the burner crown and

caps, care must be taken to ensure the spark plug is not

knocked. The spark plug will crack if knocked and may

give rise to flame ignition problem.

What to do if

Phenomenon Reason Solution

Burner will not light...

Air in gas line

Purge gas line

Blockage in line

Trace back

clear

Ignition not sparking

Check lead

electrode

Battery is dead

Replace battery

Burner not fitted correctly

Fit burner in correct position

Burner lights back to injector...

Excessive lint up of burner

Excessive gas pressure

mixing

tube

Remove

clean burner

Check gas regulator pressure &

adjust if necessary

Burner has explosive ignition...

Excessive gas pressure

Check gas regulator pressure &

adjust if necessary

lgnitor not sparking...

Electrode gap excessive

lgnitor connections loose

Battery is dead

Check gap, adjust if not between

4-5 mm

Check connections to ignitor,

replace if faulty

Change a new battery

WARNING:-

Do not spray aerosols in the vicinity of this hob while in operation. Some propellant gases can break down when

heated and produce corrosive vapours which will attack some materials.

Articles which are made from flammable materials should not be stored in drawers or cupboards immediately below

this hob.

Do not store articles within 50mm of the base.

Do not touch spark ignitor while lighting the burner.

Where this appliance is installed in a marine craft or in caravans, it shall not be used as a space heater.

warranty conditions 10

Technical specifications

Town gas

Triple ring burner

4.0kW

Semi rapid burner

1.8kW

Reduce Rate

1.0kW

Setting

14mbar

Gas connection

0.5 Inch straight thread

(14 threads per inch)

Battery

1.5V D.C

Standard warranty conditions

If youneedanytechnicalhelpor wouldlikemoreinformationabout our products,please donothesitatetocontactour Customer CareCenter,listed

below:

PN: 305536608-A

We, Electrolux, undertake that with warranty period (refer

to each country location for warranty period –months)

this Electrolux appliance or any part thereof is proved to be

defective by reason only of faulty workmanship or

materials, we will, at our option repair or replace the same

FREE OF CHARGE for labour, materials or carriage on

condition that:

The appliance has been correctly installed and used only

on the electricity supply stated on the rating plate.

The appliance has been used for normal domestic

purposes only, and in accordance with the manufacturer

instructions. The appliance has not been serviced,

maintained, repaired, taken apart or tampered with by any

person not authorized by us.

All service work under this guarantee must be

undertaken by an Electrolux Service Center. Any

appliance or defective part replaced shall become the

Company property.

This warranty is in addition to your statutory and other

legal rights.

This warranty does not include maintenance, like

cleaning of hob.

The manufacturer waives ail liability for failure to

observe the instructions for the appropriate installation,

maintenance and use of the appliance.

Singapore

Consumer Care Center Tel: (+65) 6727 3699

Electrolux S.E.A. Pte Ltd.

1 Fusionopolis Place,

#07-10 Galaxis, West Lobby

Singapore 138522.

Office Fax : (+65) 6727 3611

Email : [email protected]

Tabla de contenidos

Otros manuales de Placa de cocina de Electrolux

Electrolux

Electrolux 30" Electric/Microwave Combination Wall Oven Manual de usuario

Electrolux

Electrolux E30GC74GPS - 30" Pro-Style Gas Rangetop Manual de usuario

Electrolux

Electrolux EW36CC55GW - 36in Electric Cooktop Manual

Electrolux

Electrolux E30EC70FSS - 30" Drop-In Electric Cooktop Guía de inicio rápido

Electrolux

Electrolux ICON E36GC75DSS Manual de usuario

Electrolux

Electrolux 318 200 635 (0606) Rev. A Manual de usuario

Electrolux

Electrolux ICON Designer E36GC65ESS Manual de usuario

Electrolux

Electrolux ICON E36GC75DSS1 Manual de usuario

Electrolux

Electrolux EW30GC55GB1 Manual de usuario

Electrolux

Electrolux EW30GC60IS2 Manual de usuario

Electrolux

Electrolux EW36EC55G S Manual de usuario

Electrolux

Electrolux EHE3343X Manual de usuario

Electrolux

Electrolux E36GC75E - Icon Cooktops Manual de usuario

Electrolux

Electrolux 36" Ceramic Manual de usuario

Electrolux

Electrolux EW30EC55G - 30" Electric Cooktop Manual de usuario

Electrolux

Electrolux EW36IC60I - 36 in. Induction Cooktop Manual de usuario

Electrolux

Electrolux EHC30001X Manual de usuario

Electrolux

Electrolux E30GC74GPS2 Manual de usuario

Electrolux

Electrolux E36IC80ISS - 36" Induction Cooktop Manual de usuario

Electrolux

Electrolux EW30CC55GW - 30in Electric Cooktop Guía de inicio rápido

Electrolux

Electrolux E36GC65ESS - 30"""" Drop-in Gas Cooktop Manual de usuario

Electrolux

Electrolux Electric Cooktop Manual de usuario

Electrolux

Electrolux E36EC75DSS Manual de usuario

Electrolux

Electrolux ICON E36GC75DSS1 Manual de usuario

Manuales populares de Placa de cocina de otras marcas

Bonnet

Bonnet OPTIMUM 700 Manual del propietario

Jenn-Air

Jenn-Air JGCP430 Manual de usuario

Frigidaire

Frigidaire FES367FCC Guía de inicio rápido

Ztove

Ztove EZ2 DUO Manual de usuario

Kleenmaid

Kleenmaid cooking GCTK9011 Guía de instalación

Casselin

Casselin CSASRE24 Manual de usuario

Jenn-Air

Jenn-Air JGC2536EB00 Manual de usuario

Waldorf

Waldorf RN8603E-B Manual de instrucciones

Whirlpool

Whirlpool SMP658CNEIXL Manual de usuario

Wolf

Wolf CI243C/B Manual de usuario

Fulgor Milano

Fulgor Milano F5PGK305S1 Manual de usuario

GE JP389 Manual de usuario

Wells

Wells WV-2HFG Manual de usuario

IKEA

IKEA Lagan HGA4K Manual de usuario

Samsung

Samsung NA36N9755 Manual de usuario

Miele

Miele KM 404 Manual de usuario

Lacor

Lacor 69562 Hoja de especificaciones

Keating Of Chicago

Keating Of Chicago MG-2 Manual de usuario
