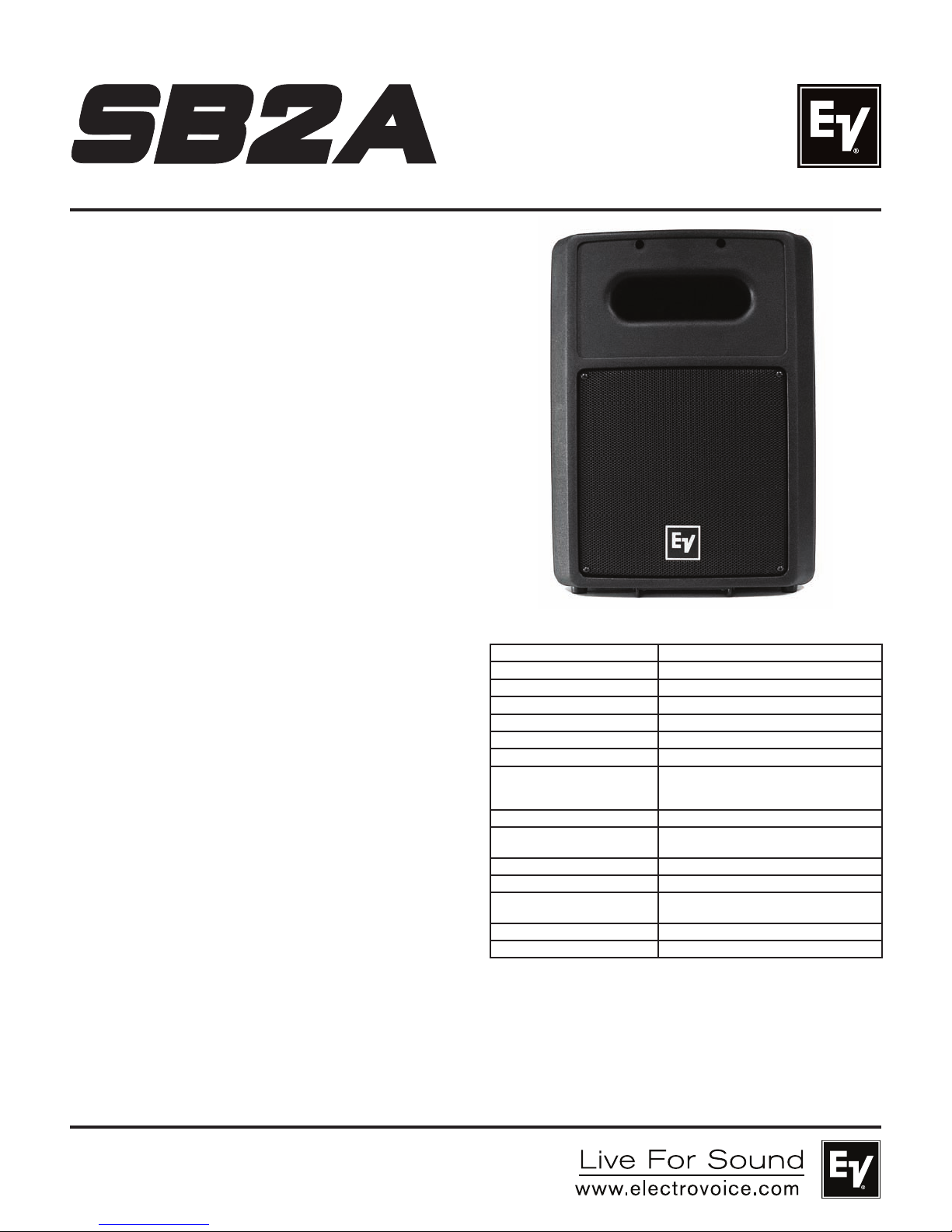

SB2A

12-inch, 400W

Powered

Bass Module

General Description: Technical Specifications:

Key Features:

Very Compact and Lightweight - •

Only 35.3 lbs/16.0 kg

Integral Handle•

Two Digital Power Amplifiers•

350W Dedicated LF, 350W Switchable•

Neutrik Speakon High Current Output •

Connector

Cast Frame EVS12SB 12-inch High-Excursion •

Subwoofer Driver

Integral Electronic Crossover/Processor - •

No Additional Amplifier or Processor Needed

The Electro-Voice® SB2A dual channel powered

subwoofer is the ideal solution where big sound and

compact portability are required. Combining the amaz-

ing low-frequency performance of an Electro-Voice

SB122 passive subwoofer with dual high-efficiency

350 Watt amplifier channels and a dedicated electronic

crossover/processor, the SB2A eliminates the need for

a separate amplifier and crossover to drive a full-range

system. The second amplifier channel has a switch-

able high pass filter to allow either a passive full-range

system (Zx1, Sx300) or passive subwoofer (SB122) to

be connected via the Neutrik NL4 output. A line level

XLR output is also provided for daisy chaining to pow-

ered speakers or additional power amps. The SB2A

signal processing provides a carefully tuned overlap to

help round out the lower mids of the full-range system,

creating a big full sound from a very small package.

Like the SB122, the SB2A features a convenient pole

mount socket on top of the enclosure to allow a small

full-range speaker like the Zx1 or Sx80 to be mounted

on the optional ASP-1 accessory pole. The result is

a compact, self-contained 3-way bi-amp system that

sounds much bigger than it looks.

Freq. Response1 (-3 dB): 55 Hz - 165 Hz

Freq. Range1 (-10 dB): 43 Hz - 275 Hz

Hipass Amplifier Range: 66 Hz - 16 kHz

Coverage: Essentially Omnidirectional

Subwoofer Amplifier Power: 350W RMS

Switchable Amplifier Power: 350W RMS

LF Transducer: EVS12SB, 12 in (305mm) Driver

Connectors:

Line Inputs:

Balanced Line Output:

XLR and 1/4” Phone Combination

XLR

Switchable Amplifier Output: Neutrik NL4

Power Requirement: 110-130 VAC, 50-60 Hz, or 220-240 VAC,

50-60 Hz, 600 Watts

Enclosure Material: Copolymer

Grille: Powder Coated Steel

Dimensions (H x W x D): 586mm x 429mm x 312mm

(23.1” x 16.9” x 12.3”)

Net Weight: 16.0 kg (35.3 lbs)

Shipping Weight: 17.9 kg (39.5 lbs)

1 Half Space Measurement.

100

1000

10000

20000

3.16

100

316

100

110

Frequency(Hz)

Sensitivity (dB)

Impedance (Ohms)

Frequency Response, Half

Space, -10 dBu Input

Preliminary

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number LIT000122 Rev 1

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other Internatonal locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

Electro-Voice®

Dimension Drawings:

Top View

Front View

Bottom View WARNING

The SB2A is very lightweight and has a small footprint. Do not

attempt to pole-mount a speaker system larger than a Zx1 or

Sx80 on the SB2A.

SB2A Part Numbers

PRD000110-001 SB2A, Black Finish•

PRD000110-002 SB2A, White Finish•

Performance Match

Zx1, 8-inch Two-Way Portable Loudspeaker•

Sx300, 12-inch Two-Way Portable Loudspeaker•

SB122, 12-inch Portable Bass Module•

Accessories

302055-000 ASP-1, Adjustable Sub Pole•

5912525 PDSx, Carrying Bag•

302053-001 TSS-1, Tripod Stand•

Frequency Response & Impedance:

Block Diagram:
