Electro-Voice QRx153 Manual de usuario

Key Features:

• 8-inch MF horn loaded for 75ox 50opattern

control to 500 Hz

• 3-inch DH7 HF compression driver

• 15-inch DL15 woofer is loaded into vented

enclosure

• Asymmetric MF and HF horns have

+15o / -35ocoverage

• RMDTM – Ring-Mode Decoupling for vocals

and mids with superb fidelity at any listening

level

• The EV P1202 Precision Series Amplifier and

M153 module are designed to power the

QRx153 perfectly

• L-track rigging is installed on top and

bottom of the enclosure

QRx153

15-Inch Three-Way Biamped

Speaker System with

Horn-Loaded Midrange

General Description:

The QRx153/75 is a biamped three-way full-range

loudspeaker system capable of filling performance spaces

with beautifully balanced audio and high acoustic output

capability.

The QRx153 is designed to be bi-amplified at 500 Hz utilizing

a DX38 digital controller, or a P1202 power amplifier with

M153 control module. All QRx models use 13 ply plywood,

Futura coating, and steel grilles for wear and weather

resistance. The QRx153 is trapezoidal with 15o side angles.

“L” track rigging is installed on the enclosure top and bottom.

Small arrays can be flown for live work, or the system can be

suspended horizontally or vertically for fixed installations.

Thanks to its combination of the DL15ST woofer and large

enclosure volume; the horn-loaded 8-inch midrange driver

and powerful 3-inch compression driver, the EV QRx153/75

has extended response for high-level, high fidelity applications

without the need of a subwoofer. The horn-loaded midrange

driver provides excellent pattern control in this critical

response area. Both MF and HF horns are aimed downward

10oto provide optimal aiming when the speaker is elevated

above the audience. This also helps control sound to provide

greater intelligibility.

The QRx153/75 has an excellent combination of performance

and flexibility for demanding audiences.

Technical Specifications:

:)Bd01-(egnaR.qerFzHk02-zH24

:)Bd3-(esnopseR.qerFzHk61-zH05

gnildnaHrwPmreTgnoL

:FH/FMW051/FLW004

gnildnaHrwPmreTtrohS

:FH/FMW006/FLW0061

:)m1/W1(ytivitisneSFH/FMBd501/FLBd89

:ecnadepmIFH/FMsmho21/FLsmho8

:tuptuOLPS.claC.xaMm1@Bd031

:egarevoClatnoziroH°57

:egarevoClacitreV)°53nwoD,°51pU(°05

:revossorCFMotFLzH005

:.qerFrevossorCevissaPzHk2.1

:recudsnarTFLTS51LDhcni-51

:srecudsnarTFH/FMFHhcni-37HD/FMhcni-88FM

:erusolcnE citlaB)mm81(ylp-31ladiozeparT

)selgnAediS°51(hcriB

:noisnepsuSsgnittifarcnA/wkcarT-L

:srotcennoCs'4LNnokaepSkirtueN)2(

:IDdnaQ8.01=ID/21=Q

:rellortnoCdednemmoceR83xD

:ellirGdekcabcirbaF,leetSdetaoCredwoP

:ni)DxWxH(miD”21.91x”4.81x”5.14

:mm)DxWxH(miDmm584xmm764xmm0421

:thgieWteN)gk90.44(sbl79

:thgieWgnippihS)gk27.74(sbl501

1 EIA-RS426A

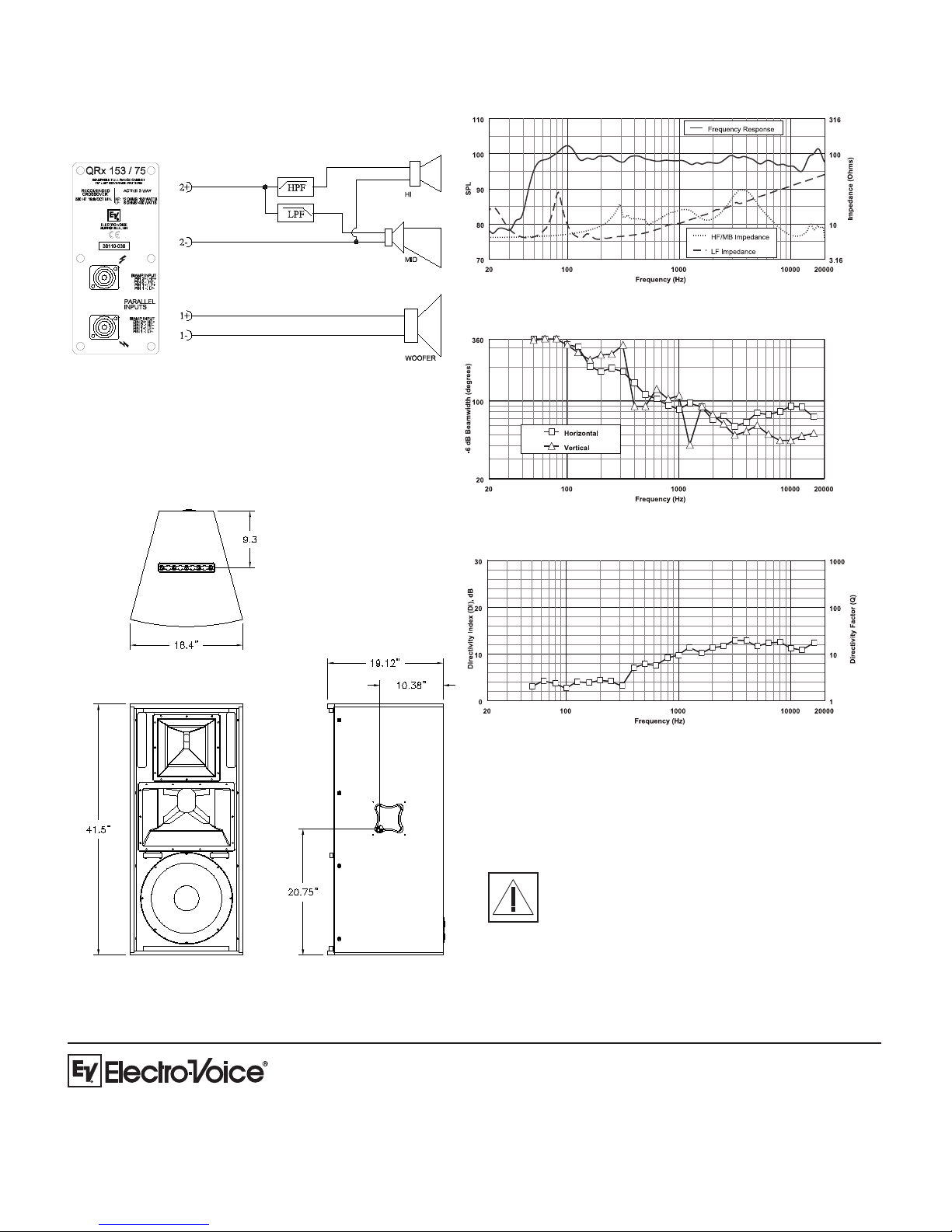

Block Diagram: Frequency Response:

Dimension Drawings :

Performance Match:

• QRx218s -- Dual 18” Woofer System

• P1202 -- Precision Series™ Amplifier

• M153 -- Control Module for QRx153

• Dx38 -- Digital Loudspeaker Controller

QRx153 Part Number:

• 301208-001 QRx-153, Black Futura finish

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

Part Number 38110-079 Rev B

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

Front View

WARNING:

Suspending any object is potentially dangerous and

should only be attempted by individuals who have a thorough

knowledge of the techniques and regulations of rigging objects

overhead. Electro-Voice®strongly recommends that QRx

speakers be suspended taking into account all current national, federal,

state and local regulations. It is the responsibility of the installer to ensure

that QRx speakers are safely installed in accordance with all such

regulations. If QRx speakers are suspended, Electro-Voice®strongly

recommends that the system be inspected at least once a year. If any sign

of weakness or damage is detected, remedial action should be taken

immediately.

Side View

Top View

Beamwidth:

Directivity:
