Electro-Voice FRi-122/85 Manual de usuario

Technical Specifications

The Fri series of Professional Fixed Install Speakers deliver

a broad range of performance options including multiple horn

patterns, easily switchable passive or bi-amp operation, and

EV’s World renown transducer technology for response that

is smooth and linear. The Fri-122/85 is an economical and

flexible solution for the most demanding installations.

Offering superior performance, the Fri-122/85 is equipped

with 12-recessed shoulder bolted suspension points for

easy flying and each cabinet includes 4, 3/8" forged eye-

bolts for convenience. All Fri speakers have a vertical box

height of 28" allowing neat, concise and visually appealing

arrays. The structural integrity of the Fri cabinets allow for

vertical arrays up to 3 boxes in height. Fri speakers are

specifically recommended for demanding, cost conscious

installations such as Houses of Worship, Nightclubs, Live

Music Venues, and mutli-use spaces such as Gymnasiums

and Auditoriums. All Fri speakers employ EV’s exclusive

Ring Mode Decoupling (RMDTM) and high performance,

World Class EV transducer design and technology to

ensure maximum speech intelligibility and musical clarity.

Additionally, all Fri systems are available in Black, White

and Unfinished options.

esnopseR.qerF

:)Bd3-(zHk51-zH05

egnaR.qerF

:)Bd01-(zHk61-zH04

:LPSdetaluclaCxaMBd821

:egarevoClatnoziroH°08

:egarevoClacitreV°55

:gnildnaHrewoPFLkaePW0021,suounitnoCW003

:gnildnaHrewoPFHkaePW061,suounitnoCW04

:ytivitisneS)m1/W1(Bd79

:recudsnarTFLsmho8,revirD)mm003("21HFB21LD

:recudsnarTFHnoisserpmoCtixe)mm15("2t2HD

smho8,revirD

:srotcennoCspirtsreirrabowT

:lairetaMerusolcnEdoowylpdetanimal-niarg-ssorcylp-7

:ellirGleetsAG61detarofrepdetaoCredwoP

:cepSlatnemnorivnE42PI925CEI

:)DxWxH(miD"45.71x"38.51x"29.72

)mm544x104x117(

:)hcae(thgieWteN)gk3.72(sbl06

:thgieWgnippihS)gk7.23(sbl27

General Description

FRi-122/85

12-Inch Two-Way Full-Range

Passive or Active

Speaker System

Key Features

• Compact, Easily Arrayable Cabinets

• RMDTM –Ring Mode Decoupled

• 2" Pure Titanium HF Compression Driver

• Switchable Passive or Active Operation

• Available in Black, White or Unfinished

• Cloth Coverable Grills

• Paintable Enclosure

• 12 Threaded Suspension Points

1 Half Space Measurement.

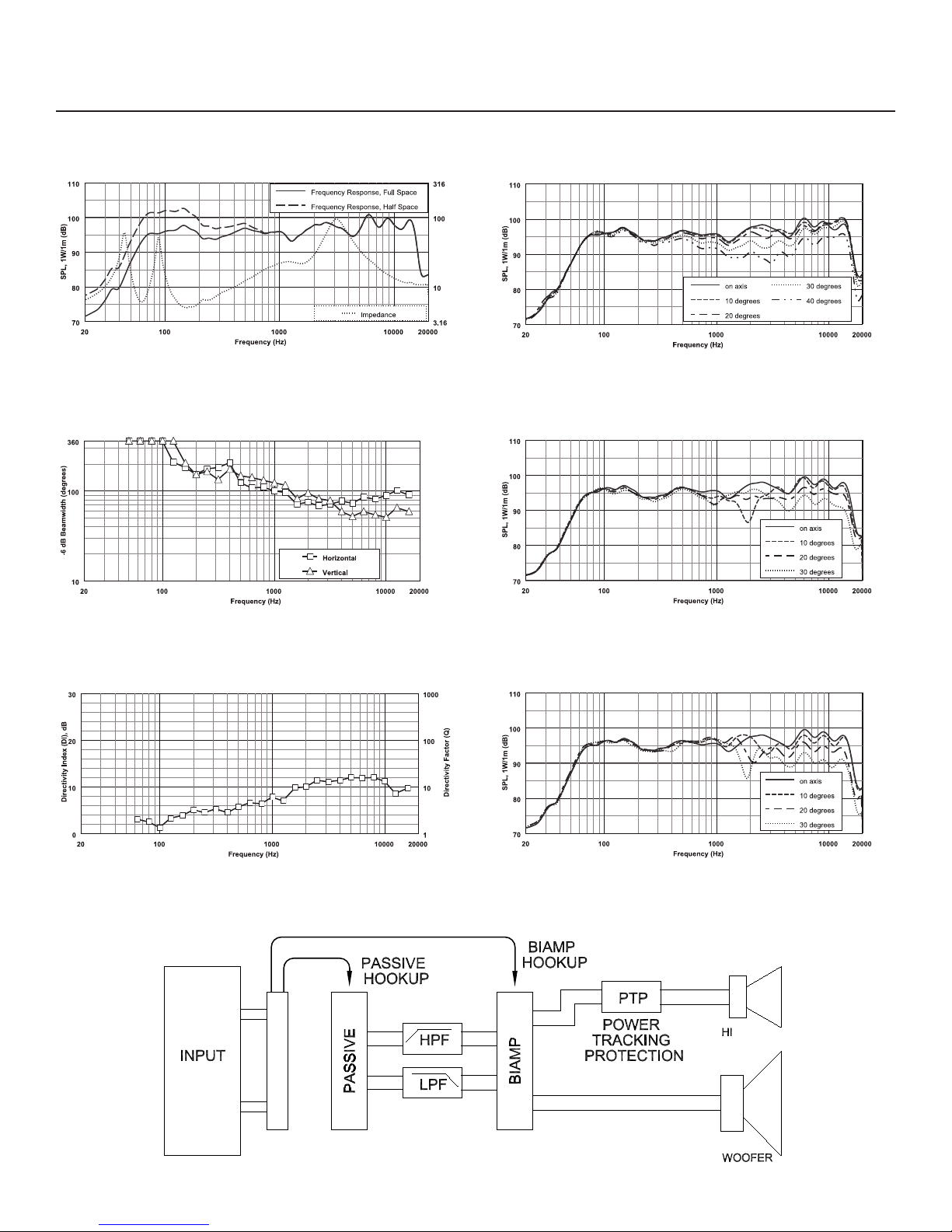

Horizontal Off Axis Frequency Response:Frequency Response:

Vertical Off Axis Frequency Response (up):Beamwidth:

Vertical Off Axis Frequency Response (down):Directivity:

Block Diagram:

FRi-122/85 Full Range Loudspeaker

Horizontal 1/3 Octave Polars:

Engineering Data Sheet

Vertical 1/3 Octave Polars:

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number 38110-135 Rev. A

Architectural & Engineering Specs:

The two-way full range loudspeaker system shall incorporate a 12” LF transducer and a 2” (51mm) voice coil HF compression

driver. The LF driver shall be mounted in a vented enclosure tuned for optimum low-frequency response. The HF driver shall be

loaded on a constant-directivity horn with a nominal coverage pattern of 80° (h) x 55° (v). An internal passive filter network shall

provide acoustical crossover and system equalization. Input panel shall easily change from passive to biamp operation via

internal connector. System frequency response shall vary no more than +/-3 dB from 50 Hz to 15 kHz measured on axis. The

loudspeaker shall produce a sound pressure level (SPL) of 97 dB on axis at 1 meter. It shall handle 300 watts of amplifier power

long term (EIA Standard), and shall have a nominal impedance of 8 ohms. The loudspeaker enclosure shall be trapezoidal in

shape. It shall be constructed of 7-ply cross-grain-laminated plywood and shall employ extensive internal bracing. It shall be

finished in aliphatic polyurethane. Input connectors shall be two at 2 terminal barrier strips. A total of twelve 3/8-16 threaded

mounting/suspension points shall be provided, (three each on top and bottom, two per side, two on rear). The front of the

loudspeaker shall be cloth coverable with a powder-coated perforated 16 GA steel grille.

The two-way loudspeaker shall be the Electro-Voice model FRi-122/85.

Dimension Drawings:

Front View Side View

Top View

FRi-122/85 Part Numbers

• 1152-3392 - Unfinished

• 1152-3384 - Black

• 1152-3385 - White
