Electro-Voice EVID-C44 Manual de usuario

EVID Compact Sound Speaker System

EVID-C44, EVID-C2.1, EVID-40C, EVID-S44, EVID-S44W, EVID-2.1, EVID-2.1W, EVID-40S, and

EVID-40SW

en | Installation Manual

Table of contents

1Safety 4

2Introduction 6

2.1 System features 6

3System overview 7

3.1 Packing lists 7

3.2 Product information 11

3.3 Dimensions 13

4Installation 15

4.1 Ceiling mount speakers 15

4.1.1 Ceiling mount satellite speaker installation 15

4.1.2 Ceiling mount subwoofer installation 18

4.2 Surface mount speakers 22

4.2.1 Surface mount satellite speaker installation 22

4.2.2 Wall bracket range of motion 23

4.2.3 Surface mount subwoofer installation 23

4.2.4 Removing subwoofer from the wall 25

5Wiring 26

5.1 Ceiling mount speakers 26

5.1.1 Wattage tap 26

5.1.2 70v/100v/4 ohm Mono 27

5.2 Surface mount speakers 28

5.2.1 Wattage tap 28

5.2.2 70v/100v/4 ohm Mono 29

5.2.3 8 ohm Stereo Surface Mount Subwoofer Only 30

6Troubleshooting 31

7Technical data 32

7.1 Ceiling mount speakers 32

7.1.1 Frequency response 32

7.2 Surface Mount Speakers 33

7.2.1 Frequency response 33

8Notes 34

en 3

Electro-Voice Installation Manual 2015.12 | 07 | F.01U.310.295

Safety

Warning!

Suspending any object is potentially dangerous and should only be attempted by individuals

who have a thorough knowledge of the techniques and regulations of suspending objects

overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into

account all current national, federal, state, and local laws and regulations. It is the

responsibility of the installer to ensure all loudspeakers are safely installed in accordance

with all such requirements. When loudspeakers are suspended, Electro-Voice strongly

recommends the system be inspected at least once per year or as laws and regulations

require. If any sign of weakness or damage is detected, remedial action should be taken

immediately. The user is responsible for making sure the wall, ceiling, or structure is capable

of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker

not associated with Electro-Voice is the responsibility of others.

Surface mount speakers

Safety Agency Compliance

The EVID 2.1 and EVID 40S bracket systems have successfully passed EIA-636 at a safety

factor of 8:1. The bracket systems are intended to support only the EVID 2.1 and EVID 40S

respectively. Do not use either bracket system for any other purpose. Never set anything on or

hang anything from the EVID 2.1 or EVID 40S enclosures when using the brackets.

Redundant safety point

As an added safety measure, it is suggested the user install an extra suspension point back to

the building structural supports. This redundant safety point should have as little slack as

possible (less than 1-inch is preferable).

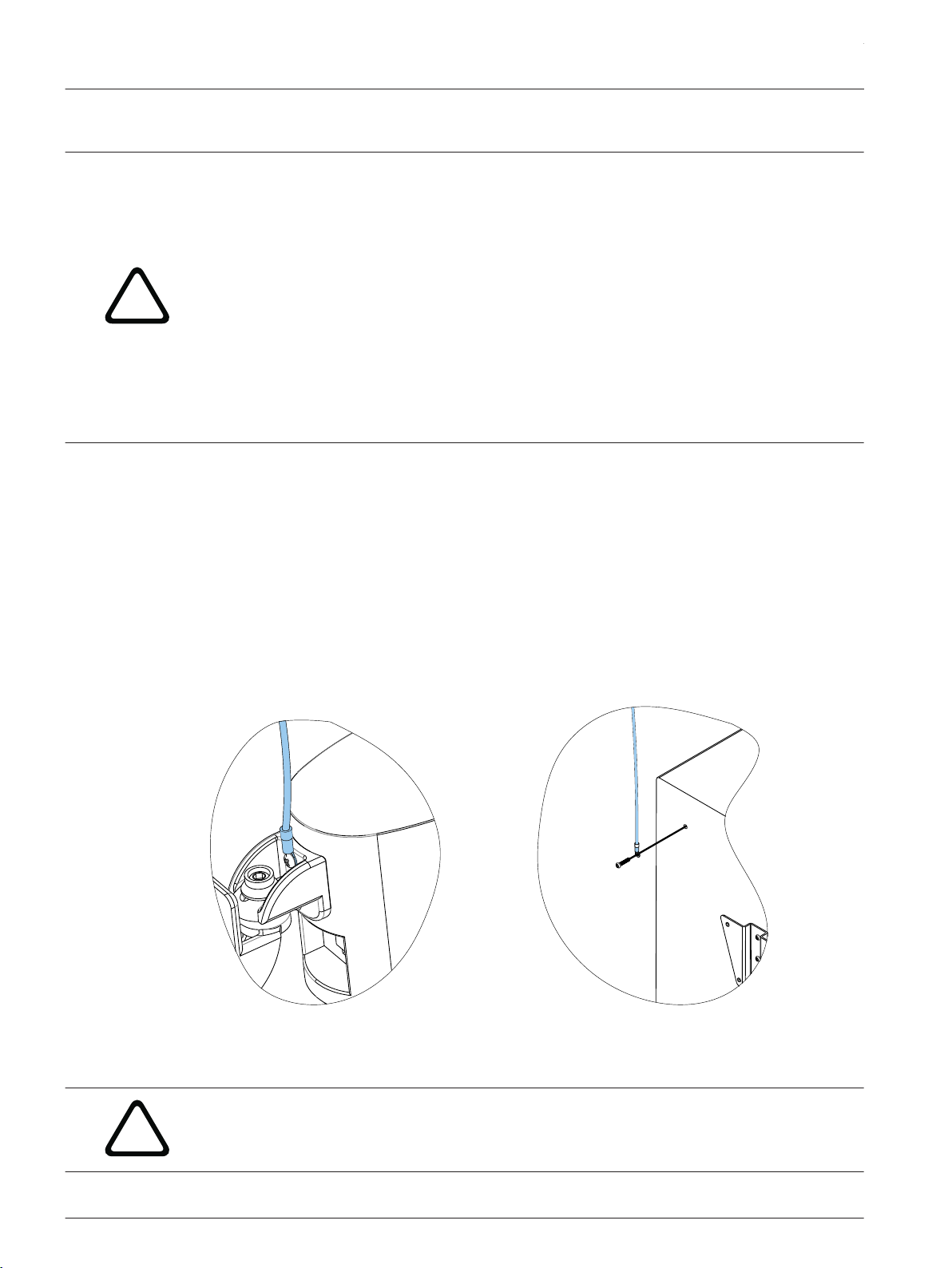

Figure 1.1: Surface mount satellite speaker (left) and surface mount subwoofer (right) with safety cable

Ceiling mount speakers

Caution!

The seismic tab (auxiliary support ring) is not intended for primary suspension of the

loudspeaker. The seismic tab should only be used as a secondary safety point.

EVID Compact Sound Speaker System

2015.12 | 07 | F.01U.310.295 Installation Manual Electro-Voice

Caution!

Ceiling mount speaker’s safety cable

The safety cable should be installed with a minimum of 3-inches (76.2 mm) of slack.

Old electrical and electronic appliances

Electrical or electronic devices that are no longer serviceable must be collected separately and

sent for environmentally compatible recycling (in accordance with the European Waste

Electrical and Electronic Equipment Directive).

To dispose of old electrical or electronic devices, you should use the return and collection

systems put in place in the country concerned.

en 5

Electro-Voice Installation Manual 2015.12 | 07 | F.01U.310.295

Introduction

The EVID Compact Sound Speaker System is a very compact full-range loudspeaker ideal for

applications requiring high-quality sound. Its shape flexibility and size make it nearly invisible

for use in background/foreground music systems for restaurants, bars, patios, retail, and other

applications. The system consists of a high performance 8-inch subwoofer module with a

crossover network to support the included four (4) 2-inch satellite speakers. The system

provides for easy signal connections at the subwoofer and can support either 4/8 ohm or

70/100v signal connections. Its high power handling allows the system to be used in a wide

variety of environments and spaces to provide high quality background or foreground music.

Read through this manual to familiarize yourself with the safety information, features, and

applications before you use these products.

System features

Common system features:

▪Available as a complete pre-packaged systems in either Ceiling mount or Surface mount

configurations.

▪Components can be combined in any mix of 4 satellite speakers to a single subwoofer to

meet décor or installation requirements.

▪Supports up to 100 W, 70/100 V, and 8 ohm audio connections.

Ceiling version features:

▪Quick-install design with captive mounting tabs to fit nearly any ceiling construction.

▪Four-pin Phoenix connectors on ceiling satellite speakers support pass-thru wiring.

▪UL 2043/1480 ratings allow for use in signaling applications and plenum air spaces.

▪Ceiling cutout templates and all mounting accessories included.

▪Available in white finish.

Surface-mount version features:

▪Simplified mounting design for satellites—concept provides secure mounting while

allowing for significant articulation and range of motion.

▪Attractive subwoofer design with full-face grille—install it anywhere, no need to hide!

▪Supports stereo operation with 8-ohm audio connections.

▪Quick-mount slide-on wall bracket included.

▪Available in black or white finishes.

2.1

EVID Compact Sound Speaker System

2015.12 | 07 | F.01U.310.295 Installation Manual Electro-Voice

System overview

Packing lists

Ceiling mount speakers

The EVID C44 speaker system package contains four (4) satellite speakers and one (1)

subwoofer. When you open the box for the full system you will find three (3) main boxes

inside; two (2) boxes for the satellite speakers and one (1) box for the subwoofer.

The major components included in one (1) box for the EVID C2.1 ceiling mount satellite

speaker.

Item Quantity Description

A 2 EVID C2.1 ceiling mount satellite speakers

B 2 Grilles

C 2 C-ring supports

D 1 Cutout template

E 1 Engineering data sheet

F 2 Paint shields

Table 3.1: Ceiling Mount Satellite Speaker

Figure 3.1: Components in kit

3.1

en 7

Electro-Voice Installation Manual 2015.12 | 07 | F.01U.310.295

The major components included in the box for the EVID 40C ceiling mount subwoofer:

Item Quantity Description

A 1 EVID 40C ceiling mount subwoofer

B 2 Tile rails

C 1 C-ring support

D 1 Grille

E 1 Installation manual

F 2 screws

G 1 Cutout template

H 1 Paint shield

Table 3.2: Ceiling Mount Subwoofer

Figure 3.2: Components in kit

EVID Compact Sound Speaker System

2015.12 | 07 | F.01U.310.295 Installation Manual Electro-Voice

Surface mount speakers

The EVID S44 speaker system package contains four (4) satellite speakers and one (1)

subwoofer. When you open the box for the full system you will find three (3) main boxes

inside; two (2) boxes for the satellite speakers and one (1) box for the subwoofer.

The major components included in one (1) box for the EVID 2.1 surface mount satellite

speaker.

Item Quantity Description

A 2 EVID 2.1 surface mount satellite speakers

B 2 Wall brackets

C 2 Speaker brackets

D 1 Engineering Data Sheet

E 2 M6 hex drive pan-head screws

F 4 M5 pan-head screws

G 2 Screw sockets

H 1 Hex wrench

Table 3.3: Surface Mount Satellite Speaker (1 box)

Figure 3.3: Components in kit

en 9

Electro-Voice Installation Manual 2015.12 | 07 | F.01U.310.295

The major components included in the box for the EVID 40S surface mount subwoofer:

Item Quantity Description

A 1 EVID 40S surface mount subwoofer

B 1 Wall bracket, assembled in box

C 1 Installation Manual

D 4 M6 hex drive pan-head screw

E 4 Rubber feet

F 1 Hex wrench

Table 3.4: Surface Mount Subwoofer

Figure 3.4: Components in kit

EVID Compact Sound Speaker System

2015.12 | 07 | F.01U.310.295 Installation Manual Electro-Voice
