ElectrIQ EIQ-284KMB Manual de usuario
28” 4K LED MONITOR
EIQ-284KMB
1
CONTENTS
Safety Information 2
What’s Included 4
Monitor Dimensions 4
Connections Available on the Monitor 5
Wall Mounting 6
Getting Started 6
Monitor Controls 6
Initial Setup 7
Menu Options 7
Picture Settings 8
Image Settings 9
Colour Temperature Settings 10
OSD Settings 11
Reset 12
Miscellaneous Settings 13
Specification 14
Troubleshooting 15
Electriq UK Support 15
2
SAFETY INFORMATION
•Read these instructions - All the safety and operating instructions should
be read before this product is operated.
•Keep these instructions - The safety and operating instructions should be
retained for future reference.
•Heed all warnings -All warnings on the appliance and in the operating
instructions should be adhered to.
•Follow all instructions - All operating and usage instructions should be
followed.
•Do not use this equipment near water, or in humid environments - The
appliance should not be used near water or moisture e.g. in a wet
basement or near a swimming pool.
•Clean only with a dry cloth. Do not use solvents or petroleum based
fluids.
•Do not block any ventilation openings.
•Do not install near any heat sources such as radiators, stoves or other
apparatus (including amplifiers) that produce heat.
•Do not tamper with the supplied plug. This plug is a BS1363 standard
plug.
•Protect the power cord from being walked on or trapped, particularly at
the plug and at the point where it exits from the appliance.
•Only use attachments/accessories specified by the manufacturer.
•Use only with a cart, stand, tripod, bracket or table specified by the
manufacturer or sold with the apparatus. When a cart or stand is used,
use caution when moving it to avoid any injuries or damage from it tipping
over.
•Unplug the apparatus during lightning storms or when unused for long
periods of time.
•Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus or it has been exposed to rain or moisture, it does not operate
normally or has been dropped.
•Please keep the unit in a well-ventilated environment.
•The monitor should only be connected to a mains power supply as rated
on the back of the equipment.
•To prevent overload, do not share the same power supply socket with too
many other electronic components.
3
•Do not place any connecting wires where they may be stepped on or
tripped over.
•Do not place heavy items on the cable as this may cause damage.
•When removing from a socket hold by the plug and not the wires.
•Disconnect the power immediately and seek professional help if the main
plug or cable is damaged, liquid has spilt onto the set, if accidentally
exposed to water or moisture, if anything accidentally penetrates the
ventilation slots or if the set does not work normally.
•Do not remove the safety covers. There are no user serviceable parts
inside. Trying to service the unit yourself is dangerous and may invalidate
the product's warranty. Only qualified personnel should service this
apparatus.
•Do not block ventilation slots on the back cover. The monitor can be
placed in a cabinet but ensure at least 5cm (2") clearance all around. Do
not tap or shake the screen, this may damage internal components.
•WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to
dripping or splashing and objects filled with liquids, such as vases, shall
not be placed on the apparatus.
•WARNING: The wall socket is used as a disconnection device and
should remain readily accessible.
4
WHAT’S INCLUDED
User Manual Power Supply Power Cable HDMI Cable
MONITOR DIMENSIONS
User’s Manual
5
CONNECTIONS AVAILABLE ON THE MONITOR
1. DC input port: Connect the supplied power supply to power the Monitor
2. HDMI port 2: Used to connect a compatible device. Supports HDMI 1.4 & 2.0
3. HDMI port 1: Used to connect a compatible device. Supports HDMI 1.4 & 2.0
4. Display Port 2: Used to connect a compatible device. Supports Display Port 1.2
5. Display Port 1: Used to connect a compatible device. Supports Display Port 1.2
6. Audio out port: Used for connecting headphones, or external speakers
6
WALL MOUNTING
The monitor is provided with mounting holes for a VESA approved wall mounting
bracket (not supplied)
The VESA mounting pattern is:100x100mm and the size of the required screws
are 4 x M6 x 10 (not supplied)
Do not use screws longer than specified or damage will occur to the internal
components.
NOTE: As the monitor is considered heavy, please consult with a professional wall
mount installer to perform the installation.
GETTING STARTED
MONITOR CONTROLS
1. SOURCE : Press the SOURCE button to select the input source or exit the menu.
2. MENU :To enter the menu of the monitor
3. :Press the button to move left within the menu.
4. :Press the button to move right within the menu.
5. :Press the button to move up within the menu.
6. :Press the button to move down within the menu.
7. POWER: To turn ON/OFF the monitor
7
INITIAL SETUP
Connect the monitor to a power outlet.
1. Press the POWER button on the monitor or to turn it on (The indicator will be
blue)
2. Connect the relevant cable to the corresponding source on the monitor. The input
should be automatically detected.
3. Press the SOURCE button to display the source menu. Use the ▼ and▲buttons
to choose the preferred input source between DP1, DP2, HDMI1 and HDMI 2.
MENU OPTIONS
The menu for the monitor can be accessed by pressing the MENU button on the
control panel. The menu includes options for Picture Settings, Image Settings,
Colour Temperature, OSD Settings, Reset, and Miscellaneous options, details of
each menu can be found in the following section
8

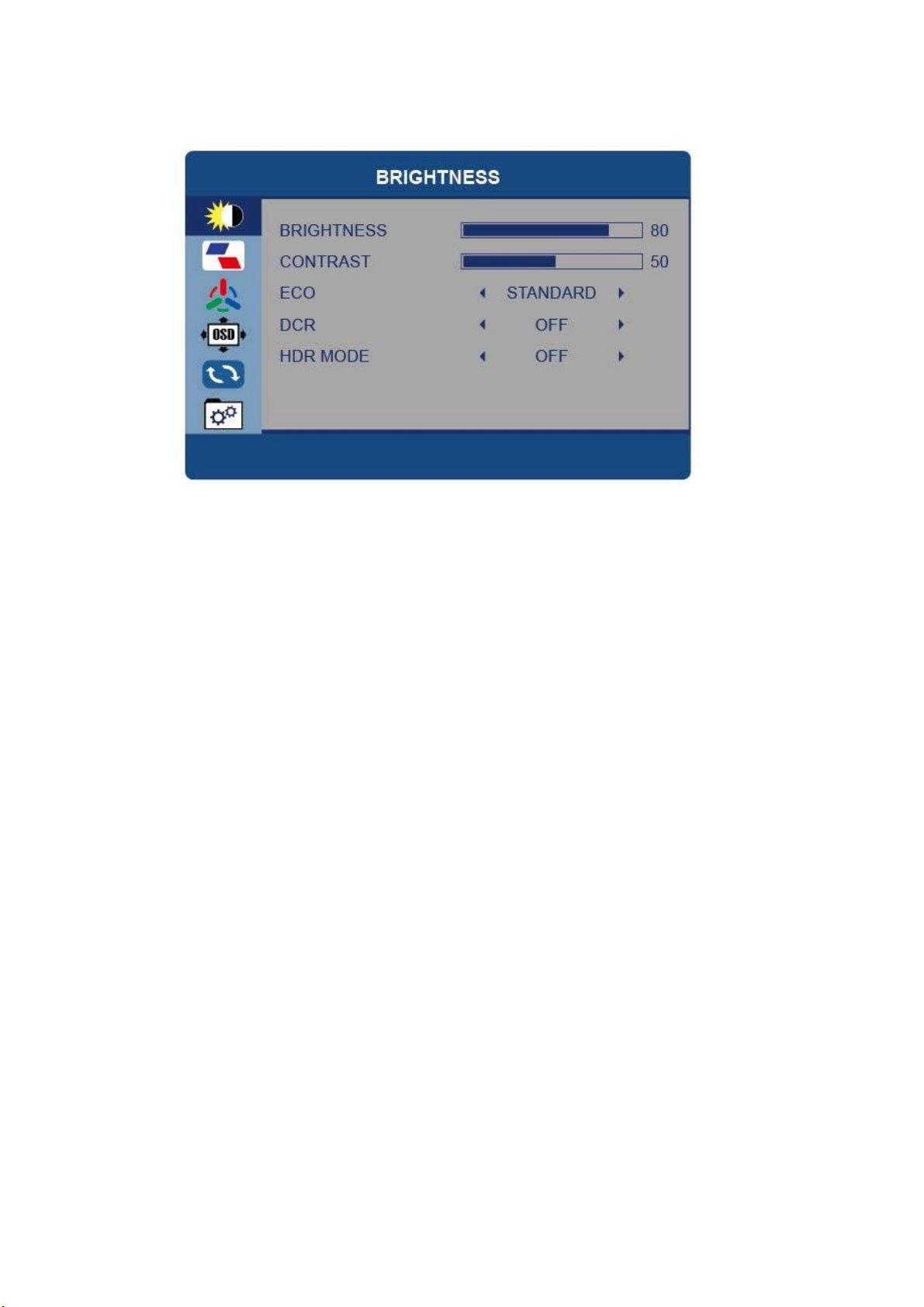

BRIGHTNESS
BRIGHTNESS
Allows the adjustment of the image brightness, according to ambient light in the
room. Value “0-100”
CONTRAST
Allows the adjustment of the contrast between white and black areas of the
image. Value “0-100”
ECO
Allows selection of image settings between the following: STANDARD, TEXT,
MOVIE, GAME,FPS, and RTS”.
DCR
Allows the dynamic contrast of the picture to be turned ON and OFF
HDR MODE
Allows to change the GAMMA value between “OFF, AUTO, MAX “.
9
IMAGE SETTINGS
H. POSITION
Allows adjustment of the horizontal position of the display image. Press the
and buttons to horizontally move the image.
V. POSITION
Allows adjustment of the vertical position of the display image. Press the and
buttons to vertically move the image.
CLOCK
Allows adjustment of the CLOCK setting. Value“0-100”
PHASE
Can reduce video distortion and instability. Value"0-100"
ASPECT
Allows selection of video format of the between “16:9, 4:3..... “.
