Elecrow RC070S Manual de usuario

ELECROW 7 Inch HDMI

Touchscreen Monitor

Model: RC070S

USER MANUAL

Customer Support:

Should there be any questions, please feel free to let us know and contact us with

your purchase order number at info@elecrow.com.

Table of Contents

Chapter 01: Before Using the Product

1-1. Packing Contents

1-2. Product Description

1-2-1. Port Description

Chapter 02: Connecting and Using a Source Device

2-1. Connected to Raspberry Pi

2-1-1. Preparations

2-1-2. How to Use with Raspbian/ Ubuntu Mate/ Retropie/ Kali System

2-1-3. Connect the Monitor to Raspberry Pi and Power the Raspberry Pi

2-2. Connected to PC/Laptop (with HDMI Port)

Chapter 03: Troubleshooting Guide and Warranty

3-1. Troubleshooting Guide

3-2. Warranty

3-3. Custormer Support

Chapter 04: Speciﬁcations

4-7

7-9

Chapter 01 Before Using the Product

1-1. Package Contents

1-2. Product Description

• 1 x 7 Inch Monitor

• 1 x USB to Micro USB Connector (for RPI 4B)

• 1 x HDMI to Micro HDMI Connector (for RPI 4B)

• 1 x USB to Micro USB Cable (for connecting PC)

• 1 x HDMI to HDMI Cable (for connecting PC)

• 4 x M2.5 Screws (to mount RPI)

• 4 x Small Copper Pillars (to support RPI)

• 2 x Pro Stand

• 2 x M3 Screws (to mount Stand)

• 2 x Speakers

• 1 x User Manual

1-2-1. Port Description

Micro USB Interface (Power): Connects to the device for power supply.

Micro USB Interface (Touch): Connects to the device for touch function and power

supply.

HDMI Interface (Display): Connects to a source device by using an HDMI cable/

connector.

Speaker: Set up the speaker.

Fan: Set up the fan device.

Backlight&Volume: For backlight & volume adjustment.

Earphone: For audio output.

4 5

6 7

56 7

Chapter 02 Connecting and Using a Source Device

2-1-1. Preparations

2-1-2. How to Use with Raspbian /Ubuntu Mate /Retropie/Kali System

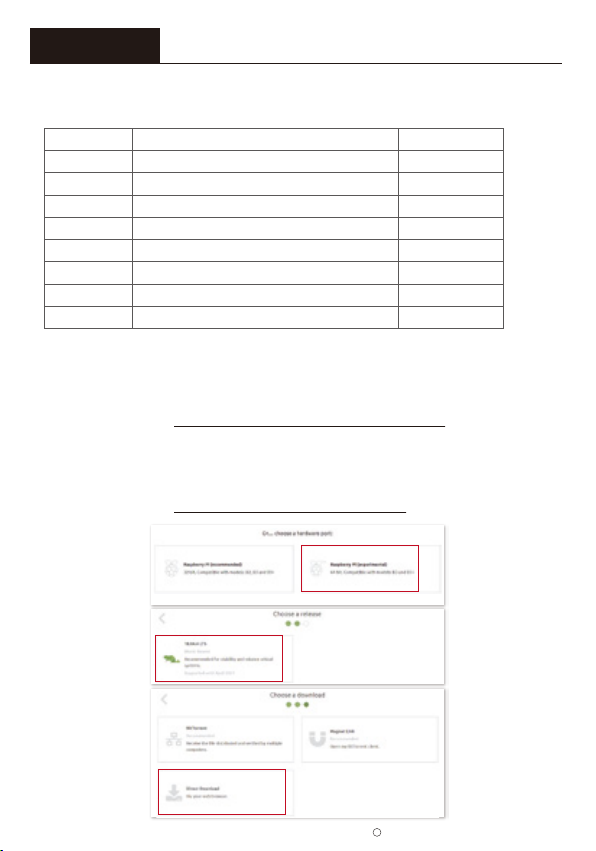

Step 1. Download the Image

2-1. Connected to Raspberry Pi

• Raspbian Image

Image Download Link: https://www.raspberrypi.org/downloads/raspbian/

User: pi Password: raspberry

Please download the latest Image for Raspberry Pi 4B

• Ubuntu Mate Image

Image Download Link: https://ubuntu-mate.org/download/#xenial

Number

Quantity

1pc

Main Material

Raspberry Pi Board ( 4B for example )

7 Inch Monitor

HDMI to Micro HDMI Connector

TF Card (above 8GB)

Card Reader

USB A to Micro USB Connect

5V/3A Power Adapter

Others

Click here

Download this Image and unzip

Step 2. Download and Install the Burning Tool

• Download SD Card Formatting Tool (SDFormatter 5.0.1)

Link: https://www.sdcard.org/downloads/formatter_4/

• Download System Burning Tool (Win32DiskImager)

Link: https://sourceforge.net/projects/win32diskimager/

• Format SD Card

• Retropie Image

Image Download Link: https://retropie.org.uk/download/

• Kali Image

Image Download Link: https://www.oﬀensive-security.com/kali-linux-arm-images/

User: root Password: toor

Insert the TF card into the card reader →insert the card reader into the computer →open the

SDFormatter software →select the memory card →click Format →pop up the box and click

“Yes” or “OK” until the format succeeded

Select a Image to download

Click here and download

Step 3. Burn the Image to SD Card

Step 4. Modify the “conﬁg.txt”

Open Win32DiskImager software →select downloaded image ﬁle(.img) →select SD card →

click ”write” →wait for burning completion, pop-up box click OK

Open the conﬁg.txt ﬁle of SD card root directory and add the following code at the end of the

ﬁle, save and eject SD card safely:

Step 5. Insert the SD Card into the Slot on the Back of the Raspberry Pi

Motherboard.

hdmi_force_hotplug=1

max_usb_current=1

hdmi_group=2

hdmi_mode=1

hdmi_mode=87

hdmi_cvt 1024 600 60 6 0 0 0

hdmi_drive=2

Please commend out by adding # in the front of "dtoverlay = vc4-fkms-V3D" or delete this line in

the conﬁg.txt ﬁle when working with Raspberry Pi 4.

• Monitor Connected to Raspberry Pi 4B

1. Peel oﬀ the stickers of the mounting holes, then install the small copper pillars onto them.

2. Mount the Raspberry Pi on the back of the screen with M2.5 screws.

2-1-3. Connect the Monitor to Raspberry Pi and Power the Raspberry Pi

3. Connect the HDMI connector & USB connector ﬁrmly onto Raspberry Pi and monitor.

4. Set up the speakers.(Please plug in the cable, then remove the sticker on the back of the

speaker, and then paste the speaker on the screen.)

• Raspberry Pi 4

HDMI to Micro HDMI Connector

USB Connector

5. Install the pro stand with M3 screws.

6. Power the Raspberry Pi.

HDMI(Display) to HDMI cable Micro USB(touch port) to USB A Micro USB (Touch/Power)

COMPUTER

Note: Please note that when the monitor is connected to a game device or the monitor's touch end is connected to a

power source, socket, or other power supply device, the touchscreen doesn’t work.

2-2. Connected to PC/Laptop (with HDMI Port)

1 2 3

Note: 1. The Raspberry Pi cannot be powered on directly by powering the screen (neither 5V/2A nor 5V/3A).

2. Please connect the Power interface when powering the screen. If power is supplied to the screen through the

touch interface, the touch screen will become insensitive, or even unusable.

3. When the speakers are turned on 80% or more, it is recommended to connect the power port (not touch port)

to provide full power.

DISPLAY
