EldoLED LINEARdrive 180 Guía de inicio rápido

More information (datasheets, application notes, user manuals) and eldoLED’s terms and conditions are available at www.eldoled.com.

Wiring diagram LINEARdrive 180 (LIN180D1)

Ext in +

Ext in

DMX in +

DMX in -

DMX in shield

LedSync thru +

LedSync thru -

LedSync shield

Group

LED supply +

LINEARdrive 180D

12-28V / 6A Direct voltage controlled LED driver

LED groups

DMX in shield

DMX in +

DMX in -

Ext in +

Ext in -

{

12V-28V DC IN

VDC - VDC +

LedSync thru shield

LedSync thru +

LedSync thru -

LED sup

Max | Vdc+

28V | Vdc-

CAUTION: incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.

Therefore, the device must only be connected and installed by a qualified electrician. All applicable regulations,

legislation and building codes must be observed!

12V - 28V DC IN

To connect the driver/controller to a DC power supply (PSU),

connect the PSU’s positive voltage supply wire to the VDC+

connector and the PSU’s negative voltage supply wire to the

VDC- connector.

EXT in (optional)

Connect an external control device (0...10V control device,

10kΩpotentiometer or show selection switch) to the driver/

controller by connecting the device’s positive lead to the EXT

in+ connector and its negative lead to the EXT in- connector.

Configure the driver/controller for use with an external control

device over the 3-button user interface.

DMX in/LedSync thru (optional)

Use these connectors when the driver/controller is used in a

DMX network.

For data input, connect the network cable’s data+, data- and

shielding wire (the orange/white, orange and brown wire in a

CAT5 cable) to the DMX in+, DMX in- and DMX in shield con-

nector respectively.

For data output, connect the network cable’s data+, data- and

shielding wire (the orange/white, orange and brown wire in a

CAT5 cable) to the LedSync thru+, LedSync thru- and

LedSync shield connector respectively.

LED groups

Indicates the location of the connectors to which you

can connect your LED groups. R(ed) represents channel 1,

G(reen) represents channel 2, B(lue) represents channel 3

and W(hite) represents channel 4. The default group color al-

location can be changed over the 3-button user interface.

eldoLED Europe bv Luchthavenweg 18a 5657 EB Eindhoven The Netherlands T +31 40 2054050 F +31 40 2054058 [email protected]

eldoLED America, Inc. 1762 Technology Drive # 226 San Jose, CA95110 USA T +1 408 451 9333 F +1 408 451 9335 [email protected]

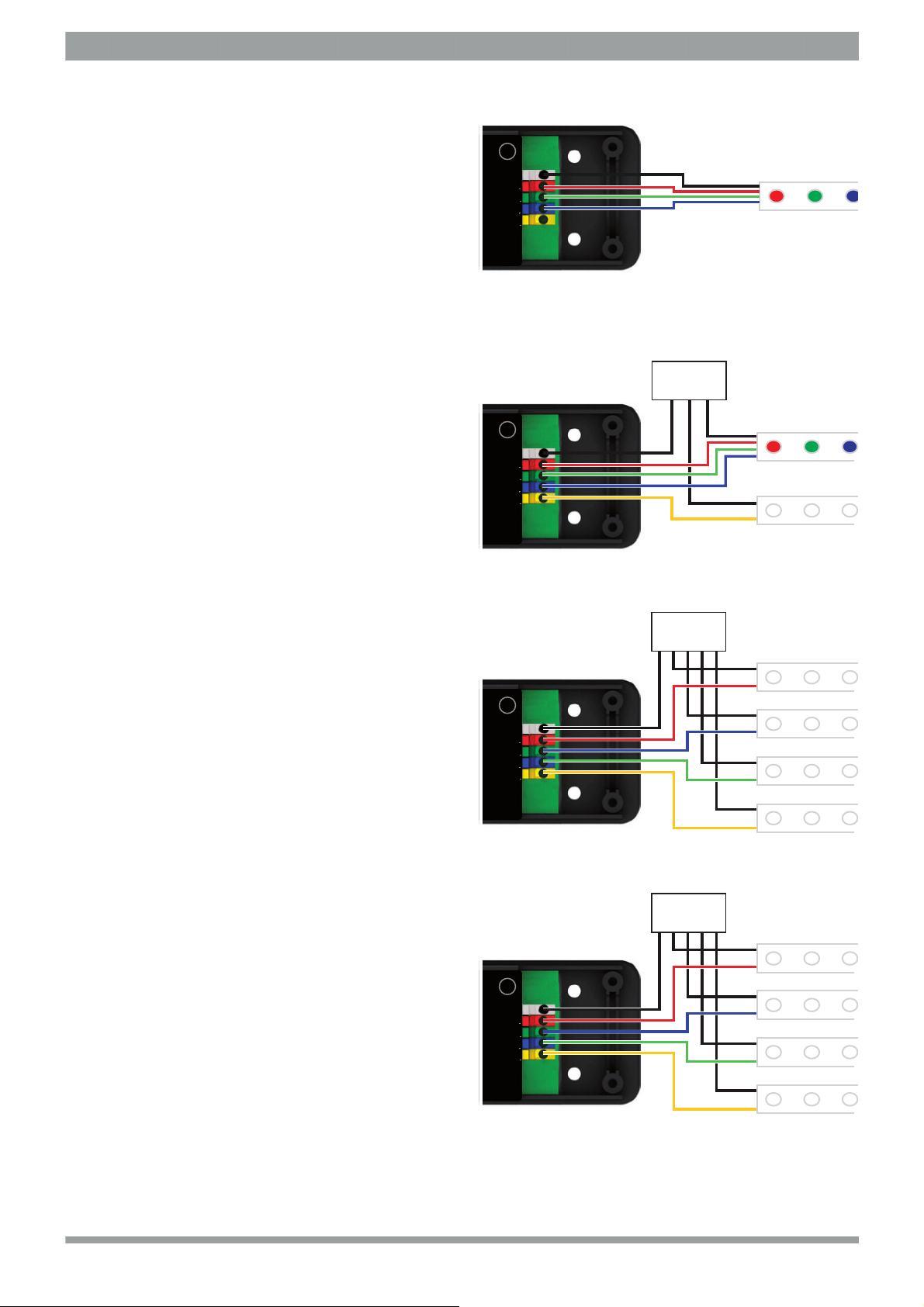

Wiring diagram LINEARdrive 180 (LIN180D1)

Connecting an RGB LED strip

Maximum current per output at 12V: 2A

Maximum current per output at 24V: 2A

Configuration of the LED groups:

Press M and + simultaneously, in the LED menu choose

RGB and save this setting by pressing M.

Connecting an RGB strip and a white LED strip

Maximum current per output at 12V: 1.5A

Maximum current per output at 24V: 1.5A

Configuration of the LED groups:

Press M and + simultaneously, in the LED menu choose

RGBW and save this setting by pressing M.

Connecting warm white and cool white LED strips

Maximum current per output at 12V: 1.5A

Maximum current per output at 24V: 1.5A

Configuration of the LED groups:

Press M and + simultaneously, in the LED menu choose

4-4L and save this setting by pressing M.

Connecting four white or self-colored LED strips

Maximum current per output at 12V: 1.5A

Maximum current per output at 24V: 1.5A

Configuration of the LED groups:

Press M and + simultaneously, in the LED menu choose

1-4L and save this setting by pressing M.

Group

LED supply +

RGB LED strip

Group

LED supply +

RGB LED strip

White LED strip

Compact

connector

e.g. Wago 222

Group

LED supply +

Compact

connector

e.g. Wago 222

Cool white LED strip

Warm white LED strip

Cool white LED strip

Warm white LED strip

Group

LED supply +

Compact

connector

e.g. Wago 222

White LED strip

V1.1
