Elation Streamer Manual de usuario

STREAMER

Users Instructions

Elation Professional R

4295 Charter Street

Los Angeles CA. 90058

www.elationlighting.com

-EEPROM for at least 10 years.

USITT DMX512(1990) multiplexed digital control, via 3 pin XLR connector.

-Light plastic material case(IP:V0).

-Slave, Auto and Audio function modes available.

-9 built-in chasing patterns plus a sequence of 9 patterns(AUTO).

-0~100(/0.1s) DMX fade time setup.

-Stand by function allows you to kill overall output instantly.

-Individual fibre lighting color adjustment and rotatable.

-4-digit Segment Display shows current activities or your desired levels.

At your most convenience, this unit can be entirely controlled except

DMX address setting by its Remote Control(Included).

Features

We would first like to congratulate you on the purchase of this

magic fibre lighting-STREAMER!

Its main features include:

Every effort has been made to design dependable and reliable products.

New products are constantly being designed to meet the needs of the

entertainment lighting industry. Your comments regarding our products

and services are welcome. Please send us an e-mail to

[email protected] and let us know how we can improve to better

serve you.

It is both a privilege and a pleasure serving you.

-Page1-

Every STREAMER has been thoroughly tested and has been shipped in perfect

operating condition. Carefully check the shipping carton for damage that may

have occurred during shipping. If the carton appears to be damaged, carefully

inspect your controller for any damage and be sure all equipment necessary to

operate the unit has arrived intact. In case damage has been found or parts are

missing, please contact us or your nearest dealer/distributor for further

instructions.

To make the most of it's possibilities and for a correct functioning of this unit

in years to come, we suggest all users to read carefully this manual before

connecting or putting the spot in use. By doing so, you will gain experience

with its commands and connections and you will be able to use it easily.

Once manual has been thoroughly read, we recommend you should file it for

future reference.

Caution! There are no user serviceable parts inside this unit. Do not attempt

any repairs yourself, doing so will void your manufactures warranty.

Hint! When unpacking and installation, make sure that your unit has been

taken out from the cylinder gently and placed properly by the correct directly.

In the unlikely event your unit may require service, please contact NCW

customer support.

Do not discard the packing carton in the trash. Please recycle when

ever possible.

General Information

-Page2-

NOTE:

Specifications and improvements in the design of this product and this

manual are subject to change without prior notice.

-EEPROM for at least 10 years.

USITT DMX512(1990) multiplexed digital control, via 3 pin XLR connector.

-Light plastic material case(IP:V0).

-Slave, Auto and Audio function modes available.

-9 built-in chasing patterns plus a sequence of 9 patterns(AUTO).

-0~100(/0.1s) DMX fade time setup.

-Stand by function allows you to kill overall output instantly.

-Individual fibre lighting color adjustment and rotatable.

-4-digit Segment Display shows current activities or your desired levels.

At your most convenience, this unit can be entirely controlled except

DMX address setting by its Remote Control(Included).

Features

We would first like to congratulate you on the purchase of this

magic fibre lighting-STREAMER!

Its main features include:

Every effort has been made to design dependable and reliable products.

New products are constantly being designed to meet the needs of the

entertainment lighting industry. Your comments regarding our products

and services are welcome. Please send us an e-mail to

[email protected] and let us know how we can improve to better

serve you.

It is both a privilege and a pleasure serving you.

-Page1-

Every STREAMER has been thoroughly tested and has been shipped in perfect

operating condition. Carefully check the shipping carton for damage that may

have occurred during shipping. If the carton appears to be damaged, carefully

inspect your controller for any damage and be sure all equipment necessary to

operate the unit has arrived intact. In case damage has been found or parts are

missing, please contact us or your nearest dealer/distributor for further

instructions.

To make the most of it's possibilities and for a correct functioning of this unit

in years to come, we suggest all users to read carefully this manual before

connecting or putting the spot in use. By doing so, you will gain experience

with its commands and connections and you will be able to use it easily.

Once manual has been thoroughly read, we recommend you should file it for

future reference.

Caution! There are no user serviceable parts inside this unit. Do not attempt

any repairs yourself, doing so will void your manufactures warranty.

Hint! When unpacking and installation, make sure that your unit has been

taken out from the cylinder gently and placed properly by the correct directly.

In the unlikely event your unit may require service, please contact NCW

customer support.

Do not discard the packing carton in the trash. Please recycle when

ever possible.

General Information

-Page2-

NOTE:

Specifications and improvements in the design of this product and this

manual are subject to change without prior notice.

1. Digit Segment Display

The 4-digit LED display shows the menu and operating functions which users

can choose from. It also shows user desired levels including DMX address,

pattern numbers and fade time.

2. Infrared Sensor

To receive infrared remote signals.

3. Mode Button

Tap this button to select different function modes according to users

requirement including Slave, Auto and Audio modes.

4. Up/Down Button

Tap UP/DOWN button to select your desired DMX address, DMX fade time

or chasing patterns during operation.

5. Menu Button

Tap this button to enter the sub-menu in the Slave mode for user operation.

6. Power In

The line cord supplies power to the device. Plug into a AC90~264V-50/60Hz

outlet.

7. 3-pin XLR DMX Input Jack

This input receives DMX signal from a DMX controller or previous device.

8. 3-pin XLR DMX Output Jack

This output feeds DMX signal through to the next DMX device in line.

Related Info.

DMX Address(001-512)

Chasing patterns(1-9& Auto)

DMX Fade time(0-100)

XXX

Segment Display

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

POWER IN:

AC 90-264V~

50/60Hz.

DMX INDMX OUT

PUSH

Front View Rear View

Controls & Functions

-Page3-

Unpacking Notice

Before installation, please make sure that KIT ASM-A has been hanged fully

and safely.

KIT ASM-A

Installation Procedures

Step1

Firstly assemble A2(Plastic cover)and E(Aluminum sheet) together with one

screw by the screwdriver.

Step2

Select any of these 4 Fibre tubes(A1) and place it on KIT ASM-A properly,

and install A2(Plastic cover) ,then screw them with two screws by the screwdriver,

at last fasten them with C(Plastic tube).

(Figure-2)

1. The first Fibre Tube(A1) Installation(See figure-2)

Unpack:

Remove the base cover and take out

the fiber tube from paper cylinder.

TOP

-Page4-

Fib tb

r e

Cylinde

()Base coverPVC

xFiStand

Top covre(PVC)

Pull Out

1. Digit Segment Display

The 4-digit LED display shows the menu and operating functions which users

can choose from. It also shows user desired levels including DMX address,

pattern numbers and fade time.

2. Infrared Sensor

To receive infrared remote signals.

3. Mode Button

Tap this button to select different function modes according to users

requirement including Slave, Auto and Audio modes.

4. Up/Down Button

Tap UP/DOWN button to select your desired DMX address, DMX fade time

or chasing patterns during operation.

5. Menu Button

Tap this button to enter the sub-menu in the Slave mode for user operation.

6. Power In

The line cord supplies power to the device. Plug into a AC90~264V-50/60Hz

outlet.

7. 3-pin XLR DMX Input Jack

This input receives DMX signal from a DMX controller or previous device.

8. 3-pin XLR DMX Output Jack

This output feeds DMX signal through to the next DMX device in line.

Related Info.

DMX Address(001-512)

Chasing patterns(1-9& Auto)

DMX Fade time(0-100)

XXX

Segment Display

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

POWER IN:

AC 90-264V~

50/60Hz.

DMX INDMX OUT

PUSH

Front View Rear View

Controls & Functions

-Page3-

Unpacking Notice

Before installation, please make sure that KIT ASM-A has been hanged fully

and safely.

KIT ASM-A

Installation Procedures

Step1

Firstly assemble A2(Plastic cover)and E(Aluminum sheet) together with one

screw by the screwdriver.

Step2

Select any of these 4 Fibre tubes(A1) and place it on KIT ASM-A properly,

and install A2(Plastic cover) ,then screw them with two screws by the screwdriver,

at last fasten them with C(Plastic tube).

(Figure-2)

1. The first Fibre Tube(A1) Installation(See figure-2)

Unpack:

Remove the base cover and take out

the fiber tube from paper cylinder.

TOP

-Page4-

be u

i r te

Cylider

Ba e o e (PVC)

c v r

Top covre(PVC)

Pull Out

Installation Procedures

Step5

And repeat Step4 to install the last fibre tube. And please check and ensure

all screws have been secured tightly.

2. The second Fibre Tube(A1) Installation(See figure-3)

Step3

And repeat Step2 to install the second A1(Fibre tube) and fix them well.

3. The third Fibre Tube(A1) Installation(See figure-4)

(Figure-3)

Step4

In like matter, select any of the rest two Fibre Tube(A1) and place it on

KIT ASM-A well, assemble Plastic cover(B2) and screw with two screws by

the screwdriver, then fix them with C(Plastic tube).

(Figure-4)

4. The last Fibre Tube(A1) Installation(See figure-5)

(Figure-5)

Step6

Push a STICKER with "ELATION" printing into

the top and rotate it clockwise or anti-clockwise.

-Page5-

(Figure-6)

Operation Guide

Slave 0 R G H

-Page6-

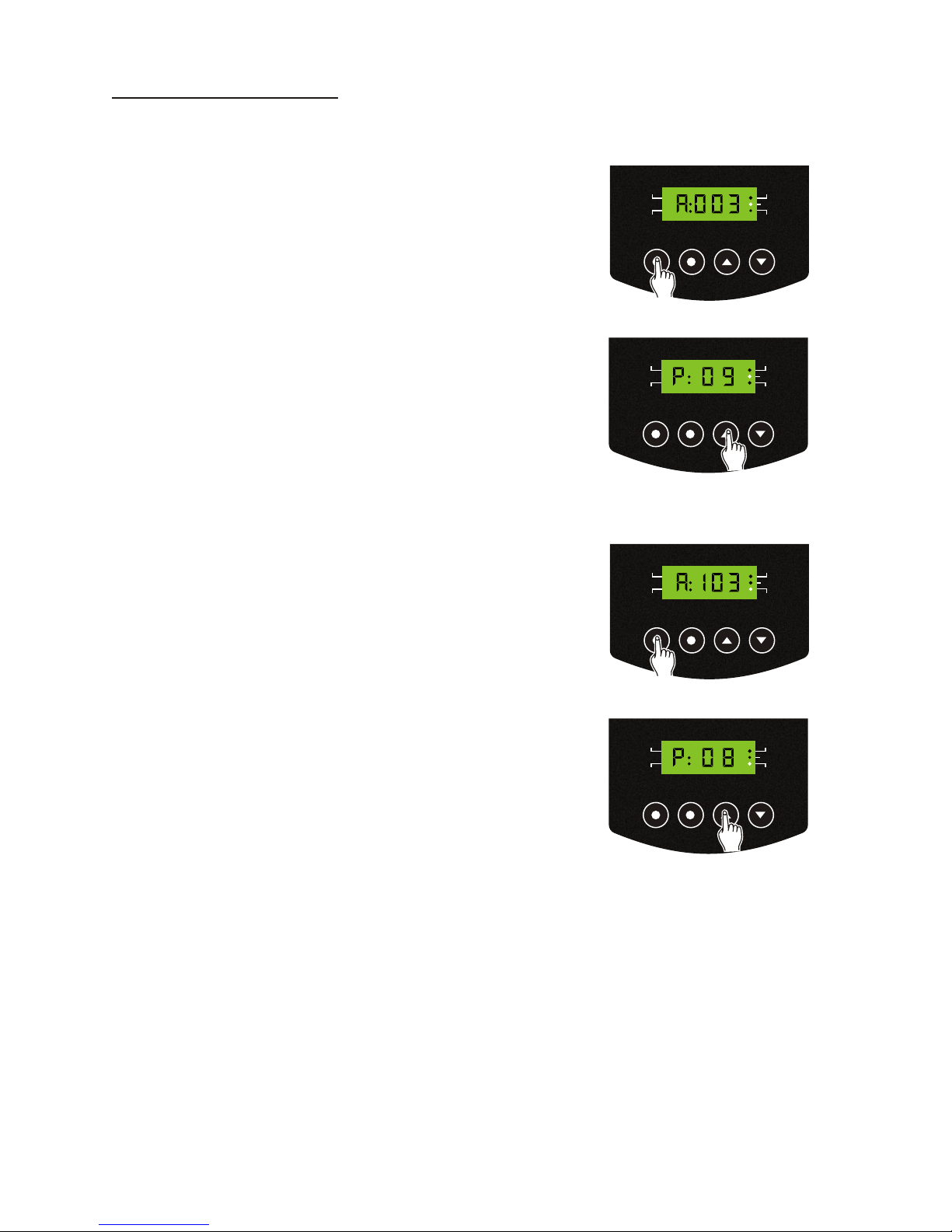

1. Press the Mode button to access the Slave

Mode, the readout of an "A" followed by

three numbers will be indicated and the

Slave indicator will be lit on the LED-display.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

2. And use Up/Down button to select your

desired DMX address within the range of

1-512. MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

3. Press the Menu button to change between

DMX address and DMX fade time setting.

4. And use Up/Down button to select your

desired DMX fade time within the range

of 0-100(0.1s).

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

In this mode, users can have DMX address setting and DMX fade time , and

daisy chain up to some units together to get a sync lighting show.

' 0 ; & RQWURO

Channel 1 is the rotary speed for motor, channel 2 is the rotary direction for

motor (0~127 is to rotate clockwise and 128-255 is anticlockwise movement),

and Channel 3-6 is the color for the fibre lighting tube.

Please follow the set-up specifications( ) that

come with your DMX controller.

RGB color and DMX value Table

DMX Signal Indicator

When STREAMERs are receiving DMX signal for Master-Slave operation, its

DMX indicator on the screen will blink constantly.

Installation Procedures

Step5

And repeat Step4 to install the last fibre tube. And please check and ensure

all screws have been secured tightly.

2. The second Fibre Tube(A1) Installation(See figure-3)

Step3

And repeat Step2 to install the second A1(Fibre tube) and fix them well.

3. The third Fibre Tube(A1) Installation(See figure-4)

(Figure-3)

Step4

In like matter, select any of the rest two Fibre Tube(A1) and place it on

KIT ASM-A well, assemble Plastic cover(B2) and screw with two screws by

the screwdriver, then fix them with C(Plastic tube).

(Figure-4)

4. The last Fibre Tube(A1) Installation(See figure-5)

(Figure-5)

Step6

Push a STICKER with "ELATION" printing into

the top and rotate it clockwise or anti-clockwise.

-Page5-

(Figure-6)

Operation Guide

Slave 0 R G H

-Page6-

1. Press the Mode button to access the Slave

Mode, the readout of an "A" followed by

three numbers will be indicated and the

Slave indicator will be lit on the LED-display.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

2. And use Up/Down button to select your

desired DMX address within the range of

1-512. MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

3. Press the Menu button to change between

DMX address and DMX fade time setting.

4. And use Up/Down button to select your

desired DMX fade time within the range

of 0-100(0.1s).

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

In this mode, users can have DMX address setting and DMX fade time , and

daisy chain up to some units together to get a sync lighting show.

' 0 ; & RQWURO

Channel 1 is the rotary speed for motor, channel 2 is the rotary direction for

motor (0~127 is to rotate clockwise and 128-255 is anticlockwise movement),

and Channel 3-6 is the color for the fibre lighting tube.

Please follow the set-up specifications( ) that

come with your DMX controller.

RGB color and DMX value Table

DMX Signal Indicator

When STREAMERs are receiving DMX signal for Master-Slave operation, its

DMX indicator on the screen will blink constantly.

-Page7-

Operation Guide

AUDIO0 R G H

1. Press the Mode button to access the AUDIO

mode indicator will be lit on the LED-display.

And your unit will run with the music beat.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

7 K L V I X Q F WL R Q Z L OOD OOR Z \ R X WR OL Q N X S WR someX Q L WV WR J H WK H UWR UX Q L Q D 6 OD Y H 

MRGH, Q0 DVWHU6 ODYHRSHUDWLRQ, R Q H X Q L WZ L OOserveD V WK H MasterDQGWKH

RWKHUVZ LOOserve as the Slave.HRZ HYHUthe only RQHXQLWcanrun in AUTO or

AUDIO mode and others run in Slave mode.

And only some STREAMERs with the same DMX signals can be connected

together for Master-Slave operation successfully. Or else, it can result out of

control.

Master-Slave Operation

Operation Guide

RGB color and DMX value Table

DMX (N)

(Decimal)

1-2

3-33

35-65

66-69

70-100

101

102-132

133-136

137-167

168

169-199

200-206

207

208-210

211

212-215

216-218

219-222

223-225

226-228

229

230-232

233

234-236

237

238-240

241-244

245-247

248-251

252-254

255

Blue

(%)

(N-69)x3

100

100-(N-168)x3

(N-199)x12

100

100-(N-211)x12

50-(N-215)x6

25-(N-219)x6

(N-219)x6

25+(N-225)x6

50+(N-229)x12

100

Red

(%)

100

100-(N-34)x3

(N-136)x3

100

100-(N-207)x12

50-(N-211)x6

50-(N-215)x6

(N-217)x6

38+(N-223)x6

50+(N-225)x12

100

100-(N-233)x12

50-(N-237)x6

25-(N-241)x6

(N-243)x6

25+(N-247)x6

50+(N-251)x12

100

Green

(%)

(N-2)x3

100

100-(N-101)x3

(N-199)x6

50+(N-207)x12

100

100-(N-229)x12

50-(N-233)x6

25-(N-237)x6

(N-239)x6

50+(N-247)x12

100

Color

Black

Red

***

Yellow

***

Green

***

Cyan

***

Blue

***

Purple

***

White

NOTE:

1. " N " denotes DMX value(0-255).

For example:

If DMX value is 239, blue intensity will be 50-(239-237)x6=38%,

red intensity will be 25-(239-237)x6=13%,

green intensity be 100%.

2. " * " denotes unnameable color.

-Page8-

AUTO 0 R G H

1. Press the Mode button to access the AUTO

mode, the AUTO indicator will be lit on the

LED-display. And your unit patterns will run

automatically.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

2. And use Up/Down button to select your

desired chasing patterns within the range

of 1-9 & AUTO.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

2. And use Up/Down button to select your

desired chasing patterns within the range

of 1-9 & AUTO.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

-Page7-

Operation Guide

AUDIO0 R G H

1. Press the Mode button to access the AUDIO

mode indicator will be lit on the LED-display.

And your unit will run with the music beat.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

7 K L V I X Q F WL R Q Z L OOD OOR Z \ R X WR OL Q N X S WR someX Q L WV WR J H WK H UWR UX Q L Q D 6 OD Y H 

M RGH, Q0 DVWHU6 ODYHRSHUDWLRQ, R Q H X Q L WZ L OOserveD V WK H MasterDQGWKH

RWKHUVZ LOOserve as the Slave.HRZ HYHUthe only RQHXQLWcanrun in AUTO or

AUDIO mode and others run in Slave mode.

And only some STREAMERs with the same DMX signals can be connected

together for Master-Slave operation successfully. Or else, it can result out of

control.

Master-Slave Operation

Operation Guide

RGB color and DMX value Table

DMX (N)

(Decimal)

1-2

3-33

35-65

66-69

70-100

101

102-132

133-136

137-167

168

169-199

200-206

207

208-210

211

212-215

216-218

219-222

223-225

226-228

229

230-232

233

234-236

237

238-240

241-244

245-247

248-251

252-254

255

Blue

(%)

(N-69)x3

100

100-(N-168)x3

(N-199)x12

100

100-(N-211)x12

50-(N-215)x6

25-(N-219)x6

(N-219)x6

25+(N-225)x6

50+(N-229)x12

100

Red

(%)

100

100-(N-34)x3

(N-136)x3

100

100-(N-207)x12

50-(N-211)x6

50-(N-215)x6

(N-217)x6

38+(N-223)x6

50+(N-225)x12

100

100-(N-233)x12

50-(N-237)x6

25-(N-241)x6

(N-243)x6

25+(N-247)x6

50+(N-251)x12

100

Green

(%)

(N-2)x3

100

100-(N-101)x3

(N-199)x6

50+(N-207)x12

100

100-(N-229)x12

50-(N-233)x6

25-(N-237)x6

(N-239)x6

50+(N-247)x12

100

Color

Black

Red

***

Yellow

***

Green

***

Cyan

***

Blue

***

Purple

***

White

NOTE:

1. " N " denotes DMX value(0-255).

For example:

If DMX value is 239, blue intensity will be 50-(239-237)x6=38%,

red intensity will be 25-(239-237)x6=13%,

green intensity be 100%.

2. " * " denotes unnameable color.

-Page8-

AUTO 0 R G H

1. Press the Mode button to access the AUTO

mode, the AUTO indicator will be lit on the

LED-display. And your unit patterns will run

automatically.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

2. And use Up/Down button to select your

desired chasing patterns within the range

of 1-9 & AUTO.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

2. And use Up/Down button to select your

desired chasing patterns within the range

of 1-9 & AUTO.

MODE MENU UP DOWN

STAND BY

DMX

SLAVE

AUDIO

AUTO

Operation Guide

-Page9-

Using the Remote Control Properly

When using your Remote Control(included), please ensure to operate it

within the effective range of the infrared sensor, so that you may operate

your STREAMER at any safe place.

POWER ON key: To turn the power on.

STAND BY key: To allow you to kill overall output instantly.

DMX key: To access Slave Mode.

AUTO key: To access AUTO Mode.

AUDIO key: To access AUDIO Mode.

FADETIME key: To set up DMX fade time within the range of

0~100(/0.1s), only in Slave Mode .

PATTERN key: To select built-in chasing patterns within the range

of 1~9 plus AUTO, only in AUTO or AUDIO

Mode.

*Notes concerning use:

Periodically clean the Infrared receive sensor with a soft cloth. Do not expose

this unit to strong light, it may interfere with operation.

DMXDMX AUTOAUTO

STAND BYSTAND BY

AUDIOAUDIO

FADETIMEFADETIME

PATTERNPATTERN

POWER ONPOWER ON

STREAMERSTREAMER

Overview

Remote Control

Power Requirement...........................................................AC90~264V-50/60Hz

LED-display Screen.........................................................4-digit segment display

DMX In.............................................................................3-pin XLR male socket

DMX Out.......................................................................3-pin XLR female socket

Accessory....................................................................Remote Control(Included)

Weight..............................................................................................Appro.4.5Kg

Technical Specifications

-Page10-

Tabla de contenidos

Otros manuales de Equipo de iluminación de Elation

Elation

Elation Pixel Driver 170 Manual de usuario

Elation

Elation Design LED 36 Brick Manual de usuario

Elation

Elation Vision Color 250 Manual de usuario

Elation

Elation Rayzor Q7 Manual de usuario

Elation

Elation Design LED 36MH Manual de usuario

Elation

Elation Level Q7 IP Manual de usuario

Elation

Elation E Spot Led Manual de usuario

Elation

Elation ELAR 108PAR RGBW Manual de usuario

Elation

Elation VISION 575 Manual de usuario

Elation

Elation FUZE PAR Z175 Manual de usuario

Elation

Elation Patend Light 1200 HMI Manual de usuario

Elation

Elation 700 II Manual de usuario

Elation

Elation SDC-16 Manual de usuario

Elation

Elation DJ Equipment Manual de usuario

Elation

Elation CHORUS LINE 8 Manual de usuario

Elation

Elation Arena Par Manual de usuario

Elation

Elation PROTEUS EXCALIBUR Manual de usuario

Elation

Elation PIXEL TOUCH PCB Manual de usuario

Elation

Elation ELAR 162 TRI PAR Manual de usuario

Elation

Elation RMD-1210 Manual de usuario

Elation

Elation SIXPAR 200 Manual de usuario

Elation

Elation FUZE PENDANT COMPACT Manual de usuario

Elation

Elation SIXPAR 100WMG Manual de usuario

Elation

Elation EZ KLING Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario

Elation streamer Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas
