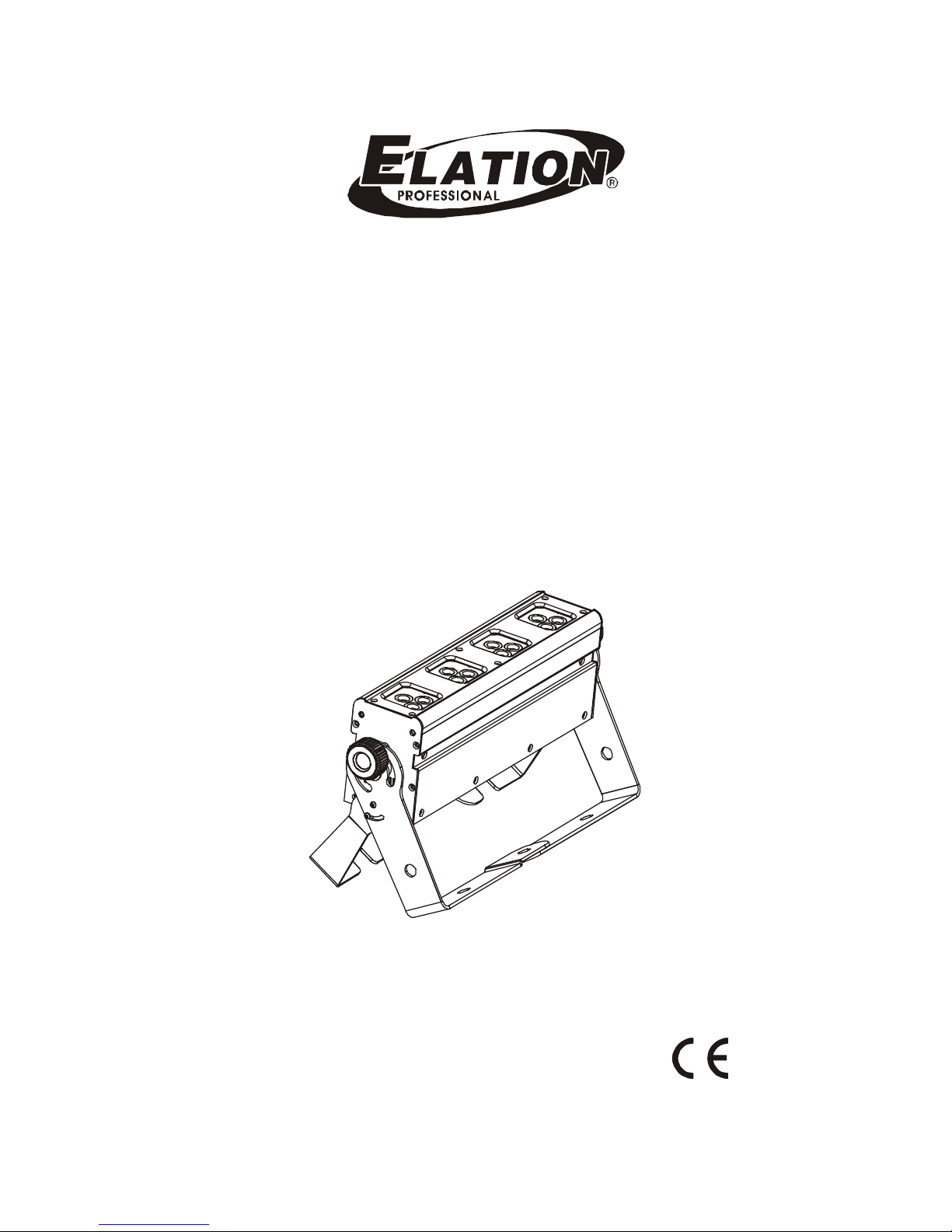

Elation DLED 12 BRICK Manual de usuario

PROFESSIONAL HIGH POWER LED USER’S MANUAL

DLED 12 BRICK

KEEPTHIS MANUAL FOR FUTURE NEEDS

For your own safety, please read this user manual carefully before you initial start-up.

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

Every person involved with the installation, operation and maintenance of this

device has to

- be qualified

- follow the instructions of this manual

- consider this manual to be part of the total product

- keep this manual for the entire service life of the product

- pass this manual on to every further owner or user of the product

- download the latest version of the user manual from the Internet

INTRODUCTION:

Thank you for having chosen this professional LED lighting.

You will see you have acquired a powerful and versatile device.

Unpack the device. Inside the box you should find:

1. The fixture device

2. Two power cable

3. An XLR connection cable

4. A safety cable and this manual

Please check carefully that there is no damage caused by transportation. Should

there be any, consult your dealer and don’t install this device.

-2- V1.0 01NR

SAFETY INSTRUCTIONS

CAUTION

Be very careful during installation. Since you will be working with a dangerous

voltage you can suffer a life-threatening electric shock when touching live wires.

This device has left the factory in perfect condition. In order to maintain this

condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this user manual.

If the device has been exposed to temperature changes due to environmental

changes, do not switch it on immediately. The arising condensation could damage

the device. Leave the device switched off until it has reached room temperature.

This device falls under protection-class I. Therefore it is essential that the device

should be earthed.

The electric connection must carry out by qualified person.

If the external flexible cable or cord of this luminaire is damaged, it shall be

exclusively replaced by the manufacturer or his service agent or a similar qualified

person in order to avoid a hazard.

Make sure that the available voltage is not higher than stated at the end of this

manual.

Make sure the power cord is never crimped or damaged by sharp edges. If this

would be the case, replacement of the cable must be done by an authorized dealer.

Always disconnect from the mains, when the device is not in use or before cleaning

-3- V1.0 01NR

it. Only handle the power cord by the plug. Never pull out the plug by tugging the

power cord.

During initial start-up some smoke or smell may arise. This is a normal process and

does not necessarily mean that the device is defective, it should decrease gradually.

CAUTION

Never touch the device during operation!

The housing may heat up

CAUTION

Never look directly into the light source,

as sensitive persons may suffer an epileptic shock.

Please be aware that damages caused by manual modifications to the device are not

subject to warranty. Keep away from children and non-professionals.

warran

Important:

Damages caused by the disregard of this user manual are not subject to

ty. The dealer will not accept liability for any resulting defects or problems.

-4- V1.0 01NR

DESCRIPTION OF THE DEVICE

1 W high power LEDS: 4 x red, 4 x blue, 4 x green.

sumption

ptional: 6 channels, 12 channels or 15

d can be controlled independently(15 channels Mode)

ors leds

ed can be selected

Features

·With 12 x

·100 000 hours LED life

·Extremely low power con

·Control signal: Standard DMX-512

·Three DMX control channel modes o

channels

·Each Le

·Stepless RGB colour changing, brilliant color effect

·Strobe effect with 1-18 flashes per second

·General dimming and blackout for all 3 col

·8 built -In programs

·Different running spe

-5- V1.0 01NR

Overview

8:Power output

9:Power input / Fuse holder

10:Safety eyelet

11:DMX-Out socket

12:DMX-In socket

1:Fixation screw

2:Floor-stand

3:Mounting bracket

4:Housing

5:LEDs

6:DIP-switches

7:Power switch

-6- V1.0 01NR

DMX-512 control connection

Connect the provided XLR cable to the female 3-pin XLR output of your controller

and the other side to the male 3-pin XLR input of the LED lighting. You can chain

multiple

LED lighting together through serial linking. The cable needed should be two core,

screened cable with XLR input and output connectors. Please refer to the diagram

below.

DMX-512 connection with DMX terminator

For installations where the DMX cable has to run a long distance or is in an

electrically noisy environment, such as in a discotheque, it is recommended to use

a DMX terminator. This helps in preventing corruption of the digital control signal

by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω

resistor connected between pins 2 and 3,which is then plugged into the output XLR

socket of the last fixture in the chain. Please see illustrations below.

-7- V1.0 01NR

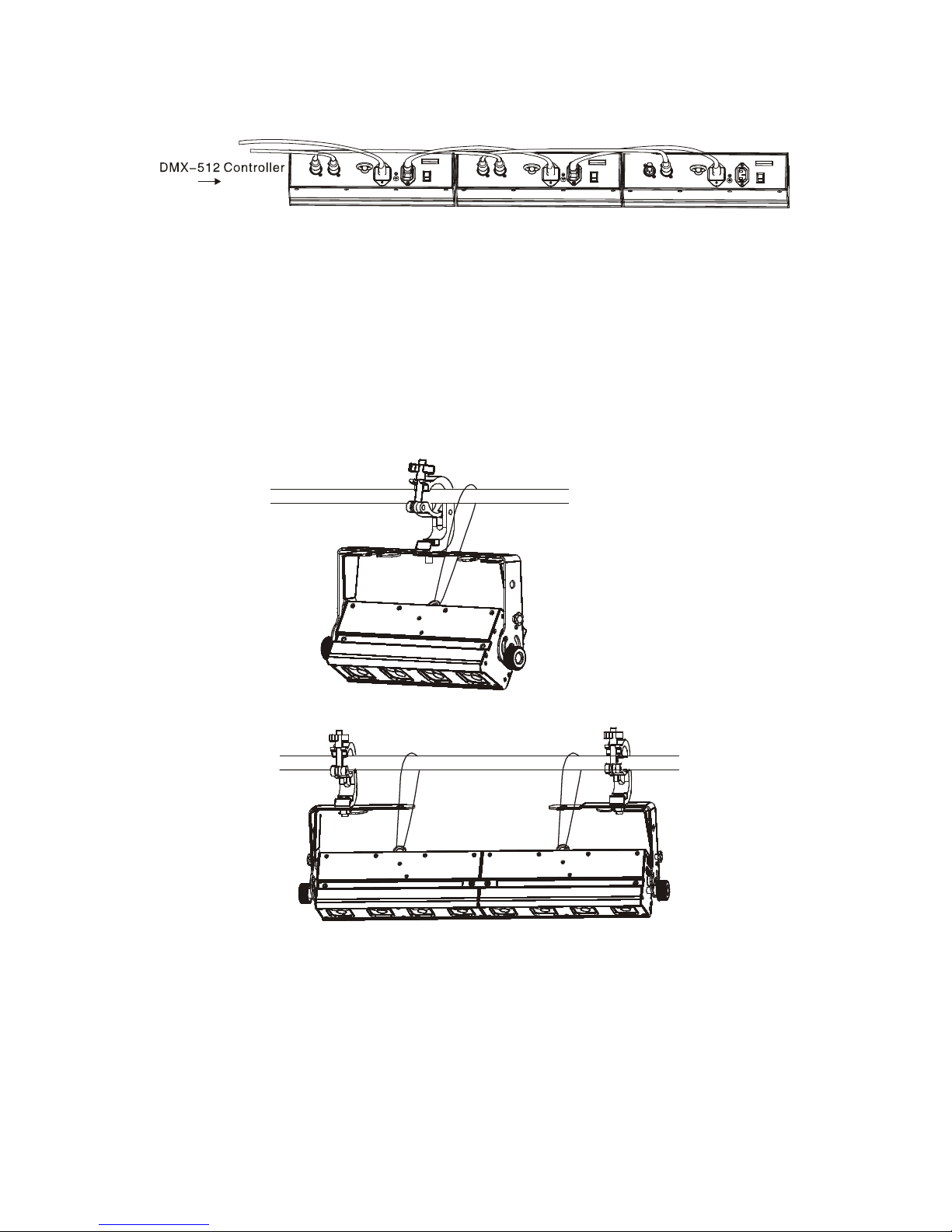

Address13 Address7 Address1

Please note: to ensure maximal stability, only ten devices may be

connected together in this manner! From the 11th devices, please

connect to power supply to get power for the second link.

Installation

Screw the bolt of the clamp into the hold of the bracket, and tighten the screw underneath.

Pull the safety-rope through the holes on the bracket of the base and over the trussing system or a

safe fixation spot. Insert the end in the carabine and tighten the safety screw.

-8- V1.0 01NR

Rigging

The device can be placed directly on the stage floor or rigged in any orientation on

a truss without altering its operation characteristics.

Connecting two DLED 12 BRICK LED-Bar

You can connect two DLED 12 BRICK LED- Bars together by using the mounting

set included in the delivery (see graphic).

Please note: to ensure maximal stability, only four devices may be

connected together in this manner!

-9- V1.0 01NR

OPERATION

1.DMX control Mode:

There is 3 different DMX operation modes available by different settings of

Dip #11 and Dip #12:

( Table 1)

DMX

operation

mode

DIP#

LED control Mode LEDs

control

channels

Preset

programs

channel

Strobe

channel

Master

dimming/pro

gram speed

15CH OFF OFF Each Led can be run individually 1~12 13 14 15

12CH ON OFF Each Led can be run individually 1~12

6CH OFF ON R, G, B run by group 1~3 4 5 6

DMX values of preset programs channel:

0—10 No function

11—40 Preset program 1

41---70 Preset program 2

71---100 Preset program 3

101---130 Preset program 4

131—160 Preset program 5

161—190 Preset program 6

191—220 Preset program 7

221----255 Preset program 8

DMX values of Strobe channel：

0 Open

1----95 Strobe effect slow to fast

96----127 Open

128—159 Pulse Strobe slow to fast

160—191 Open

192----223 Random strobe slow to fast 224—255 Open

Master dimming / Program speed channel:

-10- V1.0 01NR
