Elation CUEPIX 16IP DTW Manual de usuario

CUEPIX 16IP DTW™

user manual

images, and instructions herein are subject to change without notice. ELATION

PROFESSIONAL logo and identifying product names and numbers herein are trademarks of

ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of

copyrightable materials and information now allowed by statutory or judicial law or

hereinafter granted. Product names used in this document may be trademarks or

registered trademarks of their respective companies and are hereby acknowledged. All

non-ELATION brands and product names are trademarks or registered trademarks of their

respective companies.

ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities

for property, equipment, building, and electrical damages, injuries to any persons, and direct

or indirect economic loss associated with the use or reliance of any information contained

within this document, and/or as a result of the improper, unsafe, insufficient and negligent

assembly, installation, rigging, and operation of this product.

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 |323-832-9142 fax | www.elationlighting.com |info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 |+31 45 546 85 96 fax |www.elationlighting.eu |info@elationlighting.eu

Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000

+52 (728) 282-7070

DOCUMENT VERSION

Due to additional product features and/or enhancements, an

updated version of this document may be available online.

Please scan the QR Code with your mobile device or visit

www.elationlighting.com for the latest revision/update of this

manual, before installation and/or programming.

Date

Document

Version

Software

Version ≥

DMX

Channel Modes

Notes

06/18/19

1.0

1.0.1

7 (64 total channels)

Initial release.

10/03/19

1.2

1.X.X

9 (64 total channels)

Added additional DTW DMX modes.

CONTENTS

General Information

Warranty Returns (USA Only)

Safety Guidelines

Maintenance Guidelines

Fixture Overview

Installation Guidelines

System Menu

Pixel Control – Basic DMX Modes

Pixel Control – 4Ext DMX Modes

DMX Channels v1.0.1

DMX Channels v1.x.x

Error Codes

Specifications

Optional Accessories

GENERAL INFORMATION

INTRODUCTION

Please read and understand the instructions in this manual carefully and thoroughly before

attempting to operate this device. These instructions contain important safety and use

information.

UNPACKING

Every device has been thoroughly tested and has been shipped in perfect operating

condition. Carefully check the shipping carton for damage that may have occurred during

shipping. If the carton is damaged, carefully inspect the device for damage, and be sure all

accessories necessary to install and operate the device have arrived intact. In the event

damage has been found or parts are missing, please contact our customer support team for

further instructions. Please do not return this device to your dealer without first contacting

customer support. Please do not discard the shipping carton in the trash. Please recycle

whenever possible.

BOX CONTENTS

Safety Cable

Power Cable

CUSTOMER SUPPORT

Contact ELATION Service for any product related service and support needs.

Also visit forums.elationlighting.com with questions, comments or suggestions.

ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

323-582-3322 | Fax 323-832-9142 | [email protected]

ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

+31 45 546 85 63 | Fax +31 45 546 85 96 | suppo[email protected]

REPLACEMENT PARTS please visit parts.elationlighting.com

WARRANTY RETURNS (USA ONLY)

To obtain war r a n t y se r v ic e , a Re t ur n M a t e r ial s Au t horiz atio n ( RM A) nu m b e r m ust f i r st be

obtained from ELATION. It is the Customer’s responsibility to provide product proof of purchase

and serial number by acceptable evidence such as an invoice copy and any relevant

maintenance records at the time warranty service is sought. Failure to provide acceptable

evidence of product proof of purchase or any relevant maintenance records may be cause for

denial of warranty service.

Products returned for warranty service must be sent without any accessories (i.e., power, data,

and safety cables, brackets, clamps, rigging hardware, frost filters, gel frames, barn doors, lens,

hoses, nozzles, rack mounting hardware, etc.), must be boxed using the original and/or suitable

packaging materials (double-box and foam) that provides ample product protection for ground

and/or air freight transit, and must be shipped freight pre-paid and insured to ELATION in Los

Angeles, CA or an ELATION Authorized Service Center. The RMA number must be clearly

written on the outside of the return box, and a brief description of the problem and the RMA

number must be documented and included in the box.

Products returned for warranty service without an RMA number clearly marked on the outside

of the package will be refused and returned to the shipper at the Customer’s expense. Products

returned for warranty service, which are received damaged due to inadequate and/or improper

packaging and/or due to damage caused by shipping carrier, may incur additional repair

charges before warranty service begins and/or may void this warranty. If any product

accessories (included and/or optional) are shipped with the product, ELATION and/or the

ELATION Authorized Service Center shall have no liability what so ever for the loss and/or

damage to any such accessories, nor the safe return thereof. If the requested warranty repairs

or service (including parts replacement) are within the terms of this warranty, ELATION will pay

return ground transportation shipping charges to a single designated point within the United

States.

SAFETY GUIDELINES

This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation,

it is important to follow all instructions and guidelines in this manual. The manufacturer of this

device is not responsible for injury and/or damages resulting from the misuse of this device

due to the disregard of the information printed in this manual. Only qualified and/or certified

personnel should use this device. Any modifications to the device will void the original

manufactures warranty and increase the risk of damage and/or personal injury.

PROTECTION CLASS 1 – FIXTURE MUST BE PROPERLY GROUNDED.

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.

DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR

MANUFACTURERS WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS

TO THIS FIXTURE AND/OR THE DISRETGARD OF SAFETY INSTRUCTIONS AND

GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND

ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.

DO NOT PLUG DEVICE INTO A DIMMER PACK!

NEVER OPEN THIS FIXTURE WHILE IN USE!

UNPLUG POWER BEFORE SERVICING FIXTURE!

NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!

KEEP FLAMMABLE MATERIALS AWAY FROM THE FIXTURE!

ENSURE ALL CONNECTIONS AND ENDCAPS ARE PROPERLY SEALED WITH

DIALECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO

PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT.

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

RETINA INJURY RISK – MAY INDUCE BLINDNESS!

SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

HIGH TEMPERATURE WARNING!!

IF THE INTERNAL TEMPERATURE REACHES 212° F (100°C) AND/OR A

SIGNAL WIRE/SENSOR IN ONE OF THE 4-CELL LED SEQMENTS BECOMES

DAMAGED OR DISCONNECTED, THE FIXTURE OLED DISPLAY WILL FLASH

“TEMP ERROR” AND THE POWER CONSUMPTION TO ANY OF THE

AFFECTED LED SEQMENTS (1-4) WILL DROP TO 100W OR BE TURNED OFF.

SAFETY GUIDELINES

DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow

approximately 15 minutes for the fixture to cool down before serving.

DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the

power cord connectors are damaged and do not insert into the fixture securely with ease.

NEVER force a power cord connector into the fixture. If the power cord or any of its

connectors are damaged, replace it immediately with a new one of similar power rating.

DO NOT block any air ventilation slots.

All fan and air inlets must remain clean and never blocked.

Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.

Always disconnect fixture from main power source before performing any type of service

and/or cleaning procedure. Only handle the power cord by the plug end, never pull out the

plug by tugging the wire portion of the cord.

During the initial operation of this fixture, a light smoke or smell may emit from the interior of

the fixture. This is a normal process and is caused by excess paint in the interior of the casing

burning off from the heat associated with the lamp and will decrease gradually over time.

Consistent operational breaks will ensure fixture will function properly for many years.

ONLY use the original packaging and materials to transport the fixture in for service.

MAINTENANCE GUIDELINES

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to insure proper function, optimized light output, and

an extended life. The frequency of cleaning depends on the environment in which the

fixture operates: damp, smoky or particularly dirty environments can cause greater

accumulation of dirt on the fixture’s optics. Clean the external lens surface at least every

20 days with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to insure proper function and extended life.

There are no user serviceable parts inside this fixture, please refer all other service issues

to an authorized Elation service technician. Should you need any spare parts, please order

genuine parts from an authorized Elation dealer.

Please refer to the following points during routine inspections:

A detailed electric check by an approved electrical engineer every three months, to make

sure the circuit contacts are in good condition and prevent overheating.

Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out

during normal operation resulting in damage or injury as larger parts could fall.

Check for any deformations on the housing, color lenses, rigging hardware and rigging

points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to

enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture

to fall and seriously injure a person(s).

Electric power supply cables must not show any damage, material fatigue or sediments.

NEVER remove the ground prong from the power cable.

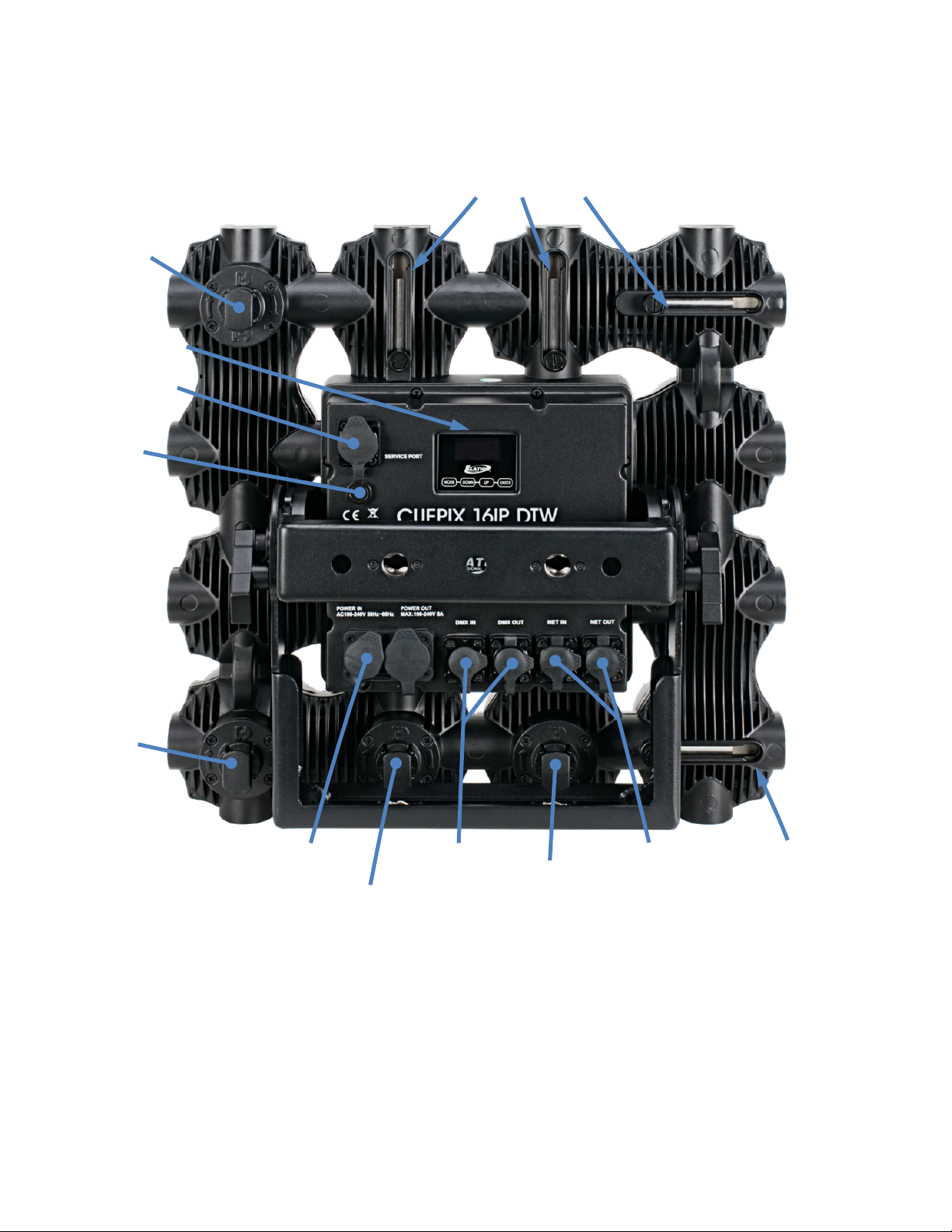

FIXTURE OVERVIEW

Alignment Pins

Interlock

LCD Display

Service Port

Air Valve

Interlock

Power

IN/OUT

DMX

IN/OUT

Interlock

NET

IN/OUT

Alignment Pins

INSTALLATION INSTRUCTIONS

IP65 RATED

An IP rated lighting fixture is one, which is commonly installed in outdoor environments and has been

designed with an enclosure that effectively protects the ingress (entry) of external foreign objects such as

dust and water. The International Protections (IP) rating system is commonly expressed as “IP” (Ingress

Protection) followed by two numbers (i.e. IP65), where the numbers define the degree of protection. The

first digit (Foreign Bodies Protection) indicates the extent of protection against particles entering the

fixture, and the second digit (Water Protection) indicates the extent of protection against water entering

the fixture. An IP65 rated lighting fixture has been designed and tested to protect against the ingress of

dust (6) and high-pressure water jets from any direction (5).

MARINE/COASTAL ENVIRONMENT INSTALLATIONS

Please note that although this fixture is IP rated, the fixture is NOT suitable for marine and/or coastal

installations. Installing this fixture in a marine and/or coastal environment may cause corrosion and/or

excessive wear to the interior and/or exterior components of the fixture. Damages and/or performance

issues resulting from installation in a marine and/or coastal environment will void the manufacturer’s

warranty and will NOT be subject to any warranty claims and/or repairs.

OPTIONAL CORROSION-RESISTANT COATING

Optional Corrosion-Resistant Coatings may be available for this fixture.

Please contact Elation Professional for more details.

DISCONNECT POWER BEFORE PERFORMING ANY MAINENANCE!

Keep fixture a minimum of 5.0 feet (1.5m) from flammable materials and/or pyrotechnics.

ELECTRICAL CONNECTIONS

A qualified electrician should be used for all electrical connections and/or installations.

ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A NON-

CONDUCTIVE DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO

PREVENT WATER INGRESS/CONDENSATION AND/OR CORROSION.

USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER

CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAXIMUM POWER

OUTPUT OF THIS FIXTURE. CHECK SILK SCREEN FOR MAXIMUM AMPS.

Otros manuales para CUEPIX 16IP DTW

Tabla de contenidos

Otros manuales de Equipo de DJ de Elation

Elation

Elation WW PROFILE HP Manual de usuario

Elation

Elation DP-DMX20L Manual de usuario

Elation

Elation PLATINUM SEVEN Manual de usuario

Elation

Elation Artiste Van Gogh EAV259 Manual de usuario

Elation

Elation KLF846 Manual de usuario

Elation

Elation KL FRENSEL 4 Manual de usuario

Elation

Elation SIXBAR 1000 Manual de usuario

Elation

Elation PALADIN CUBE Manual de usuario

Elation

Elation KL FRESNEL 6 CW Manual de usuario

Elation

Elation Fuze SFX Manual de usuario

Elation

Elation CHORUS LINE 16 Manual de usuario

Elation

Elation DMX Operator 192 Manual de usuario

Elation

Elation Active Scan 250 Manual de usuario

Elation

Elation TVL SOFTLIGHT DW Manual de usuario

Elation

Elation Flex LED Tape WP Manual de usuario

Elation

Elation FUZ567 Manual de usuario

Elation

Elation DTW BLINDER 700 IP Manual de usuario

Elation

Elation PLATINUM PROFILE LED Manual de usuario

Elation

Elation 1236100115 Manual de usuario

Elation

Elation PALADIN Manual de usuario

Elation

Elation ELAR EXTQW BAR HP Manual de usuario

Elation

Elation Elation Fuze Wash 500 WH Manual de usuario

Elation

Elation PROTEUS RAYZOR 760 Manual de usuario

Elation

Elation FUZE WASH FR Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario

KAM

KAM DMX Laser80 FScan Manual de usuario
