Technical Information CV1-AMBIENT • CPCI Graphics Adapter
- 6 -
EKF Elektronik GmbH * Philipp-Reis-Str. 4 * D-59065 HAMM (Germany)
Tel.
+49
(0)2381/6890-0
*
Fax.
+49
(0)2381/6890-90
*
E-Mail
[email protected] *
Internet
http://www.ekf.de

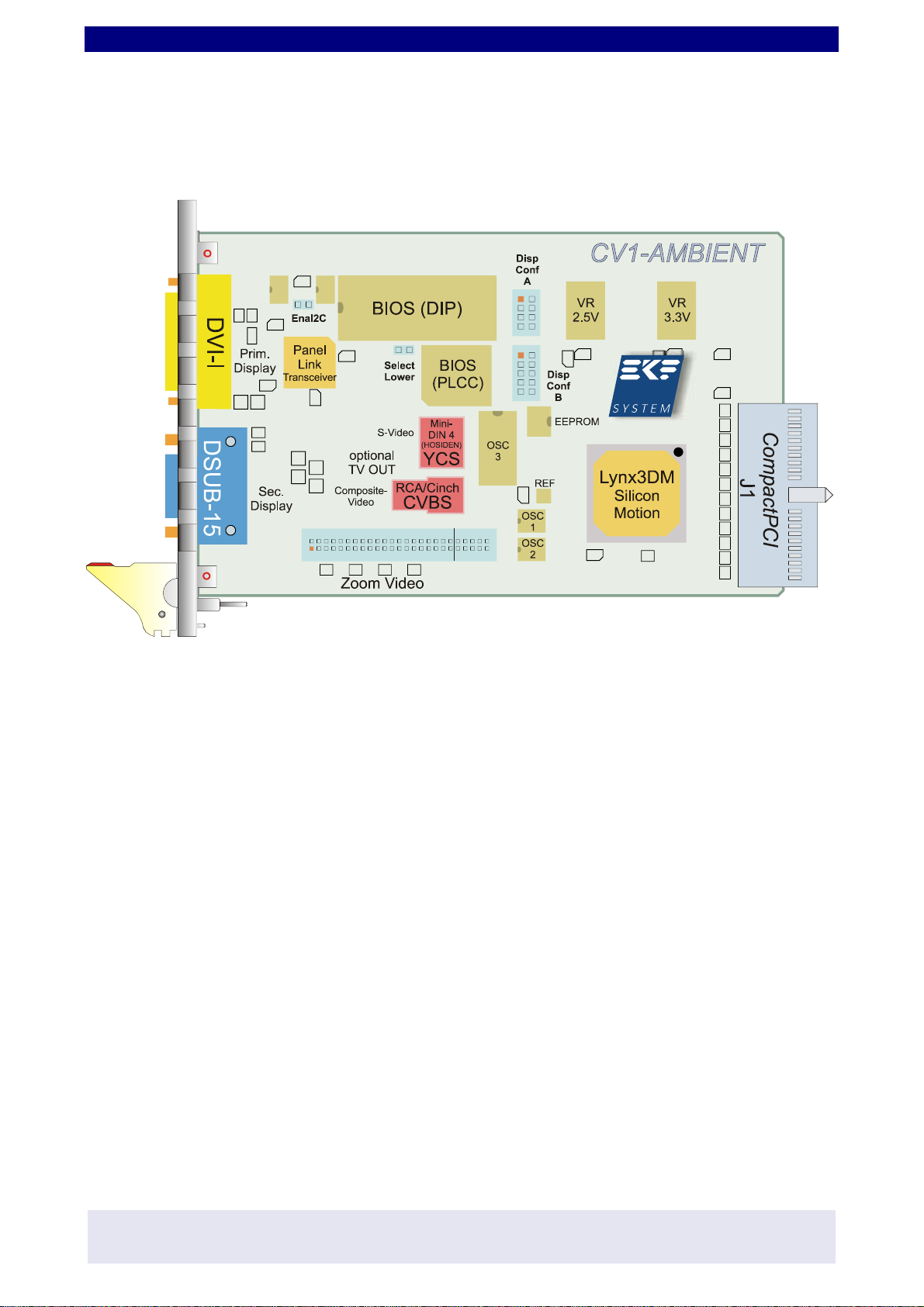

Feature Summary
Technical Specifications
Printed
Circuit Board Dimensions 3U Eurocard (100x160mm2), front panel 4HP (20.2mm) EMV
shielded, ejection lever
Graphics Primary Display
Port
Digital Display
Connector
DVI
Supports digital monitors, e.g. TFT flat panel displays, DVI-I 1
receptacle mounted into the boards front panel, up to
1280x1024 pixel, 16M colors, 85Hz refresh rate, interface
electronics based on PanelLink Digital Technology (Silicon
Image), Hot Plug Detection, immunity against noise by
differential signaling according to TMDS (Transition Minimized
Differential Signaling), Single Link.
1Though DVI-I preserves some pins for analog signals, these
pins are NC on the CV1-AMBIENT, resulting in a functionality
identical to DVI-D (D = digital). The DVI-I (I = integrated analog
and digital) receptacle however allows use of both, DVI-I and
DVI-D cables and accessories at your convenience.
Secondary
Display Port
Analog Monitor
Connector D-
SUB15
Supports analog monitors, e.g. multi-sync displays,
SXGA/UXGA compatible, Mini D-SUB 15-pos. socket mounted
into the boards front panel, up to 1600x1200 pixel 2, 16M colors,
85Hz refresh rate, RAMDAC 200MHz
2Currently available Windows™ drivers unfortunately do not
support the maximum resolution
Video Outputs S-Video socket Mini-DIN/Hosiden 4-pos. (S-VHS, Hi-8)3
Composite Video jack Cinch/RCA (CVBS, FBAS)3
3Due to lack of free space in the cards front panel, the video
connectors are mounted in the middle of the board, thus
suitable for internal wiring or open experimental card frames.
Functionally, these outputs are dedicated to the Secondary
Display Port.
Zoom Video
Port 40/50-pos. pin header, metric 2mm, compatible to EKF boards
providing Zoom Video Port e.g. CP2-HIPHOP (PC Card
adapter) and CF4-HIHAT (IEEE 1394 controller)
Graphics
Controller Chip Low power high performance controller Lynx3DM, 2D, 3D and
DVD motion display, 128-bit drawing engine, integrated video
memory 4/8/16MB, Dual-View and Multi-Display support under
Microsoft Windows™, Zoom Video Port
CompactPCI®
Bus Connector J1 32-Bit, 33MHz (133MB/s)
32-Bit DMA bus master (133MB/s)
3.3V or 5V interface
Power
Consumption Connector J1 +5V ±5% 0.1A max.
+3.3V ±0.3V 0.3A max.
Temperature
Humidity Commercial
Grade Version Operation temperature 0-70°C (industrial grade temperature
range available on special request)
Relative humidity 5-90% non condensing
Software Drivers, API,
Tools Linux (Xfree86), Microsoft Windows™ 98, ME, NT 4.0, 2000,
XP, VxWorks (planned 1.Q. 2002), BIOS, Windows™ Control
Panel, Windows™ API
subject to change without further notice
