USER MANUAL

CM 8SH CI-TC

082256

DVB S/S2 TO COFDM/QAM

WITH DUAL CI TRANSMODULATOR

V01

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

TABLE OF CONTENTS

INTRODUCTION:..................................................................................................................................................................................................................... 3

Description: ............................................................................................................................................................................................................................ 3

Key features:......................................................................................................................................................................................................................... 3

Package contents: ........................................................................................................................................................................................................... 3

CONNECTIONS AND INTERFACES:...................................................................................................................................................................... 4

INSTALLATION AND WIRING:.................................................................................................................................................................................... 5

General installation and wiring:............................................................................................................................................................................. 5

Installation of a multi-module head-end: ....................................................................................................................................................6

“CM Management” PROGRAMMING SOFTWARE:.................................................................................................................................... 7

Main screen: .......................................................................................................................................................................................................................... 7

CM 8SH CI-TC module configuration: ............................................................................................................................................................9

Input card: .............................................................................................................................................................................................................................10

Program pool: .....................................................................................................................................................................................................................11

DVB-C output card: ...................................................................................................................................................................................................... 12

Advanced Configuration: ......................................................................................................................................................................................... 12

Remote head-end management:..................................................................................................................................................................... 13

FAQS...............................................................................................................................................................................................................................................14

Configuration Example....................................................................................................................................................................................................15

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

INTRODUCTION:

Description:

It is a 4 input –8 tuner DVB S/S2 + USB 2.0 + HDMI IN, with dual CI transmodulator, transmodulated

to 4 FLEXIBLE COFDM/QAM, 13/18V, 22 KHz and DiSEqC output channels. 95 dBuV output level. MER

(Modulation Error Rate) >32dB. Intelligent remultiplexing of services. PC Programming connected to the

power supply. Integrated remote control from FA 524 power supply.

Key features:

•OCTO module with 4 SAT inputs and 8 tuners

•1 HDMI input

•1 USB 2.0 input

•Dual CI (Common Interface) reader

•Independent control of each i13/18V - 22KHz - DiSEqC (A/B/C/D). input

•Flexible remultiplexing of services on any output channel.

•NIT tables editing, SID remapping and transmission or deletion of EMM messages and CAT

tables.

•Programmable QAM/COFDM output.

•Output up to 4 COFDM/4 flexible QAM channels.

•High output level.

•Excellent output signal quality with high MER (Modulation Error Rate).

•LCN / LCN HD insertion.

•Programming via PC Software (“CM Management”) for Windows.

•Configuration cloning and report generation.

•On-site (FA 524 / CM PR) or remote (FA 524) management

Package contents:

•1x CM 8SH CI-TC module (082256)

•1x Power supply cable (082123)

•1x 63.25mm jumper (082148)

•1x Mounting tab (251008)

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

CONNECTIONS AND INTERFACES:

1. USB input

2. HDMI input

3. Status LED. Status information of

the input tuners.

4. Dual CI input

5. Input connectors to each tuner.

6. Status LED. Reports the status of

the COFDM/QAM modulated

output. The output will be working

properly when the LED blinks

green.

7. RF mix input connector.

8. RF output connector. This output

will supply the MUX's generated

by the module itself, plus those

entering through connector

number 7.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

1.- Ventilation grille.

2.- Power supply connector if using a

single module with FA 55 power

supply.

3.- Module power supply port and

input data bus. (IN)

4.- Port for power supply to the next

module and output data bus. (OUT)

INSTALLATION AND WIRING:

General installation and wiring:

1.- For installations of several modules (head-end) or a

single module, mount the transmodulator module to a

wall chassis (CHM TR) or to a rackmount chassis (CHR

TR).

To do this, mount the supplied metal piece (COD:

251008) on the upper rear part of the module as shown

in the image.

Important note: If installing a head-end with several modules, always place the power

supply to the left of the modules to be installed.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

2.- Connect the power supply (FA 524) to the module or

connect it to the previous module using the supplied

power cable.

The FA 55, power supply can also be

used to power a single module.

3.- Connect the input signals to the transmodulator inputs.

Important note: Pay particular attention to the input type and port. Follow the instructions

on the front panel.

4.- Install the “CM Management” software on the PC. It can be downloaded from the website

https://ek.plus Software / CM Head-ends Section. Link

5.- To program the module, perform any of the following connections:

5a.- PC –FA 524 programming via USB. Connect the FA 524 power supply to a PC using a USB (A) -

USB (B) cable.

5b.- PC –FA 524 programming via Ethernet. Connect the power supply and the PC via Ethernet

cable, connect these on the same LAN (the power supply provided with the address 192.168.0.222).

If it is necessary to be connected when not connected to the LAN itself, the CM KEY access key

must be enabled beforehand.

5c.- PC - CM PR programming via USB. Connect the module to the device using the power and data

cable. Connect the PC to the CM PR via USB cable.

6.- Run the PC SW programming.

Important note: Connect the FA 524 power supply or the CM PR programming device

and FA 55 power supply to the PC before running the software so that it is correctly

detected by the PC driver.

Installation of a multi-module head-end:

In the event of wishing to install the module as a further element of a head-end consisting of other CM

series modules it is very important to follow the instructions below.

•Connect the different modules in series using of the supplied power cable and then the power supply,

which must always be to the left of the head-end.

•Check the consumption of the modules. In general, up to 5 modules can be connected with an FA 524

power supply. However, it is recommended to check the power consumptions of the modules to be

installed.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

•It is recommended to install the modules with CIs downstream of the power supply.

•It is possible to use the long jumper to deliver the input signal to adjacent modules.

•The attenuation at the output of each module can be adjusted to compensate for cable losses at high

frequency.

“CM Management” PROGRAMMING SOFTWARE:

Main screen:

The main screen of the “CM Management” software is displayed as follows:

Always check that the latest WEB software version is installed.

It can be directly connected via USB or LAN.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

For the LAN, select the equipment and for connection press:

•ID.: enter the MAC of the corresponding power supply.

•KEY: enter the CM Key, if any. If not “0”.

•LOCAL IP: the local IP will be entered if connected via LAN from the same network.

•DESCRIPTION: description.

Using the “CM Management”software, all modules connected to the power supply can be controlled

and programmed. The function of each of the main side options is explained below:

Connect to the modules via the power supply using the USB connector.

Connect to the modules via the power supply using the LAN interface.

Firmware update button for any of the cards. If any SW is available, the corresponding

card will be displayed with a white triangle in the inner left corner. By double-clicking

the button will change the color to orange and the icon will change from gray to blue.

Clicking the icon will update the FW of all selected cards. It is recommended to update

each button one at a time via a RESET of the power supply at the end.

Reset selected card. This function is not available for all cards.

This option enables loading a programming configuration previously saved in the PC to

the head-end. The configuration file will have a *.dtc extension.

This option enables the programming configuration of a head-end to be saved on the

PC, to be subsequently loaded following the steps of the preceding point.

THE DISTRIBUTION OF THE MODULES MUST BE IDENTICAL TO THAT OF THE *.dtc

FILE.

Data-logger. Enables saving the data of the different head-end modules in a single

*.html. file

Enables changing the output of the DVB-T (COFDM) modules to DVB-C (QAM).

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

The main “CM Management” screen enables easy identification of the different modules connected to

the power supply, as can be seen in the following screen:

Power supply and head-end manager (red).

Identification of a module with an input card (green) and an output card (blue).

Identification of a module with only one input card (green), two CIs (orange) and

one output card (blue).

Identification of a module with two input cards (green) and one output card (blue).

In this case it would be a power supply and three modules, each one with its

different internal cards.

Click on the corresponding module to enter its specific configuration menu.

Never open the CM MANAGEMENT program twice, this will cause configuration problems.

CM 8SH CI-TC module configuration:

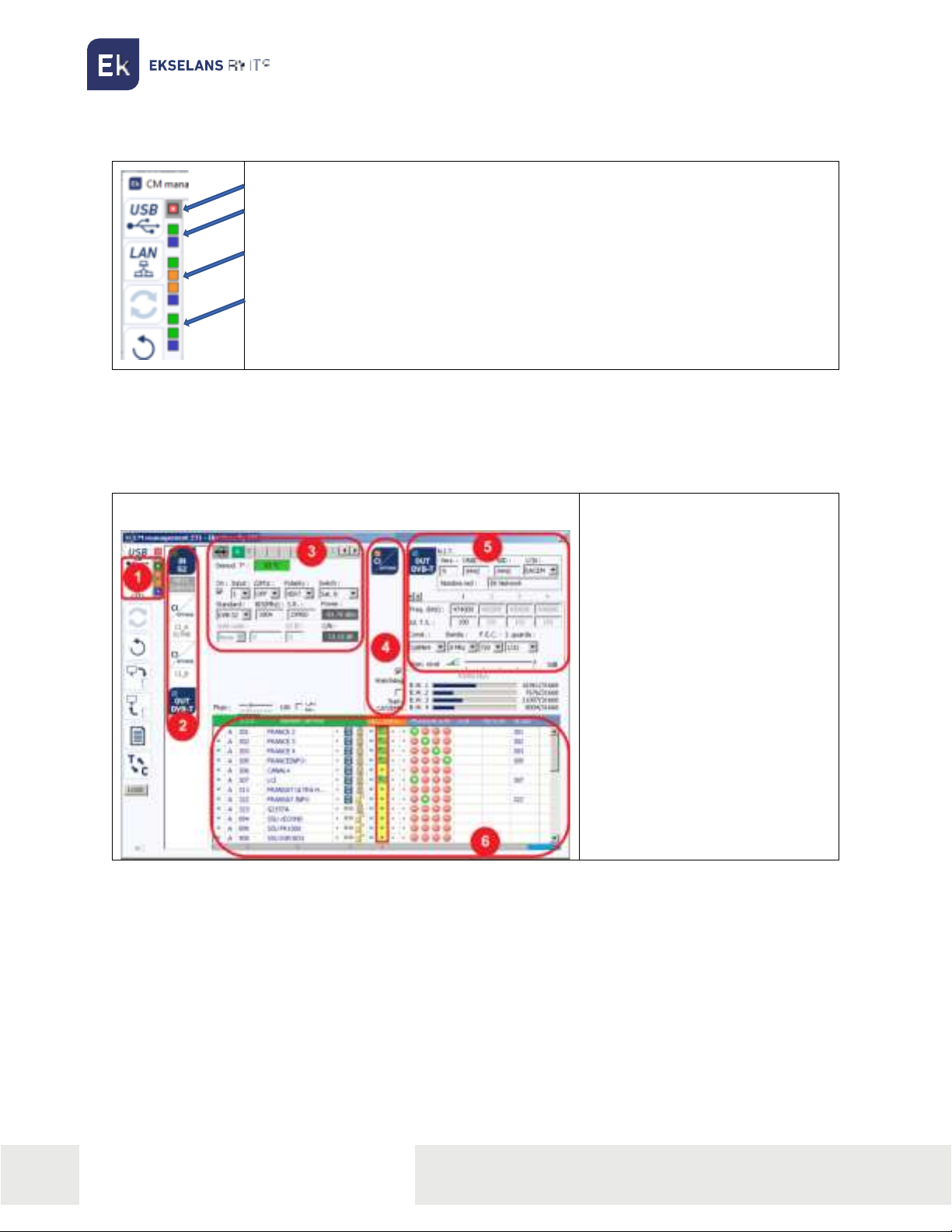

1. Selected module

2. Selected module configuration

3. Input card. Select between

DVB-S DVB-S2.

NO MULTISTREAM

4. CI section. Activate Watchdog

5. Output card. Select output

frequency in KHz.

FLEXIBLE channels and

different attenuations.

6. Program pool available on the

configured inputs.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C

08172 Sant Cugat del Vallés · Barcelona (Spain)

Phone: +34935839543 · info@ek.plus · www.ek.plus

CM 8SH CI-TC USER MANUAL

Input card:

In this part of the menu the input card will be configured. Selecting A, B, C, D, E, F, G or H in order to

choose the input tuner that is to be configured:

On: Click on “Check”to activate the selected tuner.

Input: Select one of the physical inputs, 1, 2, 3 or 4.

Polarity: HOR. - VER. Select the horizontal or vertical polarity.

Switch: if having a DiSEqC multiswitch then select between A, B, C or D.

If there is no DiSEqC multiswitch, this will not affect the selected value.

Common fields for each of the four physical inputs 1-2-3 and 4.

Standard: Select DVB-S or DVB-S2 for the satellite input.

BIS. (MHz): Tuner frequency. The conversion is performed automatically.

Example: 11229 MHz. –9750 = 1479MHz.

S.R.: Symbol Rate of the selected MUX.

Once the parameters have been correctly configured, the signal will be acquired, acquired and an

approximate value of these parameters will be specified in Power (Level) and C/N (Quality). The power

in dBm and the quality in dB CANNOT BE CONSIDERED AS A PROFESSIONAL MEASUREMENT.

Several fields for the eight different satellite inputs. A-B-C-C-D-E-F-G and H.

Input I: HDMI –USB 2.0

By selecting input I(1), the HDMI - USB 2.0 input can be configured.

The HDMI input is automatic, it will always work with a maximum resolution of

1080p. Check the Technical Specifications of the equipment.

The USB input can be configured to be enabled at an interval of hours, and at

the end of the time, it will automatically return to the HDMI input.

The USB input works with videos in TS output format. Click on the drop-down

menu (2) to select the video.

Download the EK CONVERTER, software, and where the video can be

generated using the TS extension.

Link: https://ek.plus/en/sw/ek-converter-en

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Modulador de EK

EK MD HD EASY PLUS Manual de usuario

EK MD HD EASY RC Manual de usuario

Manuales populares de Modulador de otras marcas

axing

axing AVM 5-00 Manual de usuario

IKUSI

IKUSI MAC-HOME HD Manual de usuario

Wisi

Wisi MINI OM 10 Manual de usuario

RCA

RCA CRF910 Manual de usuario

Pico Macom

Pico Macom PM45 Manual de usuario

FTE Maximal

FTE Maximal MODIG AIR Manual de usuario

Thor Broadcast

Thor Broadcast H-IP-32RF Manual de usuario

Delphi

Delphi SA10003 Manual de usuario

Elan

Elan MOD3000 Manual de usuario

ClearView

ClearView SD4260 Manual de usuario

Televes

Televes T.0X COFDM-QAM CI Manual de usuario

Crucial Audio

Crucial Audio Die Gotterdämmerung Manual de usuario

Pioneer

Pioneer CD-V61FM Manual de usuario

Televes

Televes 554912 Manual de usuario

Newtec

Newtec M6100 Manual de usuario

ProTelevision

ProTelevision PT 5780 Manual de usuario

Argent Cables

Argent Cables HD DVB-T MODULATOR Manual de usuario

SSS Siedle

SSS Siedle BVM 650-0 Manual de usuario
