Eizo FlexScan L768 Manual de usuario

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read

them carefully.

manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any

means, electronic, mechanical, or otherwise, without the prior written permission of EIZO

NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or

information confidential unless prior arrangements are made pursuant to EIZO NANAO

CORPORATION’s receipt of said information. Although every effort has been made to ensure

that this manual provides up-to-date information, please note that EIZO monitor

specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

Windows is a registered trademark of Microsoft Corporation.

PowerManager is a trademark of EIZO NANAO CORPORATION.

ScreenManager, FlexScan and EIZO are registered trademarks of EIZO NANAO

CORPORATION in Japan and other countries.

WARNING

Failure to abide by the information in a WARNING may result in serious injury

and can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

As an ENERGY STAR®Partner, EIZO NANAO CORPORATION has determined that

this product meets the ENERGY STAR guidelines for energy efficiency.

English

TABLE OF CONTENTS 3

TABLE OF CONTENTS

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1-1. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1-2. Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1-3. Controls & Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2. CABLE CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2-1. Before Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2-2. Connecting the Signal Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2-3. Connecting Two PCs to the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3. SCREENMANAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3-1. How to use the ScreenManager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3-2. ScreenManager Adjustments and Settings. . . . . . . . . . . . . . . . . . . . . . . 17

3-3. FineContrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3-4. Useful Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4-1. Screen Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4-2. Color Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4-3. Power-save Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5. ATTACHING AN ARM STAND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7. CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

9. GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

English

4PRECAUTIONS

PRECAUTIONS

IMPORTANT!

zThis product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally

shipped, the product may not perform as stated in the specifications.

zTo ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

[Location of the Caution Statements]

WARNING

If the unit begins to emit smoke, smells like something is

burning, or makes strange noises, disconnect all power

connections immediately and contact your dealer for advice.

Attempting to use a malfunctioning unit may result in fire, electric

shock, or equipment damage.

Do not open the cabinet or modify the unit.

Opening the cabinet or modifying the unit may result in fire,

electric shock, or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or

removing covers may result in fire, electric shock, or equipment

damage.

English

PRECAUTIONS 5

WARNING

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into

the cabinet or spillage into the cabinet may result in fire, electric

shock, or equipment damage. If an object or liquid falls/spills into

the cabinet, unplug the unit immediately. Have the unit checked by

a qualified service engineer before using it again.

Place the unit at the strong and stable place.

A unit placed on an inadequate surface may fall and result in

injury or equipment damage.If the unit falls, disconnect the power

immediately and ask your dealer for advice. Do not continue using

a damaged unit. Using a damaged unit may result in fire or

electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment damage.

zDo not place outdoors.

zDo not place in the transportation system (ship, aircraft, trains,

automobiles, etc.)

zDo not place in a dusty or humid environment.

zDo not place in a location where the steam comes directly on

the screen.

zDo not place near heat generating devices or a humidifier.

To avoid danger of suffocation, keep the plastic packing

bags away from babies and children.

Use the enclosed power cord and connect to the standard

power outlet of your country.

Be sure to remain within the rated voltage of the power cord.Not

doing so may result in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Tugging on the cord may damage and result in fire or electric shock.

OKOK

English

6PRECAUTIONS

WARNING

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

Use the correct voltage.

zThe unit is designed for use with a specific voltage only.

Connection to another voltage than specified in this User’s

Manual may cause fire, electric shock, or equipment damage.

zDo not overload your power circuit, as this may result in fire or

electric shock.

Handle the power cord with care.

zDo not place the cord underneath the unit or other heavy objects.

zDo not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a

damaged cord may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

When attaching an arm stand, please refer to the user’s

manual of the arm stand and install the unit securely with

the enclosed screws.

Not doing so may cause the unit to come unattached, which may

result in injury or equipment damage. When the unit is dropped,

please ask your dealer for advice. Do not continue using a

damaged unit. Using a damaged unit may result in fire or electric

shock. When reattaching the tilt stand, please use the same screws

and tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it

enters the eyes or mouth. If any part of the skin or body comes in

direct contact with the panel, please wash thoroughly. If some

physical symptoms result, please consult your doctor.

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

English

PRECAUTIONS 7

CAUTION

Handle with care when carrying the unit.

Disconnect the power cord and cables when moving the unit.

Moving the unit with the cord attached is dangerous. It may

result in injury.

When handling the unit, grip the bottom of the unit firmly

with both hands ensuring the panel faces outward before

lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

zDo not place any objects on the ventilation slots.

zDo not install the unit in a closed space.

zDo not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airflow and may

result in fire, electric shock, or equipment damage.

Do not touch the plug with wet hands.

Doing so may result in electrical shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case

of a problem.

Periodically clean the area around the plug.

Dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result

in electric shock.

If you plan to leave the unit unused for an extended period,

disconnect the power cord from the wall socket after turning

off the power switch for the safety and the power

conservation.

OKOK

English

8PRECAUTIONS

LCD Panel

When the monitor is cold and brought into a room or the room

temperature goes up quickly, dew condensation may occur inside

and outside the monitor. In that case, do not turn the monitor on

and wait until dew condensation disappears, otherwise it may

cause some damages to it.

In order to suppress the luminosity change by long-term use and to

maintain the stable luminosity, use of a monitor in lower

brightness is recommended.

The screen may have defective pixels. These pixels may appear as

slightly light or dark area on the screen. This is due to the

characteristics of the panel itself, and not the product.

The backlight of the LCD panel has a fixed life span. When the

screen becomes dark or begins to flicker, please contact your

dealer.

Do not press on the panel or edge of the frame strongly, as this

may result in damage to the screen. There will be prints left on the

screen if the pressed image is dark or black. If pressure is

repeatedly applied to the screen, it may deteriorate or damage

your LCD panel. Leave the screen white to decrease the prints.

Do not scratch or press on the panel with any sharp objects, such

as a pencil or pen as this may result in damage to the panel. Do

not attempt to brush with tissues as this may scratch the LCD

panel.

When the screen image is changed after displaying the same image

for extended periods of time, an afterimage may appear. Use the

screen saver or timer to avoid displaying the same image for

extended periods of time.

English

1. INTRODUCTION 9

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

zDual inputs compliant

zDVI Digital input (TMDS) compliant

z[Horizontal scanning frequency] Analog: 24.8 - 80 kHz

Digital: 31 - 64 kHz

[Vertical scanning frequency] Analog: 50 - 75 Hz

Digital: 59 - 61 Hz (VGA text: 69 - 71 Hz)

[Resolution] 1280 dots x 1024 lines

zAuto Adjustment compliant

zFineContrast modes, to select the most suitable mode for screen display

zThe EIZO LCD Utility Disk enclosed (See readme.txt in the CD-ROM for details.)

–The utility software “ScreenManager Pro for LCD” (for Windows) to control a

monitor form a PC with a mouse and a keyboard

–The software “DesktopViewer” (for Windows) to display bright and clear still

images

zThe height adjustable stand incorporated

zSupport to sRGB standard

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

zLCD Monitor zUser’s Manual (in the CD-ROM)

zPower Cord zSetup Guide

zSignal Cable (MD-C87) zScreenManager Quick Reference

zSignal Cable (FD-C35/FD-C39) zLIMITED WARRANTY

zEIZO USB Cable (MD-C93) zMounting Screws: M4 x 12 (mm) x 4 pcs

zEIZO LCD Utility Disk

NOTE

zPlease retain the packing materials for future transference.

zThe EIZO USB cable is used when using the software in the EIZO Utility Disk. For

information on the software, refer to the readme.txt in the EIZO LCD Utility Disk.

English

10 1. INTRODUCTION

1-3. Controls & Connectors

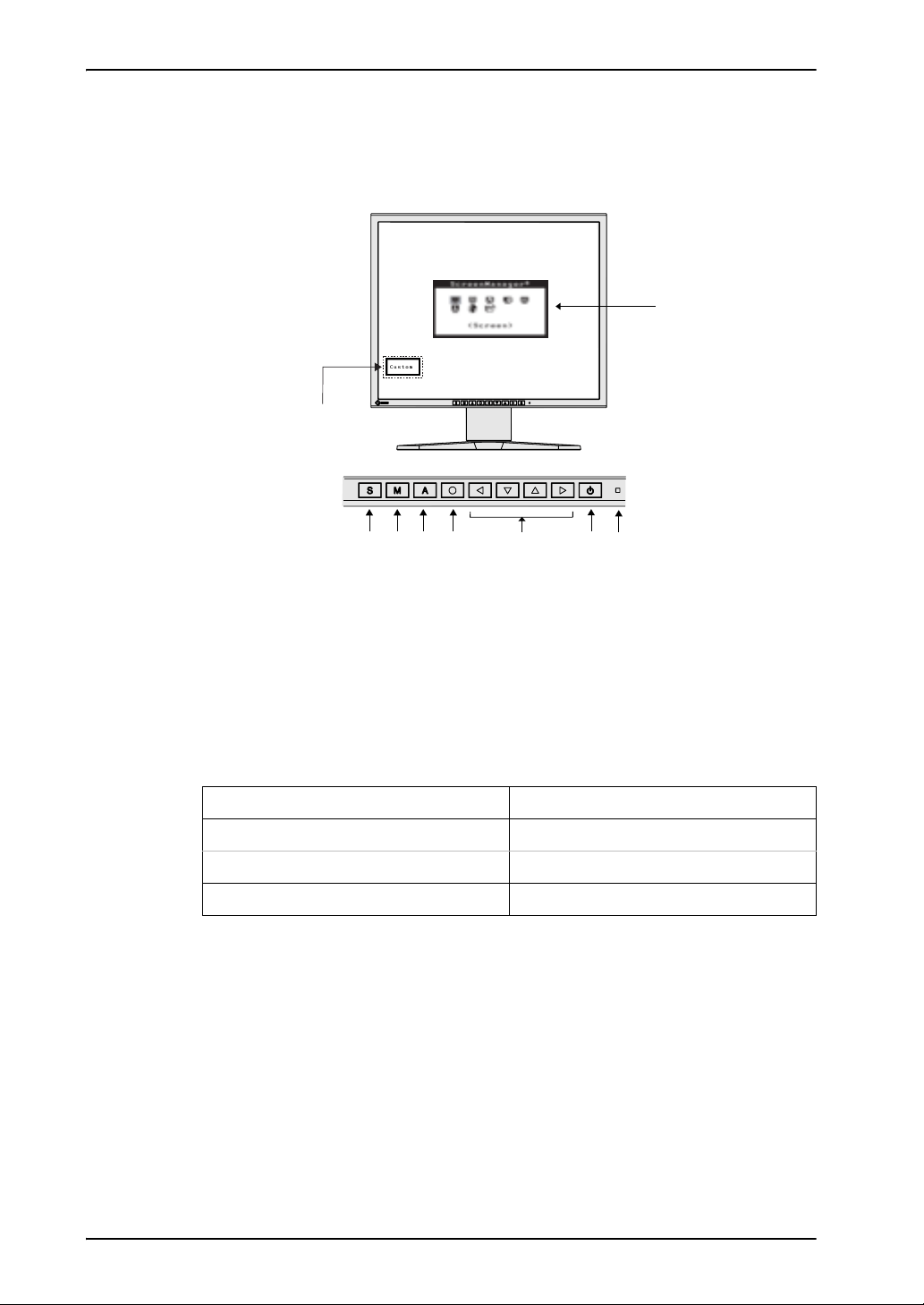

Front (L768 is given as an example)

(1) ScreenManager®

(2) Input Signal Selection Button

(3) Mode Button*1

(4) Auto Adjustment Button

(5) Enter Button

(6) Control Buttons (Left, Down, Up, Right)

(7) Power Button

(8) Power Indicator*2

*1 Directly pushing the Mode button allows you to select a FineContrast mode. (The main

menu of ScreenManager and the FineContrast menu cannot be displayed at the same time.)

*2 Regarding the power indicator for the “Off Timer”.

Blue Operation

Ye l l ow Po we r s a v i ng

Flashing yellow (2 times for each) Power save mode Digital only

Off Power off

(3) (4) (6)(2) (5) (7)

(1)

(8)

Control Panel

FineContrast Menu

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Eizo

Eizo

Eizo FlexScan L660 Manual de usuario

Eizo

Eizo FlexScan M1700 M1700 M1700 Guía del usuario

Eizo

Eizo FlexScan EV2333WH Manual de usuario

Eizo

Eizo FlexScan S2410W Manual de usuario

Eizo

Eizo ColorEdge CG221 Manual de usuario

Eizo

Eizo FlexScan EV2495 Manual de usuario

Eizo

Eizo FlexScan EV2780-BK Manual de usuario

Eizo

Eizo FLEXSCAN T561 - Manual de usuario

Eizo

Eizo FlexScan L795 Manual de usuario

Eizo

Eizo FlexScan L 350 L350 L350 Guía de inicio rápido

Eizo

Eizo RadiForce RX1270 Manual de usuario

Eizo

Eizo FlexScan EV2450-BK Manual de usuario

Eizo

Eizo EIZO FlexScan P1700 Manual de usuario

Eizo

Eizo FLEXSCAN L767 Manual de usuario

Eizo

Eizo DURAVISION FDX1001T Manual de usuario

Eizo

Eizo FlexScan EV3237 Manual de usuario

Eizo

Eizo RADIFORCE MS230W Manual de usuario

Eizo

Eizo Radiforce MX240W Manual de usuario

Eizo

Eizo RadiForce GX540-CL Manual de usuario

Eizo

Eizo FLEXSCAN T2351W Manual de usuario

Eizo

Eizo FlexScan L367 Manual de usuario

Eizo

Eizo Raptor SQ2801 Manual de usuario

Eizo

Eizo DuraVision FDF2382WT-BK Manual de usuario

Eizo

Eizo FlexScan L 352T L352T-C L352T-C Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
