Eizo CuratOR EX2721 Manual de usuario

Important

Please read this Installation Manual, and “Instructions for Use”

(separate volume) carefully to familiarize yourself with safe and

effective usage.

Refer to the Instructions for Use for information on the installation /

connection of the monitor.

Color LCD Monitor

Installation Manual

This product has been adjusted specically for use in the region to which it was originally shipped. If

operated outside this region, the product may not perform as stated in the specications.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by

any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation.

EIZO Corporation is under no obligation to hold any submitted material or information condential unless

prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every

effort has been made to ensure that this manual provides up-to-date information, please note that EIZO

monitor specications are subject to change without notice.

CONTENTS

CONTENTS............................................................. 3

Chapter 1 Basic Adjustment / Setting.............. 4

1-1. Loading the Monitor Settings...................... 4

1-2. Switching Input Signals ............................... 5

1-3. Using Function Buttons ............................... 6

Chapter 2

Advanced Adjustments / Settings

... 7

2-1. Operation via the Main Menu....................... 7

2-2. Functions of the Main Menu ........................ 8

●Input Cong..................................................... 8

●Video Cong.................................................... 9

●System Cong................................................10

●Function..........................................................12

●Window Cong...............................................13

●Remote...........................................................15

●Control............................................................17

Chapter 3 Troubleshooting.............................. 18

3-1. No Picture Displayed...................................18

3-2. Imaging Problems........................................19

3-3. Other Problems............................................19

Chapter 4 Reference ........................................ 20

4-1. Main Default Settings ................................. 20

4-2. PinSpecications........................................21

Appendix.............................................................. 22

LIMITED WARRANTY............................................. 22

Trademark ............................................................... 23

License .................................................................... 23

Recycling Information ........................................... 24

4Chapter 1 Basic Adjustment / Setting

Chapter 1 Basic Adjustment / Setting

This chapter describes the basic functions that can be adjusted and set by pressing the buttons on the front

of the monitor.

1-1. Loading the Monitor Settings

It is possible to switch to PRESET, FACTORY, or the USER settings that have been set in advance.

PRESET Basic settings are made in advance at the factory. The settings of PRESET cannot be

changed.

FACTORY Returns to settings when shipped from the factory.

USER Various settings including menus can be made for personal use. For details, see “Preset”

(page 10).

1. Press (PRESET).

The preset menu is displayed.

Press to select the PRESET number, FACTORY, or USER number to

load, and then press (ENTER).

The pre-made settings are loaded and the settings are changed. The selectable settings are as

follows.

• PRESET1 to PRESET5

• FACTORY

• USER1 to USER10

Note

• The “PRESET” menu will disappear after ve seconds have elapsed if no operation is performed.

• is displayed for the USER number that has already been registered.

• When selecting a USER number that has not yet been registered, “No Data” is displayed.

• For information about the main default settings, see “4-1. Main Default Settings” (page 20).

Chapter 1 Basic Adjustment / Setting

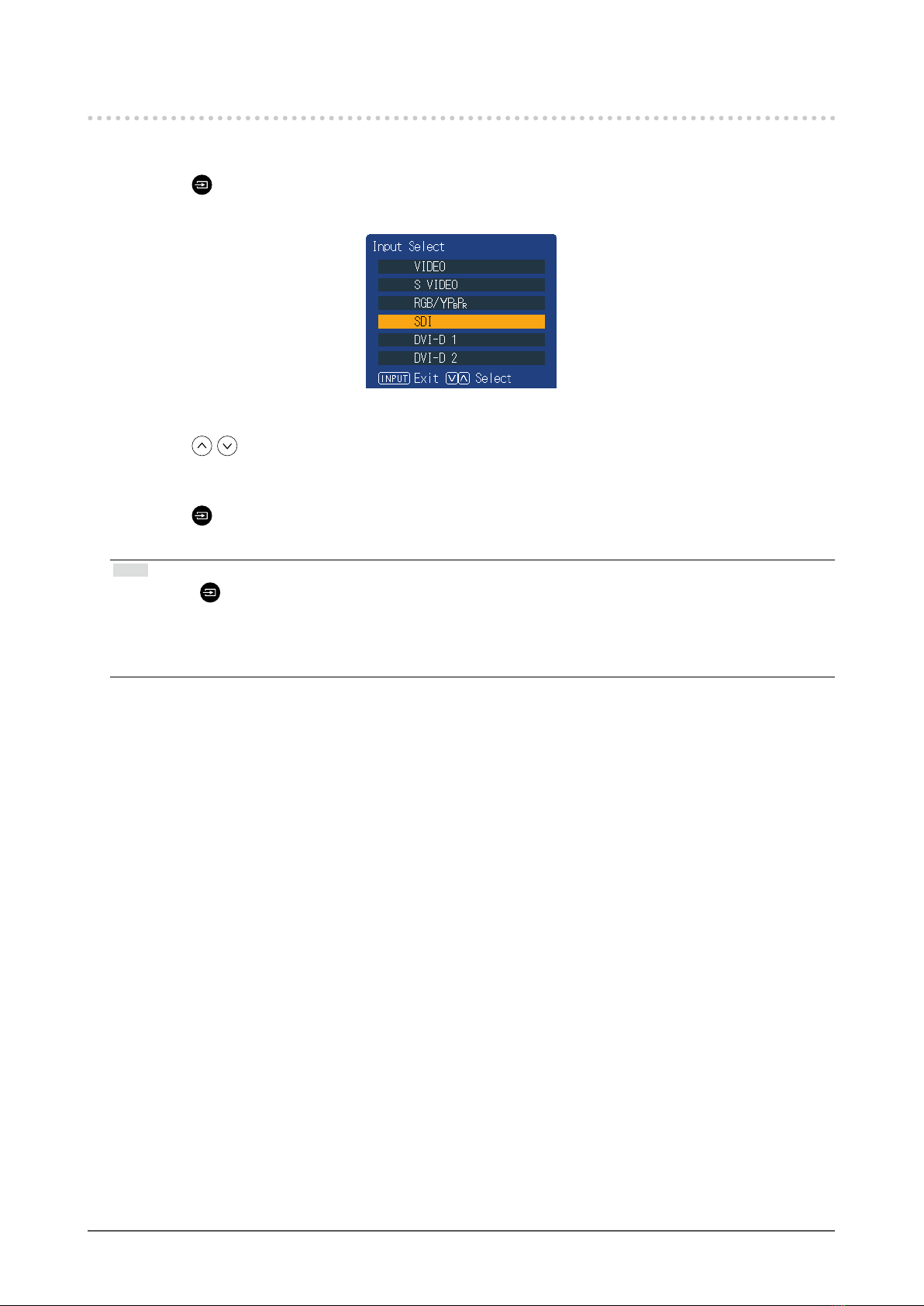

1-2. Switching Input Signals

Select the signal input to the monitor and display it on the screen.

1. Press (INPUT).

The “Input Select” menu appears.

Press to select an input signal.

This switches to the selected input signal.

Press (INPUT).

The menu screen exits.

Note

• If you press (INPUT) while the “Input Select” menu is displayed in dual screen mode, the “Input Select” menu

of the subscreen is displayed.

• When RGB / YPBPR is selected, if the color is abnormal, set it correctly with “Input Cong” (page 8) on the

main menu.

• The “Input Select” menu will disappear after ve seconds have elapsed if no operation is performed.

6Chapter 1 Basic Adjustment / Setting

1-3. Using Function Buttons

Execute the functions assigned to the function buttons (F1 ( ), F2 ( ), F3 ( ), F4 ( ) and F5

( )). For information on how to set a function to each button, see “Function” (page 12).

1. Press F1 ( ), F2 ( ), F3 ( ), F4 ( ) or F5 ( ).

The function menu is displayed.

Press the button with the target function set while the function menu is

displayed.

Note

• In dual screen mode, press (INPUT) to select a screen for performing the target function.

• When the setting of “Function Display” (page 12) is “Off”, the “INVALID FUNCTION” message is displayed if

you press a function button that cannot operate.

• When the setting of “Function Display” (page 12) is “Off”, the “UNDEFINED” message is displayed if you press

a function key assigned to “Undef”.

Chapter 2 Advanced Adjustments / Settings

This chapter describes advanced monitor adjustments and settings procedures using the main menu.

2-1. Operation via the Main Menu

1. Menu display

1. Press (MENU).

The main menu is displayed.

2. Press to select the desired item, and then press .

Adjustments / Settings

1. Press to select the desired item.

2. Press to set.

If “Next Menu” is displayed for any item, press to display the next item.

Exiting

1. Repeatedly press (MENU), to exit the menu screen.

8Chapter 2 Advanced Adjustments / Settings

2-2. Functions of the Main Menu

●InputCong

Setting for each input terminal.

Function Setting range Description

SDI Main Stream 1

Stream 2

Sets the picture on main screen for dual-stream SDI signal.

This is also applied to the single screen display.

SDI Sub Stream 1

Stream 2

Sets the picture on the subscreen for dual-stream SDI

signal.

RGB / YPBPRYPBPR

RGB-VIDEO

RGB-PC

Set according to the signal connected to the Y/G or PB/B,

PR/R input terminals.

• “YPBPR”

Set to Y, PB/CB, or PR/CR signal.

• “RGB-VIDEO”

Sets to RGB signals. Signal decision gives priority to

VIDEO system.

• “RGB-PC”

Sets to RGB signals. Signal decision gives priority to

PC system.

Sync. Select (RGB) Auto

Sync on Green

VBS

Sets the synchronization signal input method for the RGB

input terminals.

• “Auto”

Automatically switches between SYNC input and SYNC

on G. When SYNC input and SYNC on G have both

been set, SYNC input is given priority.

• “Sync on Green”

When synchronized with SYNC input and SYNC on G,

select this to synchronize with SYNC on G.

• “VBS”

Select when connecting as synchronous with SYNC

input terminal composite (VBS) signal. E.g., when a

non-synchronous R/G/B image signal and a VBS signal

output device are connected to the monitor, connect the

VBS signal to the SYNC input terminal, and select VBS.

Analog

Adjustment

Auto Setup - Automatically adjusts “H Position”, “V Position”, and “Dot

Clock” when the PC signal is the input.

H Position 0 to 300 To move screen left and right.

V Position 0 to 100 To move screen up and down.

Dot Clock 0 to 100 When a striped pattern is displayed, adjust so that noise will

decrease when the synchronous striped pattern (noise) is

produced.

Clock Phase 0 to 31 When inputting RGB signals and PC signals, adjust for ease

of viewing if screen contour bleeding or blurring occurs.

Signal Format 4:3

Wide

Sets signal type for unidentiable signals.

Chapter 2 Advanced Adjustments / Settings

●VideoCong

Adjustments/settings for image display.

Function Setting range Description

Color 0 to 100 Adjusts image color depth.

Tint 0 to 100 Adjusts skin tone.

Brightness 0 to 100 Adjusts dark (black) areas of the image.

Picture 0 to 100 Adjusts image contrast.

Sharpness 0 to 20 Adjusts image contour color denition.

Gamma 1.8 to 2.6

DICOM

Adjusts brightness variation.

Backlight 0 to 100 Adjusts backlight brightness. In case of multiple screens,

select the main one. This setting cannot be changed when

a screen other than the main screen is selected.

Color Temp 6500 K

9300 K

Off

Switches tone of the image.

R Gain 0 to 100 Adjusts the intensity of red in bright areas.

G Gain 0 to 100 Adjusts the intensity of green in bright areas.

B Gain 0 to 100 Adjusts the intensity of blue in bright areas.

R Bias 0 to 100 Adjusts the intensity of red in dark areas.

G Bias 0 to 100 Adjusts the intensity of green in dark areas.

B Bias 0 to 100 Adjusts the intensity of blue in dark areas.

Color Gamut sRGB

Native

Sets the color reproduction range.

• “sRGB”

Displays the color gamut dened by sRGB.

• “Native”

Displays the color gamut of the panel itself.

Input Range 0-255

16-235

The available gradation range is modulated in accordance

with the input signals from the DVI-D terminal.

• “0-255”

Use this setting when connecting PC format source.

• “16-235”

Use this setting when connecting video format source.

NTSC Setup 0

7.5

Select set up level for NTSC signals. Note that the standard

level for NTSC signals varies between countries.

• “0”

Set when the dark areas of the screen are too dark.

(0 IRE)

• “7.5”

Set when the dark areas of the screen are too bright.

(7.5 IRE)

Noise Reduction Off

Light

Middle

Heavy

Select picture noise reduction level.

10 Chapter 2 Advanced Adjustments / Settings

●SystemCong

Settings for devices.

Function Setting range Description

Menu Position The display locations of menu screen, Input Select screen,

and PRESET menu screen are set here.

• “ ”

Screens are displayed in the center of the panel.

• “ ”

Screens are displayed in the upper right corner of the

panel.

• “ ”

Screens are displayed in the lower right corner of the

panel.

• “ ”

Screens are displayed in the lower left corner of the

panel.

• “ ”

Screens are displayed in the upper left corner of the

panel.

Preset Save - Saves current setting values and display status for each

user.

Attention

• “Power On Setup”, “Language” and “Logo Display”

settings cannot be saved.

Clear - The set values of “USER1” to “USER10” (USER NAME) can

be deleted.

Rename - The character strings of “USER1” to “USER10” (USER

NAME) can be changed.

Status Display Continue

3Sec

Off

Whether information about the current input signal and

terminal name is displayed.

Information about the resolution at the PC signal input is

also displayed.

Power On Setup Last

PRESET1 to

PRESET5

FACTORY

USER1 to

USER10

Settings when switching on can be set in advance.

• “Last”

Starts with last saved status.

• “PRESET1” to “PRESET5”

Starts up with status saved in PRESET. Five types of

PRESET settings are stored in advance in the monitor

as xed data.

• “FACTORY”

Restores factory settings.

• “USER1” to “USER10”

Starts up with status saved to USER. It is possible to

store 10 types of data for each USER.

Power Save Mode On

Off

Sets whether the backlight turns off after 30 seconds of no

video signal.

Tabla de contenidos

Otros manuales de Monitor de Eizo

Eizo

Eizo COLOREDGE CG303W Manual de uso y cuidado

Eizo

Eizo Radiforce GX550 Manual de usuario

Eizo

Eizo DuraVision FDF2304W-IP Manual de usuario

Eizo

Eizo FlexScan EV2216WFS3 Manual de usuario

Eizo

Eizo RediForce MS236WT-A Manual de usuario

Eizo

Eizo FlexScan EV2023W Manual de usuario

Eizo

Eizo FlexScan S1503-A Manual de usuario

Eizo

Eizo FLEXSCAN T1501-B - Guía del usuario

Eizo

Eizo ColorEdge CG246 Manual de usuario

Eizo

Eizo FLEXSCAN MX190 Manual de usuario

Eizo

Eizo FLEXSCAN L550 Manual de usuario

Eizo

Eizo EIZO FlexScan P1700 Manual de usuario

Eizo

Eizo ColorEdge CS230 Manual de usuario

Eizo

Eizo CuratOR EX3242-3D Manual de usuario

Eizo

Eizo ColorEdge CG247X Manual de usuario

Eizo

Eizo FlexScan L685EX Manual de usuario

Eizo

Eizo DuraVision Manual de usuario

Eizo

Eizo FLEXSCAN HD2441W - SETUP Manual de usuario

Eizo

Eizo FlexScan T68 Manual de usuario

Eizo

Eizo RadiForce GX530-BL Manual de usuario

Eizo

Eizo FlexScan L 795 L795 L795 Guía de inicio rápido

Eizo

Eizo FlexScan EV2450-BK Manual de usuario

Eizo

Eizo EIZO ColorEdge CG241W Manual de usuario

Eizo

Eizo ColorEdge CG19 Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
