SP Controls Application Note

Eiki LC-X1100

Revision B

I. Driver Features

1. Command Format

This device is controlled through RS-232.

2. RS-232 Commands

Power On

Power Off

Volume Up

Volume Down

oom

Focus

Source: 1 (VGA)

Source: 1 (DVI)

Source: 2 (BNC)

Source: 2 Comp Video (BNC)

Source: 2 YPbPr

Source: 3 Comp Video (RCA)

Source: 3 S-Video

Source: 3 YPbPr

Menu Off

Adj Up

Adj Down

Adj Left

Adj Right

Enter

Auto Image

Audio Mute On

Audio Mute Off

Video Mute On

Video Mute Off

Keystone Up

Keystone Down

Freeze On

Freeze Off

3. Ot er Driver Features

Default Power Status Feedback:

Pro ector Restart Lockout Timer (Default):

RS-232 Polling

95 Seconds

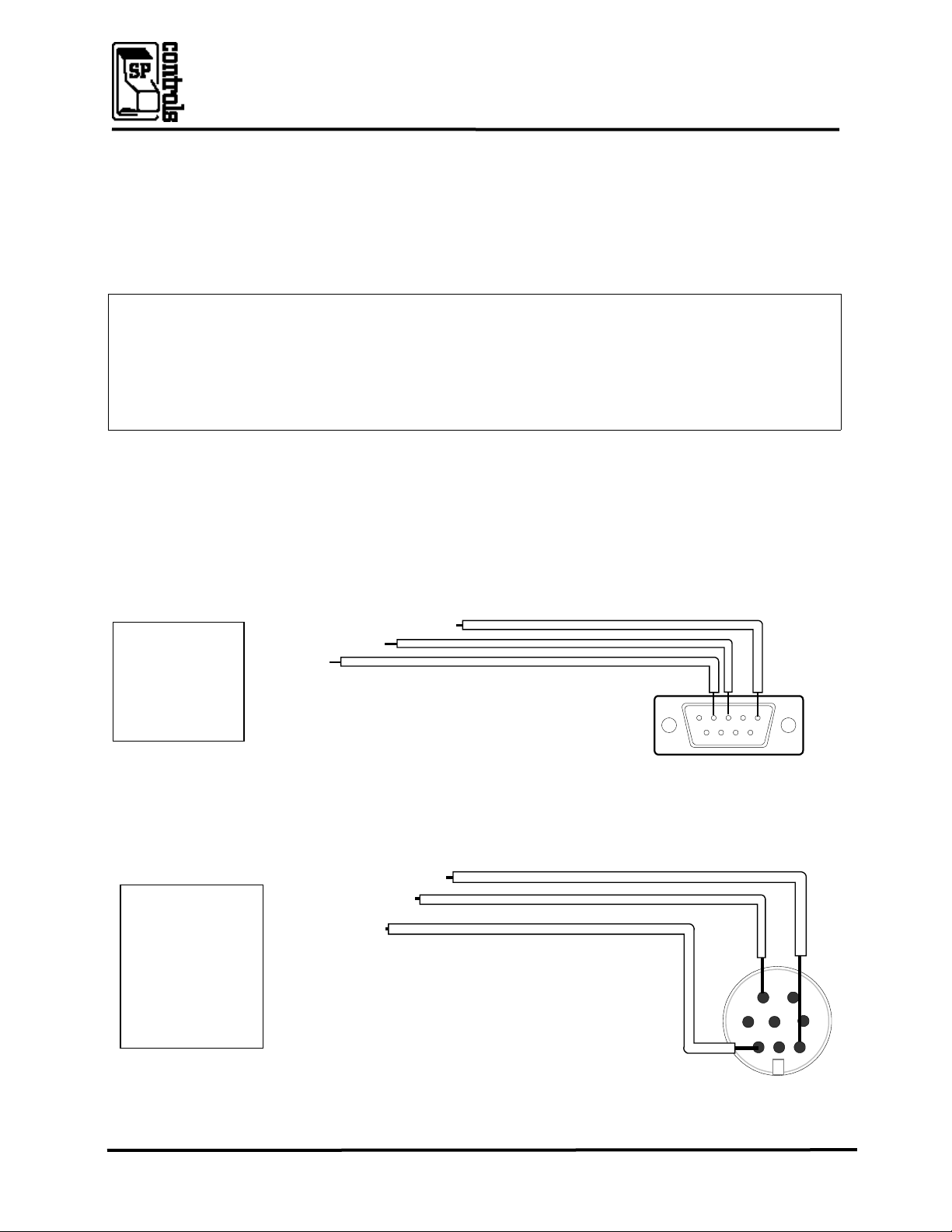

II. RS-232 Control Wiring

Wire the control cable to a male DB-9 cable as follows:

Connect male DB9 to Eiki adapter cable (included with projector), then connect to the projector port

labeled Control Port.

Serial Adapters (for NRC only): A and B

Alternate Wiring: If you do not have the optional Eiki serial adapter cable, terminate the SP Controls

control cable directly on a male 8-pin mini-DIN as follows:

Connect the male mini-DIN to the projector port labeled Control Port.

RX to 2

GND to 5

TX to 3

SP Controls

Device

Control

Cable

3 4 5

GND to 8

RX to 6

TX to 1

Control

Cable

SP Controls

Device

SP Controls Application Note

Eiki LC-X1100

Revision B

III. Projector Configuration

To ensure the projector stays in sync with the control system, set the DISPLAY feature to OFF in the

projector's on screen menus. Scroll over to the menu to the SETTING menu whose first item is

LANGUAGE and toggle down to DISPLAY. De-select the DISPLAY option.

You may also wish to set POWER MANAGEMENT to OFF in the SETTING menu. By default, the

projector will shut itself off in 5 minutes in the absence of an input signal.
