Eiki EIP-WSS3100 Manual de usuario

Quick Start Guide

MODEL EIP-WSS3100

Use this book as a start guide when setting up the projector.

For detailed information about installation, setup and operation of projector,

refer to the owner's manual on the CD-ROM.

Read the safety instructions in this quick start guide before using projector.

EIP-WSS3100

Quick Start Guide

MODEL EIP-WSS3100

Use this book as a start guide when setting up the projector.

For detailed information about installation, setup and operation of projector,

refer to the owner's manual on the CD-ROM.

Read the safety instructions in this quick start guide before using projector.

Package Overview

AC Power Cord

Unpack and inspect the box contents to ensure all parts listed below are in

the box. If something is missing, please contact your dealer.

Documentation:

Owner’s Manual (CD)y

Quick Start Guidey

BatteryProjector Remote Control

VGA Cable

45.8UR01G001 A

IR29033TR2-LAYOUT-121128

CLA-IR29033TR2-NAP-121121

ModelNo:

IR290 33

30mA

CR2025

Elevator Feet

Adjusting the Projector’s Focus

Focus Ring

To focus the image, rotate the focus ring until the image is clear.

Adjusting

Adjusting the Projector’s Height

The projector is equipped with elevator feet for adjusting the image height.

To raise the image:y

Use screw in feet to raise the image to the desired height angle and ne-tune

the display angle. 

To lower the image:y

Use screw in feet to lower the image to the desired height angle and ne-tune

the display angle. 

The adjustment range of the elevator feet is 0 to 5.9 degrees.y

Elevator Feet

Elevator Feet Spacer

Adjusting

Powering On the Projector

Securely connect the power cord and signal cable. When connected, the Power1.

LED will turn red.

Turn on the lamp by pressing2. “ ” button on the control panel or on the remote

control. The Power LED will turn blue.

Turn on your source that you want to display on the screen (computer, note-3.

book, video player, etc). The projector will detect the source automatically and

will display on the screen.

If you connected multiple sources at the same time, press the “Source” button4.

on the remote control to switch between inputs.

POWER TEMP LAMP

RESYNC SOURCE

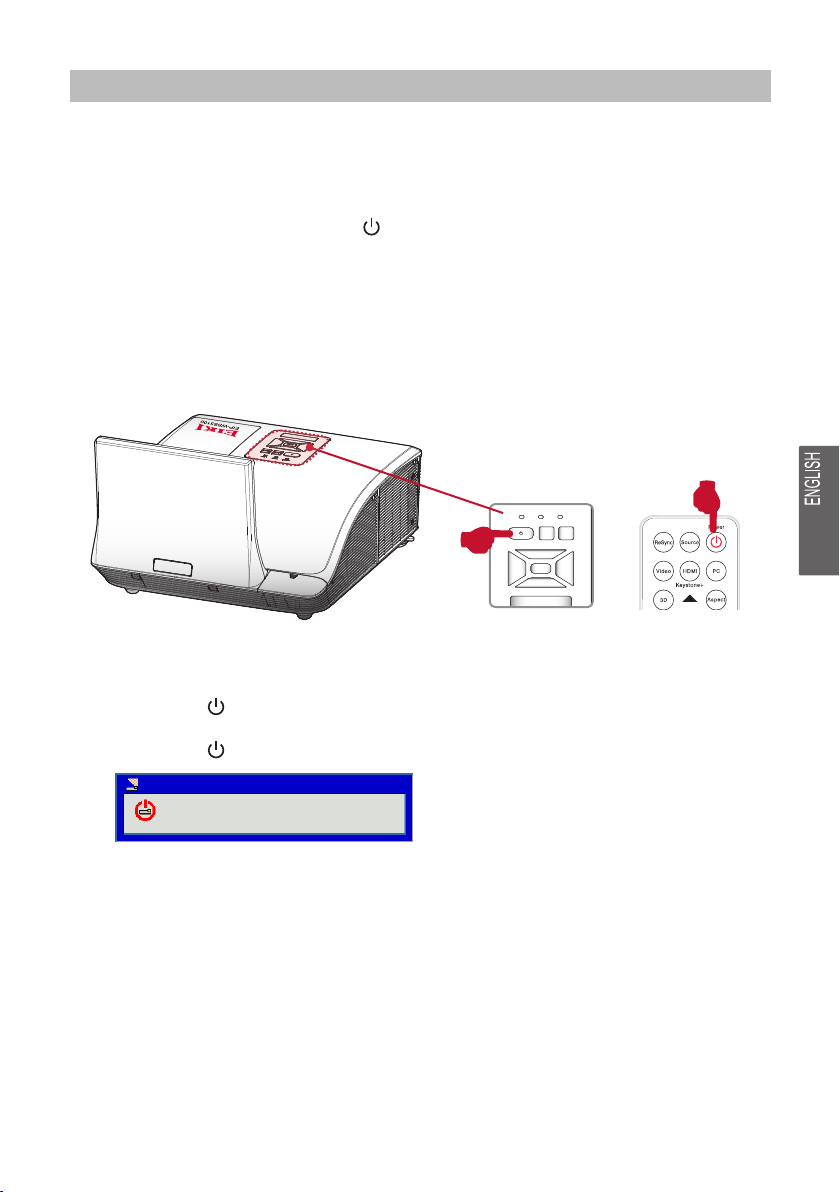

Powering Off the Projector

1. Press the “ ”button on the control panel or on the remote control to turn off

the projector. The following message will be displayed on the screen.

Press the “ ” button again to conrm.

Power Off?

Press power key again.

2. The Power LED will turn red and blink rapidly after the projector is turned off.

And the fans will continue to operate for about 90 seconds to ensure that the

system cools properly.

3. Once the system has nished cooling, the Power LED will stop blinking and turn

solid red to indicate standby mode.

4. It is now safe to unplug the power cord.

Adjusting Projection Image Size

Remote Control Battery Installation

Refer to the graphics and table show as below to determine the screen size and

projection distance.

Adjusting the vertical image positiony

Projection Distance (A)

Projection Distance

(B)

Screen

0-3.5 degree is the suitable angle to

correct keystone image.

WXGA Series

Screen Size (16:10) Projection Distance (A) Projection Distance (B) Projection Distance (C)

Diagonal (inch) mm Inch mm Inch mm Inch mm

70 1778 20.4 517 7.2 182 6.0 153

80 2032 23.5 596 10.3 262 7.4 187

87.2 2215 25.8 655 12.6 320 8.3 210

90 2286 26.7 677 13.5 343 8.6 219

100 2540 29.9 759 16.7 424 9.9 252

Projection Distance A(mm)=Screen size(mm) x 0.296, Tolerance is around 3.1%

Ex: Projection Distance (655mm)=Screen size(2215mm) x 0.296

This table is for user’s reference only.

Note

Projection Distance (C)

Adjusting

Press rmly and slide 2.

the battery cover off.

Put the cover4.

back.

Install new battery into the3.

compartment.

Remove the old battery

and install new one

(CR2025). Ensure that

the side with a “+” is

facing up.

CR2025

Before using the remote1.

control for the rst time,

remove the transparent

insulation tape.

0° to 3.5°

Connecting to Computer/Notebook

Power Cord1.

Audio Cable2.

VGA to DVI-A Cable 3.

VGA Cable4.

RS232 Cable5.

HDMI Cable6.

USB Cable7.

12V DC Jack8.

Network Cable9.

LAN

Notebook

Computer

Power socket

Monitor

Audio Output

+12V Output

3 4 5 6 7 8

Connecting to Video Sources

Power Cord1.

Microphone Cable2.

Audio Cable Jack/RCA3.

S-Video Cable 4.

Audio Cable5.

VGA to HDTV (RCA) Cable6.

HDMI Cable7.

12V DC Jack8.

Composite Video Cable9.

LAN

DVD player, Set-top box,

HDTV receiver

S-Video output

Video output

+12V Output

Power socket

Audio Output

DVD player, Set-top box,

HDTV receiver

3 4 5 6

7 8
