UST Lens — Installation Guide
Getting Started
Packing Checklist
Carefully unpack and check that the following items are included:
Accessories in the box
Item Photo Part Name Quantity Tools
# AH-A25010 1
# BORESIGHT 1
#
ADJUSTING
TOOL
EXTENDER
3
#L-SHAPE TOOL 1
AMOUNT
BRACKET 1
BSUPPORTER
BRACKET 1
UST Lens — Installation Guide
—3—
Item Photo Part Name Quantity Tools
CSUPPORTER 1
ISCREW M3 *L8 2 ⊕2 screw
driver
II SCREW M3 *L8 1 2.5 Allen key/
Allen wrench
III SCREW M6
*L22 25 Allen key/
Allen wrench
IV WASHER M3-
3.7 x 0.8 x 18 3
VWASHER M6-
6.7 x 1 x 16 2
System Requirement
Firmware Version: V[03.77] or higher
To check the rmware version, go to [OSD > Option > Information >
Firmware version].
—4—
UST Lens — Installation Guide
Installation
Summary of UST Lens Installation
1. Enter the UST mode
2. Remove the Non-UST lens
3. Remove the non-UST lens boresight
4. Install the UST lens boresight
5. Install the bracket to the lens
6. Install the supporter to the projector
7. Adjust the boresight gear
8. Install the UST lens
9. Before adjusting boresight
10. Adjust the boresight focus
11. Remove the UST lens
12. Back to the normal mode
1. Enter the UST mode
Projector Conditions
• Remove the lens cap from the projector.
• Install the non-UST lens to the projector if you have.
• Connect the AC power cord.
1. Power on the projector.
2. Enter the UST mode.
Go to [OSD > Option > Service > UST Lens Install > Start].
Note:
• If you don’t have non-UST lens,
√Press [Exit > Source > Left > Right] on the remote control
or keypad on the projector, and then the projected image will
blink twice when the projector enters the UST mode.
√Send [CF_USTG_1] command to the projector when you can
only control the projector via RS232C connection.
UST Lens — Installation Guide
—5—
3. The projector automatically goes power off.
Note:
• When the projector enters the UST mode, the brightness will
decrease until the UST mode setting process is complete.
4. Disconnect the AC power cord.
2. Remove the Non-UST lens
If you use non-UST lens, remove the non-UST lens from the projector.
1. Rotate the lens counter-clockwise to disengage it from the lens mount.
2. Remove the lens out of the lens mount.
3. Remove the non-UST lens boresight
1. Remove three screws securing the existing boresight plate to the lens
mount.
2. Remove the boresight module from the lens mount.
—6—
UST Lens — Installation Guide
3. Disconnect the lens cable from the UST lens boresight connector.
4. Install the UST lens boresight
1. Install the UST lens boresight module into the lens mount.
2. Fasten three screws on the plate to secure the UST lens boresight
module in place.
UST Lens — Installation Guide
—7—
3. Connect the lens cable to the UST lens boresight connector.
Important:
The boresight module needs to be adjusted before assembling it to the
unit. See [7. Adjust the boresight gear].
Note:
• Ensure the lens cable is not wrapped or pinched when securing the
boresight module.
5. Install the bracket to the lens
1. Place the lens upside down on the cushioned surface to avoid any
damage or scratch.
2. Using ⊕screw driver, fasten the M3 x 8 screws (2 pcs) Ito secure
the mount bracket Aonto the UST lens assembly.
Mount
Bracket A
UST lens
M3 x 8 screws
W/SF I
—8—
UST Lens — Installation Guide
6. Install the supporter to the projector
1. Using 2.5 Allen key/Allen wrench , fasten the hex-head screw M3 x 8
(1 pc) II and washer 3.7 x 0.8 x18 (1 pc) IV to pre-lock the supporter
bracket B.
Supporter
Bracket B
M3 x 8 screws
W/SF II
Washer
3.7 x 0.8 x 18
screws IV Supporter C
Note:
• Do not fully tighten them.
2. Attach the supporter Cto the bottom of the projector.
3. Using 5 Allen key/Allen wrench , fasten the hex-head screws
M6 x 22 (2 pcs) III and washers 6.7 x 1 x 16 (2 pcs) Vto secure the
supporter Cto the mounting holes.
M6 x 22
screws III
Washer
6.7 x 1 x 16
screws V
Supporter
C
UST Lens — Installation Guide
—9—
4. Adjust three projector feet (adjusters) counter-clockwise by 5 turns to
increase the space for the table top installation.
GAP = 1.5~2mm
7. Adjust the boresight gear
To complete image adjustment, use the L-shape tool and make sure the
Boresight extender is properly installed.
1. Ensure the boresight screws are at the initial state.
If not, adjust the screw counter-clockwise until the
end and check the mark is roughly aligned.
—10 —
UST Lens — Installation Guide
2. Follow the recommended adjustment range to adjust the boresight
gears according to the different projector orientation.

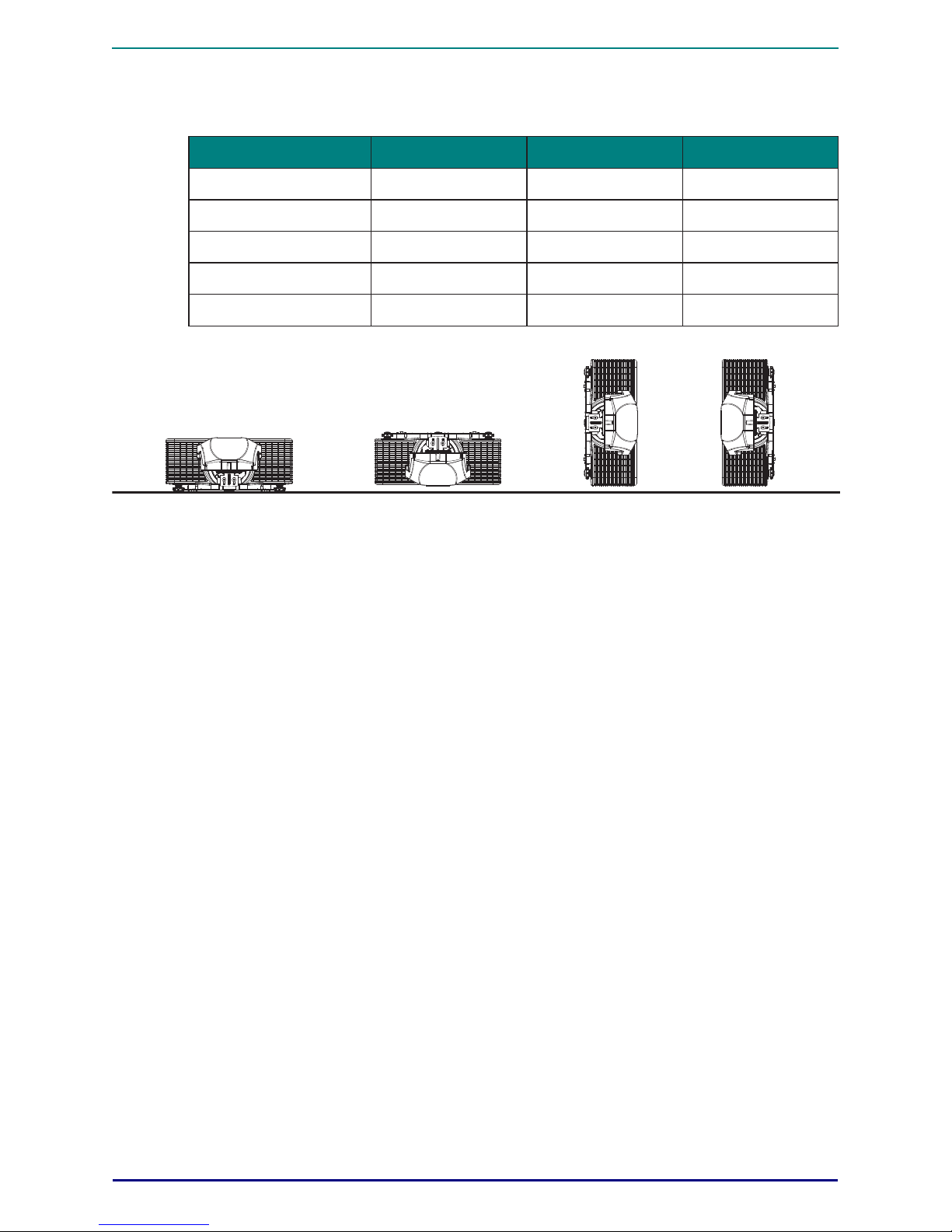

Orientation A B C
Table Top 3 + 1/4 9 9
Portrait (L) 6 + 3/4 7 10 + 3/4
Portrait (R) 5 + 1/4 10 + 3/4 6
Ceiling Mount 10 + 2/4 7 + 1/4 7 + 1/4
Upright 10 + 3/4 8 + 1/4 8 + 2/4
Table Top Ceiling Mount Left Portrait Right Portrait
