Eduard Weekend Edition Spitfire Mk. VIII Manual de usuario

UPOZORNENÍ ACHTUNG ATTENTIONATTENTION

INSTRUKTION SINNBILDEN

INSTR. SYMBOLY SYMBOLES

INSTRUCTION SIGNS

Před započetím stavby si pečlivě prostudujte stavební návod. Při používání barev a lepidel pracujte v dobře větrané

místnosti. Lepidla ani barvy nepoužívejte v blízkosti otevřeného ohně. Model není určen malým dětem, mohlo by dojít k

požití drobných dílů.

Carefully read instruction sheet before assembling. When you use glue or paint, do not use near open flame and use in

well ventilated room. Keep out of reach of small children. Children must not be allowed to suck any part, or pull vinyl bag

over the head.

Vor dem Zusammenbau die Bauanleitung gut durchlesen. Kleber und Farben nicht in der Nähe von offenem Feuer

verwenden und für eine ausreichende Belüftung sorgen. Den Bausatz von kleinen Kindern fernhalten. Vermeiden Sie,

dass Kinder Bauteile in den Mund nehmen oder sich Plastiktüten über den Kopf ziehen.

Lire soigneusement la fiche d´instructions avant d´assembler. Ne pas utiliser de colle ou de peinture a` p roximité d´une

flamme nue, et aérer la piece de temps en temps. Garder hors de portée des enfants en bas âge. Ne pas laisser les

enfants mettre en bouche ou sucer les pie` ces, o u p asser u n s achet v inyl s ur l a t etê.

84159 - NAV1

84159

1/48

PLASTIC PARTS

Spitfire Mk.VIII

APPLY EDUARD MASK

AND PAINT

POUŽÍT EDUARD MASK

NABARVIT

OPTIONAL

VOLBA

BEND

OHNOUT OPEN HOLE

VYVRTAT OTVOR

SYMETRICAL ASSEMBLY

SYMETRICKÁ MONTÁŽ

REMOVE

ODŘÍZNOUT

REVERSE SIDE

OTOČIT

SAND

BROUSIT

8280 F

8280 I

A> H > I>

8280 H

GUNZE

C33 FLAT BLACKH12 MMP-047

MISSION MODELS

C4 YELLOWH4 MMP-007

C11 LIGHT GULL GRAYH51 MMP-063

C81 RUSSETH33 MMP-047

C3 FLAT REDH13 MMP-003

C137 TIRE BLACKH77 MMP-047

C369 DARK EARTHH72 MMP-078

C62 FLAT WHITEH11 MMP-001 C49 CLEAR ORANGEH92 MMP-047

C138 CLEAR GREENH94 MMP-047

C363 MEDIUM SEAGRAYH335 MMP-094

GUNZE

MISSION MODELS

C47 CLEAR REDH90 MMP-047

C302 GREENH302 MMP-047

C323 LIGHT BLUEH323 MMP-092

C361 DARK GREENH330 MMP-077

C362 OCEAN GRAYH414 MMP-093

DARK IRON

MC214 MMM-001

Mr.METAL

COLOR

METALLICS

SUPER FINE SILVER

SM201 MMC-001

Mr.COLOR

METALLIC

METALLICS

ALUMINIUM

MC218 MMM-003

C364 AIRCRAFT GRAY-GREENH414 MMP-079

C370 AZURE BLUEH414 MMP-092

GUNZE

MISSION MODELS

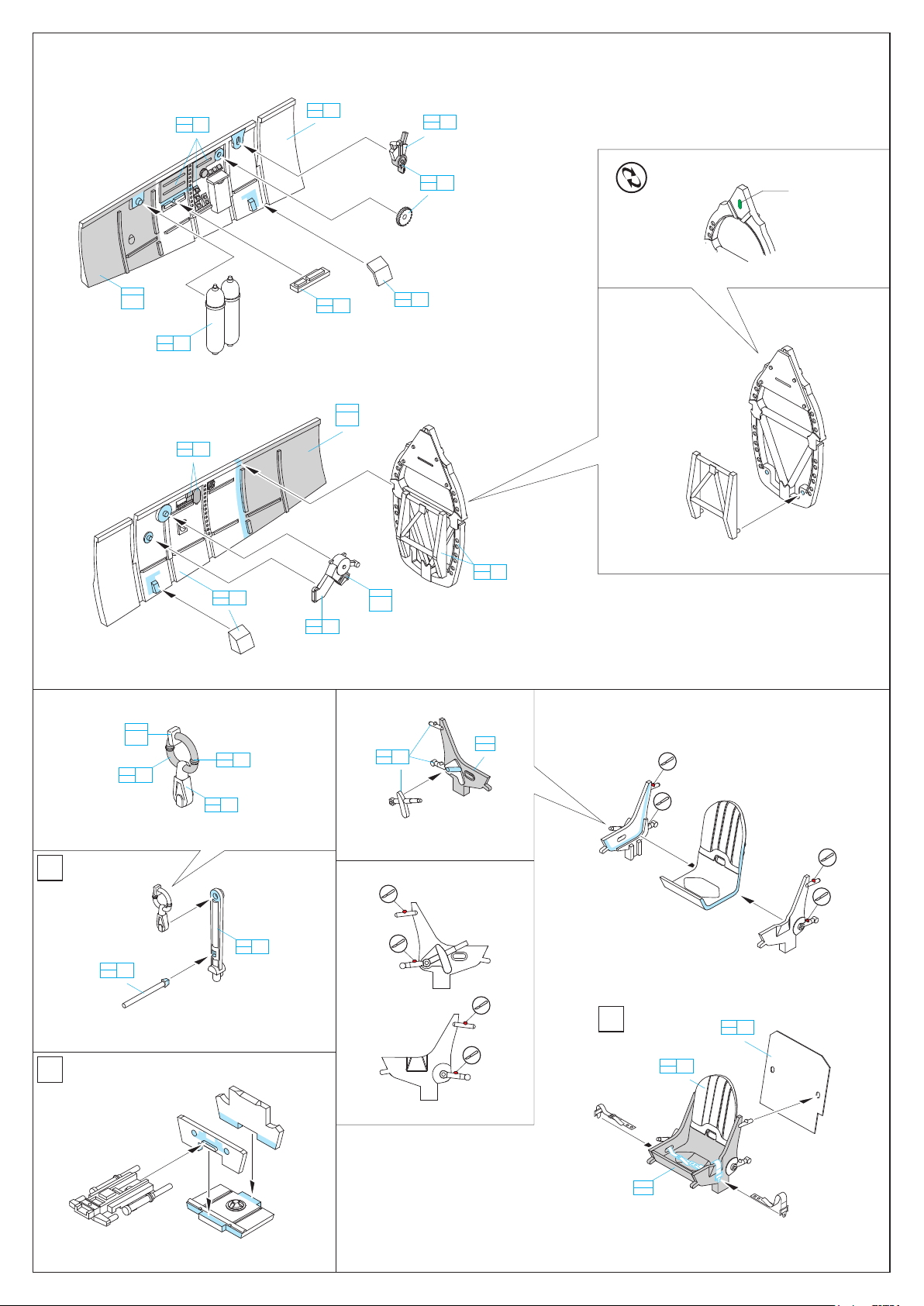

8280 A

8280 G

F65

F64

F18

F82

fill

F82

F28

F42

F26

F41

F19

FLAT BLACK

C33

H12 MMP

047

GRAY-GREEN

C364 MMP

079

FLAT BLACK

C33

H12 MMP

047

GRAY-GREEN

C364 MMP

079

FLAT BLACK

C33

H12 MMP

047

GRAY

C11

H51 MMP

063

GRAY-GREEN

C364 MMP

079

MC218

MMM

003

ALUMINIUM

F25

F27

GRAY-GREEN

C364 MMP

079

MC218

MMM

003

ALUMINIUM

FLAT BLACK

C33

H12 MMP

047

GRAY-GREEN

C364 MMP

079

MC218

MMM

003

ALUMINIUM

FLAT BLACK

C33

H12 MMP

047

F61

F16

F60

F17

F32

FLAT BLACK

C33

H12 MMP

047

GRAY-GREEN

C364 MMP

079

FLAT BLACK

C33

H12 MMP

047

MC218

MMM

003

ALUMINIUM

F46

F32

F38

GRAY-GREEN

C364 MMP

079

GRAY-GREEN

C364 MMP

079

F64

F65

F64

F31

C81

H33

RUSSET

GRAY-GREEN

C364 MMP

079

C81

H33

RUSSET

F81

GRAY-GREEN

C364 MMP

079

FLAT BLACK

C33

H12 MMP

047

decal 19

decal 18

F66

decal 23

decal 20

OPTIONAL:

decal 21 F23

F43

GRAY-GREEN

C364 MMP

079

FLAT BLACK

C33

H12 MMP

047

F30

F29

MC218

MMM

003

ALUMINIUM

GRAY-GREEN

C364 MMP

079

F62

FLAT BLACK

C33

H12 MMP

047

GRAY-GREEN

C364 MMP

079

FLAT BLACK

C33

H12 MMP

047

GRAY-GREEN

C364 MMP

079

DF56

GRAY-GREEN

C364 MMP

079

GRAY-GREEN

C364 MMP

079

FOR CLOSED CANOPY ONLY

I17 I3 I13

F82

- 1 mm

I13

GRAY-GREEN

C364 MMP

079

G56 I3

F33

I17

G64

G55

- 1 mm

GRAY-GREEN

C364 MMP

079

MC218

MMM

003

ALUMINIUM

FLAT BLACK

C33

H12 MMP

047

F39

I17

MC218

MMM

003

ALUMINIUM

GRAY-GREEN

C364 MMP

079

FLAT BLACK

C33

H12 MMP

047

G76

UNDERSURFACE

COLOR

A17

A16

C47

H90

CLEAR RED

C138

H94

CLEAR GREEN

G17

G72

G61

G59

G71

G18

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

G20

G19

G69

G70

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

G46

G16

UNDERSURFACE

COLOR

MC218

MMM

003

ALUMINIUM

G47

G15

UNDERSURFACE

COLOR

MC218

MMM

003

ALUMINIUM

F80

F73

G H

F53

F52

GLUE PARTS F52 & F53

ONE BY ONE

F13

F12

F21

G10

G43

G12 G44

G11

F79

F74

G10

G43

G12

G44

G11

G12

G11

MC214

MMM

001

DARK IRON

UNDERSURFACE

COLOR

I10

F11 I4

I16

F10

C138

H94

CLEAR GREEN

C47

H90

CLEAR RED

G27

G29

G13

G28

G30

F36 G14

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

G48

MC218

MMM

003

ALUMINIUM

MC218

MMM

003

ALUMINIUM

MC218

MMM

003

ALUMINIUM

MC218

MMM

003

ALUMINIUM

G37 G39

G38 G36

G37

G39

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

G38

G36

UNDERSURFACE

COLOR

UNDERSURFACE

COLOR

REMOVE FOR

UNDERCARRIAGE

LOWERED

G24

UNDERSURFACE

COLOR

MC218

MMM

003

ALUMINIUM

TIRE BLACK

C137

H77 MMP

040

REMOVE FOR

UNDERCARRIAGE

LOWERED

G23

UNDERSURFACE

COLOR

TIRE BLACK

C137

H77 MMP

040

MC218

MMM

003

ALUMINIUM

G35

G33

G50

G49

G50

G35

G33

G45

G54

SM201

MMC

001

FINE SILVER

MC218

MMM

003

ALUMINIUM

G45

G53

MC218

MMM

003

ALUMINIUM

SM201

MMC

001

FINE SILVER

MC218

MMM

003

ALUMINIUM

A15

F20

UNDERSURFACE

COLOR

C49

H92

CLEAR ORANGE

F70 - open canopy & open door

F83 - open canopy & closed door

G66

G63

G65

A12

F37

G41

G73

F51

F54

F70

F83

GRAY-GREEN

C364 MMP

079

GRAY-GREEN

C364 MMP

079

I5 I15

I17

F68 - closed canopy & closed door

I14

I12

UNDERSURFACE

COLOR

MC218

MMM

003

ALUMINIUM

TIRE BLACK

C137

H77 MMP

040

UNDERSURFACE

COLOR

TIRE BLACK

C137

H77 MMP

040

MC218

MMM

003

ALUMINIUM

UNDERSURFACE

COLOR

I15

A11 SM201

MMC

001

FINE SILVER

GRAY-GREEN

C364 MMP

079

F68

GRAY-GREEN

C364 MMP

079

C4 007

MMP

H12

C33

MMP

047

eduard

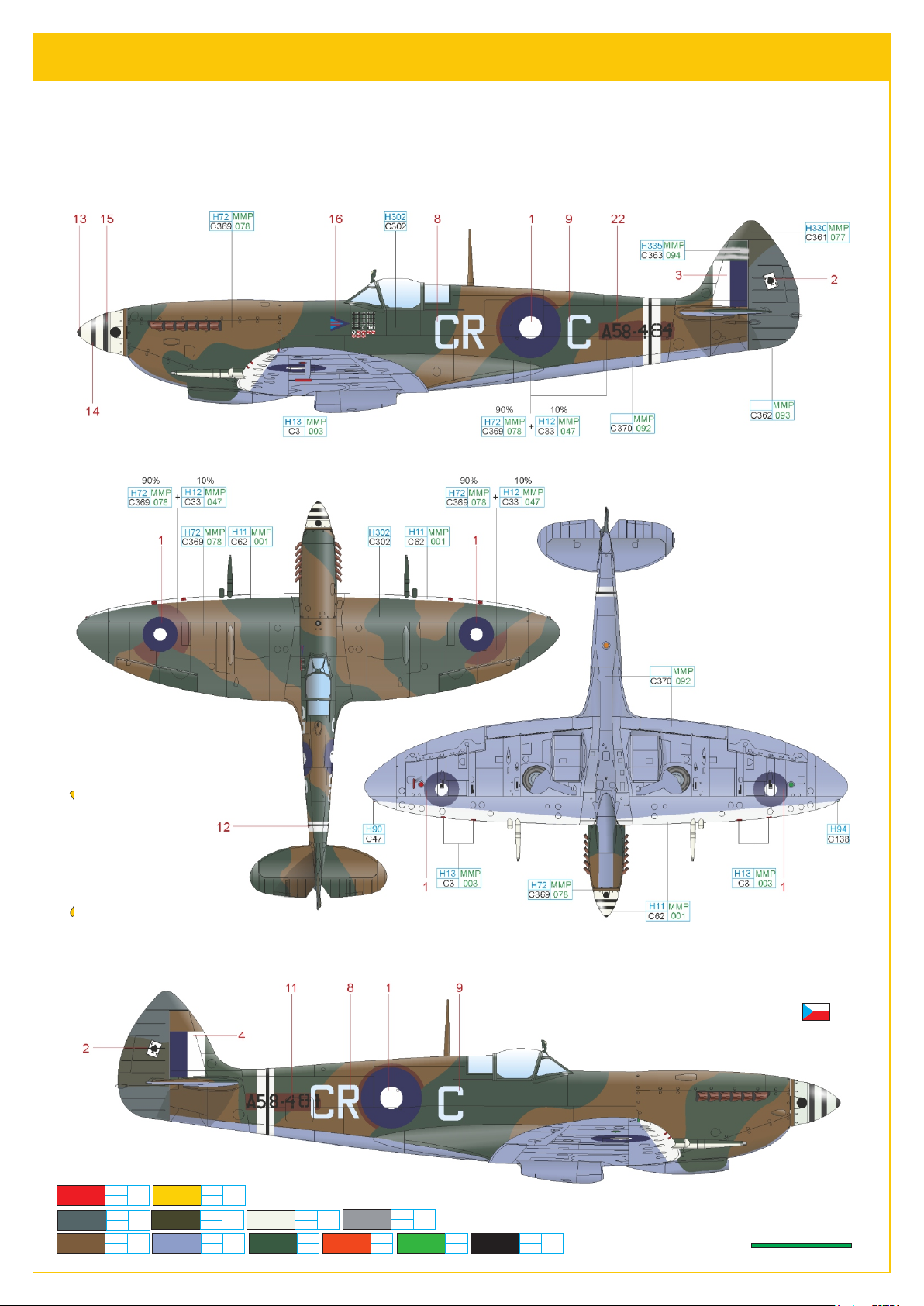

A58-484, flown by G/Cpt Clive R. Caldwell, CO of No. 80 Wing, Morotai Island,

Dutch East Indies, March 1945

With 27.5 confirmed aerial victories, Clive Caldwell is Australian´s top scoring fighter ace of World War II. He was the top scoring allied ace in North Africa

and the world´s leading P-40 ace. He was also the only Australian fighter pilot to become a two-theatre ace, becoming an ace in both the Middle East and

Pacific theatres. He scored his victories over the pilots of three countries, Germany, Italy and Japan. This Spitfire Mk.VIII A58-484 was flown by C. R. Caldwell

in the winter of 1944 and spring 1945 while No. 80 Wing based on Morotai Island in North Moluku Islands. The aircraft seems to have some damage to the fin

and rudder. There are signs of repair work on the top of the fin, which has probably been painted in a grey undercoat. A replacement rudder, apparently

finished in Ocean Grey and Dark Green, has been fitted. Note the small wing national insignia roundels, applied over the overpainted larger original items. You

can find more details about C. R. Caldwell and his aircraft in Eduard´s publication 'Aussie Eight', written by Peter Malone, released by Eduard.

AZURE

BLUE

C370 092

MMP

C302

H302

GREEN

DARK

EARTH

C369

H72

078

MMP

DARK

GREEN

YELLOW

C4 007

MMP

BLACK

H12

C33

MMP

047

WHITE

H90

C47

RED

CLEAR

H94

C138

GREEN

CLEAR

RED

C3 003

MMP

H13

GRAY

C362

MMP

093

OCEAN

C361

H330

MMP

077

MEDIUM

C363

H335

SEA GRAY

MMP

094

H11

C62 MMP

001
