edishine HSSL31A Manual de usuario
LED Remote Control Solar Security Light
SKU:HSSL31A
V211013
Please read the instruction manual carefully before use and strictly observe
the safety rules and the caution, attention and warnings listed in the instruction
manual to avoid possible electric shock or personal injury. When using
electrical products, always follow basic precaution including the following:
The lamps and remote controls contain lithium batteries. It is strictly forbidden
to place the lamps and remote control in a fire, high temperature, and high
pressure environment; do not leave the lamps and remote control to children
to play.
Before beginning installation of the product, please refer to above pictures to
check if all the accessories are included in the box. If there any part is missing
or damaged, please do not assemble the product and contact us.
Preparation
1. The LED solar light needs to be installed outdoors. Placing the solar panel
in direct sunlight during daylight to charging the light. In order to convert solar
energy into electricity most efficiently, please ensure that the solar panel
is completely exposed to the sun without any obstruction like tress, building
and others.
Important INFO
A B AA BB
2. Please charge the light and set the button on OFF state for 2-3 days to make
sure charge the battery fully before first using this light.
3. The motion sensor is very sensitive for the light. In order to get the best
performance at night, please check that there have no other light to interfere
this motion sensor, to ensure that the sensor in working properly.
4. When the lights turn on, please do not look directly at this LED solar lights,
avoid to cause any damage to the eyes.
5. The recommend installation height is about 4.93 to 10.5 ft. Please get help
with others to install this solar motion light when you use step ladder. If
you don’t know how to install, please find an electrician or professional.

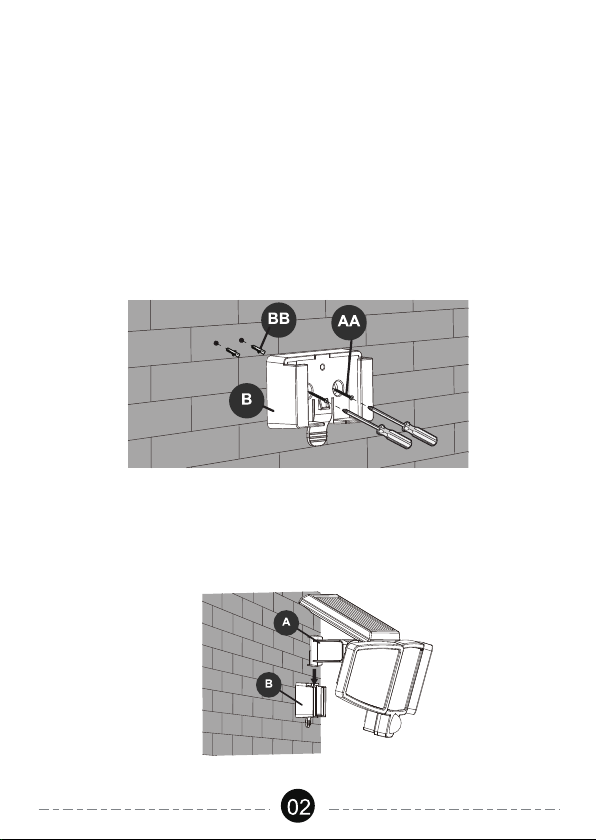

1. Place the mounting socket to the position you want and mark the screw points
in the holes. Use an electric drill and screwdriver to secure the mounting
socket to the selected surface. If you install it on a brick or other hard wall
panel, please use a 1/4 inch drill bit to pre-drill the screw anchors.
(recommended installation height is about 4.93 to 10.5 ft from the ground)
Installation
2. Insert the motion light to the mounting socket and make sure the light firm, and
then adjust the solar panel and light heads to the correct direction.
3. If you want to turn off the light, press the handle below and move the light up
to turn it off. Or press the remote control button to turn it off.
Operating Instructions
Solar Panels
LED
Motion Sensor
Mode Switch/Off
4
Button 1: Remote control on/off button
A: Short press once to turn on the light, and button 2 will
take effect at the same time; B: Press again shortly to turn
off the light, and Button 2 becomes invalid;
Button 2: Induction mode conversion button
the three modes are cycled in sequence, if Use button 1
to turn off the lamp to trigger the memory function, use
button 1 to turn on the lamp again, the mode is the mode
before closing;
NOTE: The first time it is turned on, the default is MODE 1
MODE 1: Maximum Brightness Mode
The maximum brightness is 800lm, and the light will be off after heating for 3S; if
it is daytime, it will not turn on; if it is night, it will be off after warming up. When
human movement is sensed, it will light up at the maximum brightness of 800lm
for 20S, and then it will turn off after 20s, repeat the above actions; (when the
power is turned on for the first time, the heat engine time is 15S)
MODE 2: Maximum Brightness Mode + Minimum Brightness Mode
The minimum brightness is 20lm, and the light will be off after 3S warming up; if it
is daytime, it will not light up; if it is night, the brightness after warming up is 20lm.
When human movement is sensed, it will turn to the highest brightness 800lm to
light up for 20S, and turn to the lowest brightness after 20S. 20lm, sense the
movement again, repeat the above action;
MODE 3: Constant Light Mode
Medium brightness 100lm, turn off the light after heating for 3S; if it is daytime, it
will not light up; if it is night, enter the 100lm long light mode, keep on for 4 hours
under 100lm state, the motion sensor will not work; 4 hours later, switch to
MODE 1, After detecting people, the highlight mode (800lm) will go out after a
delay of 20s;
Reminder
NOTES:
1. The remote control method of Remote Control is Infrared Remote Control.
When turning on/off the lamps and switching modes, please aim the Remote
Control at the lamps;
2. If the remote control is out of power or the remote control is lost, you can
adjust the mode and switch the lamp through the MODE SWITCH / OFF on
the back of the lamp, short press the MODE SWITCH / OFF button to cycle to
MODE 1-MODE2-MODE3-turn off the lamp;
1. The recommended installation height is about 4.93 to 10.5 ft from the ground.
In the ideal height range, the motion light provide a detection distance within
5M. The ideal temperature is 77 degrees Fahrenheit, the relative humidity is
between 30% and 80%.
2. If someone or an object moves parallel to the sensor head, the Motion Sensor
has the highest sensitive.
If someone or an object moves directly on the sensor head, the Motion Sensor
has the lowest sensitivity.
3. Do not install light near heat sources, such as air conditioners, vents or furnace
exhaust vents, or toward reflective objects or close to the light source.
4. If the indicator light flashes, it means the motion light is too close to reflective
materials or other light sources. If this happens, please keep the motion light
15 meters away from reflective materials or other light sources.
5. We are recommended to clean the motion light with a damp cloth regularly to
ensure optimal performance and battery charging.
6. Solar panels should not be in contact with any abrasive materials.
Specifications
- Number of LEDs: 210
- Color Temperature: 6000K
- Battery Capacity: 2200mAh
- Maximum Brightness: 800lm
- Medium Brightness: 100lm
5
Package Includes
- Minimum Brightness: 20lm
- CRI: 70+
- Sensing Distance MAX: 33ft
- Sensing Angle: 120°
- LED Remote Control Solar Security Light x 1
- Remote Control x 1
- Back Plate x 1
- Mounting Screw x 2
- Wall Plugs x 2
- User Manual x 1
One Year Limited Warranty
EDISHINE warrants this product to be free from defects in material and
workmanship for a period of one year from the date of purchase. Warranty is
void if damage is caused by misuse or improper installation.
Our dedicated customer service team will get back to you within 24 hours.
6
