HP-5102
User Manual
01-2013 / v1.0
1
COPYRIGHT
Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission from Edimax Technology Co.,
Ltd.
Edimax Technology Co., Ltd. makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and specifically
disclaims any warranties, merchantability, or fitness for any particular purpose.
Any software described in this manual is sold or licensed as is. Should the
programs prove defective following their purchase, the buyer (and not this
company, its distributor, or its dealer) assumes the entire cost of all necessary
servicing, repair, and any incidental or consequential damages resulting from
any defect in the software. Edimax Technology Co., Ltd. reserves the right to
revise this publication and to make changes from time to time in the contents
hereof without the obligation to notify any person of such revision or changes.
The product you have purchased and the setup screen may appear slightly
different from those shown in this QIG. For more information about this product,
please refer to the user manual on the CD-ROM. The software and specifications
are subject to change without notice. Please visit our website www.edimax.com
for updates. All brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective holders.
Edimax Technology Co., Ltd.
Add: No. 3, Wu-Chuan 3rd Rd., Wu-Ku Industrial Park, New Taipei City, Taiwan
Tel: +886-2-77396888
Email: [email protected]
2
Contents
Chapter 1: Introduction .....................................................................................................................................3
1.1 Product Features..................................................................................................................................3
1.2 Application ...........................................................................................................................................3
1.3 Compatibility........................................................................................................................................4
1.4 System Requirements ..........................................................................................................................4
Chapter 2: Interfaces .........................................................................................................................................5
2.1 LEDs......................................................................................................................................................5
2.2 Button ..................................................................................................................................................5
2.3 Fast Ethernet Port ................................................................................................................................6
Chapter 3:Utility Software Installation ..............................................................................................................7
3.1 Win 8 ....................................................................................................................................................7
3.2 Win XP/Vista / 7 .................................................................................................................................15
Chapter 4: Using the Utility Software ..............................................................................................................21
4.1 Main Tab ............................................................................................................................................21
4.2 Diagnostics Tab ..................................................................................................................................22
4.3 About Tab...........................................................................................................................................23
Chapter 5: Group Button .................................................................................................................................24
5.1 Forming a HomePlug AV Logical Network .........................................................................................24
5.2 Joining a Network ..............................................................................................................................25
5.3 Leaving a Network & Joining another Network.................................................................................26
Chapter 6: Troubleshooting.............................................................................................................................27
3
Chapter 1: Introduction
1.1 Product Features
Easy plug-n-play setup and 128-bit AES security
Max. powerline speed up to 500Mbps
Backward compatible with 200Mbps powerline adapters
Features energy saving mode to reduce power consumption
Utilizes existing electrical wires to transmit network data
Powerline transmission range up to 300 meters
1.2 Application
High-definition (HD) and standard-definition (SD) video distribution
Broadband Internet sharing
Internet Protocol Television (IPTV) and Voice over Internet Protocol (VoIP)
applications
4
1.3 Compatibility
500Mbps powerline devices (HomePlug AV standard) are incompatible and cannot be
used with 14Mbps and 85Mbps powerline devices (HomePlug 1.0 and 1.1 standards).
1.4 System Requirements
Operating System
Utility supports Windows XP/Vista/7/8
CPU
Intel Pentium III 1.0GHz (or above)
RAM
256MB (or above)
Free Disk Space
100MB (or above)
Network Interface
Ethernet port (100Mbps or above) and an Ethernet cable
5

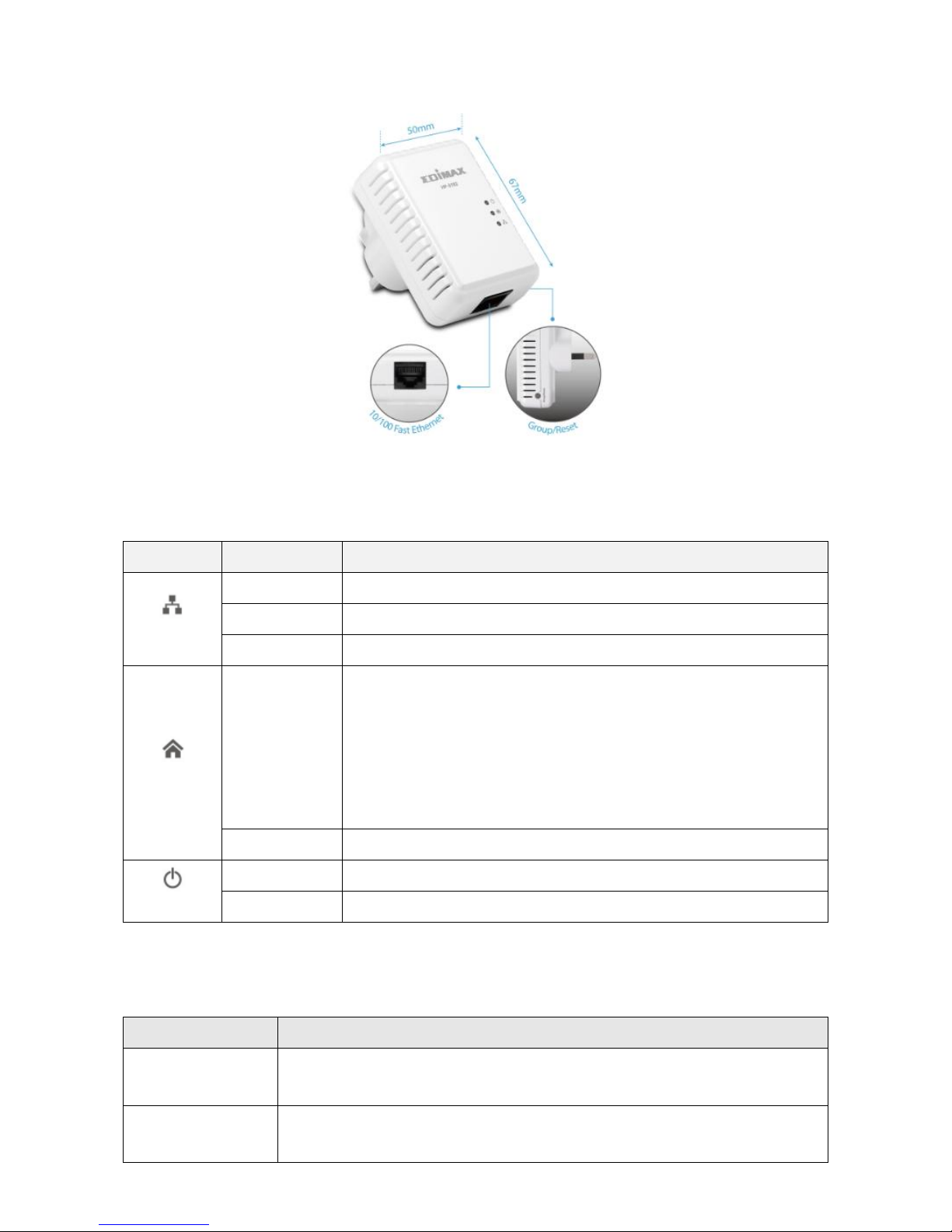

Chapter 2: Interfaces
2.1 LEDs
LED
Status
Description
LAN
Green
LAN port connected
Blinking
LAN activity (transferring data)
Off
LAN port not connected
PLC
Green/Red
The green indicator turns on and the red
indicator turns blinks slowly when the device is
detecting a powerline link.
The green indicator turns on and the red
indicator turns blinks quickly to indicate data is
being transferred over the powerline link.
Off
No other PLC device detected
PWR
Green
Powered on
Off
Powered off
2.2 Button
Interface
Description
Ethernet Port
This is a Fast Ethernet port for connecting to a
computer or other devices with a network port.
Group/Reset
Creates an encrypted powerline network group
automatically (press the button for less than 3 seconds).
6
Leaves an encrypted powerline network group
(press the button for 5~8 seconds).
Restores the powerline adapter to factory defaults
(press the button for 10~15 seconds).
2.3 Fast Ethernet Port
You can connect the powerline adapter to a router, a computer, or any network device
via this Fast Ethernet port.
7
Chapter 3:Utility Software Installation
3.1 Win 8
Step 1 Before installing the utility software, make sure that no other powerline utility is
installed on your computer. If any other utility software is installed, uninstall it and
reboot the computer.
Step 2 Insert the CD into your CD-ROM drive. When the following EZmax Wizard appears,
select your model.
Step 3 Then click “Setup Utility”.
8

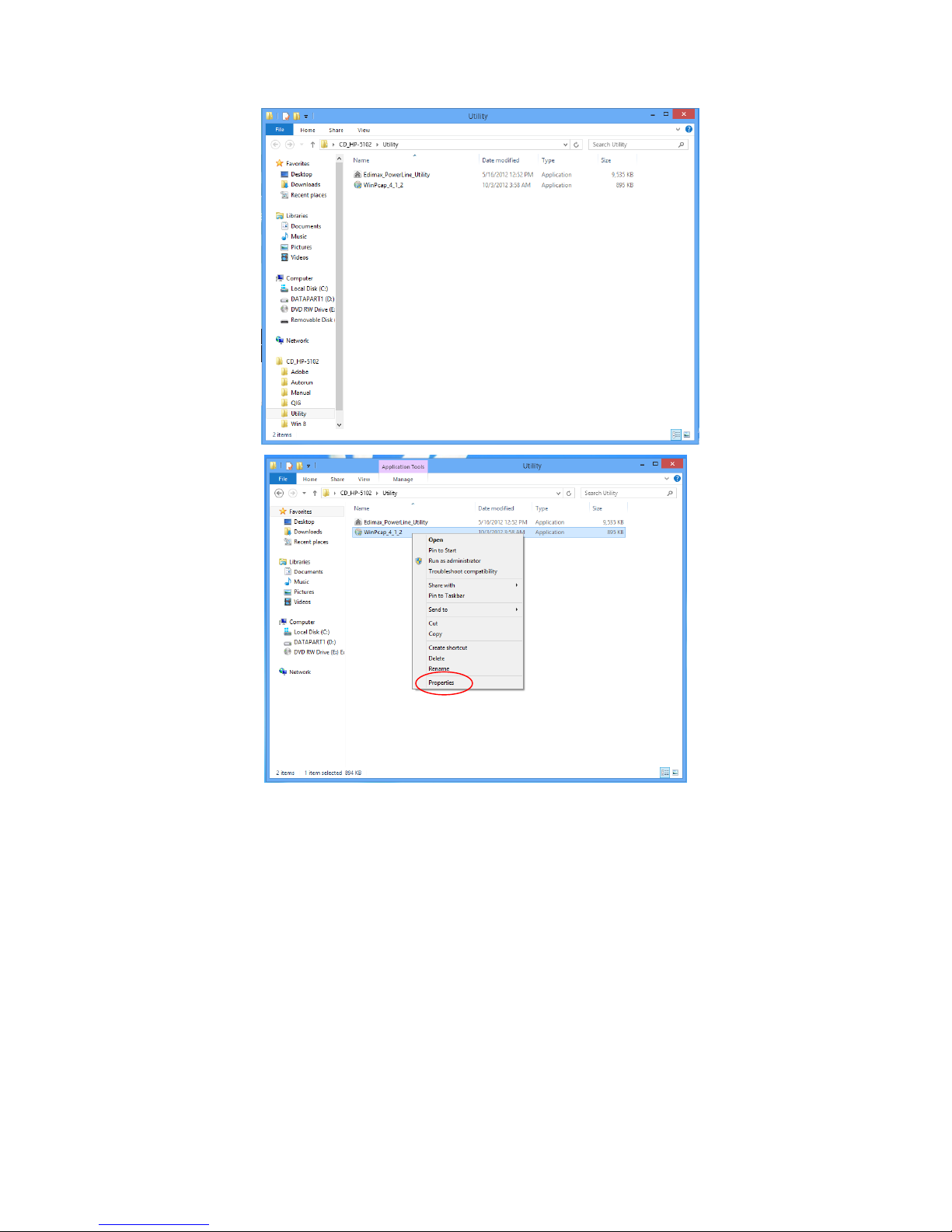

Step 4 Click right button on WinPCap4.1.2 then click “Properties”.
Step 5 Click Compatibility tab and check “Run this program in compatibility mode for:",
then select Windows 7, then click “Apply”.
9
Step 6 Then click “WinPcap_4_1_2”. The wizard will guide you through the setup process.
Step 7 When the following WinPcap Compatibility Assistant appears, select Run the
program without getting help.
