ECS 661FX-M Deluxe Manual de usuario

manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the

right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person

of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Preface

iiii

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission

limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the

equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

This device may not cause harmful interference, and

This device must accept any interference received, including interference that may cause undesired operation.

Canadian Department of Communications

• This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

• Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada.

About the Manual

Chapter 1

Introducing the Motherboard

Chapter 2

Installing the Motherboard

Chapter 3

Using BIOS

Chapter 4

Using the Motherboard Software

Describes features of the motherboard.

The manual consists the following:

Go to page 1

Go to page 35

Describes installation of motherboard components.

Provides information on using the BIOS Setup Utility.

Describes the motherboard software

Go to page 5

Go to page 17

TABLE OF CONTENTSABLE OF CONTENTS

ABLE OF CONTENTSABLE OF CONTENTS

ABLE OF CONTENTS

Preface i

Chapter 1

Introducing the Motherboard 1

Introduction..........................................................................................................................................................................................................1

Features..................................................................................................................... ...........................................................................................2

Motherboard Components.................................................................................................................................................................................4

Chapter2 5

Installing the Motherboard 5

Safety Precautions.................................................................................................................................................................................................5

Choosing a Computer Case.................................................................................................................................................................................5

Installing the Motherboard in a Case.................................................................................................................................................................5

Checking Jumper Settings...................................................................................................................................................................................6

Setting Jumpers..................................................................................................................................................................................................6

Jumper Settings..................................................................................................................................................................................................7

Connecting Case Components...........................................................................................................................................................................7

Front Panel Connecor........................................................................................................................................................................................8

Installing Hardware..............................................................................................................................................................................................9

Installing the processor......................................................................................................................................................................................9

Installing Memory Modules..............................................................................................................................................................................10

Installing a Hard Disk Drive/SATA Hard Drive/CD-ROM.............................................................................................................................11

Installing a Floppy Diskette Drive....................................................................................................................................................................12

iii

Installing Add-on Cards...................................................................................................................................................................................13

Connecting Optional Devices............................................................................................................................................................................14

Connecting I/O Devices....................................................................................................................................................................................15

Chapter 3 17

Using BIOS 17

About the Setup Utility.......................................................................................................................................................................................17

The Standard Configuration................................................................................................................................................................................17

Starting Setup..........................................................................................................................................................................................................17

Updating the BIOS...............................................................................................................................................................................................18

Using BIOS.............................................................................................................................................................................................................19

Standard CMOS Features.....................................................................................................................................................................................19

Advanced BIOS Features.....................................................................................................................................................................................20

Advanced Chipset Setup......................................................................................................................................................................................23

Integrated Peripherals...........................................................................................................................................................................................25

Power Management Setup.....................................................................................................................................................................................28

PNP/PCI Configurations.......................................................................................................................................................................................31

PC Health Status.....................................................................................................................................................................................................31

Frequency/Voltage Control.....................................................................................................................................................................................32

Load Fail-Safe Defaults.........................................................................................................................................................................................32

Load Optimized Defaults.....................................................................................................................................................................................33

Set Password..........................................................................................................................................................................................................33

Save & Exit Setup...................................................................................................................................................................................................33

Exit Without Saving.............................................................................................................................................................................................33

Chapter 4 35

Using the Motherboard Software 35

About the Software CD-ROM...........................................................................................................................................................................35

Auto-installing under Windows 98/ME/2000/XP...............................................................................................................................................35

Running Setup........................................................................................................................................................................................................36

Manual Installation....................................................................................................................................................................................37

Utility Software Reference................................................................................................................................................................................37

Multi-Language Translation

Chapter 1

Introducing the Motherboard

Introduction

Thank you for choosing 661FX-M Deluxe motherboard of great perfor-

mance and with enhanced function. 661FX-M Deluxe motherboard carries

a micro-ATX form factor of 244 x 230 mm. 661FX-M Deluxe supports

Socket 478 Pentium 4 processors with system data transfer rate up to 800

MHz and “Hyper-Threading” technology for high-end business or personal

desktop markets.

661FX-M Deluxe incorporates chipset of SiS661FX Northbridge and SiS964/

964L Southbridge.

SiS661FX contains a DRAM controller that supports up to two un-buffered

DIMM DDR400 and 32Mb, 64Mb, 128Mb, 256Mb, 512Mb, 1Gb SDRAM

technology with page size from 2 KB up to 32 KB. Its AGP controller is

AGP 3.0 compliant and supports AGP 8X/4X interface with fast write trans-

action. It accommodates high throughput SiS MuTIOL 1G interconnecting

to SiS964/SiS964L MuTIOL 1G media I/O with bi-directional 16 bit data bus

to perform 1GB/s bandwidth in 133 MHz x 4 mode. Its high quality 3D

accelerator supports Ultra-AGPIITM up to 2.7GB/s bandwidth.

SiS964/964L supports Hi-Precision Event Timer (HPET) for Microsoft

Windows with multiple DMA bus architecture that supports isochroous re-

quest and continuous packet transmission. It implements an EHCI compli-

ant interface that provides 480Mb/s bandwidth for eight USB 2.0 ports,

integrates AC’97 v2.3 compliant audio controller that features a 6-channels

of audio speaker out and HSP v.90 modem support. The Southbridge inte-

grates a Serial ATA host controller that is SATA v1.0 compliant, supporting

Ultra DMA 150 (SiS964 only). SiS964/964L provide dual independent IDE

channels and each of them support PIO mode 0,1,2,3,4 and multiword DMA

mode 0,1,2 and Ultra DMA 33/66/100/133.

There is an advanced full set of I/O ports in the rear panel, including PS/2

mouse and keyboard connectors, COM1, LPT1, VGA1, and four USB ports,

one optional LAN port, and audio jacks for microphone, line-in, and line-

out. Additional I/O ports include two rear USB connectors and one rear RJ45

connector.

Featuring good stability and performance, and the advanced SiS chipset, the

661FX-M Deluxe is an excellent Pentium 4 DDR motherboard for the ideal

solution for any home or workstation PC.

Introducing the Motherboard

Feature

661FX-M Deluxe uses a 478-pin socket type of Pentium 4 that carries

the following features:

• Intel Pentium 4 Willamette: FSB 400, 512K L2 cache

• Intel Pentium 4 Northwood: FSB 400, 533, 512K L2 cache

• Intel Pentium 4 Northwood: FSB 533, 512K L2 cache, HT

supported

• Intel Pentium 4 Northwood: FSB 800, 512K L2 cache, HT

supported

• Intel Pentium 4 Celeron CPU

The SiS661FX Northbridge (NB) and SiS964/964L Southbridge (SB)

chipset is based on an innovative and scalable architecture with proven

reliability and performance.

•Accommodates high throughput SiS MuTIOL

1G interconnecting to SiS964 MuTIOL 1G

media I/O with bi-directional 16-bit data bus to

perform 1GB/s bandwidth in 133 MHz x 4

mode

SiS661FX(NB) •Supports 12 outstanding transactions and out-

of-order completion

•Accommodates high quality 3D accelerator that

Ultra-AGPIITM up to 2.7 GB/s bandwidth

•Built-in CRT FIFOs to support ultra high

resolution graphics modes and reduce CPU

wait-state

•Supports auto clock throttling for 2D engine, 3D

engine

SiS 964/964L

(SB)

•Concurrent servicing of all DMA Devices: Dual

IDE Controllers, SATA controller (except for

SiS964L), three USB 2.0/1.1 host controller,

LAN MAC Controller and Audio/Modem DMA

Controller

•Compliant with PCI 2.3 specificaiton

•Compliant with Serial ATA 1.0 specification,

supports power saving mode (SiS964 only)

•Compliant with AC’97 v2.3 supporting 6

Channels of audio outputs and V.90 HSP-

Modem

•Integrated USB 2.0 Controller with three root

hubs and eight function ports

• Supports DDR400/333/266 MHz DDR SDRAM memory

module

• Accommodates two DDR 184-pin unbuffered DIMM slots

• Each slot supports up to 1GB with a total maximum capacity of

2GB

Processor

“Hyper-Threading” technology enables the operating system into think-

ing it’s hooked up to two processors, allowing two threads to be run in

parallel, both on separate “logical” processors within the same physical

processor.

Chipset

Chipset Memory

Memory

Introducing the Motherboard

EnglishEnglish

English

• Built-in a high performance 256-bit 2D/3D engine

• Support Ultra-AGPII up to 2.7GB/s bandwidth

• Up to 133 MHz 3D engine clock speed

• Built-in 32-bit floating point format VLIW triangle setup

engine and 2 pixel rendering pipelines and 4 texture units

• 661FX-M Deluxe supports 18-bit stereo full-duplex AC’97

audio CODEC that is compliant with AC’97 v2.3 specification

• It comes with independent and variable sampling rate and

advanced power management

• It is incorporated with proprietary converter technology

• The digital interface circuitry operates from a 3.3V power

supply and supports an AC’97 2.3 compliant SPDIF out

function that allows easy connection from the PC to other

electronic products

• It supports four analog line-level stereo imputs

The motherboard comes with the following expansion options:

• One AGP 3.0 compliant slot with 8x/4x speed

• Three 32-bit PCI v2.3 compliant slots

• Two 40-pin IDE low profile headers that support four IDE

devices

• One floppy disk drive interface

• Two 7-pin SATA connector

• A Communications Networking Riser (CNR) slot

The 661FX-M Deluxe motherboard supports Ultra DMA bus mastering

with transfer rates of 133/100/66/33 MB/s.

The onboard LAN provides the following features:

• Supports 10Mb/s and 100Mb/s N-way Auto-negotiation

operation

• Supports half/full duplex operation

• Supports Wake-On-LAN(WOL) function and remote wake-up

• Supports power down mode

The motherboard has a full set of I/O ports and connectors:

• Two PS/2 ports for mouse and keyboard

• One serial port

• One parallel port

• Four USB ports

• One LAN port (optional)

• One VGA port

• Audio jacks for microphone, line-in and line-out

This motherboard uses Award BIOS that enables users to configure

many system features including the following:

• Power management

• Wake-up alarms

• CPU parameters

• CPU and memroy timing

The firmware can also be used to set parameters for different processor

clock speeds.

Some hardware specifications and software items are subject

to change with out prior notice.

Graphics

Audio

Expansion Options

Onboard LAN (Optional)

Integrated I/O

BIOS Firmware

Introducing the Motherboard

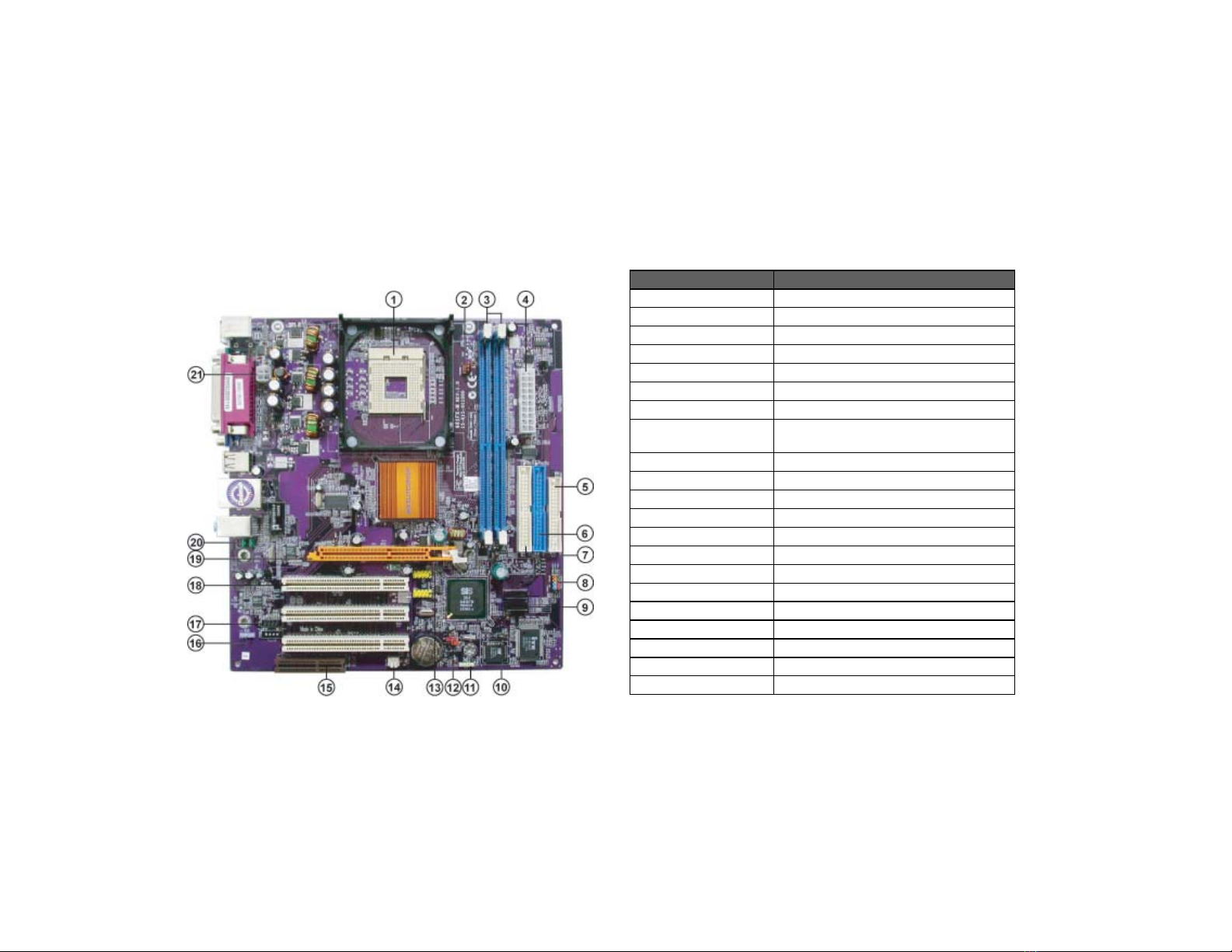

Motherboard Components Table of Motherboard Components

Label Component

1CPU Socket mPGA478 socket for Pentium 4 CPUs

2CPUFAN1 CPU cooling fan connector

3DIMM1 ~ DIMM2 184-pin DDR SDRAM slots

4ATX1 Standard 20-pin ATX power connector

5FDD1 Floppy diskette drive connector

6IDE1 Primary IDE channel

7IDE2 Secondary IDE channel

8PANEL1 Connector for case front panel switches and

LED indicators

9SATA1 ~ SATA2 Serial ATA connectors

10 JP3 BIOS Protect jumper

11 SPK1 Speaker header

12 JP1 Clear CMOS jumper

13 USB3 ~ USB4 Front Panel USB headers

14 CASFAN1 Case fan connector

15 CNR1 Communications Networking Riser slot

16 SPDIFO1 SPDIF out header

17 CDIN1 CD-in connector

18 PCI1 ~ PCI3 32-bit add-on card slots

19 AGP1 Accelerated Graphics Port slot

20 AUDIO1 Front panel audio header

21 ATX2 Auxiliary 4-pin power connector

This concludes Chapter 1. The next chapter explains how to install the

motherboard.

Chapter 2

Installing the Motherboard

SafetyPrecautions

•Follow these safety precautions when installing the

motherboard

•Wear a grounding strap attached to a grounded device to avoid

damage from static electricity

•Discharge static electricity by touching the metal case of a

safely grounded object before working on the motherboard

•Leave components in the static-proof bags they came in

•Hold all circuit boards by the edges. Do not bend circuit boards

ChoosingComputerCase

There are many types of computer cases on the market. The motherboard

complies with the specifications for the micro-ATX system case. First,

some features on the motherboard are implemented by cabling connectors

on the motherboard to indicators and switches on the system case. Make

sure that your case supports all the features required. Secondly, 661FX-M

Deluxe supports one or two floppy diskette drives and four enchanced IDE

drives. Make sure that your case has sufficient power and space for all drives

that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that

the I/O template in the case matches the I/O ports installed on the rear edge

of the motherboard.

This motherboard carries a micro-ATX form factor of 244 x 230 mm.

Choose a case that accommodates this form factor.

InstallingtheMotherboard in aCase

Refer to the following illustration and instructions for installing the

motherboard in a case:

This illustration shows an example of a motherboard being installed in a

tower-type case:

Do not over-tighten the screws as this can stress the

motherboard.

Most system cases have mounting brackets installed in the case, which

correspond the holes in the motherboard. Place the motherboard over the

mounting brackets and secure the motherboard onto the mounting brackets

with screws.

Ensure that your case has an I/O template that supports the I/O ports and

expansion slots on your motherboard.

Tabla de contenidos

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
