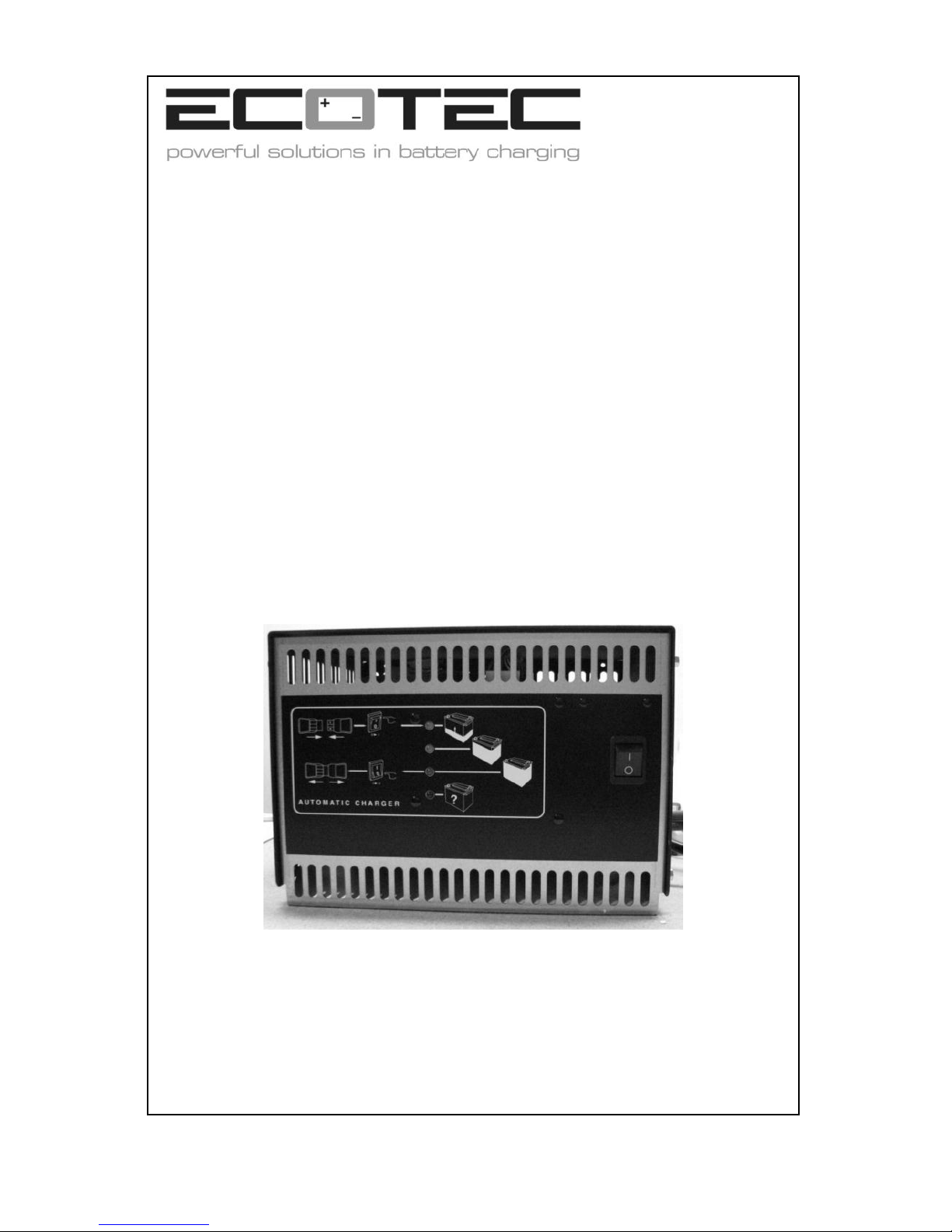

Ecotec STC Manual de usuario

Operating Instructions for STC

Battery Charger

General Safety

The charger may only be used for the specified battery types.

This battery charger is supplied with pre-set charging curves

that are adapted for the battery types listed in figure 1.

Always contact the battery manufacturer to verify that the

charging curve is appropriate.

Hydrogen gas is generated when charging batteries, which

can cause an explosion.

During and immediately after charging, batteries may not be

placed in the vicinity of sparks or open flame.

Do not use the battery charger if it is damaged. Do not

touch damaged components. Turn off the input AC voltage

immediately and contact service personnel.

The battery charger has high voltage inside the charger case

that can cause personal injury or death. The metal casing

may only be opened by authorized service personnel.

Disconnect the battery and input AC power before carrying

out maintenance or cleaning the battery charger.

The Battery charger must be connected to an earth

grounded AC input source.

Batteries should only be charged in a well ventilated area.

Installation

Initial Installation

The AC input source to which the charger is to be connected must be

capable of supplying the current specified on the charger nameplate.

Avoid the use of extension cords with the charger. The use of an

improper extension cord could result in a risk of fire or electric shock.

Locate the charger cord such that it will not be stepped on, tripped over

or otherwise subjected to damage or stress.

Do not operate this charger if it has been dropped or is visibly damaged

in any manner; return to manufacturer for service.

The battery charger should be installed indoors in a low humidity and

low dust/airborne particle environment.

If several battery chargers are to be installed next to each other, they

may not be located so that warm exhaust air from one battery charger

blows into the air intake of another battery charger.

Install the battery charger so that gasses from charging battery do not

get sucked in by the battery charger fan.

The battery charger may be mounted horizontally, or suspended on a

wall with the accompanying bracket. When mounted on a wall the

charger should be placed horizontally to prevent the effects of moisture

and dirt. This charger is not intended to be mounted on mobile

equipment.

CAUTION: TO REDUCE THE RISK OF FIRE, USE THIS

CHARGER ONLY ON CIRCUITS WITH BRANCH CIRCUIT PROTECTION

(CIRCUIT BREAKER OR FUSE) OF A MAXIMUM OF 20 AMPERES IN

ACCORDANCE WITH THE NATIONAL ELECTRIC CODE, ANSI/NFPA 70

AND ALL LOCAL CODES AND ORDINANCES.

Battery Charger Application

The STC charger is intended for use in single shift and other light duty

applications. Depending on battery capacity, charging can last from 10-16 hrs.

Battery capacity ranges for each model are listed below:

Charger

Model

Output

Voltage

Max Output

Amps

Battery Size

Range

STC 24/30

24VDC

30A

225-375 AH

STC 24/45

24VDC

45A

375-525 AH

Figure 1

WARNING: TO REDUCE THE RISK OF AN ELECTRIC SHOCK,

KEEP THE CHARGER DRY. DO NOT EXPOSE IT TO RAIN OR

STANDING WATER. STORE IN A CLEAN AND DRY LOCATION.

OPERATION

Charging

Connecting a battery

1Check that the battery charger is turned off and the front panel switch

is in the OFF position. All indicator lights should be off.

2Check the charger output cables and connector to ensure there is no

visible damage.

3Connect the battery to the battery charger.

4Start the battery charger. Set the front panel switch to the ON

position.

5The battery charger will start charging automatically after a few

seconds. The upper indicator light should light solid yellow.

6When the battery reaches approximately 80% charged, the other

yellow indicator light will light. Charging time will vary depending on

battery capacity and level of charge when connected.

7The lower indicator light will turn solid green when the battery is fully

charged. When the charger is left connected to the battery,

Maintenance charging will continue periodically.

Note! –The green LED indicator light will not light immediately if a fully

charged battery is connected. This time can vary from 30 to 60 minutes.

WARNING: IN CASE OF DANGER, DISCONNECT THE

CHARGER FROM THE AC INPUT VOLTAGE

Disconnecting a battery

1Turn off the charger. Set the front panel switch to the OFF position.

2Disconnect the battery from the battery charger

Maintenance

May only be performed by qualified personnel.

Troubleshooting

May only be performed by qualified personnel.

Safety Shutoff

Charging can be terminated if:

The battery does not reach 80% charged within the preset limit, the

charger will shut off. The lower red LED will light indicating the safety

shut off.

Charging is temporarily interrupted or reduced when:

The charger internal temperature exceeds the preset values.

Error messages

Charging faults are indicated by the lower red indicator light.

CAUTION: THE BATTERY CHARGER SHOULD BE TURNED

OFF WHEN DISCONNECTING THE BATTERY. IF THE BATTERY IS

DISCONNECTED DURING AN ONGOING CHARGE CYCLE, THE

CONTACTS IN THE CHARGING CONNNECTOR WILL BE DAMAGED

AND SPARK FORMATION CAN OCCUR CAUSING A HYDROGEN

EXPLOSION.

CHARGER WARRANTY

ECOTEC warrants that each new and unused PAC800 battery charger (the

“Product”) manufactured and supplied with good workmanship is free from

any known mechanical defect, provided that;

(A) the product is installed and operated in accordance with the accepted

industrial standards and in accordance with the printed instructions furnished

by ECOTEC

(B) the product is used under normal conditions for which designed.

moisture condensing environment.

(D) the product is not subjected to misuse, accident or negligence, and the

product receives proper care, protection and maintenance under supervision of

competent personnel.

Warranty Terms and Conditions

ECOTEC Battery Chargers are warranted for one (1) year, which begins on the

date of shipment from ECOTEC. During said period, warranty covers repair or

replacement FOB 262 Fox Drive, Piqua, OH 45356.

NON-TRANSFERABLE WARRANTY. This warranty is extended by ECOTEC only

to the original user (purchaser) of new equipment from ECOTEC or one of its

authorized agents. The product purchased under this agreement shall be used

exclusively by the buyer. There shall be no third party beneficiary of this

warranty.

REPAIR LIMITATIONS ECOTEC has the right to site inspection and judgment of

the claimed defects in any product covered by this warranty. ECOTEC's liability

is limited to the repair of any defects found to exist by ECOTEC or, at ECOTEC's

option, the replacement of the defective product.

ECOTEC and its authorized agents shall not be liable for direct or indirect

damages in excess of such repair or replacement. In no event shall the

purchaser be entitled to recover for contingent expenses from, but not limited

to, telephone calls, telegrams, travel expenses, lodging, duties and taxes, labor,

rental or replacement equipment, loss of business or profit or other

commercial losses.

CONTINUED USE OF DEFECTIVE PRODUCTS. The continued use of an ECOTEC

Battery Charger that is known to be defective VOIDS ALL WARRANTIES.

Warranty Terms and Conditions, Continued

REPAIR OF MODIFIED EQUIPMENT. Except as authorized in writing the

warranty specified does not cover any equipment that has been repaired by

any party other than ECOTEC or its authorized agents. Except as authorized in

writing the warranty specified does not cover any equipment that has been

modified, mechanically or electrically, by any party other than ECOTEC.

WARRANTY EXPENSE LIMITATIONS. ECOTEC will limit the warranty expense of

all chargers to be paid at a maximum of the original purchase price of the

charger.

The provisions of this warranty shall not apply to product in use outside of the

continental USA.

Except as stated above, all other warranties and conditions, either expressed or

implied, including implied warranties of merchantability and fitness for a

particular purpose, are excluded and buyer assumes all risk and liability

resulting from the use of the goods. ECOTEC neither assumes or authorizes any

persons to assume for ECOTEC any other liability in connection with the sale or

use of the goods sold and there are no oral agreements or warranties collateral

to or affecting this written warranty.

When installing, servicing or operating these products, safe practices should be

used by skilled and qualified technical persons.
