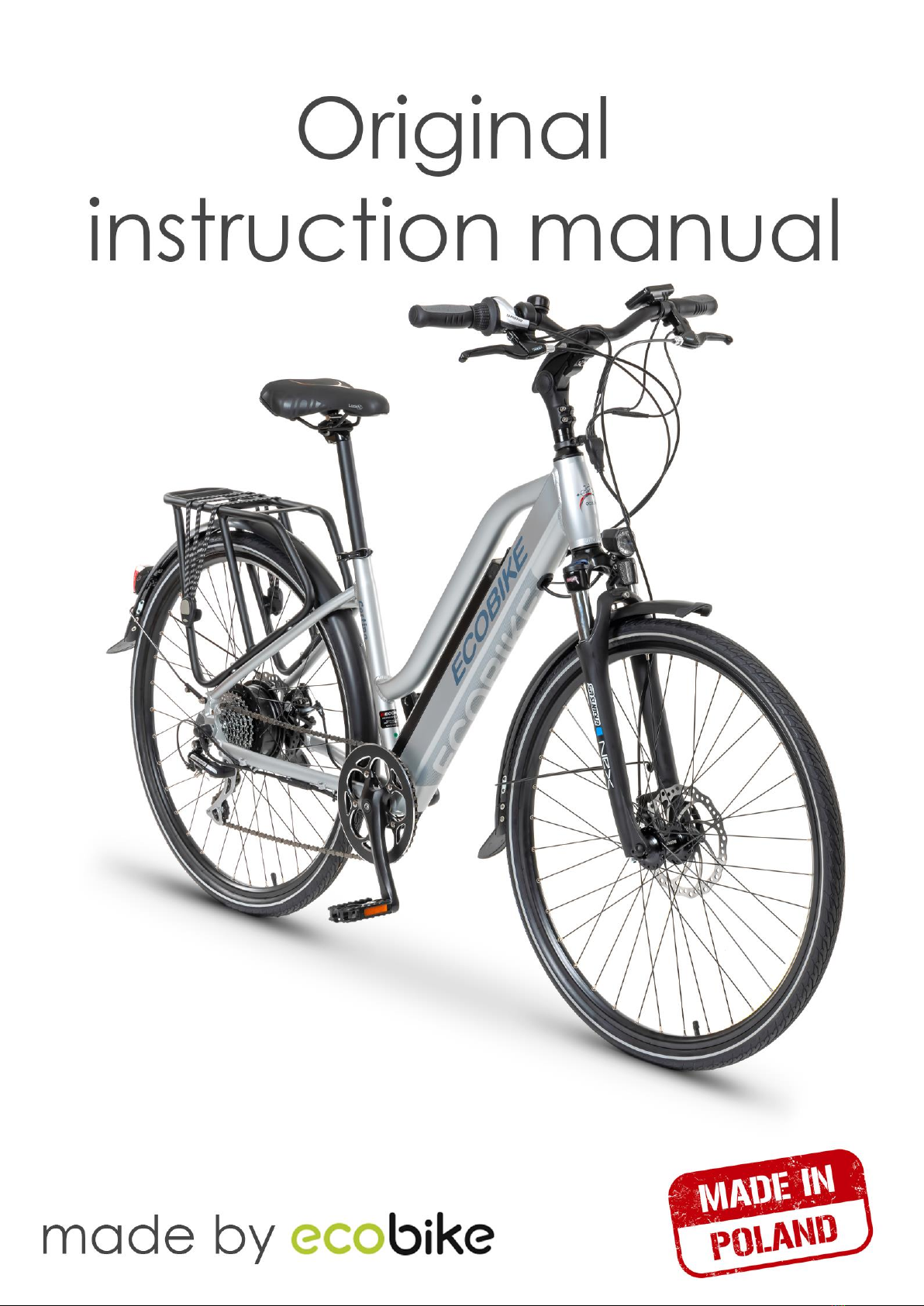

Ecobike CORTINA Guía del usuario




SPIS TREŚCI
INTRODUCE .............................................................................................................................................5
SAFETY......................................................................................................................................................5
1 FOR PARENTS / GUARDIANS .............................................................................................................5
USE ACCORDING TO THE INTENDING....................................................................................................6
1 TREKKING BICYCLE ............................................................................................................................6
2 REAR HUB MOTOR .............................................................................................................................6
STORAGE AND USING.............................................................................................................................6
BEFORE RIDDING.....................................................................................................................................6
TECHNICAL INFORMATION.....................................................................................................................7
1 RIMS....................................................................................................................................................7
2 SADDLE ..............................................................................................................................................7
3 BEARINGS OF HANDLEBAR ...............................................................................................................7
4 WHEELS...............................................................................................................................................8
5 TIRES ...................................................................................................................................................8
6 SPOKES...............................................................................................................................................8
7 BRAKES ...............................................................................................................................................8
8 CRANKSET ..........................................................................................................................................8
9 PEDALS...............................................................................................................................................9
10 DERAILLEUR......................................................................................................................................9
11 CHAIN ..............................................................................................................................................9
12 TROLLEY............................................................................................................................................9
13 RACK (OPTION) ...............................................................................................................................9
14 LIGHTING..........................................................................................................................................9
ASSMBLY................................................................................................................................................10
1 PREPARING ......................................................................................................................................10
2 FOLD THE FRAME .............................................................................................................................10
3 HANDLEBAR ASSEMBLY ...................................................................................................................10
4 PEDALS ASSEMBLY ...........................................................................................................................10
5 SADDLE ASSEMBLY ..........................................................................................................................10
GREASE..................................................................................................................................................11
USING BATTERY AND CHARGER...........................................................................................................11
1 BATTERY............................................................................................................................................11
2 IMPORTANT INFORMATION ABOUT BATTERIES ...............................................................................11
3 INSERTION AND REMOVAL THE BATTERY ........................................................................................12
4 CHARGING THE BATTERY.................................................................................................................12
FUNCTION DISPLAY ............................................................................................................................12
1 FULL VIEW AREA.............................................................................................................................12




2 ON/OFF DISPLAY ...........................................................................................................................12
3 USING POWER INDICATOR...........................................................................................................13
4 SPEED INDICATOR ........................................................................................................................13
5 KM/H & MPH .................................................................................................................................13
6 DISPLAY BACKLIGHT AND LIGHT (OPTIONAL).............................................................................13
7 WALK ASSISTANCE........................................................................................................................13
8 SELECT THE ASSISTANCE MODE ...................................................................................................13
9 ERROR CODE...............................................................................................................................14
10 error table...................................................................................................................................14
11 SETTINGS......................................................................................................................................14
12 RESET DATA .................................................................................................................................14
13 WHEEL SIZE SETTINGS...................................................................................................................14
14 KM/H & MPH ...............................................................................................................................15
15 MOTOR MODE SETTINGS (ECO, NORMAL, POWER).................................................................15
16 BATTERY LEVEL INDICATOR .........................................................................................................15
WARRANTY CARD...............................................................................................................................16
NOTES ..................................................................................................................................................17

1. INTRODUCE

First of all, we would like to thank you for purchasing our electric bike, which has been

carefully designed and manufactured in accordance with the requirements of the highest

international standards. We wish your new bike to be a new way of your life.

Please read the following instructions carefully before proceeding with the bicycle. The

manual contains important information related to the safety, operation and assembly of

the bicycle. The bike has electrical parts which, according to the Act, are considered

dangerous, which means the obligation to dispose of - it cannot be disposed of in standard

garbage. Please remember that it’s offence.

2. SAFETY

•We suggest using the appropriate helmet in accordance with the European

standards.

•Observe the traffic regulations.

•We recommend that you take extra care when moving with crowded traffic.

•Perform a bicycle service only at bicycle service points.

•Regular service will provide you with a greater safety of bicycle use and prolong its

life.

•Carry out regular maintenance according to the instructions.

•Do not make any repairs to electrical parts yourself, only at designated service points.

•Never ride a bicycle if you have drunk or taken other intoxicants.

•The user should have front and rear lights and reflectors on the wheels.

•When cleaning the bicycle, always use soft wiper.

•Hold the steering wheel with both hands while ridding.

•Do not catch or other vehicles.

•Avoid sudden braking.

•Do not wear loose clothing for cycling.

•Only use original spare parts for components.

•When installing bicycle accessories, it is recommended that you use these

accessories for assembly instructions.

•Parents should pay special attention to the safety of children while they are being

transported.

•Children should be transported in special chairs permanently attached to the

bicycle.

2.1 FOR PARENTS / GUARDIANS

Parents / guardians are responsible for the conduct and safety of their child. Before ridding

by a child, they should instruct them about the proper use of the bicycle. Before allowing

a child to ride, parents are required to:

✓Read the entire manual, and to familiarize the child with the warnings and functions

and principles of the bicycle.

✓Make sure that the child has an approved bicycle helmet when driving, and that he

understands all safety rules.

3. USE ACCORDING TO THE INTENDING

Improper use of the bike or use contrary to its intended use may involve danger and expose

you to loss of health or life. If you have any doubts whether the purpose of the bike matches

your ridding style - ask the seller.

3.1 TREKKING BICYCLE

This type of bicycle work well on paved surfaces and paths. They combine comfort and

driving dynamics. It has a sturdy frame and large, 28-inch wheels. The user’s position on the

bike is very comfortable and allows hours of riding. These types of bicycles, and in particular

their braking system, have been designed for a maximum load of 125 kg (bicycle + cyclist

+ luggage), the weight of the cyclist with luggage may not exceed 100 kg.

This bike is designed for recreational purposes, not for competitive purposes. For riding on

public roads, bicycles without standard accessories, should be equipped with front and

rear lighting, bell, reflections on the pedals and spokes of the wheels, in such a way that

the bike meets the requirements of the traffic regulations.

3.2 REAR HUB MOTOR

Optimal conditions for electric bikes equipped with a hub motor are evenly shaped and

paved surfaces. In the case of inclines on the road, the user should take the load off the

engine, using sufficient force to maintain continuous electrical assistance. The support

system has been equipped with a safety device that prevents further operation of the

engine when the overload causes a rapid increase of its temperature. The system will restart

the engine when the temperature returns to normal. Improper use of the bike or use

contrary to its intended use may involve danger and expose you to loss of health or life. If

you have any doubts whether the destination of the bicycle corresponds to your ridding

area (mountains, city, asphalt, etc ...) - ask the seller if the chosen model will be suitable.

4. STORAGE AND USING

➢The bicycle is not intended for long-term outdoor storage (max 12 hours a day.

➢The bicycle should be stored in a dry place at room temperature.

➢The bicycle should be stored away from corrosive products and places.

5. BEFORE RIDDING

Always check the technical condition of the bicycle before every ride, especially:

✓Air pressure in the wheels, remember to observe the pressure range specified by the

manufacturer on the tire.

✓Check the tire condition for deformation, cracks and whether the tire adheres to the

rim and does not stick out beyond the rim.

✓Checking wheel screws.

✓Checking the handlebar and stem (whether it does not rotate or is not loose).

✓Checking the screws of saddle (does not rotate or fall under the weight).

✓Check if the bicycle lighting (front and rear) works well.

✓Checking the beep (bell).

✓If there is no visible safety groove on the side surfaces of the rim, the rim should be

replaced.

6. TECHNICAL INFORMATION

6.1 RIMS

Before using your bike, always check that the wheels are centered and that the rims are

undamaged. During operation of the bicycle, and especially in any collisions, cracks and

cracks may appear. When you see a damaged rim, immediately contact an authorized

service center for replacement with a new one. A damaged rim may damage the tire, for

example, which may involve danger and expose you to health or life.

6.2 SADDLE

The saddle should be tightened after

setting the correct and most comfortable

height for the user. When setting the

saddle, pay attention to the maximum

extension of the saddle post. The seatpost

must be inserted in the frame in such a

way that the safety indicator (see picture)

on the seat post is invisible, if the indicator

is visible, there is a possibility of the saddle

post breaking through its low load.

The final adjustment of the saddle position

is carried out by moving the saddle in the

saddle clamping bracket forward or

backward. Please remember not to go out

of the scale placed on the saddle,

otherwise the saddle may be damaged,

due to excessive load.

Please remember to set the saddle

correctly (according to the figure below), it

is important for the user because the

incorrectly positioned saddle causes the

cyclist to tire more quickly, pain in the legs

and back.

6.3 BEARINGS OF HANDLEBAR

The handlebar, when placed in the most

comfortable position for the user, must be

tightened so that it does not loosen during riding.

In an a-head type, the clearance should be

removed by loosening the Allen screws on the

handlebar bracket and tightening the rudder bolt

(until the clearance is fully removed). After

adjusting the bearings, tighten the Allen screws on

the bracket - figure below.

6.4 WHEELS

Properly adjusted wheels should rotate slightly and smoothly, without jerks, perceptible

slack. In the case of loosening in the wheel hub, it must be eliminated by adjusting. In order

to adjust the wheel, you must have specialist tools, therefore, if a fault is found, please go

to an authorized service point.

6.5 TIRES

For tires, the pressure range specified by the manufacturer must be observed on the side

of the tire (pressure unit indicated on the tires 1000 kPa = 14.22 P.S.I = 1 bar = 1 at). The tire

should be placed in the direction indicated on its side (the arrow shows the direction of

rotation). The tire should not have any deformations or cracks and should adhere to the rim

in parallel. After finding out that the tire has any of the defects, immediately go to an

authorized service point.

6.6 SPOKES

Spokes in wheels should be evenly stretched. The spokes loosened during the bicycle's

operation may cause radial and axial runout of the wheels or rupture of the spokes, which

affects the service life of the rim and hub bearings, as well as negatively affects the braking

performance. These irregularities should be removed at service points.

6.7 BRAKES

Bicycle disc brakes are more efficient than v-brakes. They do not

require paying much attention, but from time to time there may

be necessity of adjusting the distance between the brake pads

and the disc. In mechanical brakes, the distance between the

pads and the disc is adjusted in such a way as to equalize the right

and left distance between the brake disc and brake pads. If the

brake pads are worn, the clearance on the outside and inside

must be evenly adjusted to prevent the brake pads from touching

only one side of the disc.

In addition, adjust the cable so that the rest is less than 20

mm. If the rest of cable is longer, the end of the cable may

get stuck in the disc brake rotor, which could block the

wheel while cycling and seriously injure yourself.

6.8 CRANKSET

The crank mechanism with cranks mounted on the axis with

the screw requires systematic control. The contribution of the

crank mechanism together with the screw-in bowls, showing

excessive clearance, is regulated by tightening the main

screw with an Allen wrench. Using a bicycle with a loose

crankset causes indentation of the crank seat and its

destruction.

6.9 PEDALS

The axles of the pedals should be sufficiently tightened to

the crank arm. Incorrect tightening will loosen the

threaded connection, which will consequently destroy

the thread of the pedal and crank! The right pedal axis

has a right-hand thread marked "R". The left pedal axis

has a left-hand thread marked "L".

6.10 DERAILLEUR

These are components with a complex structure that requires proper operation, operation

and maintenance. When using and storing the bicycle, make sure that the guide 1 (Figure

below) is not subjected to side impacts which do not occur when properly used. The

alignment of the guide will cause the derailleur to operate incorrectly. Further exploitation

may lead to pulling the derailleur into the spokes of the wheel and irreversibly damaging it.

To adjust the derailleurs, both front and rear, first

set the trailing edge of the rails out of the rack. For

this adjustment, use the extreme deflection

screws on the gears body. In a properly adjusted

derailleur the guide is in line with the smallest and

largest sprocket. Both the rear and front derailleur

should properly control the ratios.

6.11 CHAIN

Depending on the conditions and frequency of travel, the chain is worn and lengthened,

destroying the sprockets at the same time. To check the correct chain tension, set the gears

so that the chain is on the largest chainring in the front. Then try to pull the chain away from

the dial. If it sticks out more than 3 mm, it can be replaced and should be reported to an

authorized service center. Too strong strain can increase the effort put in pedaling and

reduce the chain's strength. Too little tension can cause the chain to fall. Regularly it should

be cleaned of dirt (sand, mud etc.) and treated with a special grease.

6.12 TROLLEY

Do not exceed the maximum capacity marked on the trolley by its manufacturer.

6.13 RACK (OPTION)

Before ridding, check that the rack is correctly attached to your bike. Regularly check that

the fasteners are properly tightened. Do not exceed the maximum capacity marked on

the luggage compartment (25 kg). The luggage compartment is not designed to tow a

bicycle trailer. If you plan to mount a child seat on the rack, make sure that its load does

not exceed the maximum load capacity of the rack and bicycle specified by the

manufacturer.

6.14 LIGHTING

Lighting is a basic element of the user's safety. If the bicycle is used on public roads and it

is not equipped with lighting and reflections, it should be additionally equipped with the

bicycle in accordance with the provisions of the traffic regulations.

7. ASSMBLY

7.1 PREPARING

Pull the bike out of the carton with all the elements in it. Be careful not to scratch the bike

and at the same time be careful not to damage any cable or other components. Make

sure that there is no missing item in the bike and report any comments to the seller.

7.2 FOLD THE FRAME

The front wheel is dismantled, therefore after opening the cartoon it is necessary to remove

the protective foils and mount it on the front fork.

Picture 1 –Put front wheel into the fork.

Picture 2 –insert the "pin" through the wheel, tighten the nut on the left side so that the

quick-release closure is tightened with the appropriate resistance.

Picture 3 - Put the fender together with the lamp on the wheel and tighten the screws.

7.3 HANDLEBAR ASSEMBLY

1. Put the handlebar in the most

comfortable position for you and tighten

all screws according to the picture below.

2. The handlebar should be mounted so

that there are no clearances.

7.4 PEDALS ASSEMBLY

➢Tighten the pedal with the letter "R" on the right side clockwise,

➢Tighten the pedal with the letter "L" on the left hand side clockwise.

7.5 SADDLE ASSEMBLY

1. Loosen the quick-release nut on the

bicycle frame and insert the saddle

post.

2. Tighten the clamps of the seatpost

clamp in such a way that the quick

coupling clamps with the

appropriate resistance.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bicicleta de Ecobike

Ecobike

Ecobike ELEGANCE 36 Manual de usuario

Ecobike

Ecobike S3 Manual de usuario

Ecobike

Ecobike Basic Guía del usuario

Manuales populares de Bicicleta de otras marcas

RAMBO

RAMBO R1000X2M-FF-BFD Manual de usuario

Vermeiren

Vermeiren SAFARI Manual de usuario

Velec

Velec A2/36V Manual de usuario

Coswheel

Coswheel A-ONE Manual de usuario

Betzold

Betzold 97869 Manual de usuario

Cervélo

Cervélo S3 2019 Manual de usuario

Tenways

Tenways AGO X Manual de usuario

Festo

Festo EGSC-BS-KF Manual de lista de piezas

Gio Electric

Gio Electric H1 Volt Manual de usuario

GOGOBEST

GOGOBEST GM30 Manual de usuario

DAHON

DAHON CIAO - 2009 Manual de usuario

Aprimatic

Aprimatic ONDA 500 Guía de inicio rápido

MV Agusta

MV Agusta Lucky Explorer GRAVEL Manual de instrucciones

Greyp

Greyp G6 Series Manual de usuario

Babboe

Babboe Carve-E Manual de usuario

Huka

Huka orthros Manual de usuario

Xtracycle

Xtracycle Stoker 2021 Manual de usuario

APRILIA

APRILIA DORSODURO 750 ABS 2015 Manual de usuario
