INSTRUCTION MANUAL
Fixed
TV Wall Mount
Model EGLL2
Texto en español, página 20 Deutscher Text Seiten 24 Svensk text sida 28
中文文字说明请参见第 32 页
Texte français page 22 Nederlandse tekst op pagina 26
Русский текст: стр. 30 日本語は 34 ページ
2
150 lbs.
(68.0 kg)
If your TV weighs more, this mount is NOT compatible.
Visit echogear.com to find a compatible mount.
Your TV (including accessories)
CANNOT EXCEED 150 lbs.
(68.0 kg) for this mount.
“You can think about it ...
but doooon’t do it.”
IMPORTANT SAFETY INSTRUCTIONS. READ ENTIRE MANUAL PRIOR TO USE. SAVE These INSTRUCTIONS
Yea, the boring stuff ... but read it, so you don’t jack things up!
Weight Restrictions
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly
or use of this product, contact The Echogear Pros (see back page).
CAUTION: Avoid potential personal injuries and property damage!
►This product is designed for use in wood stud, solid concrete, and concrete block walls -
DO NOT install into drywall alone
►The wall must be capable of supporting five times the weight of the TV and mount combined
►Do not use this product for any purpose not explicitly specified by manufacturer
►Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
CAUTION: DO NOT exceed
the maximum weight indicated. This
mounting system is intended for
use only with the maximum weights
indicated. Use with products
heavier than the maximum weights
indicated may result in collapse
of the mount and its accessories,
causing possible injury.
3
wood studs?Solid Concrete/
Concrete Block?Steel Stud?
Perfect!
Good to Go
Perfect!
Good to Go
Steel Stud Kit
REQUIRED
(not included)
Grab Your Tools
Verify Your Wall Construction
CAUTION:
DO NOT
install into
drywall alone
... unless you WANT to
watch your TV fall and
crash onto the floor.
Awl Awl
Stud
Finder Stud
Finder
1/8 in.
(3 mm)
for wood
Drill Bit
Socket
Wrench
Hammer
Drill Bit
3/8 in.
(10 mm)
for concrete
Wood Stud Installation Steel Stud Installation Concrete Installation
Pencil Tape Level
Phillips
Screwdriver
Tape
Measure
Electric
Drill
7/16 in.
(11 mm)
"Give it back
to Phil when
you finish"
For questions, contact the
Echogear pros: www.echogear.com
Order the Steel
Stud Kit:
model EGHWSS.
Sold online at
ECHOGEAR.com
or Amazon.
Unsure?
?
UUHHH?!?
Included with
the EGHWSS kit
Drill Bit
1/2 in.
(13 mm)
for steel
4
Echogear Satisfaction Guarantee:
One More Thing ...
We’re driven to give DIYers an awesome install experience. We stand
behind everything we make because you deserve the best entertainment
experience without sacrificing quality and spending your whole paycheck.
Guess what? We’ll help you through the entire process, too.
Why? Because we like to help and it’s our passion to provide authentic
service. We won’t leave you hanging, no matter what.
Our U.S. based Echogear Pros answer the phone in all days ending in Y.
That means availability to try and stump our expert sta 7 days a week.
Call us if you…
1 Have any questions before, during, or after install.
2 Need dierent hardware to fit your TV model.
3 Just need someone to chat with. We’re here for you.
5
M8 x 50mm
M8 x 16mm M8 x 35mm
M6 x 12mm M6 x 35mm 1/4 in.
1/4-20 in.
Fischer UX10 x 60R Anchor
M4 x 12mm M4 x 35mm
REMEMBER THE LAST TIME
YOU “WINGED IT”?
1/4 x 2¾in.
WARNING: DON'T FEED TO CHILDREN —This product contains small items that could be a choking
hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are
missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
Never use damaged parts!

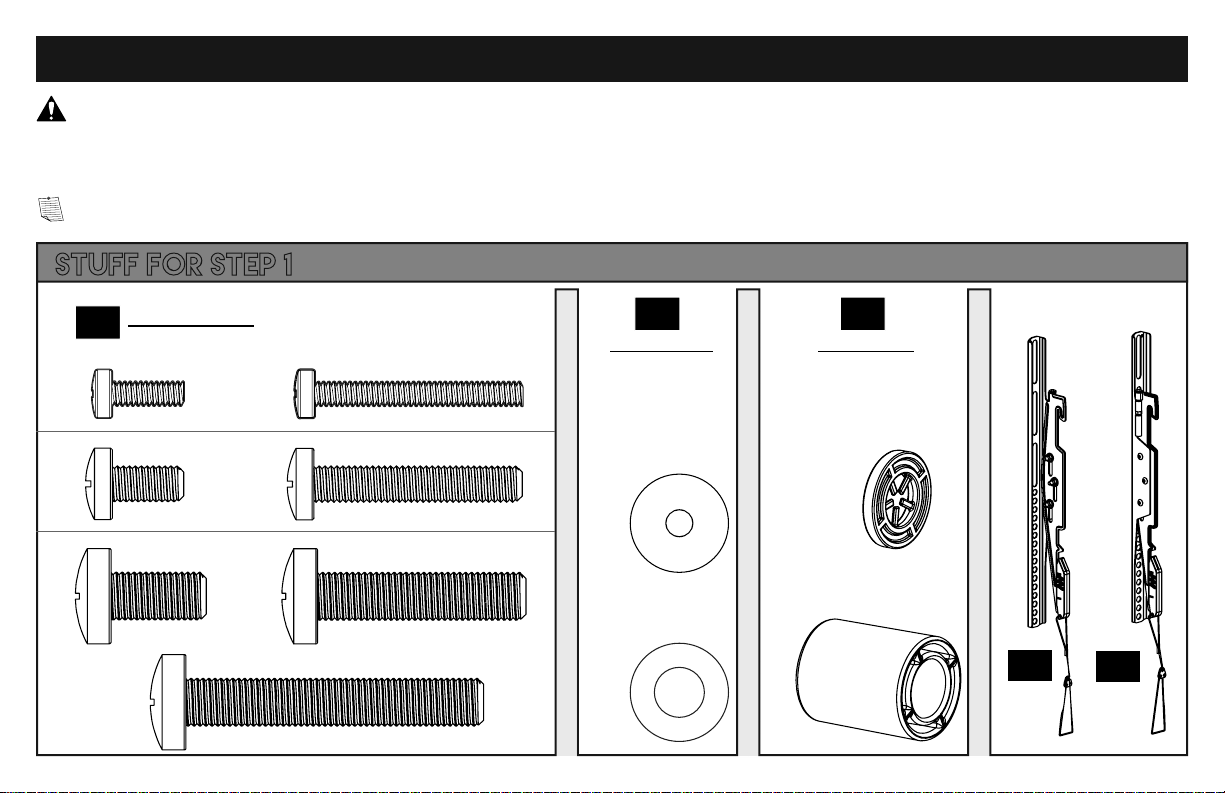

What’s in the box ... What's in the booooxx
NOTE: Not all hardware included in this kit will be used.
STUFF FOR STEP 1
TV Screws (qty. 4 each)
[Only one size fits your TV] Washers Spacers
[If necessary]
TV
Brackets
qty.1
qty.1
qty.4 each
qty.8
qty.4
M6
M4
2.5mm
22mm
M4
M8/M6
M8
01 02 03
05
04
6
M8 x 50mm
M8 x 16mm M8 x 35mm
M6 x 12mm M6 x 35mm
M4 x 12mm M4 x 35mm
1/4 in.
1/4-20 in.
Fischer UX10 x 60R Anchor
REMEMBER THE LAST TIME
YOU “WINGED IT”?
1/4 x 2¾in.
STUFF FOR STEP 2
Wall Plate
Wall Plate
Template
Front Rail
Back Rail
Assembly Nuts
Lag Bolt
Concrete
Anchor
Washer
(Lag Bolt)
qty.1
07
qty.1
06
qty.2
08
qty.2
09
qty.2
10
qty.4
11
qty.4
12
qty.4
13
Order the Steel Stud Anchor Kit:
Model EGHWSS. Sold online at
ECHOGEAR.com or Amazon.
1/4 in.
1/4-20 Snap Toggle BB
Order the Steel Stud Anchor Kit:
Model EGHWSS
. Sold online at
ECHOGEAR.com or Amazon.
1/4 in.
1/4-20 Snap Toggle BB
Included with
the EGHWSS kit
Drill Bit
S1 (qty. 4) S2 (qty. 4) S3 (qty. 4)
Parts FOR STEP 2C
** NOT INCLUDED ** 1/2 in.
(13 mm)
for steel
7
STEP 1 Attachthe TV BRACKETS TO YOUR TV
Select TV Screws
1.1
Only one screw size fits your TV.
M6
M4
M8
"Suggested uses for the extra screws:
board game pieces, industrial
jewelry, sweet corn holders, musical
instruments – like maracas or
'monsoon' sticks, stocking stuers,
currency (not most countries) ..."
01
8
03
Select Spacers (if needed)
1.2
For Flat TV with: For Rounded TV
Inset
Holes
Cable
Interference
abLong Screw
Short Screw
Washer
Washer
Spacer
TV Bracket
TV
Bracket Too
Short
Too
Long
Washer
Washer
EXTRA
SPACE
01
01
02
03
02
For Flat TV
NO SPACER
Spacer not necessary
Too
Short
Too
Long
SPACER
9
With Spacer
Secure the TV Brackets to Your TV
1.3
b
Cord Adjustment
Level 04 05
No Spacer
Alternate
Spacer
setups
a
No Spacer
a
01 01
02
02
03
10
STEP 2 Install the Wall Plate
Assemble Wallplate
2.1
2X
07
10
08
09
2X
7/16 in.
(11 mm)
CAUTION:
DO NOT overtighten.
Tighten only
until snug.
"Use your INSIDE
tightening hands!"
