ECHO, INCORPORATED

400 Oakwood Road, Lake Zurich, Illinois 60047-1564

Phone : 847-540-8400

OPERATOR’S MANUAL

ECHO

TRIMMER/

BRUSHCUTTER

SRM-400

WARNING DANGER

READ INSTRUCTIONS CAREFULLY AND FOLLOW RULES FOR

SAFE OPERATION.

FAILURETO DO SO COULD RESULT IN SERIOUS INJURY.

INTRODUCTION

The ECHO Trimmer/Brushcutter, model SRM-400

is lightweight, high performance gasoline powered

rotary trimmer which is designed for brushcutting,

weed control and grass trimming in areas which are

difficult to control by any other means. The trimmer

is equipped with a safety shoulder harness, and the

excellent balance characteristics plus the available

power, ensures comfortable operation.

RULES FOR SAFE OPERATION .......................................................................................................... 3

NOMENCLATURE HAVE PARTS .......................................................................................................... 4

TECHNICALDATA................................................................................................................................. 4

ASSEMBLING ....................................................................................................................................... 5

OPERATION.......................................................................................................................................... 7

MAINTENANCE AND CARE ................................................................................................................. 16

TROUBLE SHOOTING.......................................................................................................................... 18

LONGTERM STORAGE ....................................................................................................................... 20

CONTENTS

The engine exhaust from this

product contains chemicals known

to the State of California to cause

cancer, birth defects or other

reproductive harm.

WARNING

This manual provides the information necessary for

assembly, adjustment, operation and maintenance

of your unit.

SAFETY INSTRUCTIONS

1. Do Not operate the unit when you are

fatigued.

2. Do Not operate if other people or animals

are in the work area.

3. Do Not operate the unit without the shield

correctly in position.

4. Do Not operate in a confined area. Carbon

monoxide exhaust gas is highly poisonous.

5. Do Not operate the unit while you are

smoking.

6. Always wear eye protection goggles when

operating the unit.

7. Always hold the unit firmly with both hands

and with fingers and thumbs encircling the

handles.

8. Always obey local ordinances regulating the

use of internal combustion engines in your

area.

9. Always use the cutting attachments as

approved and supplied by ECHO Inc. for

your unit.

10. Always remain alert when operating the unit

to avoid possible injury to yourself and other

people.

11. Always wear the shoulder harness when

operating the unit.

12. Do not operate the unit while under the

influences of drugs or alcohol.

WARNING DANGER

1. Do Not smoke while handling gasoline.

2. Do Not refuel a hot engine. Wait unit it cools.

3. Do Not overfill the tank. Spiled fuel must be

wiped up.

4. Always stop the engine when refueling.

5. Always remove the fuel cap slowly in order to

relieve any pressure build up in the tank.

6. Always restart the engine at least 3 m

(10 feet) away from the refueling posint.

7. Always store gasoline in an approved

container.

RULES FOR SAFE OPERATION

ATTENTION

For your protection when operating this unit,

comly with all Safety Rules as listed in the

Operator’s Manual. (Replacement manuals are

available from your ECHO dealer.)

1. Do not operate unless the debris shield and

safety harness are in good condition and

properly installed.

2. Do not operate if other persons or animals

are in the work area.

3. Do not operate without eye protection

goggles available from your ECHO dealer.

WARNING DANGER

SERIOUS INJURY MAY RESULT FROM THE

IMPROPER USE OF STEEL BLADES.

COMPLY WITH ALL SAFETY INSTRUCTIONS

LISTED IN THE OPERATOR’S MANUAL AND

SUPPLIED WITH THE BLADES.

1. THE ECHO SAW TOOTH BLADE IS

DESIGNED TO CUT BRUSH AND SMALL

TREES.

2. THE ECHO 8 TOOTH ROTARY KNIFE

BLADE IS DESIGNED TO CUT HEAVY

WEEDS AND GRASS. TO AVOID INJURY

DUE TO KICK BACK OR BLADE

FRACTURE, DO NOT USE THIS BLADE TO

CUT BRUSH OR TREES.

3. ECHO INC. WILL NOT BE RESPONSIBLE

FOR THE FAILURE OF CUTTING DEVICES

WHICH HAVE NOT BEEN TESTED AND

APPROVED BY ECHO FOR USE WITH

THIS UNIT.

SRM-400

Dimension L × W × H cm 186 × 70 × 43 (73.2 in × 27.6 in × 16.9 in)

Masses kg 9.9 (21.8 lb): without shoulder harness and cutter head

Engine Type Air cooled two stroke single cylinder

Displacement mL (cm³) 42.7 (2.6 cu in)

Max revolution r/min 10,000

Carburetor Walbro diaphragm type WYK

Ignition Flywheel magneto : CDI (Capacitor Discharge Ignition)

system

Spark plug CHAMPION CJ-6Y

Starter Recoil starter

Clutch Automatic centrifugal clutch

Fuel Mixing ratio Mixture of gasoline (Unleaded, 89 octane minimum) and

specially blended 50 : 1 ECHO two cycle engine oil.

Tank capacity L 1.0 (33.8 US fl oz)

Drive shaft Cutter (Option) Nylon line cutter head

assembly Cutter Circular saw, 25 cm (10 in)

Cutter (Option) 8 cutter blade, 20 cm (8 in)

Gear housing 60 degree bevel gears, ratio 1 : 1.33 (Counter-clockwise)

Lubrication Shell Delpena or good quality lithium grease

Drive shaft High tensile solid steel, 5 bearings

Shield Metal shield mounted on the gear housing for nylon line

and metal blade applications.

NOMENCLATURE HAVE PARTS

TECHNICAL DATA

Spark plug

Decompression device

Muffler

Choke lever

Air cleaner cover Starter handle

Fuel tank

Gear housing

Ignition switch

Drive shaft assembly

Shield

Shoulder harness

Technical data subject to change without notice.

Throttle trigger

Grip

ASSEMBLING

DRIVE SHAFT

• Stand engine uprignt on a level floor.

• Loosen bolts at drive shaft end of the engine.

• Fit drive shaft assembly ensuring that the drive

shaft is correctly engaged.

• Tignten bolts to fasten drive shaft assembly.

WARNING DANGER

NEVER START ENGINE WITHOUT

DRIVESHAFT ASSEMBLY INSTALLED.

THIS COULD RESULT IN SERIOUS INJURY.

Remove bolt retainer tube from end of handle

assembling bolt (8 mm).

Handle assembling bolt (8 mm)

Install handle assembling bracket (upper) in handle

assemblingbracket(lower)andfixhandlebytightening

handle assembling bolt (8 mm) lightly.

Handle assembling bracket (upper)

Insert right hand grip assembly into right hand U-

handle and fit it to the slot for rotation prevention of

right hand U-handle.

Fit grip assembling bolt and secure the grip firmly.

Right hand grip assembly

Grip assembling bolt

HANDLE

Bolts

Slot

Right hand U-handle

Bolt retainer tube

Handle assembling bolt (8 mm)

Left handle

Handle assembling bracket (lower) To engine

SHIELD

Fit the shield on the gear housing and tighten

screws with washers (Seven points) as shown.

SHOULDER HARNESS

• Fit the shoulder starp to the swivel hook, and

adjust the length of starp and or the locaion

clamps to maintain the cutter head parallel to

the ground.

Shoulder strap assembly

Quick release latch

Waist pad

673

Adjust each inclination of right and left handles to

adequateposition(easytooperate)andtightenfirmly

handle assembling bolt (8 mm) and 4 right handle

assembling bolts.

Adjustment of right handle inclination (left/right)

Loosen 4 right handle assembling bolts and insert

right hand U-handle into right handle assembling

bracket. (toward direction of arrow )

Fix the right hand U-handle by tightening 4 right

handle assembling bolts lightly.

Right handle assembling bolt

Right handle assembling bracket

Right hand U-handle

To engine

Adjustment of right handle inclination

(forward/ backward)

Adjustment of left handle inclination

(forward/ backward) To engine

Determine “Easy to operate” position.

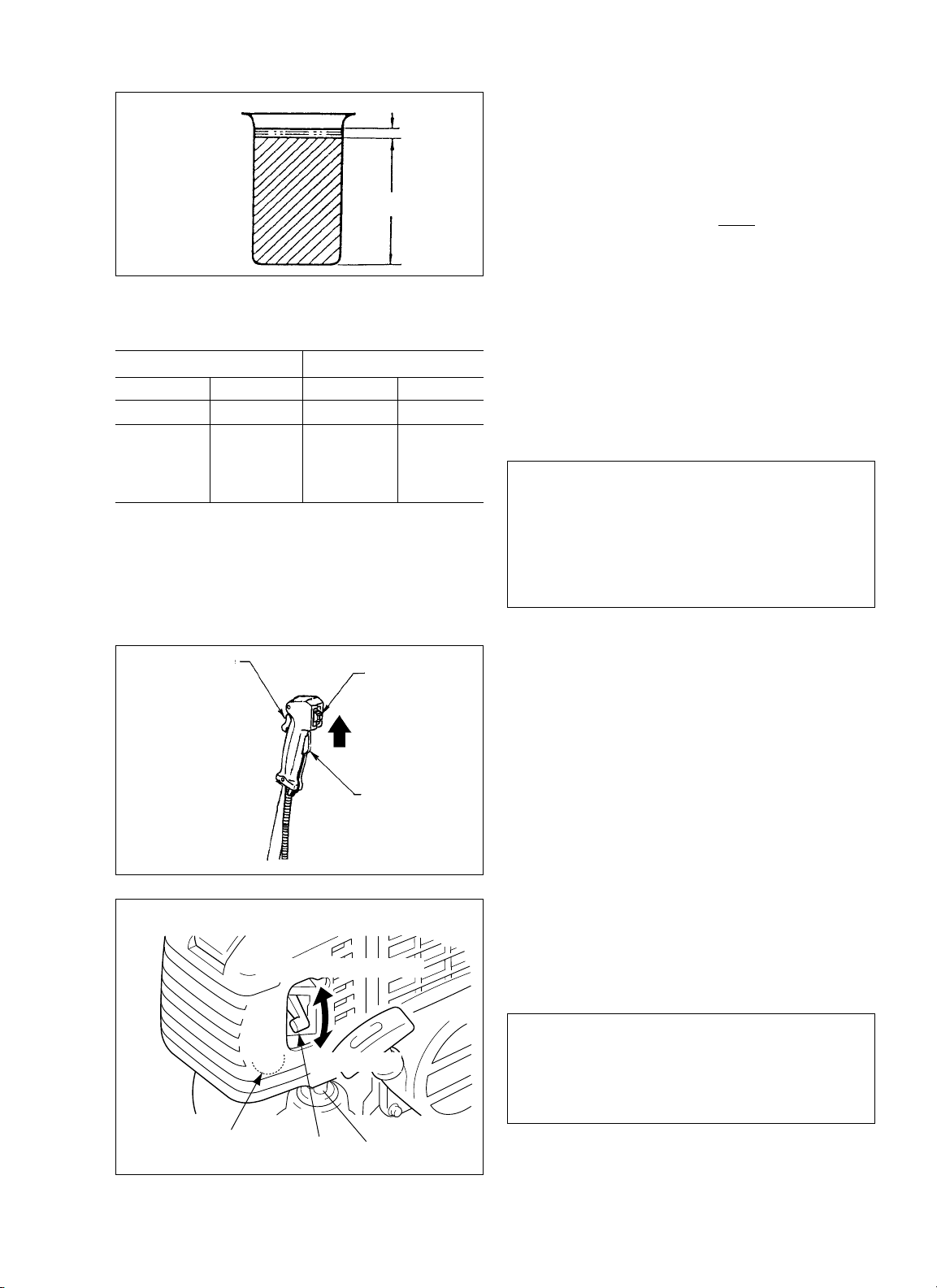

Oil 1

Gasoline

GENERAL CHECK

• Eneure that all nuts, screws and bolts installed

are properly tightened.

FUEL STATEMENT

GASOLINE : Use 89 octane ( ) gasoline or

gasohol known to be good quality. Gasohol may

contain maximum 10% ethyl (grain) alcohol or 15%

MTBE (methyl tertiary-butyl ether). Gasohol

containing methyl (wood) alcohol is not approved.

OIL : ECHO brand premium two-stroke 50:1 oil is

reguirred.

Mix oil and gasoline /gasohol according to

insturctions on the oil container label.

MIXING : Follow directions on the oil container.

OPERATION

R+M

US METRIC

GAS OIL GAS OIL

GAL FL OZ L mL

1 2.6 4 80

2 5.1 8 160

5 12.8 20 400

Fuel mix chart

(50 : 1)

IMPORTANT

Stored fuel ages. Do not mix more fuel than

you expect to use in thirty (30) days, ninety

(90) days when a fuel stabilizer is added.

Stored two-stroke fuel may separata.

ALWAYS shake fuel container thoroughly

before each use.

STARTING COLD ENGINE

• Slide switch to START/RUN position as shown.

• Push purge bulb 3 or 4 times (or until constant

flow of fuel is visible in fuel return line.)

• Move choke lever to COLD START (Close)

position.

• Press the decompression device.

• Pull recoil starter until the engine fires. Now,

move choke lever to RUN (open) position, and

if necessary, restart the engine again and allow

to warm up for a few minutes before using.

• After idling, gradually open throttle and cutter

blade will start to operate as the engine attains

clutch engagement speed of 3,500 r/min

approximately.

Throttle trigger Ignition switch

Throttle control lockout

Purge bulb Fuel return line

Choke lever

NOTE

Recoil starter : Use short pulls - only 1/2 - 2/3 of

starter rope for starting. Do not let starter rope

snap back in .

Always hold the unit firmly.

COLD START (Close)

RUN (Open)

OPERATING THE TRIMMER

• Adjust handle to a convenient position for

cutting as instructed on page 6.

• Allow the engine to warm up at a fast idle for a

few minutes.

• Increase engine speed as necessary.

• When mowing shrubs, weeds, or grass, swing

the cutter head from right to left as you move

forward.

- Avoid striking any obstruction such as rocks,

stones or tree stumps which can damage the

cutter head.

Do not cut into the ground.

- To avoid damage to the engine, do not run the

engine unloaded at full throttle.

• In the event that the cutter strikes an

obstruction or is otherwise prevented from

rotating in normal operation, the clutch will slip

to prevent possible engine damage. In this

case, stop the engine, free the cutter and then

start the operation again.

STARTING WARM ENGINE

• When engine is warm, start it by pulling recoil

starter rope with switch positioned at START/

RUN.

(Keep choke lever in RUN (open) position)

• Press the decompression device.

• If engine does not start in a few tries, follow

same procedures as starting a cold.

HOLD THE UNIT FIRMLY.

STOPPING ENGINE

• Release throttle trigger and allow to run at an

idle speed.

• Side ignition switch to “STOP” position.

Decompression device

WARNING DANGER

DO NOT ALLOW EITHER PEOPLE OR

ANIMALS INTO THE WORK AREA.

ALWAYS WEAR SAFETY GOGGLES WHEN

CUTTING.

DRESS PROPERLY - AVOID LOOSE

CLOTHING.

WHEN GRASS OR WEEDS HAVE CLOGGED

THE CUTTER HEAD AFFECTING NORMAL

OPERATION, FIRST, STOP THE ENGINE AND

THEN REMOVE THE DEBRIS.

OPERATING INSTRUCTIONS (METAL

BLADES and OPTIONAL NYLON LINE)

Your brushcutter/trimmer, has been designed and

constructed to give you years of trouble-free

service and relieve you of the many back-aching

tasks normally associated with grass trimming,

weed control and brushcutting. Nevertheless, in

common with all other power operated tools, the

Owner and/or Operator has a definite responsibility

to maintain the safe working condition of the unit as

provided by the manufacturer , and to ensure also

the safe operating procedures as prescribed by

common sense and this manual. Please, therefore,

read and understand the instructions as listed

hereunder, and on Page 3, in order to prevent

accidents and possible injury.

WARNING DANGER

• BEFORE STARTING UP THE ENGINE,

MAKE SURE THAT THE CUTTER BLADE IS

NOT CONTACTING ANYTHING.

• WHEN TWO OR MORE OPERATORS ARE

WORKING TOGETHER, ENSURE THAT A

SAFE DISTANCE IS KEPT BETWEEN

THEM.

WARNING DANGER

GRASS/WEED TRIMMERS CAN THROW

GRAVEL, STONE, WOOD CHIPS, GLASS,

AND PLASTIC OR METAL OBJECTS. THE

DEBRIS SHIELD BEHIND THE TRIMMER

HEAD STOPS MUCH OF THE DEBRIS, BUT

CANNOT PREVENT THE OPERATOR FROM

BEING STRUCK BY SOME DEBRIS. READ

THE RULES FOR SAFE OPERATION IN THE

OPERATOR’S MANUAL THAT YOU

RECEIVED WITH YOUR ECHO TRIMMER.

AISO, FOLLOW AII INSTRUCTIONS IN THIS

INSTRUCTION SHEET.

ECHO 2-LINE MANUAL TRIMMER

HEAD (OPTION)

1. Read the Operator’s Manual carefully.

Be throughly familiar with the controls and

proper use of the trimmer.

Know how to stop the unit and disengage the

controls.

2. Never allow children to operate the trimmer.

3. Never allow adults to use the trimmer unless

they have received prpper instructions. Be sure

the operator is properly attired and wears the

type of foot, leg, head, eye and ear protection

recommended both in your ECHO Operator’s

Manual and by your ECHO Servicing Dealer.

4. Always wear eye protection that conforms to

ANSI Z 87. 1-2000.

INSTALLATION OF NYLON LINE

HEAD(OPTION)

Set the nylon line head to the drive shaft and

tighten by turning as shown.

CUTTING PROCEDURES

Locking tool

OPERATING INSTRUCTIONS NYLON

LINE

1. Always use the end of the line for cutting.

Forcing the cutter head too close to the work

will result in reduced efficiency and broken line.

2. Maintain the line at the recommended length of

12.5 to 15 cm ( 5 to 6 in).

A longer line will reduce engine speed, a

shorter line may result in engine damage.

3. The trimmer head rotates counterclockwise.

Always cut with the head tilted to the right to

deflect debris away from the operator.

4. Always observe the SAFETY RULES on Page

3 when using the unit.

Upper fixing plate

TIGHTEN

Cutting head

1. REPLACING LINE

A. Remove spool by turning knob clockwise,

“right”, and separating parts.

B. Thread a 6 m (20 feet) length of 2.4 mm (0.095

in) or 2.7 mm (0.105 in) ECHO line through

hole in spool so that ends are the same length.

C. Wind both ends of line tightly and evenly

clockwise (see arrows on spool), and wind from

side to side without twisting the lines.

D. Secure ends of line temporarily with about 15

cm (6 in) extending out.

NOTE

Keep line tight on spool.

A. Snap spool into housing while pulling line

through eyelets with about 15 cm (6 in)

extending out.

CAUTION

Knob tightens counterclockwise, “left”.

B. Fasten spool to housing with shaft bolt, spring,

and knob.

2.REPLACING SPOOL

HOUSING

BOLT

SPRING

KNOB

15 cm (6 in)

SPOOL

Otros manuales para SRM-400

Tabla de contenidos

Otros manuales de Recortadora de Echo

Echo

Echo 99944200615 Manual de instrucciones

Echo

Echo SRM-211U Manual de usuario

Echo

Echo SRM-301TES Manual de usuario

Echo

Echo SRM-260 - 12-03 Manual de usuario

Echo

Echo Pro Attachment Series Manual de usuario

Echo

Echo SRM - 2400SB Manual de usuario

Echo

Echo SRS-2100 Manual de usuario

Echo

Echo SRM-260 - PARTS CATALOG SERIAL NUMBERS... Manual de instrucciones

Echo

Echo HC-150 HEDGE TRIMMER - PARTS CATALOG SERIAL NUMBER... Manual de instrucciones

Echo

Echo Rapid Loader 99944200610 Manual de usuario

Echo

Echo SRM-260 - PARTS CATALOG SERIAL NUMBERS... Manual de instrucciones

Echo

Echo HCR-165ES Manual de usuario

Echo

Echo GT-2000 Type 1E Manual de instrucciones

Echo

Echo GT-200 - PARTS CATALOG SERIAL NUMBER 08001001-... Manual de instrucciones

Echo

Echo DHC-310 Manual de usuario

Echo

Echo GT-2000 Type 1E Manual de usuario

Echo

Echo SRM - 410U Manual de usuario

Echo

Echo HCA-265 Manual de usuario

Echo

Echo DSRM-300 Manual de usuario

Echo

Echo SRM-2110 - PARTS CATALOG SERIAL NUMBER... Manual de usuario

Echo

Echo SRM-2400 TYPE 1E - 09-99 Manual de usuario

Echo

Echo GT-225L Manual de usuario

Echo

Echo GT-225i Manual de usuario

Echo

Echo GT-1100 Manual de instrucciones

Manuales populares de Recortadora de otras marcas

MTD

MTD HT 51 E Manual de usuario

McCulloch

McCulloch T22 LS Manual de usuario

COCKRAFT

COCKRAFT PRO HL36-S Manual de usuario

Grizzly

Grizzly CT 1800 Li Manual de usuario

Peco

Peco Z Trimmer ZT-3000 Manual de usuario

Solo

Solo 116 Manual de usuario

Stiga

Stiga ST 1200 Manual de usuario

RedMax

RedMax BT17 Manual de usuario

GreenWorks

GreenWorks STA806 Manual de usuario

Parkside

Parkside PHSL 900 A3 Manual de usuario

Gardeo

Gardeo PRO GPTHT2560 Manual de usuario

Park

Park DT-810870 Manual de usuario

Worx

Worx WG209 Manual de usuario

Gardenline

Gardenline 43671/HTKS26 Manual de usuario

Makita

Makita 3710 Manual de usuario

Champion

Champion 100683 Manual de usuario

Stihl

Stihl FS 311 Manual de usuario

Efco

Efco STARK 38 Manual
