Echo PE-201 Manual de instrucciones
21.2cc
POWER EDGER
©2005ECHO,Incorporated.AllRightsReserved
PARTS CATALOG
99922203274
REVISED 09/12/05
AVAILABLEATTACHMENTS &ACCESSORIES
69601552632
8" EDGER BLADE - (2 PACK) (STANDARD)
69601553630 8"PREMIUMEDGERBLADE-(2PACK)
99944200001 i-STARTACCESSORYKIT
99944201000 8"EDGERBLADE- (BULK)
99944205000 8"PREMIUMEDGERBLADE - (BULK)
99944206000 CRACKCHASER WIREWHEEL
PE-200:
PE-201:
MODEL: SERIALNUMBERS
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047
WWW.ECHO-USA.COM
05001001-05999999
07001001-07999999
08001001-08999999
09001001-09999999
10001001-10999999
02001001-02999999
09001001-09999999
2

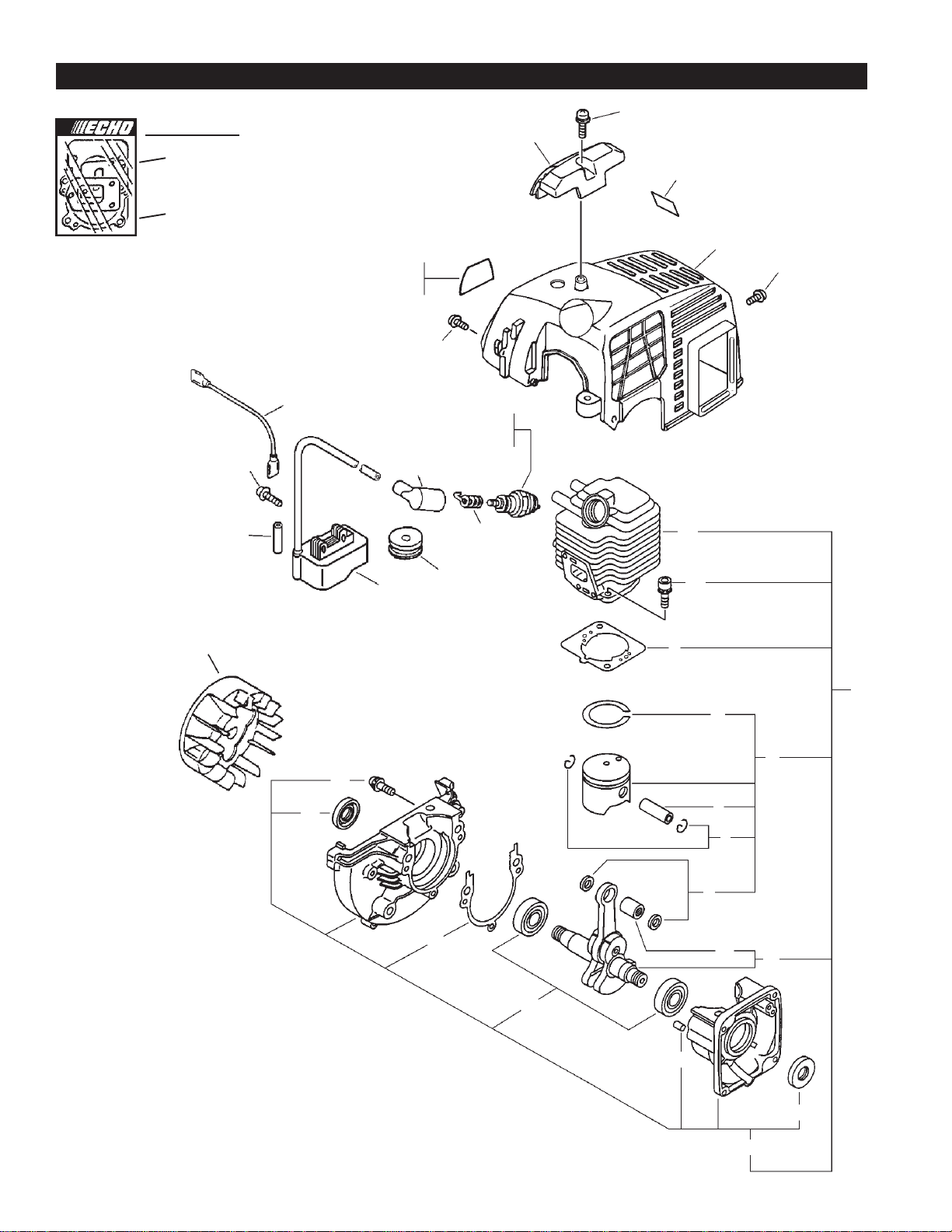

PE-200, 201 ENGINE, IGNITION,SHORTBLOCK, CYLINDERCOVER
SERIAL NUMBERS: 02001001-02999999
PE-201
1
2
3
4
5
6
7
8
12
13
14
15
16
13
17
9
10
11
18
28
29
30
31
32
33
GASKETKIT
19
20
21
22 23 24
25
26
27
3
ITEM PART NUMBER QTY DESCRIPTION REMARKS
PE-200, 201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
OPTIONALENGINEREPOWER
SB1048 1 SHORTBLOCK INCLUDESITEM2-17
A130000091 1 CYLINDER
90016205022 2 BOLT5X22
V100000020 1 GASKET,CYLINDER
P021001101 1 PISTONKIT INCLUDESITEMS6-9
A101000000 2 RING,PISTON
10001311520 1 PIN,PISTON
10001504630 2 CIRCLIP,PISTONPIN
10001411520 2 SPACER,PISTONPIN
10010044733 1 CRANKSHAFTASY INCLUDESITEM11
V553000010 1 BEARING,NEEDLE
10020452131 1 CRANKCASEKIT INCLUDESITEMS13-17
10021242031 2 OILSEAL
10021503930 2 PIN,DOWEL
9403536201 2 BEARING,BALL
10024242030 1 GASKET,CRANKCASE
90016205028 3 BOLT5X28
P021001591 1 GASKETKIT
15660152130 1 COIL,IGNITION
90016204022 2 BOLT4X22
15011244330 1 BUSHING
15901201620 1 CAP, SPARK PLUG
15901103432 1 TERMINAL,SPARKPLUGCAP
15901010630 1 SPARK PLUG -- BPM-7A
16201052830 1 LEAD,GROUND
A409000000 1 FLYWHEEL
A160000172 1 COVER,CYLINDER
90025305016 1 SCREW5X16
15991248630 1 GUARD,TOP
90025304012 2 SCREW4X12
V141000030 1 PLUG,GROMMET
89016006361 1 LABEL,CAUTION-HOT
X503001400 1 LABEL, MODEL -- PE-201
SERIAL NUMBERS: 02001001-02999999
ENGINE, IGNITION,SHORTBLOCK, CYLINDERCOVER
PE-201
AlsoIncluded In GASKET KIT
4
PE-200, 201 ENGINE, IGNITION,SHORTBLOCK, CYLINDERCOVER
SERIAL NUMBERS: 05001001-05999999, 07001001-07999999
GASKETKIT
PE-200
1
2
3
4
5
6
7
8
12
13
14
15
16
13
17
9
10
11
30
31
33
34
35
36
37
19
20
22
23
24
25
26
27
28
29
18
32
21
--PE-200
--PE-201
CANADA-
5
ITEM PART NUMBER QTY DESCRIPTION REMARKS
PE-200, 201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
OPTIONALENGINEREPOWER
SB1065 1 SHORTBLOCK INCLUDESITEM2-17
A130000430 1 CYLINDER
90016205022 2 BOLT5X22
V100000080 1 GASKET,CYLINDER
P021001101 1 PISTONKIT INCLUDESITEMS6-9
A101000000 2 RING,PISTON
10001311520 1 PIN,PISTON
10001504630 2 CIRCLIP,PISTONPIN
10001411520 2 SPACER,PISTONPIN
A011000101 1 CRANKSHAFTASY INCLUDESITEM11
V553000010 1 BEARING,NEEDLE
10020452131 1 CRANKCASEKIT INCLUDESITEMS13-17
10021242031 2 OILSEAL
10021503930 2 PIN,DOWEL
9403536201 2 BEARING, BALL 6201
10024242030 1 GASKET,CRANKCASE
90016205028 3 BOLT5X28
P021004270 1 GASKETKIT
A411000130 1 COIL,IGNITION
90016204020 2 BOLT4X20
15611054930 1 TUBE
15011244330 1 BUSHING
15901201620 1 CAP, SPARK PLUG
15901103432 1 TERMINAL,SPARKPLUGCAP
15901019830 1 SPARK PLUG -- BPM-8Y
A425000000 1 SPARK PLUG -- BPMR-8Y CANADAMODELS
V485000290 1 LEAD,GROUND
A409000160 1 FLYWHEEL
A160000172 1 COVER,CYLINDER
90025305016 1 SCREW5X16
A162000040 1 GUARD,TOP
9110704008 1 SCREW4X8
90025304012 2 SCREW4X12
V141000030 1 PLUG,GROMMET
89016006361 1 LABEL,HOT
X543000200 1 LABEL, MODEL -- PE-200
X503001400 1 LABEL, MODEL -- PE-201
SERIAL NUMBERS: 05001001-05999999, 07001001-07999999
ENGINE, IGNITION,SHORTBLOCK, CYLINDERCOVER
PE-200
AlsoIncluded In GASKET KIT
6
PE-200, 201 ENGINE, IGNITION,SHORTBLOCK, CYLINDERCOVER
SERIAL NUMBERS: 08001001-10999999
GASKETKIT
1
2
3
4
5
6
7
8
12
13
14
15
16
13
17
9
10
11
31
32
34
35
36
37
20
21
23
24
25
26
27
28
29
30
18
33
22
-S/N: 08001001-08999999
10001001-10999999
-S/N: 09001001-09999999
19
--PE-200
--PE-201
CANADA-
PE0001008_9_10
7
ITEM PART NUMBER QTY DESCRIPTION REMARKS
PE-200, 201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
OPTIONALENGINEREPOWER
SB1072 1 SHORTBLOCK INCLUDESITEM2-17
A130000540 1 CYLINDER
90016205022 2 BOLT5X22
V100000160 1 GASKET,CYLINDER
P021007712 1 PISTONKIT INCLUDESITEMS6-9
A101000090 1 RING,PISTON
10001311520 1 PIN,PISTON
10001504630 2 CIRCLIP,PISTONPIN
10001411520 2 SPACER,PISTONPIN
A011000101 1 CRANKSHAFTASY INCLUDESITEM11
V553000010 1 BEARING,NEEDLE
10020452131 1 CRANKCASEKIT INCLUDESITEMS13-17
10021242031 2 OILSEAL
10021503930 2 PIN,DOWEL
9403536201 2 BEARING, BALL 6201
10024242030 1 GASKET,CRANKCASE
90016205028 3 BOLT5X28
P021008010 1 GASKETKIT S/N:08001001-08999999&10001001-10999999
P021007600 1 GASKETKIT S/N: 09001001-09999999
A411000130 1 COIL,IGNITION
90016204020 2 BOLT4X20
15611054930 1 TUBE
15011244330 1 BUSHING
15901201620 1 CAP, SPARK PLUG
15901103432 1 TERMINAL,SPARKPLUGCAP
15901019830 1 SPARK PLUG -- BPM-8Y
A425000000 1 SPARK PLUG -- BPMR-8Y CANADAMODELS
V485000290 1 LEAD,GROUND
A409000210 1 FLYWHEEL
A160000580 1 COVER,CYLINDER
90025305016 1 SCREW5X16
A162000040 1 GUARD,TOP
9110704008 1 SCREW4X8
90025304012 2 SCREW4X12
89016006361 1 LABEL,HOT
X543000200 1 LABEL, MODEL -- PE-200
X503001400 1 LABEL, MODEL -- PE-201
SERIAL NUMBERS: 08001001-10999999
ENGINE, IGNITION,SHORTBLOCK, CYLINDERCOVER
AlsoIncluded In GASKET KIT
8
PE-200, 201 FANCASE, CLUTCH, FUELSYSTEM
SERIAL NUMBERS: ALL
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
PE000200000
9
ITEM PART NUMBER QTY DESCRIPTION REMARKS
PE-200, 201
SERIAL NUMBERS: ALL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
10150356630 1 FAN COVER ASY
90056550005 2 NUT5
90014205028 2 BOLT5X28
90016304018 4 BOLT4X18
16381044330 1 BRACKET,SWITCH
16340003460 1 SWITCH,IGNITION
17500056830 1 CLUTCHASY
13201056330 1 PIPE,RETURN-3X6X90mm BULKOPTION:90017
A356000030 1 VALVE, CHECK
13131239130 1 PIPE,VENT-3X5X70mm BULKOPTION:90014
13201013930 1 PIPE,FUEL- 3X5X180mm BULKOPTION:90014
V137000030 1 GROMMET,FUEL
13201309820 1 CLIP
13120507320 1 FILTER,FUEL
A350000290 1 TANK,FUEL
90060300005 2 WASHER 5
90023805020 2 SCREW5X20
13100455530 1 FUEL TANK CAP ASY INCLUDESITEMS20-21
13101655830 1 GASKET, FUEL CAP
13105156030 1 CONNECTOR,FUELCAP
FAN CASE, CLUTCH,FUEL SYSTEM
10
PE-200, 201
MODEL SERIALNUMBERS:
PE-200: 05045501-05999999
07001033-10999999
PE-201: 09001001-09999999
SERIAL NUMBERS: ALL
STARTER,i-30STARTER
1
234
56
7
8
10
9
11
12
13
14
15 16 17
18 19
20
22
21
23
24
MODEL SERIALNUMBERS:
PE-200: 05001001- 05045500
07001001- 07001032
PE-201: 02001001- 02999999
27
28
26
i-30 STARTER
25
ITEMS 1-10 MAY BE REPLACED WITH i-START ACCESSORY KIT #99944200001
