Echo CGSL01AF1 Manual de usuario
CGSL01AF1
CGSL11AF1
CGSL21AF1
Charging Station
Operator’s Manual
©2019 ECHO Incorporated. All Rights Reserved.
X7507850000
REVISED 1/11/19
EN
ENGLISH
i
Contents
Chapter: 1 User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FCC Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Image Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
California Proposition 65 . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Chapter: 2 Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter: 3 Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter: 4 Charging Station Model Descriptions, Specifications, and Dimensions . 4
Model Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Specifications (all models) . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter: 5 Charging Station Components . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter: 6 Charging Station Installation Requirements . . . . . . . . . . . . . . . . 8
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
AC Power Supply Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation Offsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter: 7 Charging Station Installation Procedure . . . . . . . . . . . . . . . . . 10
Station Loop, Field Zone 1, and Field Zone 2 Charging Stations . . . . . .10
Chapter: 8 Alignment to Robot . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Alignment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Chapter: 9 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
ii
Chapter: 10 Maintenance Procedures . . . . . . . . . . . . . . . . . . . . . . . . . 22
General Inspection and Cleaning . . . . . . . . . . . . . . . . . . . . . .22
Cold Weather Storage (as installed) . . . . . . . . . . . . . . . . . . . . .22
Cold Weather Storage or Moving (removed from installation) . . . . . .22
Chapter: 11 BDR100 Timer Accessory Kit . . . . . . . . . . . . . . . . . . . . . . . 25
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Timer Cable Assembly to Charging Station . . . . . . . . . . . . . . . . .29
1
FCC DECLARATIONS
CHAPTER 1 USER INFORMATION
1. User Information
©2019 ECHO Incorporated.
All Rights Reserved.
This publication or parts thereof may not be reproduced in any form, by any method, for any purpose.
ECHO has taken reasonable care in compiling this document, however ECHO accepts no liability whatso‐
ever for any error or omission in the information contained herein and gives no other warranty or under‐
taking as to its accuracy.
ECHO can accept no responsibility for damages, resulting from the use of the operating software. In addi‐
tion, we refer to the conditions of use specified in the license contract. ECHO reserves the right to amend
this document at any time without prior notice.
ECHO and its affiliates are not liable for damages or losses related to such security breaches, any unau‐
thorized access, interference, intrusion, leakage and/or theft of data or information.
1.1. FCC Declarations
This equipment has been tested and found to comply with the limits/or a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equip‐
ment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at their own expense.
1.2. Image Description
All images in this document show the mower configuration for the charging station unless otherwise
noted.
1.3. California Proposition 65
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
2
CHAPTER 2 SAFETY SYMBOLS
2. Safety Symbols
Throughout this manual and on the product itself, you will find safety alerts and helpful, informational
messages preceded by symbols or key words. The following is an explanation of those symbols and key
words and what they mean to you.
Circle and Slash Symbol: This symbol means the specific action shown is prohibited. Ignoring this symbol
can result in damage to property and serious or fatal injury.
The safety alert symbol accompanied by the word “DANGER” calls attention to an act or condition which
WILL lead to serious personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING” calls attention to an act or condition
which CAN lead to serious personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION” calls attention to an act or condition which
may lead to minor or moderate personal injury if not avoided.
The enclosed message provides information necessary for the protection of the unit.
3
CHAPTER 3 SAFETY INSTRUCTIONS
3. Safety Instructions
IMPORTANT: It is recommended to have the installation performed by a licensed electrician.
1) SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions for
charging station models CGSL01AF1, CGSL11AF1, and CGSL21AF1.
2) Before using, read all instructions and cautionary markings on the charging station and on the
robot.
3) CAUTION – To reduce risk of injury, only charge the robot with this charging station.
HAZARDOUS VOLTAGE
Risk of fire and burn.
• To reduce the risk of fire or burn, use only on circuits provided with 15 A branch‐circuit protection in ac‐
cordance with the National Electrical Code, ANSI/NFPA 70.
•De‐energize AC power before performing work to, or near, the charging station.
• Follow all lock‐out and tag‐out procedures.
• Perform installation or maintenance in dry conditions
• Do not allow any conductive materials to touch the guarded charger output contacts.
• Do not use a charging station which has been physically damaged.
4
MODEL DESCRIPTIONS
CHAPTER 4CHARGING STATION MODEL DESCRIPTIONS, SPECIFICATIONS, AND DIMENSIONS
4. Charging Station Model Descriptions, Specifica‐
tions, and Dimensions
4.1. Model Descriptions
4.2. Specifications (all models)
Model Description
CGSL01AF1 Charger with Station Loop peripheral wire only.
CGSL11AF1 Charger with Station Loop peripheral wire and
one Field Zone peripheral wire.
CGSL21AF1 Charger with Station Loop peripheral wire and
two Field Zone peripheral wires.
Operating Temperature 0 to 50° C
Input 120 VAC ‐60 Hz (360 W maximum)
Charge Outputs 32 VDC (320 W maximum)
Output Circuits Class 2
5
DIMENSIONS
CHAPTER 4CHARGING STATION MODEL DESCRIPTIONS, SPECIFICATIONS, AND DIMENSIONS
4.3. Dimensions
Mower Configuration Shown (A‐top view, B‐side view):
A
B
39.1 in.
(993 mm)
25.4 in.
(646 mm)
14.0 in.
(356 mm)
6
DIMENSIONS
CHAPTER 4CHARGING STATION MODEL DESCRIPTIONS, SPECIFICATIONS, AND DIMENSIONS
Range Picker Configuration Shown (A‐top view, B‐side view):
A
B
39.1 in.
(993 mm)
25.4 in.
(646 mm)
14.0 in.
(356 mm)
7
CHAPTER 5 CHARGING STATION COMPONENTS

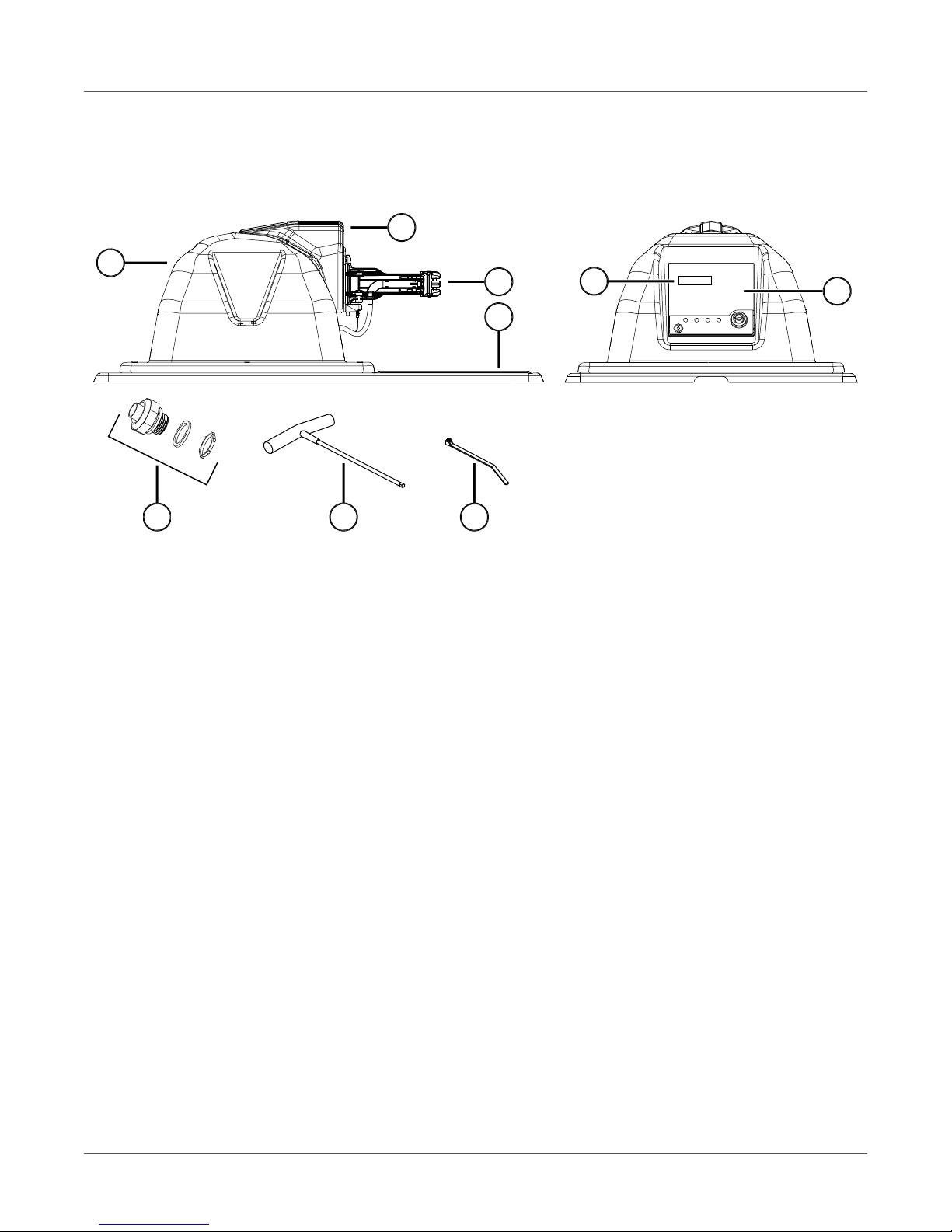

5. Charging Station Components
1 ‐Enclosure top 6 ‐Serial number location
2 ‐Dust cover 7 ‐T‐27 Torx® driver
3 ‐Charging arm 8‐Conduit connector
4 ‐Base 9 ‐Tie strap (13X)
5 ‐Input panel – Caution label
8
2
6
1
3
4
5
7 9
