Operation and Maintenance Instructions for

ec aura 115V

Part No: ec aura

Manufacturer: ebm-papst UK Ltd

Stationary class 1 motor operated appliance

with a fixed supply cord

This document, including any concepts or techniques used,

is the intellectual property of ebm-papst UK Ltd.

Original Instructions

210-OMI0014-40 Issue 4

ebm-papst UK Ltd, Chelmsford Business Park, Chelmsford, CM2 5EZ

01245 468555 [email protected] www.ebmpapst.co.uk

Page 1 of 7

Original Instructions

210-OMI0014-40 Issue 4

ebm-papst UK Ltd, Chelmsford Business Park, Chelmsford, CM2 5EZ

01245 468555 [email protected] www.ebmpapst.co.uk

Page 2 of 7

Operation and Maintenance Instructions

for ec aura

INDEX

1 DATASHEET..................................................................................................................................................................................................3

2 SUMMARY ...................................................................................................................................................................................................4

3 SUB ASSEMBLY ..........................................................................................................................................................................................5

4 CERTIFICATE OF CONFORMITY ................................................................................................................................................................6

Original Instructions

210-OMI0014-40 Issue 4

ebm-papst UK Ltd, Chelmsford Business Park, Chelmsford, CM2 5EZ

01245 468555 [email protected] www.ebmpapst.co.uk

Page 3 of 7

ec aura

Max. Ambient

Temperature

Max. Current Draw

Max. power input

Supply Voltage

Cool500ec-230

Cool500ec-115

230

115

Part Number VAC °C m3/s

dB(A)

Frequency

Hz m3/h kg

Dimensions

Standards:

The ec aura range is RoHS compliant and CE marked.

Stand alone fan offering an energy efficient low noise solution to temporary

cooling requirements.

• Robust Polyethylene moulding

• Extrusion coated polypropylene impellor

• Heavy duty powder-coated wheeled frame for effortless positioning

• Infinitely variable speed control

• Available in 230VAC & 110VAC 50/60Hz versions

• 180° adjustable tilt angle

• Maintenance-free IP54 Motor

• Supplied with standard UK 3-pin 230VAC or 110VAC plug

Maximum airflow

Sound Pressure @ 3M

Mass

Air Velocity @ 5M

Air Velocity @ 10M

Air Velocity @ 15M

Air Velocity @ 20M

m3/s m3/s m3/s

50/60

7250

2.2

3.3

kWAmps

0.36

0.37

+55

2.3

1.3

1.1

1.0

Original Instructions

210-OMI0014-40 Issue 4

ebm-papst UK Ltd, Chelmsford Business Park, Chelmsford, CM2 5EZ

01245 468555 [email protected] www.ebmpapst.co.uk

Page 4 of 7

Operating Instructions:

• Do not operate appliance in explosive atmosphere

• Do not stick fingers or objects through guards

• Keep guards clear from obstructions

• If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualified persons in order to avoid a hazard

• Do not leave under 14’s unsupervised when the appliance is in operation

Maintenance Instructions:

• This appliance contains no user serviceable parts

• Clean with damp cloth only, do not jet / power wash

Specification:

Class: Stationary class 1 motor operated appliance with a fixed supply cord

Manufacturer: ebm-papst UK Ltd

Part no: ec aura

Voltage: 115V AC 50Hz

Current: 5A

Safety:

Mains plug is a disconnection device

Earth Bond Resistance: Nominally 0.16 Ohms

End of Life:

This product has been designed to consider re-use and end-of-life disposal. The parts likely to wear during use, the tilt mechanism, electric

motor/fan and speed control unit are designed for easy repair or replacement. The manufacturer should undertake the repair of the

components, but a suitably qualified and competent person can undertake replacement of the components, enabling the life of the product

to be extended.

If the product has come to the end of its life and it is not practical to repair then the unit can be easily disassembled for the components to

be recycled. The product has been designed to meet the requirements of the RoHS directive and most of the materials can be recycled.

See next page for diagram to assist in dismantling the unit

Original Instructions

210-OMI0014-40 Issue 4

ebm-papst UK Ltd, Chelmsford Business Park, Chelmsford, CM2 5EZ

01245 468555 [email protected] www.ebmpapst.co.uk

Page 5 of 7

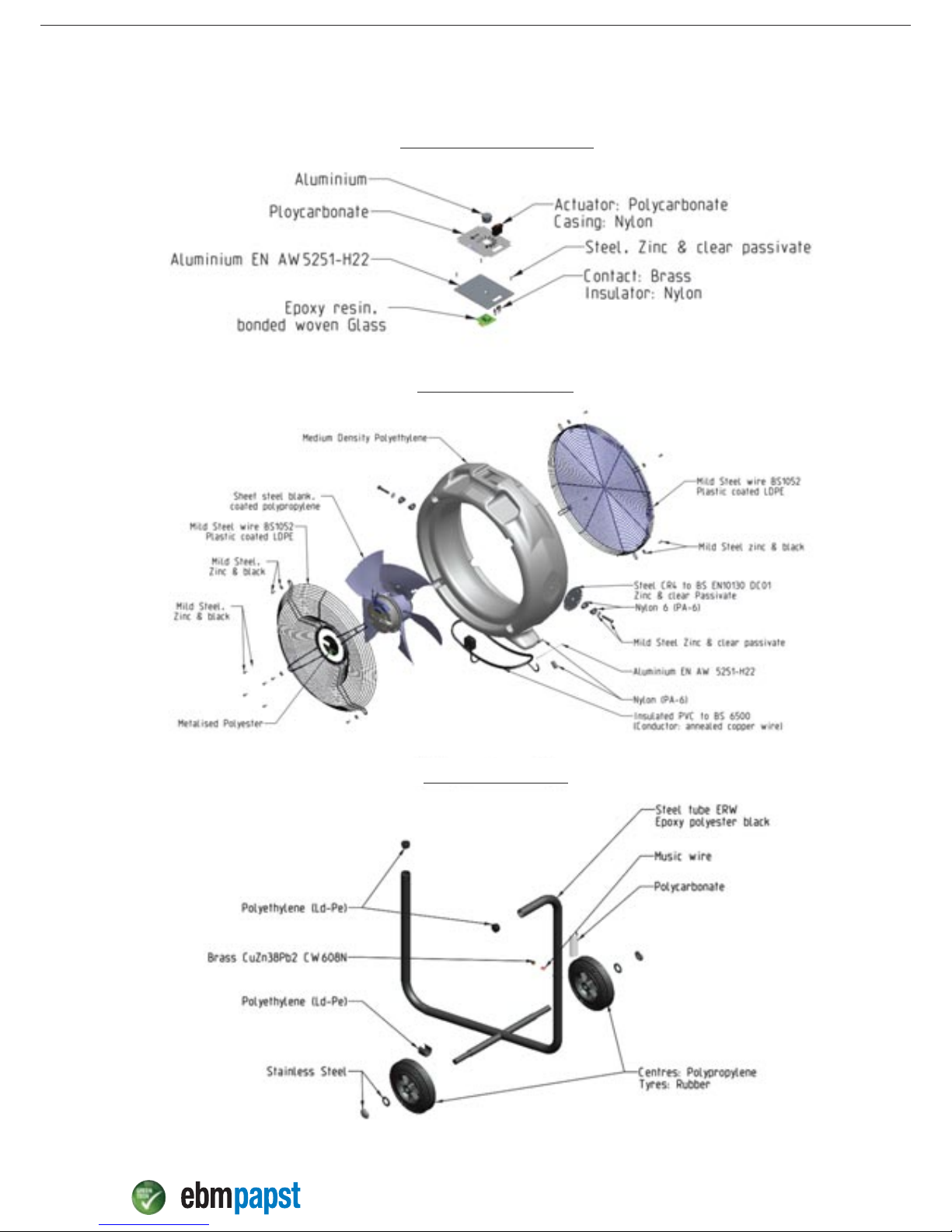

Control panel sub assembly

Housing sub assembly

Trolley sub assembly

Registered design

Original Instructions

210-OMI0014-40 Issue 4

ebm-papst UK Ltd, Chelmsford Business Park, Chelmsford, CM2 5EZ

01245 468555 [email protected] www.ebmpapst.co.uk

Page 6 of 7

4 CE Certificate, copy of front sheet
