Powerware 5125 Two-in-One UPS

2400/3000 VA

User’s Guide

Class A EMC Statements

FCC Part 15

NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

ICES-003

This Class A Interference Causing Equipment meets all requirements of the Canadian Interference Causing

Equipment Regulations ICES-003.

Cet appareil numérique de la classe A respecte toutes les exigences du Reglement sur le matériel brouilleur du

Canada.

EN 50091-2

Some configurations are classified under EN 50091-2 as “Class-A UPS for Unrestricted Sales Distribution.” For

these configurations, the following applies:

WARNING This is a Class A-UPS Product. In a domestic environment, this product may cause radio interference, in

which case, the user may be required to take additional measures.

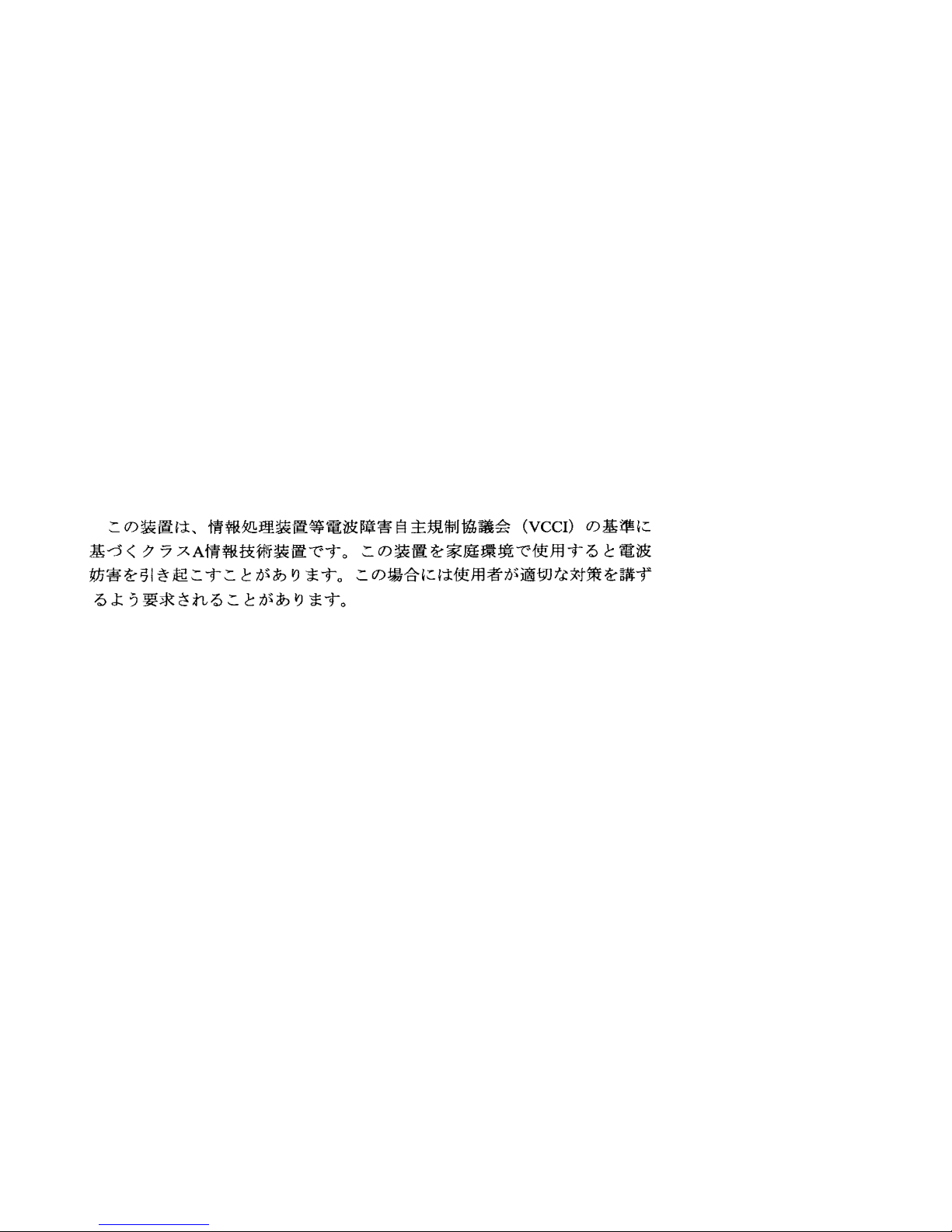

VCCI Notice

Powerware, ABM, X-Slot, LanSafe, and FERRUPS are registered trademarks and ConnectUPS is a trademark of

Eaton Electrical Inc. Modbus is a registered trademark of Modicon. AS/400 is a registered trademark of International

Business Machines Corp.

reproduced in any way without the express written approval of Eaton Corporation.

Requesting a Declaration of Conformity

Units that are labeled with a CE mark comply with the following harmonized standards and EU directives:

SHarmonized Standards: EN 50091-1-1 and EN 50091-2; IEC 60950 Third Edition

SEU Directives: 73/23/EEC, Council Directive on equipment designed for use within certain voltage limits

93/68/EEC, Amending Directive 73/23/EEC

89/336/EEC, Council Directive relating to electromagnetic compatibility

92/31/EEC, Amending Directive 89/336/EEC relating to EMC

The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC

Declaration of Conformity, contact:

Eaton Power Quality Oy

Koskelontie 13

FIN-02920 Espoo

Finland

Phone: +358-9-452 661

Fax: +358-9-452 665 68

Special Symbols

The following are examples of symbols used on the UPS or accessories to alert you to important

information:

RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the

associated warning should be observed.

CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for

additional information, such as important operating and maintenance

instructions.

This symbol indicates that you should not discard the UPS or the UPS batteries

in the trash. This product contains sealed, lead-acid batteries and must be

disposed of properly. For more information, contact your local recycling/reuse or

hazardous waste center.

This symbol indicates that you should not discard waste electrical or electronic

equipment (WEEE) in the trash. For proper disposal, contact your local

recycling/reuse or hazardous waste center.

EATON Powerware®5125 Two-in-One UPS (2400/3000 VA) User’s Guide S164201383 Rev C www.power-

ware.com

Table of Contents

1 Introduction 1.........................................................

2 Safety Warnings 3.....................................................

3 Installation 19..........................................................

Inspecting the Equipment 19................................................................

Connecting the UPS Internal Battery 20........................................................

UPS Setup 21..........................................................................

Rack-Mount Setup 21..................................................................

Tower Setup 22......................................................................

Installing the UPS 27.....................................................................

Remote Emergency Power-off Installation 29....................................................

UPS Rear Panels 31......................................................................

4 Operation 33...........................................................

Turning the UPS On 33....................................................................

Starting the UPS on Battery 33..............................................................

Turning the UPS Off 34....................................................................

Operating Modes 34.....................................................................

Normal Mode 35.....................................................................

Battery Mode 35.....................................................................

Bypass Mode 36......................................................................

Standby Mode 36.....................................................................

5 Configuration 37........................................................

6 Additional UPS Features 41...............................................

X-Slot Cards 41.........................................................................

Single-Port Card 42....................................................................

Load Segments 45.......................................................................

7 UPS Maintenance 47....................................................

UPS and Battery Care 47..................................................................

Storing the UPS and Batteries 47............................................................

Replacing the Electronics Module 48..........................................................

When to Replace Batteries 49...............................................................

TABLE OF CONTENTS

EATON Powerware®5125 Two-in-One UPS (2400/3000 VA) User’s Guide S164201383 Rev C www.power-

ware.com

Replacing Batteries 50....................................................................

How to Replace UPS Internal Batteries 50...................................................

How to Replace Extended Battery Modules 52................................................

Recycling the Used Battery or UPS 53.........................................................

8 Specifications 55.......................................................

9 Troubleshooting 59......................................................

Audible Alarms and UPS Conditions 59........................................................

Silencing an Audible Alarm 59............................................................

Service and Support 63...................................................................

10 Warranty 65...........................................................

Two-Year Limited Warranty (US and Canada) 65..................................................

Ten-Year Pro-Rated Limited Warranty (US and Canada) 67..........................................

Load Protection Guarantee (US and Canada) 69..................................................

EATON Powerware®5125 Two-in-One UPS (2400/3000 VA) User’s Guide S164201383 Rev C www.power-

ware.com

Chapter 1 Introduction

The Powerware®5125 uninterruptible power system (UPS) protects

your sensitive electronic equipment from basic power problems such as

power failures, power sags, power surges, brownouts, and line noise.

Power outages can occur when you least expect it and power

quality can be erratic. These power problems have the potential to

corrupt critical data, destroy unsaved work sessions, and damage

hardware — causing hours of lost productivity and expensive repairs.

With the Powerware 5125, you can safely eliminate the effects of power

disturbances and guard the integrity of your equipment. The Powerware

5125 is designed for critical applications such as PCs, servers,

workstations, and telecommunications equipment. Figure 1 shows the

Powerware 5125 UPS with an optional Extended Battery Module (EBM).

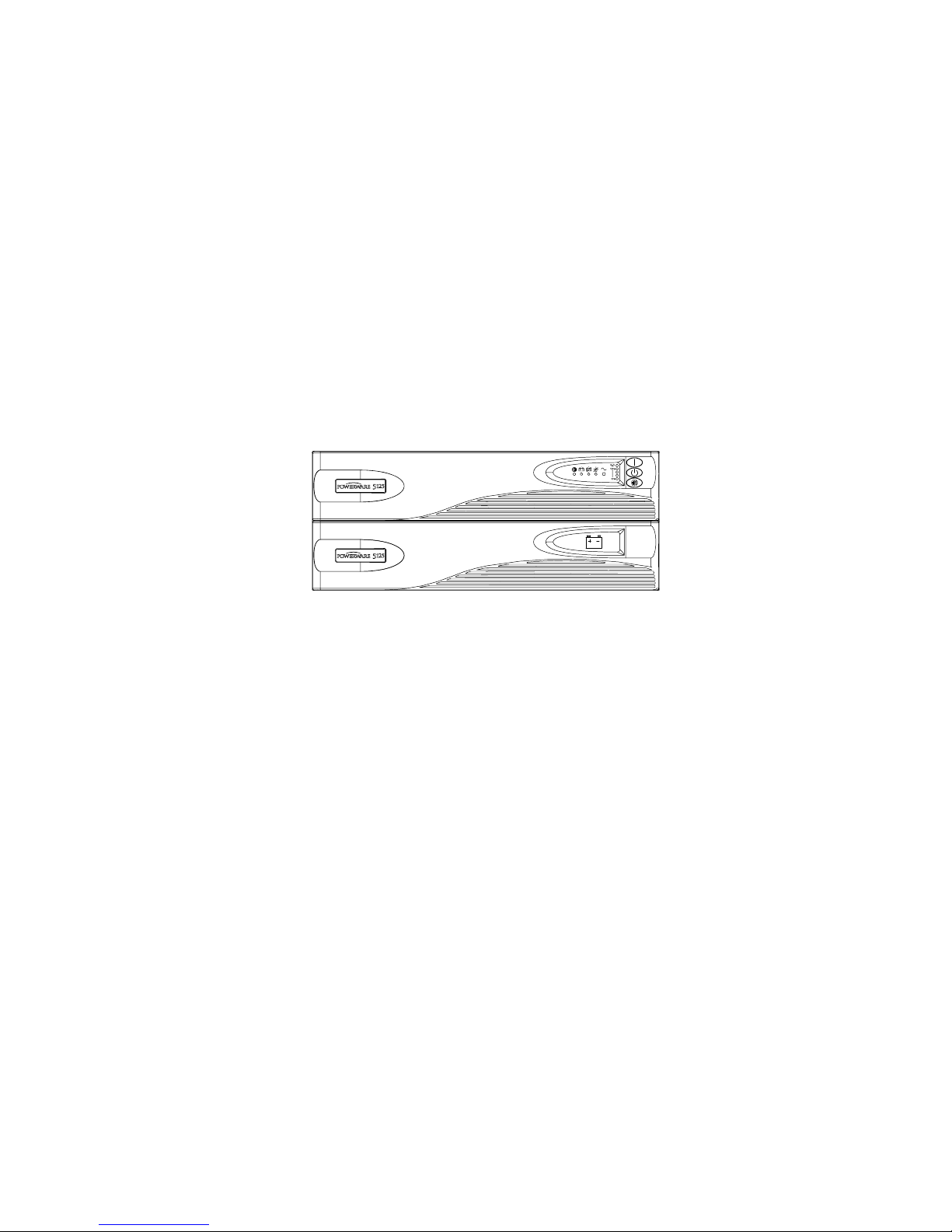

Figure 1. The Powerware 5125 UPS with Optional EBM

Providing outstanding performance and reliability, the Powerware 5125’s

unique benefits include the following:

S2U rack height that conserves valuable rack space.

STwo-in-one form factor for using the UPS in a rack-mount

configuration or as a standalone cabinet.

SABM®technology that uses advanced battery management to

increase battery service life, optimize recharge time, and provide a

warning before the end of useful battery life.

SHours of extended runtime with up to four EBMs.

SStart-on-battery capability for powering up the UPS even if utility

power is not available.

INTRODUCTION

EATON Powerware®5125 Two-in-One UPS (2400/3000 VA) User’s Guide S164201383 Rev C www.power-

ware.com

SHot-swappable batteries that simplify maintenance by allowing you to

replace batteries safely without powering down the critical load.

SEmergency shutdown control through the remote emergency

power-off (REPO) port.

SOptional X-Slot®cards with enhanced communication capabilities for

increased power protection and control.

SAdvanced power management with the Software Suite CD for

graceful shutdowns and power monitoring.

SSequential shutdown and load management through separate

receptacle groups, called load segments.

SBacked by worldwide agency approvals.

EATON Powerware®5125 Two-in-One UPS (2400/3000 VA) User’s Guide S164201383 Rev C www.power-

ware.com

Chapter 2 Safety Warnings

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions that you should follow during installation and

maintenance of the UPS and batteries. Please read all instructions before operating the

equipment and save this manual for future reference.

DANGER

This UPS contains LETHAL VOLTAGES. All repairs and service should be performed by

AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE PARTS

inside the UPS.

WARNING

SThis UPS contains its own energy source (batteries). The output receptacles may carry

live voltage even when the UPS is not connected to an AC supply.

SFor 200–240V models, the output receptacles may remain electrically live. If the input

power source in your application is wired line-to-neutral (as in most European

applications), the voltage to the output receptacles is 0V. With line-to-line input wiring,

the voltage to the output receptacles is 100–120V (measured from line-to-ground or

line-to-neutral, depending on the UPS wiring).

SDo not remove or unplug the input cord when the UPS is turned on. This removes the

safety ground from the UPS and the equipment connected to the UPS.

STo reduce the risk of fire or electric shock, install this UPS in a temperature and humidity

controlled, indoor environment, free of conductive contaminants. Ambient temperature

must not exceed 40°C (104°F). Do not operate near water or excessive humidity (95%

maximum).

STo comply with international standards and wiring regulations, the total equipment

connected to the output of this UPS must not have an earth leakage current greater than

2.5 milliamperes.

SAFETY WARNINGS

EATON Powerware®5125 Two-in-One UPS (2400/3000 VA) User’s Guide S164201383 Rev C www.power-

ware.com

CAUTION

SBatteries can present a risk of electrical shock or burn from high short-circuit current.

Observe proper precautions. Servicing should be performed by qualified service

personnel knowledgeable of batteries and required precautions. Keep unauthorized

personnel away from batteries.

SProper disposal of batteries is required. Refer to your local codes for disposal

requirements.

SNever dispose of batteries in a fire. Batteries may explode when exposed to flame.

Sikkerhedsanvisninger

VIGTIGE SIKKERHEDSANVISNINGER

GEM DISSE ANVISNINGER

Denne manual indeholder vigtige instruktioner, som skal følges under installation og

vedligeholdelse af UPS’en og batterierne. Læs venligst alle instruktioner inden betjening af

udstyret og gem denne manual mhp. fremtidige opslag.

FARE

Denne UPS indeholder LIVSFARLIG HØJSPÆNDING. Alle reparationer og vedligeholdelse bør

kun udføres af en AUTORISERET SERVICETEKNIKER. Ingen af UPS’ens indvendige dele kan

repareres af brugeren.

ADVARSEL!

SDenne UPS indeholder sin egen energikilde (batterier). Udgangsstikkene kan endog være

strømførende, når UPS’en ikke er koblet til en vekselstrømsforsyning.

SPå 200–240V-modeller kan udgangsstikkene være strømførende. Hvis ledningsføringen

til indgangsstrømkilden på din enhed er fase-til-neutral (som på de fleste europæiske

enheder), er spændingen til udgangsstikkene 0V. Med en fase-til-fase

indgangsledningsføring er spændingen til udgangsstikkene 100–120V (målt fra

fase-til-jord eller fase-til-neutral, afhængig af UPS-ledningsføringen).

SNetledningen må ikke fjernes og stikket må ikke trækkes ud, mens UPS’en er tændt.

Dette fjerner sikkerhedsjorden fra UPS’en og fra det udstyr, der er sat til.

SInstallér denne UPS i et temperatur- og fugtighedskontrolleret indendørsmiljø, frit for

ledende forureningsstoffer for at formindske risikoen for brand og elektrisk stød.

Rumtemperaturen må ikke overstige 40°C. UPS’en bør ikke betjenes nær vand eller høj

fugtighed (maksimalt 95%).

SI overensstemmelse med internationale normer og bestemmelser for el-installation må

det udstyr, der er forbundet til udgangen af denne UPS, tilsammen ikke overskride en

jordafdelingsspænding på mere end 2,5 milliampere.

Otros manuales para Powerware 5125

Tabla de contenidos

Otros manuales de Unión Postal Universal de Eaton

Eaton

Eaton 91PS Manual de usuario

Eaton

Eaton 93E MK2 Manual de usuario

Eaton

Eaton Powerware 9130 Manual de usuario

Eaton

Eaton Power Xpert 9395 Manual

Eaton

Eaton 5E 500 Manual de usuario

Eaton

Eaton EX 2200 RT 2U Manual de usuario

Eaton

Eaton Power Xpert 9395 Manual de usuario

Eaton

Eaton 9PX 1:1 Guía de inicio rápido

Eaton

Eaton Evolution 650/650 Rack 1UEvolution 850 Manual de usuario

Eaton

Eaton 9PX EBM 240V Manual de usuario

Eaton

Eaton 550i Manual de usuario

Eaton

Eaton 3S 550 Manual de usuario

Eaton

Eaton Powerware 9390 Manual de usuario

Eaton

Eaton 9PX1000IRTANZ-L Manual de usuario

Eaton

Eaton Powerware 9910-E64 Manual de usuario

Eaton

Eaton Power Xpert 9395 550/275 Manual de usuario

Eaton

Eaton 9395 Plus 1 Manual de usuario

Eaton

Eaton TRIPP LITE Series Instrucciones de montaje

Eaton

Eaton 3S Instrucciones de montaje

Eaton

Eaton Powerware 5125 Instrucciones de funcionamiento y seguridad

Eaton

Eaton 9SX 15KPM Serie Manual de usuario

Eaton

Eaton 9PX 1000i Manual de usuario

Eaton

Eaton 5P750RC Manual de usuario

Eaton

Eaton 5P 650i Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario

ZincFive

ZincFive BC Series Manual de usuario
