Eaton Powerware 5125 Instrucciones de funcionamiento y seguridad

1000 - 2000VA

User’s Manual 1019297

RevisionA

18

Use the following procedure to replace internal batteries:

1. Remove the UPS front panel by pulling the top.

2. Slide up and remove the metal battery cover.

3. 1000 VA units. Disconnect the red battery cable on the front of the battery. Pull the

battery out onto a flat, stable surface. Disconnect the black battery cable on the rear

of the battery, then on the front of the battery. Disconnect the red battery cable on

the rear of the battery. See “Recycling the Used Battery” on page 20 for proper

disposal.

1000 - 2200VA

User’s Manual

1019297

Revision A 19

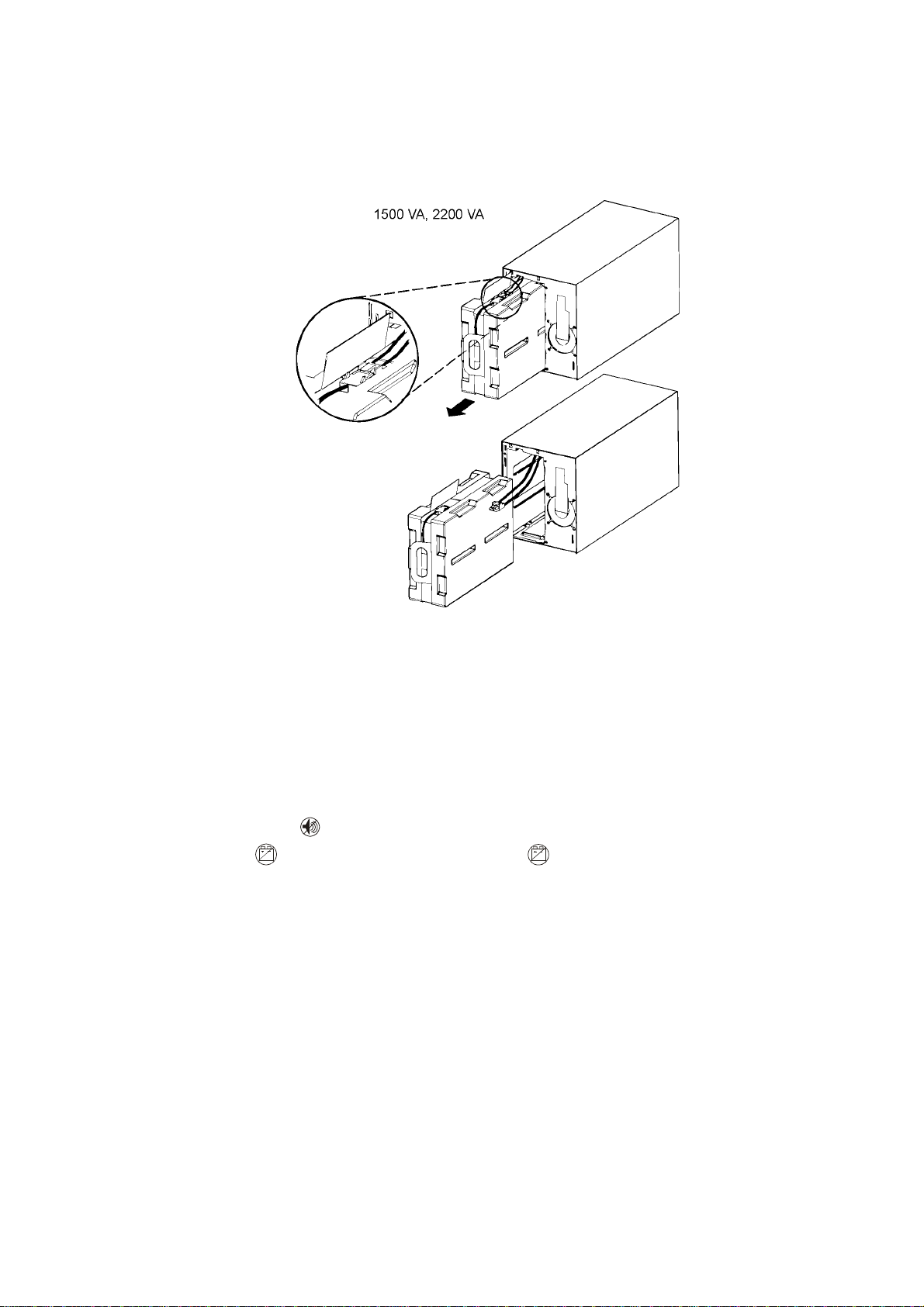

4. 1500 and 2200 VA units. Pull the battery out onto a flat, stable surface. Press on the

black tab on the battery cable connector to disconnect the battery. See “Recycling

the Used Battery” on page 20 for proper disposal.

5. Install the new batteries in the reverse order of removal.

6. Reinstall the metal battery cover removed in Step 2. Replace the front panel.

Testing New Batteries

Press and hold the button for three seconds to initiate a self–test. After the test is

finished, the indicator should turn off. If the indicator stays on, check the battery

connections.Callyourservicerepresentativeif theproblempersists.
