Eaton Ulusoy URING36 - LLF Manual de usuario

Ulusoy URING36 L-SF6Insulated

Incoming&Outgoing RMU Switchgear

with Load Break Switch

User Manual

www.eaton.com

SWITCHGEAR INTRODUCTION

SWITCHGEAR DIMENSIONS AND CHECKS BEFORE POWERING

USE TEST TO BE PERFORMED BEFORE POWERING

POWERING THE INPUT LOW VOLTAGE CABLES AND PHASE CONFORMITY TEST

OPERATIONAL INSTRUCTIONS

OPERATIONAL INSTRUCTIONS: EARTHING DISCONNECTOR MANEUVERS

OPERATIONAL INSTRUCTIONS: LOAD DISCONNECTOR MANEUVERS

ATTACHING PADLOCK

REPLACING THE VOLTAGE INDICATOR

TROUBLESHOOTING

ELECTRIC TERMINAL SCHEME

CONTENTS

SWITCHGEAR INTRODUCTION

REMOTE CONTROL SOCKET

CELL TYPE LABEL

CLOSING SPRING ASSEMBLY HOUSING

PADLOCK HOUSING

ON OFF BUTTONS

CELL FRONT COVER

EARTHING DISCONNECTOR CONTROL

HOUSING

CELL OPERATION ORDER

VOLTAGE INDICATOR LIGHTS

MECHANICAL ASSEMBLY ENGINE IS

OPTIONAL.

1LOW VOLTAGE BOARD

2MECHANISM SECTION

3HEAD CONNECTION TERMINAL

4CABLE CONNECTION CLAMPS

5BAR CONNECTION TERMINALS

SINGLE LINE SCHEME

TOPRAK

LBSG 36

OPSİYONELDİR

TOPRAK

LBSG 36

GİRİŞÇIKIŞRMU

36kV/630A/16kA -1S

www.ulusoyelektrik.com.tr

DİKKAT

YÜKAYIRICISI

YAYKURMA

Ud/Up:70/170kVIP3X

IEC:62271-200

DIMENSIONS (in millimeters)

Place the switchgear

front cover.

Checks before powering the switchgear

Check if there are foreign objects in the switchgear.

Check the connections of the switchgear.

Check if the front cover is placed correctly.

450

1800

TOPRAK

LBSG 36

860

1800

Kapama yayı

kurma yuvası

Padlock

key

Operation order

label

Load disconnector

Position indicator

Earthing disconnector

control housing

Earthing disconnector

Position indicator

Engine assembly

paco

Remote

control

socket

Voltage

indicator

BUTTON

OFF

BUTTON

CHECK TO BE PERFORMED BEFORE

POWERING THE SWITCHGEAR

(See the operational instructions section.)

Operate the load disconnector and earthing disconnector a few times for check.

After manually assembling load disconnector mechanism, operate it with buttons a few times.

Low voltage board control panel of GMH 36-01 cells

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCR E GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİ KESMEDEN

TOPRAK AYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEMSIRASI

TOPRAK

AYIRICISINI

AÇ YAYKUR

HÜCRE

KAPISINI

KAPAT

YÜK

AYIRICISINI

KAPAT

YÜK

AYIRICISINI

AÇ

HÜCREDE

ISLEM

VARMI?

HAYIR

EVET

TOPRAK

AYIRICISINI

KAPAT

HÜCRE

KAPISINI

AÇ

36kV / 630A/ 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

Load disconnector is on

Earthing disconnector is on

Phase conformity test

If the phases conform, light is off.

If the phases do not conform, light is on.

(Test device cannot be delivered with cells.)

Cable test

Serial light

POWERING THE INPUT MEDIUM VOLTAGE

CABLES

Load disconnector and earthing

disconnector must be on. (See

operational instructions section.)

In Output Cells To check cable faults.

Turn the disconnector on.

Break the power of the cell from previous center and

perform the earthing of the cables.

Turn the earthing disconnector off.

Open the cell front cover.

Place the cable test device.

Turn the earthing disconnector on from both sides.

Perform the required measurements.

Voltage indicator

When input cables are powered, voltage

indicator lights must be on.

Turn the disconnector on.

Turn the earthing disconnector off.

Open the cell front cover.

Place the cable test device.

Turn the earthing disconnector on.

Perform the required measurements.

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İSE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİ KESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

YÜKAYIRICISI

TOPRAKAYIRICISI

Manual use and front appearance

OPERATIONAL INSTRUCTIONS

At the beginning after the assembly works are nished;

Earthing disconnector is off,

Closing spring is idle (load disconnector is on), Cell front cover is open.

After closing the cell front cover;

Earthing disconnector is off, Closing spring is idle (load disconnector is on), Cell front cover is

closed.

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İSE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİ KESMEDEN

TOPRAK AYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEMSIRASI

TOPRAK

AYIRICISINI

AÇ YAYKUR

HÜCRE

KAPISINI

KAPAT

YÜK

AYIRICISINI

KAPAT

YÜK

AYIRICISINI

AÇ

HÜCREDE

ISLEM

VARMI?

HAYIR

EVET

TOPRAK

AYIRICISINI

KAPAT

HÜCRE

KAPISINI

AÇ

I 0

36kV / 630A/ 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İSE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİ KESMEDEN

TOPRAK AYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEMSIRASI

TOPRAK

AYIRICISINI

AÇ YAYKUR

HÜCRE

KAPISINI

KAPAT

YÜK

AYIRICISINI

KAPAT

YÜK

AYIRICISINI

AÇ

HÜCREDE

ISLEM

VARMI?

HAYIR

EVET

TOPRAK

AYIRICISINI

KAPAT

HÜCRE

KAPISINI

AÇ

I 0

36kV / 630A/ 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

Earthing disconnector maneuvers

Turning the earthing disconnector on:

Place the assembly lever into the earthing

disconnector assembly housing as shown in

the gure and rotate it in arrow direction.

Position of earthing disconnector after

turning on:

Earthing disconnector is on, Closing spring is

idle (load disconnector is on).

Turning the earthing disconnector off:

Place the assembly lever into the earthing

disconnector assembly housing and rotate in

arrow direction.

Position of earthing disconnector after

turning off:

Earthing disconnector is off, Closing spring is

idle (load disconnector is on).

OPERATION INSTRUCTIONS

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİKESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİKESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I 0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİKESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I 0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİKESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

Load disconnector maneuvers

Assembling the closing spring:

Place the assembly lever to spring assembly housing as shown in

the gure and rotate it in arrow direction.

Ensure that it makes the assembly sound when assembling the

closing spring. If there is a spring assembly engine in the cell,

the spring shall automatically be assembled when the low voltage

fuses are off.

After the assembly of the closing spring:

Earthing disconnector is on, Closing spring is assembled (load

disconnector is no)

Turning the load disconnector off:

To turn the load disconnector off, press the off button.

Or plug the remote control given with the cell group into the

remote socket and press the off button.

Position of load disconnector after turning off:

Earthing disconnector is no, opening spring is assembled Load

disconnector is off

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİKESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I 0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİKESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİ KESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

Kapama

butonu

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİ KESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

OPERATIONAL INSTRUCTIONS

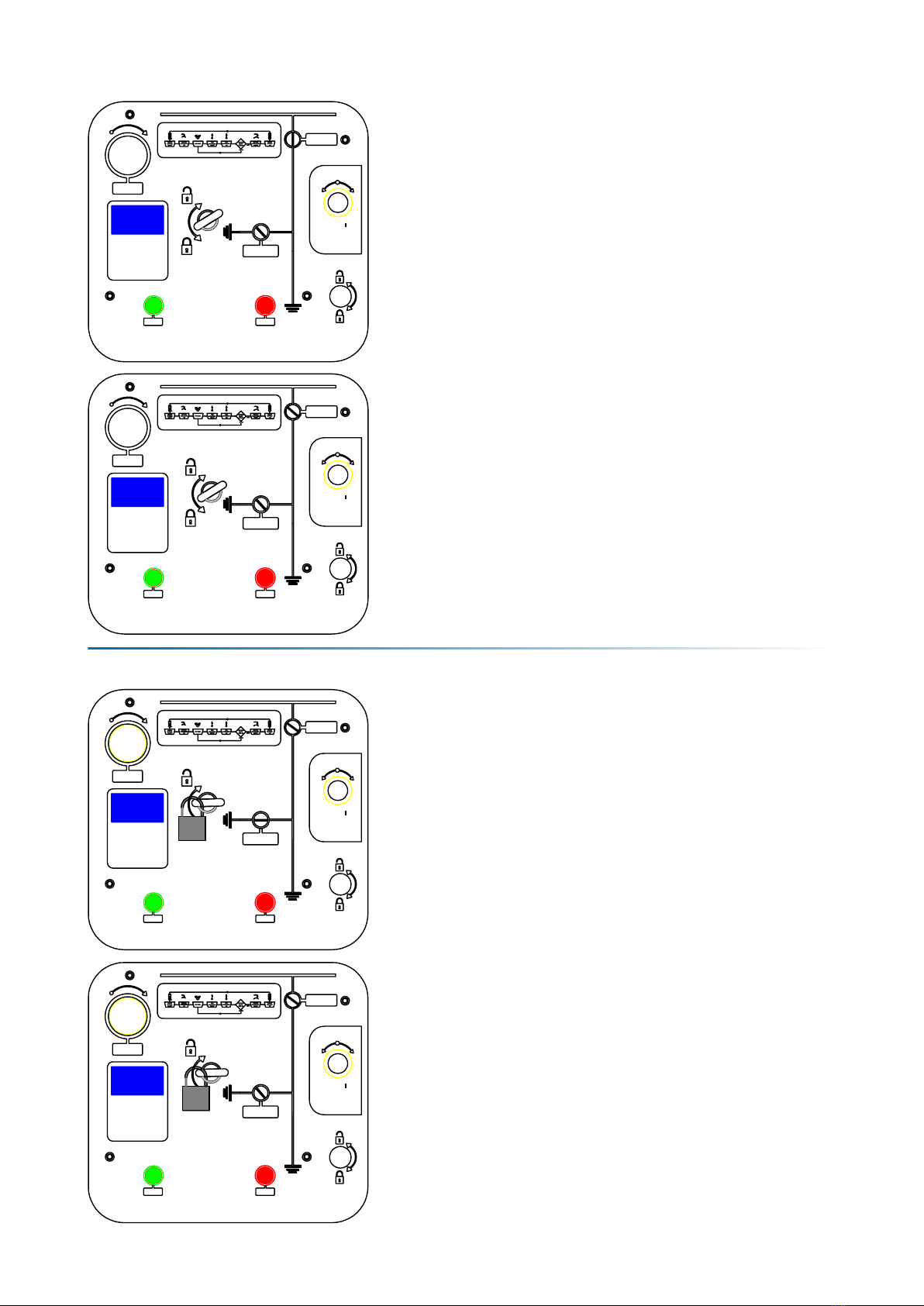

Attaching Padlock

Turning the load disconnector on:

To turn the load disconnector on, press the on button.

Or plug the remote control given with the cell group into

the remote socket and press the on button.

Position of load disconnector after turning on:

Earthing disconnector is on, load disconnector is on

Closing spring is idle

Locking with padlock when earthing disconnector is off,

load disconnector is on:

To put the padlock, rotate the padlock key to the right,

close the earthing assembly housing and put the padlock.

Locking with padlock when earthing disconnector is on,

load disconnector is on:

This lock is used in order to prevent the earthing

disconnector from turning off when there is energy in

input cells.

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİKESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

Açma

butonu

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİKESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I 0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİ KESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

TOPRAK

LBSG 36

GİRİŞ ÇIKIŞ RMU

www.ulusoyelektrik.com.tr

DİKKAT

BU HÜCRE GİRİŞ HÜCRESİ OLARAK

KULLANILIYOR İ SE,BİRÖNCEKİ

MERKEZDEN ENERJİSİNİ KESMEDEN

TOPRAKAYIRICISINI

KAPATMAYINIZ.

YÜKAYIRICISI

YAYKURMA

TOPRAKAYIRICISI

KAPAMA

AÇMA

İŞLEM SIRASI

0I0

36kV/ 630A / 16kA -1S

Ud/Up :70/170kV IP3X

IEC :62271-200

Otros manuales para Ulusoy URING36 - LLF

Tabla de contenidos

Otros manuales de Electricidad industrial de Eaton

Eaton

Eaton ESF-E30 Series Manual de servicio

Eaton

Eaton MSFB Series Manual

Eaton

Eaton Cutler-Hammer I.B. 48020 Manual de usuario

Eaton

Eaton easyE4 series Manual de usuario

Eaton

Eaton CEAG SOU CG-S 2 x 4A Manual de servicio

Eaton

Eaton R9N2600FJ Manual de usuario

Eaton

Eaton COOPER POWER SERIES Manual de usuario

Eaton

Eaton M22 ADC Series Manual

Eaton

Eaton Crouse-Hinds GHG511 Series Manual de usuario

Eaton

Eaton VHI20-PKZ0 Manual

Eaton

Eaton N4-4-S1-PV-NA Series Manual

Eaton

Eaton Cutler-Hammer SJA Manual de usuario

Eaton

Eaton CROUSE-HINDS Ex - d Series Manual de usuario

Eaton

Eaton DILM150-XHI Series Manual

Eaton

Eaton E-PKZ0 Manual

Eaton

Eaton BZM1 Series Manual

Eaton

Eaton MSC-R Series Manual

Eaton

Eaton Power Defense PDG2 Manual

Eaton

Eaton DX-BR Series Manual

Eaton

Eaton SDAINLM320 Manual

Eaton

Eaton Power Defense NZM-XBZ225 Manual

Eaton

Eaton MVS B-EM Series Manual

Eaton

Eaton XTCE040D Series Manual

Eaton

Eaton 75VCPW-VSR Manual de usuario

Manuales populares de Electricidad industrial de otras marcas

Rexroth Indramat

Rexroth Indramat DURADRIVE SYSTEM200 Manual técnico

Abtech

Abtech HVJB Series Guía

Murata

Murata GRM0335C1H8R1DA01 Series Manual de usuario

SAF-HOLLAND

SAF-HOLLAND CBX 5415.5 Manual de usuario

Newlong

Newlong NP-7H Manual de usuario

Murata

Murata GJM0335C1E4R4BB01 Series Manual de usuario

Stahl

Stahl 8575/12 Manual de usuario

SI Pegasus Manual de usuario

Murata

Murata GRM1555C1H2R7CA01 Seies Manual de usuario

Murata

Murata GRM0225C1E6R4BA03 Series Manual de usuario

Cooper Power Systems

Cooper Power Systems VXE15 Manual de usuario

S&C

S&C Vista SD Manual de usuario

Murata

Murata GRM0335C2A7R3CA01 Series Manual de usuario

Siemens

Siemens 3VA9988-0BM10 Manual de usuario

Siemens

Siemens SITRANS LVS100 Manual de usuario

Murata

Murata GRM32ER60G227ME05 Series Manual de usuario

Siemens

Siemens SENTRON SUPERSWITCH 3KL82 Series Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley MP-Series Manual de usuario
